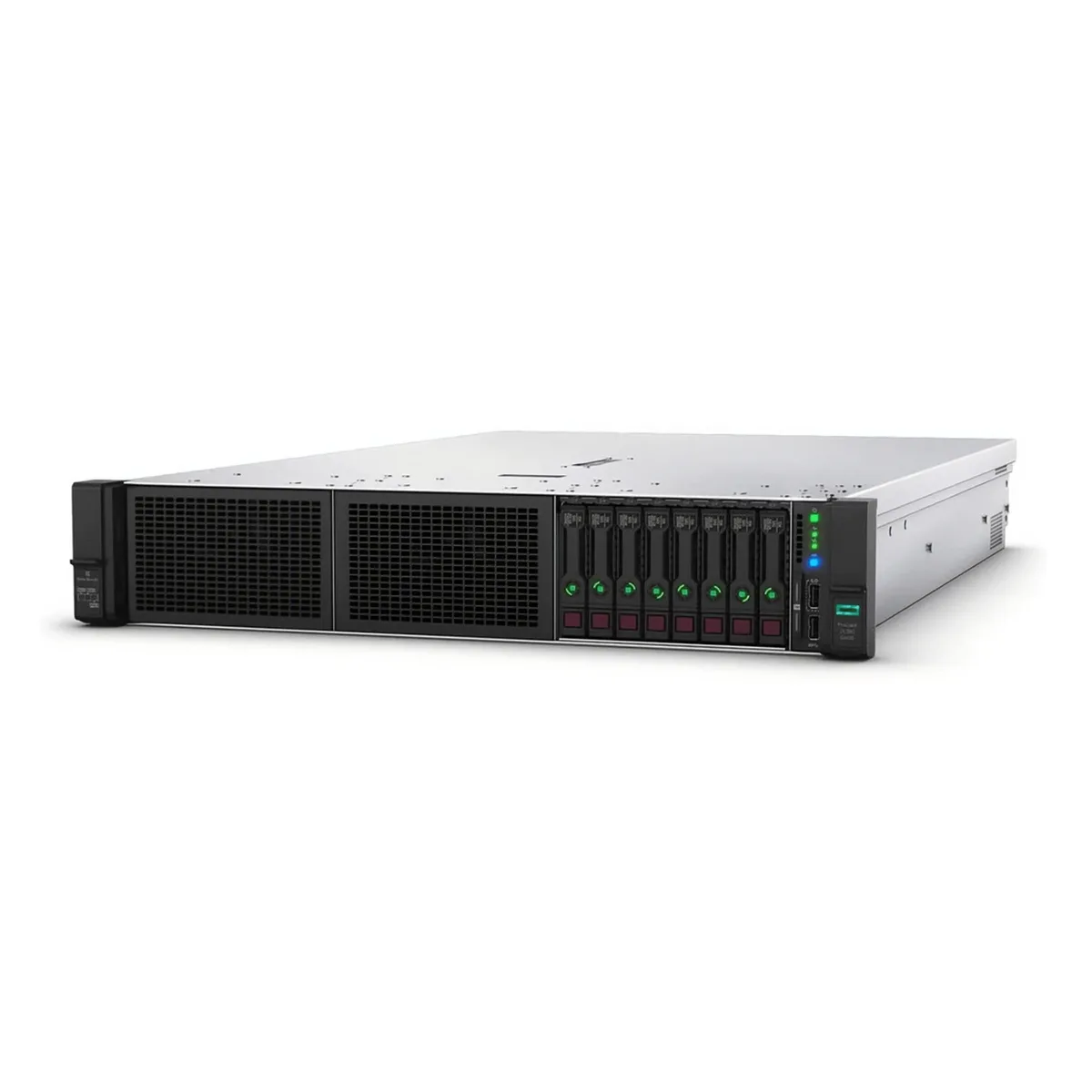

Silver 2U rackmount server with eight 2.5 inch drive bays front panel

HP

HP DL380 Gen10 8B SFF 2× Xeon Gold 6134 32GB DDR4 8× 1.92TB SATA SSD

SKU CH-1E1M-P8PXP

Rackmount server with dual 8-core Xeon Gold 6134 CPUs, 32GB DDR4, eight 1.92TB SATA SSDs and P408i-a SAS controller

  • TypeRackmount
  • LEDsPower, Ethernet, USB
  • CPU TypeGold 6134
  • CPU Speed3.20GHz
  • Number of CPU Cores8
  • # of Processors Installed2
  • Dual Xeon Gold 6134 CPUs provide 16 cores at 3.20GHz for demanding workloads
  • 32GB DDR4 memory supports multiple virtual machines and applications
  • Eight 1.92TB SATA SSDs deliver high-speed enterprise storage capacity
  • P408i-a SAS controller enables RAID protection and simplified management
  • Quad-port 331FLR 1Gb Ethernet offers flexible network connectivity

Dual-processor rack server

The HP DL380 Gen10 is a 2U rackmount system equipped with two Intel Xeon Gold 6134 processors, each running at 3.20GHz with eight cores. It ships with 32GB of DDR4 memory and eight 1.92TB SATA SSDs managed by a P408i-a controller. This configuration targets businesses that need consolidated virtualization, database or application hosting capacity in a standard rack.

Thermals and power

Dual processors and eight drives generate significant heat inside the 2U chassis, so the integrated fan array runs continuously to maintain safe inlet temperatures. Power draw scales with CPU utilisation and drive activity, and the four 1Gb Ethernet ports on the 331FLR adapter add a modest but constant load. Operators should plan for adequate rack airflow and redundant power circuits to match the sustained demand.

Build and connectivity

The server uses eight 2.5-inch drive bays, all populated with the supplied SSDs, leaving no internal bays free for expansion without removing drives. The P408i-a controller provides 12Gb/s SAS connectivity to the backplane, while the quad-port 1Gb NIC offers link aggregation or segregated traffic options. Front-panel LEDs indicate power, network and USB status for quick health checks. Buyers who need more than eight drives or 10Gb networking must add expansion cards or external enclosures.

Highlights

  • Dual Xeon Gold 6134 CPUs provide 16 cores at 3.20GHz for demanding workloads
  • 32GB DDR4 memory supports multiple virtual machines and applications
  • Eight 1.92TB SATA SSDs deliver high-speed enterprise storage capacity
  • P408i-a SAS controller enables RAID protection and simplified management
  • Quad-port 331FLR 1Gb Ethernet offers flexible network connectivity

Specifications

BrandHP
TypeRackmount
LEDsPower, Ethernet, USB
CPU TypeGold 6134
CPU Speed3.20GHz
Number of CPU Cores8
# of Processors Installed2
MAX Processors2
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity3TB
GPU TypeIntegrated
Expansion Bays8x 2.5" Drive Bays
Operating SystemNo
Weight60

Questions about this item

How do I install the server into a rack and which step is often missed?

Mount the 2U chassis using the included sliding rails, then seat each of the eight 2.5" drive carriers until they click — the step people skip is fully locking the carrier latch so the SATA connector mates with the P408i-a backplane.

What maintenance or replacement will the eight 1.92TB enterprise SSDs need later?

The SSDs are rated for enterprise write endurance; monitor SMART wear indicators and replace any drive once its media-wear gauge approaches the threshold — the P408i-a controller will flag the bay with an amber LED.

What limit appears first when the dual Xeon Gold 6134 CPUs run sustained workloads?

The 32GB DDR4 capacity fills before the 16 total cores saturate, so memory pressure becomes the first bottleneck for heavily virtualised or database workloads.
