HP
HP DL380 Gen10 8B SFF rack server 2x Xeon Gold 6140 32GB DDR4 8x 1.92TB SATA SSD P408i-a
Dual 18-core Xeon Gold 6140 processors, 32GB DDR4 RAM and eight 1.92TB SATA SSDs in a 2U rackmount with hot-swap bays and P408i-a RAID
- TypeRackmount
- LEDsPower, Ethernet, USB
- CPU TypeGold 6140
- CPU Speed2.30GHz
- Number of CPU Cores18
- # of Processors Installed2
- 36-core dual Xeon Gold 6140 CPUs deliver high-throughput compute for virtualization and databases
- 32GB DDR4 memory supports multiple concurrent virtual machines and data-intensive applications
- Eight 1.92TB SATA SSDs provide fast, high-capacity storage for OS, apps and backups
- P408i-a SAS controller enables hardware RAID for data protection and simplified management

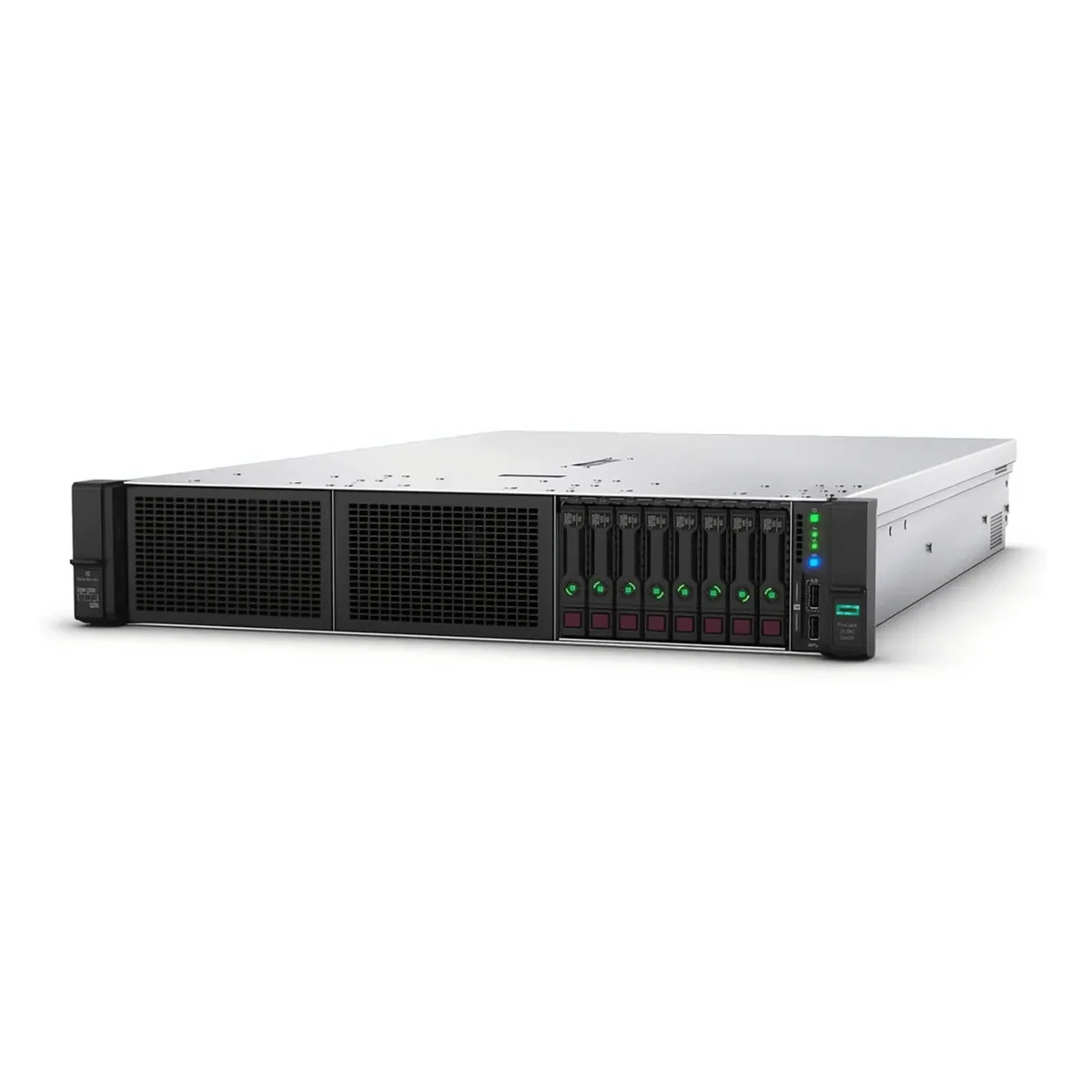

- 2U rackmount with 8 hot-swap 2.5" bays allows easy drive expansion and maintenance
Dual 18-core Xeon Gold 6140 rack server
The HP DL380 Gen10 2U rackmount server carries two Intel Xeon Gold 6140 processors, each running at 2.30GHz with 18 cores for a total of 36 cores. Thirty-two gigabytes of DDR4 memory and eight 1.92TB SATA SSDs are installed, served by an integrated P408i-a SAS controller. It targets businesses that need a ready-to-run platform for virtualization, databases or application hosting.
Suits virtualization hosts needing dense SATA
This configuration fits teams consolidating multiple virtual machines or hosting business applications where hot-swap 2.5-inch drive bays simplify maintenance. Buyers who require GPU acceleration, larger initial memory footprints or a different storage interface should evaluate alternative platforms.
36 total cores from dual Gold 6140 CPUs
The pair of 18-core Xeon Gold 6140 processors delivers 36 cores at 2.30GHz, setting the compute ceiling for every workload on this chassis. Memory can grow to 3TB and the eight drive bays are fully populated, so processor core count is the fixed specification that determines whether this server matches the project.
Highlights
- 36-core dual Xeon Gold 6140 CPUs deliver high-throughput compute for virtualization and databases
- 32GB DDR4 memory supports multiple concurrent virtual machines and data-intensive applications
- Eight 1.92TB SATA SSDs provide fast, high-capacity storage for OS, apps and backups
- P408i-a SAS controller enables hardware RAID for data protection and simplified management
- 2U rackmount with 8 hot-swap 2.5" bays allows easy drive expansion and maintenance
Specifications
| Brand | HP |
|---|---|
| Type | Rackmount |
| LEDs | Power, Ethernet, USB |
| CPU Type | Gold 6140 |
| CPU Speed | 2.30GHz |
| Number of CPU Cores | 18 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 32GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| GPU Type | Integrated |
| Expansion Bays | 8x 2.5" Drive Bays |
| Operating System | No |
| Weight | 60 |
Questions about this item
Will the P408i-a RAID controller recognise my existing 12 Gb/s SAS drives in the 2.5-inch hot-swap bays?
Yes — the P408i-a is a 12 Gb/s SAS controller and the server provides eight 2.5-inch hot-swap bays that accept SAS SSDs or HDDs alongside the installed SATA SSDs.
Which front-panel LEDs confirm the dual Xeon Gold 6140 CPUs and 32 GB DDR4 are operating after power-on?
The Power LED shows system state, while the Ethernet and USB LEDs indicate network and peripheral activity once the CPUs and memory have initialised.
Does the shipment include the quad-port 1 Gb Ethernet adapter and the two Xeon Gold 6140 processors already fitted?
The server ships with both Xeon Gold 6140 CPUs installed, 32 GB DDR4 memory, eight 1.92 TB SATA SSDs, the P408i-a controller and the HP 331FLR quad-port 1 Gb Ethernet adapter.
