HP EliteDesk 800 G4 i5-8500 3GHz 8GB 256GB AI edge system 5JY27US#ABA

Compact AI-ready desktop

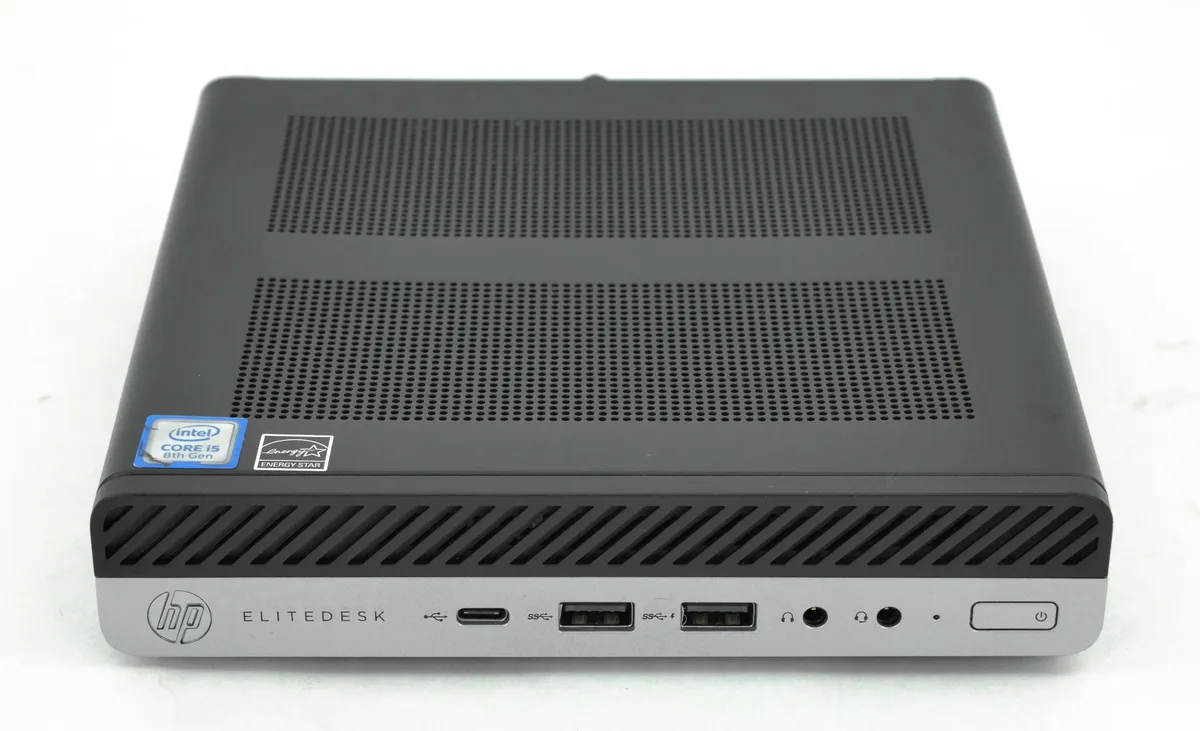

The HP EliteDesk 800 G4 is a new small-form-factor system built around an Intel Core i5-8500 processor running at 3 GHz with six cores and six threads. It ships with 8 GB of memory and a 256 GB SSD, and Windows 10 is pre-installed. The integrated Intel UHD Graphics 630 drives up to three DisplayPort monitors for multi-screen workflows. This unit targets edge-AI inference, digital-signage players and light industrial automation where a quiet, space-saving PC is required.

Build integration and connectivity

The chassis provides six USB Type-A ports, one USB Type-C port, two 3.5 mm audio jacks, three DisplayPort outputs and a single RJ-45 Ethernet link. No discrete graphics card is needed, freeing expansion slots and reducing cable count. The compact footprint suits DIN-rail or VESA mounting in cabinets where full-size towers cannot fit. Buyers who need additional PCIe add-in cards, a second network interface or internal 3.5-inch drive bays will find this platform does not accommodate them.

Sustained-load behaviour

Under continuous inference or video-transcode workloads the six-core CPU maintains its base frequency while the integrated GPU shares the same thermal envelope. The fanless heatsink design keeps acoustic output low in noise-sensitive environments. Thermal throttling may engage during prolonged maximum utilisation, so workloads that demand constant peak turbo across all cores should be profiled before deployment. The 256 GB SSD provides consistent read latency for model loading without the variance of mechanical drives.
