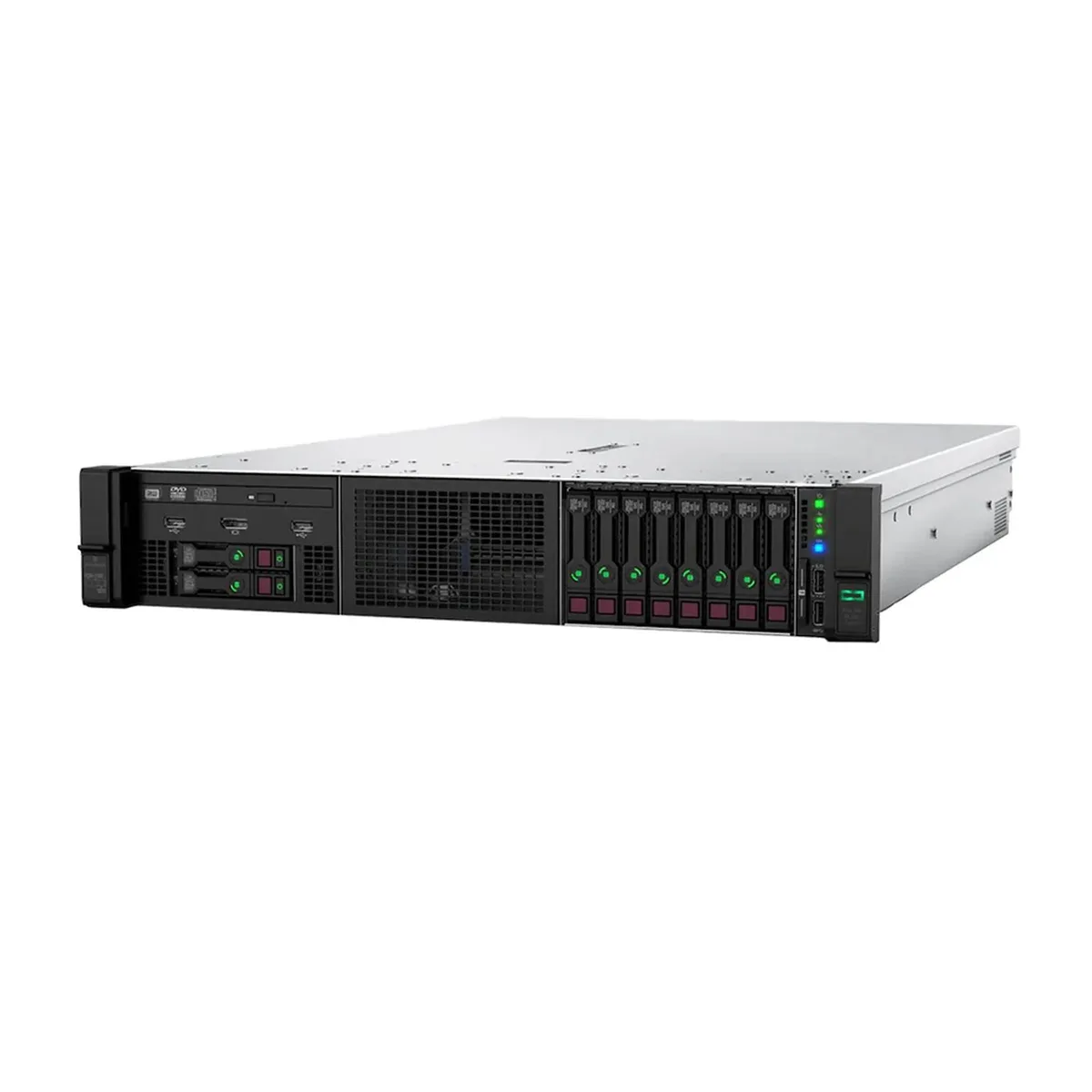

HP ProLiant DL380 Gen10 10 Bay SFF Xeon Gold 6136 1TB DDR4 331FLR Quad Port NIC rack server
A 2U rack server with dual 12-core Xeon Gold 6136 CPUs, 1 TB DDR4 memory, a quad-port 331FLR NIC, and ten 2.5-inch drive bays for virtualization and database workloads
- TypeRackmount
- LEDsPower, Ethernet, USB
- CPU TypeGold 6136
- CPU Speed3.00GHz
- Number of CPU Cores12
- # of Processors Installed2
- Dual Xeon Gold 6136 processors deliver 24 cores at 3.00 GHz for demanding workloads
- 1 TB DDR4 memory supports dense virtualization and data-intensive applications
- 10 SFF 2.5-inch drive bays enable flexible SAS, SATA or NVMe storage configurations
- HPE 331FLR quad-port NIC provides four 1 GbE connections for network redundancy
- 2U rackmount design fits standard data-center cabinets for scalable deployment
HP ProLiant DL380 Gen10 10 Bay SFF Server
The HP ProLiant DL380 Gen10 is a 2U rackmount server system built for business workloads such as virtualization, databases, backups, and application hosting. It ships with two Intel Xeon Gold 6136 processors, each running at 3.00GHz with 12 cores, and 1TB of DDR4 memory installed. A 331FLR quad-port NIC provides four Ethernet connections, and ten 2.5-inch front drive bays allow flexible SAS, SATA, or NVMe storage configurations. No operating system or drives are included.
Suited for data centers, server rooms.
This configuration fits organisations that need a dual-socket rack server with high memory capacity and multiple network links for virtualization or database tasks. Buyers who require more than ten front-accessible drives or networking speeds beyond 1GbE will need a different chassis or additional expansion cards. The integrated GPU and lack of a pre-installed OS mean it is not a ready-to-run workstation or desktop replacement.
Dual Xeon Gold 6136 with 1TB DDR4
The two installed Xeon Gold 6136 CPUs deliver 24 total cores at 3.00GHz, and the 1TB DDR4 memory fills a large portion of the 3TB maximum capacity. This processor and memory combination is the primary factor that determines whether the server can handle the intended virtual machine density and data-intensive workloads.
Highlights
- Dual Xeon Gold 6136 processors deliver 24 cores at 3.00 GHz for demanding workloads
- 1 TB DDR4 memory supports dense virtualization and data-intensive applications
- 10 SFF 2.5-inch drive bays enable flexible SAS, SATA or NVMe storage configurations
- HPE 331FLR quad-port NIC provides four 1 GbE connections for network redundancy
- 2U rackmount design fits standard data-center cabinets for scalable deployment
Specifications
| Brand | HP |
|---|---|
| Type | Rackmount |
| LEDs | Power, Ethernet, USB |
| CPU Type | Gold 6136 |
| CPU Speed | 3.00GHz |
| Number of CPU Cores | 12 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 1TB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| GPU Type | Integrated |
| Expansion Bays | 10B - 10x 2.5" |
| Operating System | No |
| Weight | 60 |
Questions about this item
Will the DL380 Gen10 10-bay SFF chassis accept the 2.5" SAS drives I already use?
Yes, the 10 SFF bays support 2.5" SAS and SATA drives, so your existing drives can be installed directly.
Which LEDs on the front panel confirm the quad-port 331FLR NIC is linked and passing traffic?
The dedicated Ethernet LEDs on the front panel show link and activity for each of the four 331FLR ports.
Are any 2.5" drives or drive carriers included, or must I supply all 10 myself?
No drives are included; the 10 SFF bays are empty and you must provide all drives and carriers separately.
