HP
HP ProLiant DL380 Gen10 10B SFF 2x Xeon Platinum 8168 512GB DDR4 rack server
Rackmount server with dual Xeon Platinum 8168 CPUs delivering 48 cores and 512GB DDR4 memory for virtualization and database workloads
- TypeRackmount
- LEDsPower, Ethernet, USB
- CPU TypePlatinum 8160
- CPU Speed2.10GHz
- Number of CPU Cores10
- # of Processors Installed2
- Dual 20-core Xeon Platinum 8168 CPUs deliver 48 cores and 96 threads for heavy compute
- 512GB DDR4 ECC memory supports large virtualisation clusters and in-memory databases
- Ten 2.5-inch drive bays with P816i-A RAID controller enable high-capacity storage arrays
- Four integrated 1Gbps RJ45 ports provide redundant network connectivity out of the box
- Dual redundant power supplies in a 2U rack chassis ensure continuous uptime in production racks
Enterprise Virtualization Server

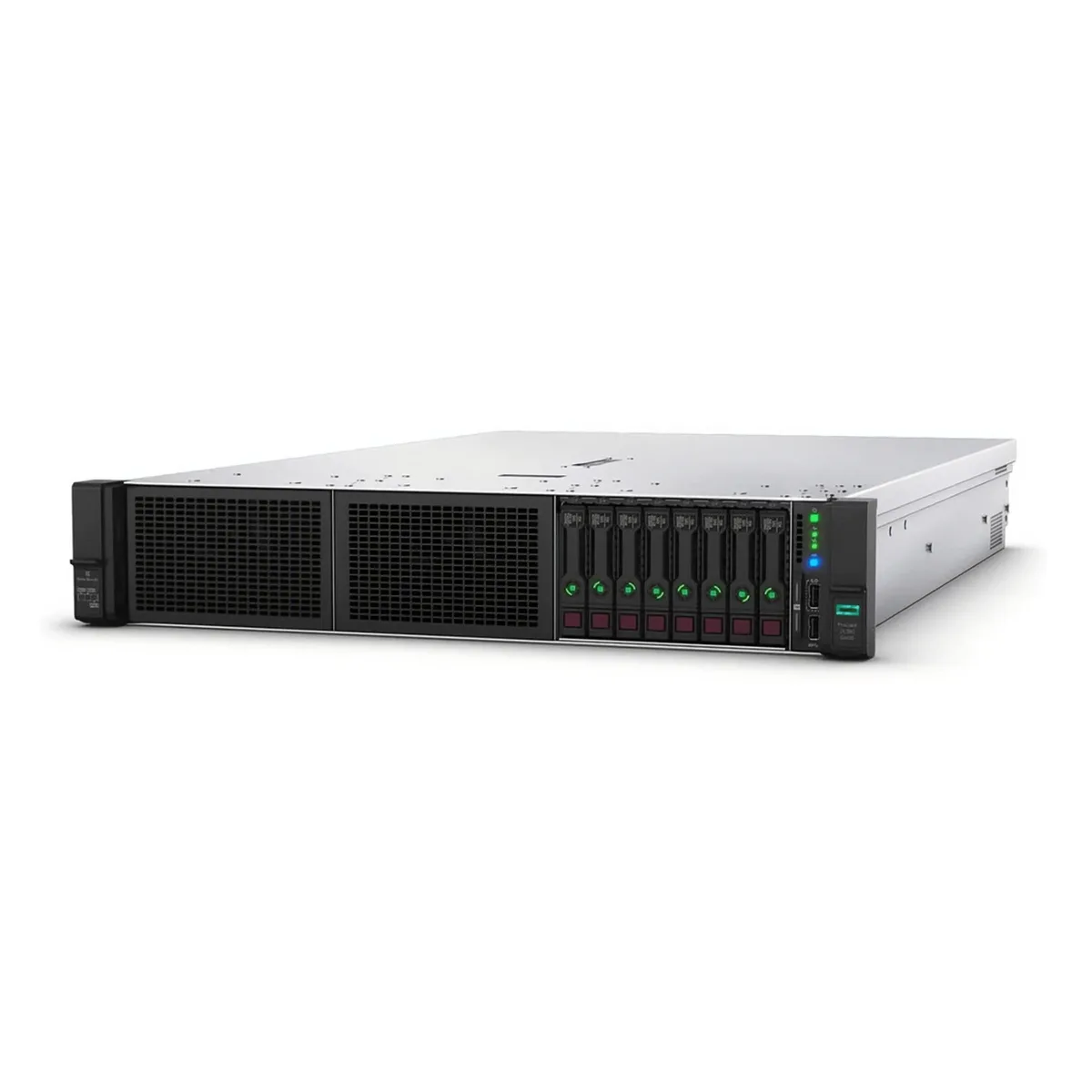

The HP ProLiant DL380 Gen10 is a 2U rackmount system equipped with two Intel Xeon Platinum 8168 processors delivering 48 cores and 96 threads. It ships with 512GB of DDR4 ECC registered memory and supports up to 3TB total capacity. Ten 2.5-inch small-form-factor drive trays and an integrated P816I-A Smart Array controller provide flexible storage options. Dual redundant power supplies and four 1Gbps RJ45 ports complete the baseline configuration for data-centre deployment.
Suited For Multi-Threaded Workloads
This server targets organisations running virtualisation clusters, database instances, ERP systems or AI inference tasks that benefit from high core counts and large memory footprints. The 2.10GHz base frequency and 10-bay chassis also support mixed storage tiers. Buyers who require GPU-accelerated compute, more than ten internal drive bays, or higher single-thread frequencies should evaluate other platforms.
Deciding Specification: 48 Cores And 512GB DDR4
The combination of 48 physical cores across two Xeon Platinum 8168 CPUs and 512GB of DDR4 memory defines the capacity ceiling for concurrent virtual machines, container density and in-memory database performance. If the workload demands more threads or memory than this configuration supplies, a larger chassis or additional nodes will be necessary.
Highlights
- Dual 20-core Xeon Platinum 8168 CPUs deliver 48 cores and 96 threads for heavy compute
- 512GB DDR4 ECC memory supports large virtualisation clusters and in-memory databases
- Ten 2.5-inch drive bays with P816i-A RAID controller enable high-capacity storage arrays
- Four integrated 1Gbps RJ45 ports provide redundant network connectivity out of the box
- Dual redundant power supplies in a 2U rack chassis ensure continuous uptime in production racks
Specifications
| Brand | HP |
|---|---|
| Type | Rackmount |
| LEDs | Power, Ethernet, USB |
| CPU Type | Platinum 8160 |
| CPU Speed | 2.10GHz |
| Number of CPU Cores | 10 |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 512GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| GPU Type | Integrated |
| Expansion Bays | 10B - 10x 2.5" |
| Operating System | No |
| Weight | 60 |
Questions about this item
How long before the P816I-A Smart Array controller or backplane needs service?
The P816I-A Smart Array controller and 10-bay 2.5-inch backplane are built for continuous enterprise duty; plan on firmware updates and battery-backed write-cache module checks during regular maintenance windows.
Which limit appears first when both Xeon Platinum 8168 processors run at full load for hours?
The dual 20-core Platinum 8168 CPUs at 2.10GHz with 48 total cores and 96 threads will hit thermal and power envelopes before memory bandwidth, given the 512GB DDR4 configuration.
What noise and heat levels should I expect from the dual redundant PSUs and fans during all-day operation?
Dual redundant power supplies and temperature-controlled fans in the 2U rackmount chassis ramp up under sustained 48-core load; expect datacentre-grade acoustic output and heat exhaust typical for this class.
