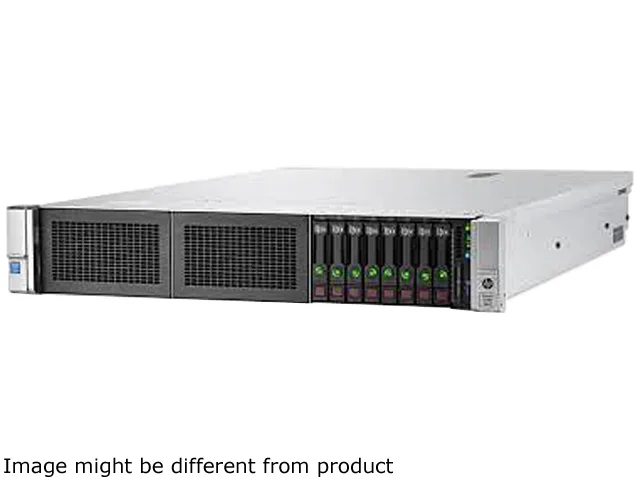

Silver 2U rack server chassis with eight front drive bays and dual power supplies

HP

HP ProLiant DL380 Gen9 2× E5-2640 v3 2.6 GHz 8-core 16 GB P440ar 8 SFF 2× 500 W 777338-S01

SKU CH-YE0G-1ATAP MPN 777338-S01

2U rack server with two Xeon E5-2640 v3 2.6 GHz 8-core CPUs, 16 GB registered memory, P440ar controller, eight SFF bays and dual 500 W platinum supplies

  • TypeRack
  • Rack Height2U
  • CPU TypeIntel Xeon E5-2640 v3
  • MAX Processors2
  • Installed Memory Size16GB (2x8GB Registered DIMMs, 2133 MHz)
  • Max Memory Capacity384GB
  • Dual Xeon E5-2640 v3 CPUs deliver 16 cores at 2.6 GHz for demanding workloads
  • P440ar controller with 2 GB cache accelerates SAS storage performance
  • 16 GB installed across 24 DIMM slots supports up to 384 GB capacity
  • Four-port 1 Gb 331i adapter provides redundant network connectivity
  • Dual 500 W Platinum power supplies ensure efficient, reliable operation

Dual Intel Xeon E5-2640 v3 Server

The HP ProLiant DL380 Gen9 is a 2U rack server equipped with two Intel Xeon E5-2640 v3 processors running at 2.60 GHz. Each CPU provides eight cores with a 90 W thermal design power. The system ships with 16 GB of registered memory installed across two DIMMs operating at 2133 MHz. It includes an HP Flexible Smart Array P440ar controller with 2 GB cache and eight small form factor drive bays supporting SAS connectivity.

Suited for dual-socket compute.

This configuration targets workloads that benefit from two physical processors and up to 384 GB of memory across 24 DIMM slots. Six PCIe expansion slots provide room for additional I/O cards. Buyers who need a single-socket platform to reduce licensing costs or a chassis with more than eight drive bays should evaluate alternative form factors.

Eight SFF SAS bays with P440ar RAID

The storage subsystem centres on eight 2.5-inch SAS drive bays served by the onboard P440ar controller. This array controller manages RAID levels for the installed drives. The server does not ship with any hard drives, so storage capacity and redundancy depend entirely on the drives selected during deployment.

Highlights

  • Dual Xeon E5-2640 v3 CPUs deliver 16 cores at 2.6 GHz for demanding workloads
  • P440ar controller with 2 GB cache accelerates SAS storage performance
  • 16 GB installed across 24 DIMM slots supports up to 384 GB capacity
  • Four-port 1 Gb 331i adapter provides redundant network connectivity
  • Dual 500 W Platinum power supplies ensure efficient, reliable operation

Specifications

BrandHP
SeriesDL380 G9
Model777338-S01
TypeRack
Rack Height2U
CPU TypeIntel Xeon E5-2640 v3
MAX Processors2
Installed Memory Size16GB (2x8GB Registered DIMMs, 2133 MHz)
Max Memory Capacity384GB
Number of Memory Slots24
Hard Drive (Installed)None ship standard
Storage ControllerHP Flexible Smart Array
P440ar/2GB
HDD InterfaceSAS
Ethernet ControllerHP Embedded 1Gb Ethernet 4-port 331i Adapter
Expansion Slots6 PCIe slots
Operating SystemNo
Power Characteristics(2) HP 500W Flex Slot
Platinum Power Supply
FeaturesInternal Storage: 8 SFF HDD Bays
Optical Drive Bay: Optional Universal Media Bay
(724865-B21)
Management: iLO Management (standard)
Warranty: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day
response
Weight48.56
Package ContentsProLiant DL380 Gen9 E5-2640v3 2P 16GB-R P440ar 8SFF 2x500W PS Server/S-Buy
Keyboard
Mouse
Rail Kit
Shipping weight24.61 kg
Package size917 × 267 × 597 mm

Questions about this item

Should I pick the 16 GB configuration or plan for the 384 GB maximum?

The server ships with 16 GB across two registered DIMMs at 2133 MHz and offers 24 slots total, so you can start small and add modules later up to the 384 GB ceiling.

What does the 2.6 GHz Xeon rating mean for daily workloads?

Each E5-2640 v3 runs eight cores at 2.6 GHz with a 90 W envelope, giving steady multi-thread throughput for virtualization, databases and general compute without thermal spikes.

How does the P440ar controller limit the eight SFF bays?

The Flexible Smart Array P440ar with 2 GB cache drives the eight SAS bays, so every installed drive connects through that single controller and its cache.
