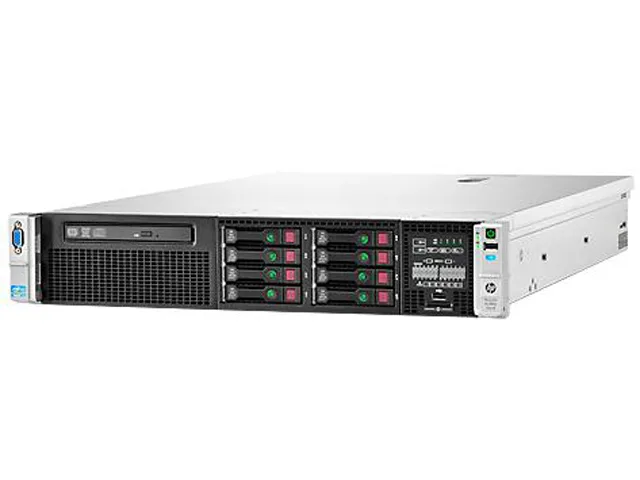

Silver 2U rack server front panel with drive bays and power buttons

HP

HP ProLiant DL380p Gen8 748304-S01 2U rack server Xeon E5-2697 v2 12C 2.7GHz 32GB

SKU CH-08M3-7DHYS MPN 748304-S01

A 2U rack server with a 12-core Xeon E5-2697 v2 at 2.7 GHz, 32 GB RDIMM, and a P420i controller supporting eight SFF SAS or SATA drives

  • TypeRack
  • Rack Height2U
  • CPU TypeIntel Xeon E5-2697 v2 2.7GHz
  • Cache Memory30MB
  • CPU Features12 Core,130W
  • MAX Processors2
  • 12-core Xeon E5-2697 v2 at 2.7GHz delivers high compute density
  • 32GB RDIMM installed with 24 DIMM slots enabling 768GB maximum capacity
  • Dual 750W Platinum Plus hot-plug supplies provide efficient redundant power
  • 4-port 1Gb 331FLR Ethernet adapter gives flexible network connectivity
  • 8-bay SFF hot-plug chassis with Smart Array P420i supports SAS/SATA/SSD drives

HP ProLiant DL380p Gen8 2U rack server

This 2U rack server ships with a 12-core Intel Xeon E5-2697 v2 processor running at 2.7GHz and 32GB of RDIMM memory across two 16GB modules. It targets IT teams that need dense compute capacity in a standard rack footprint without pre-installed storage drives. The chassis supports up to two processors and 768GB maximum memory for future scaling.

Sustained load with dual 750W platinum power

Two 750W hot-plug power supplies feed the 130W CPU and expansion cards, delivering stable output during extended virtualization or database workloads. The Smart Array P420i controller with 1GB flash-backed write cache maintains RAID 0, 1, 1+0, 5 and 5+0 performance across up to eight hot-plug SFF bays. Four 1Gb Ethernet ports handle steady network traffic without saturating the bus.

Tool-less rail install and drive caddy matching

The server slides into a standard rack on tool-less rails; the eight SFF bays accept SAS, SATA or SSD caddies that click in without screws. Three PCIe slots are available for additional NICs or HBAs, but the QuickSpec must be consulted for exact slot lengths and heights. No optical drive or management arm is included, so remote management relies on the integrated iLO interface.

Highlights

  • 12-core Xeon E5-2697 v2 at 2.7GHz delivers high compute density
  • 32GB RDIMM installed with 24 DIMM slots enabling 768GB maximum capacity
  • Dual 750W Platinum Plus hot-plug supplies provide efficient redundant power
  • 4-port 1Gb 331FLR Ethernet adapter gives flexible network connectivity
  • 8-bay SFF hot-plug chassis with Smart Array P420i supports SAS/SATA/SSD drives

Specifications

BrandHP
SeriesProLiant DL380p Gen8
Model748304-S01
TypeRack
Rack Height2U
CPU TypeIntel Xeon E5-2697 v2 2.7GHz
Cache Memory30MB
CPU Features12 Core,130W
MAX Processors2
Installed Memory Size32GB (2x16GB) RDIMM
Max Memory Capacity768GB
Memory FeaturesMemory slots: 24 DIMM slots
Memory type: 2R x4 PC3-14900R-13
Hard Drive (Installed)No Hard Drive
Storage ControllerHP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0)
HDD Interfaceup to (8) SFF SAS/SATA/SSD hot plug drives
Media DrivesNone
GPU TypeGraphics Controller Manufacturer Matrox Graphics Controller Model G200
Ethernet Controller1Gb 331FLR Ethernet Adapter 4 Ports per controller
Expansion Slots(3) PCIe; For detail descriptions reference the QuickSpec
Expansion Bays9
Power Characteristics(2) 750W Platinum Plus hot plug power supply kit Common Slot
Dimensions27.5" x 17.54" x 3.44" (D x W x H)
Weight41lbs
FeaturesHP iLO Management Engine
Package ContentsProLiant DL380p Gen8 E5-2697v2 2P 32GB-R P420i/1GB 8 SFF 750W RPS Svr/S-Buy
High Voltage Server to PDU Power Cord
Shipping weight32.66 kg
Package size914 × 610 × 267 mm

Questions about this item

How does the 130W Xeon E5-2697 v2 affect noise and heat when the server runs continuously?

The 12-core 2.7GHz processor has a 130W TDP. Two 750W Platinum Plus hot-plug power supplies and the 2U chassis airflow are designed to manage that thermal load during sustained operation.

What drives and caddies must I supply because the unit ships with no hard drives installed?

The server includes eight SFF hot-plug bays for SAS or SATA drives and a Smart Array P420i controller with 1GB FBWC. You must provide the drives and compatible caddies yourself.

Will my existing PCIe cards fit the three expansion slots alongside the Matrox G200 graphics and 4-port 1Gb 331FLR Ethernet?

Three PCIe slots are available for additional cards. The Matrox G200 graphics and quad-port 331FLR 1Gb Ethernet are integrated, leaving the slots free for your existing adapters.
