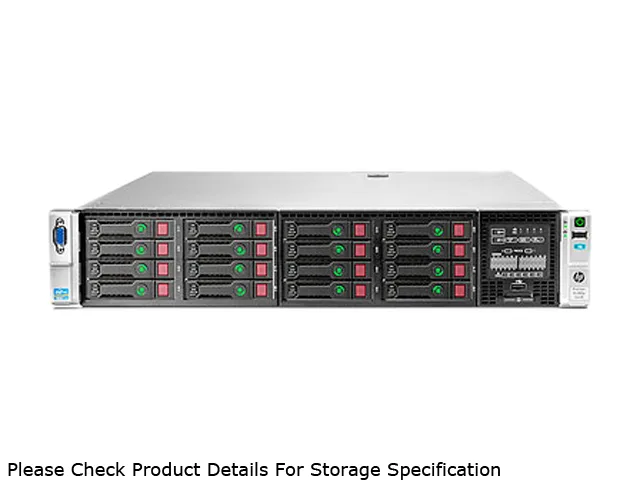

Silver 2U rack server with front drive bays and power supply

HP

HP ProLiant DL380p Gen8 Rack Server 642121-001 Xeon E5-2609 2.4GHz 4C/4T 4GB DDR3

SKU CH-57R2-E3JTJ MPN 642121-001

2U rack server with Intel Xeon E5-2609 2.4GHz 4-core CPU, 4GB DDR3 installed, expandable to 768GB across 24 DIMM slots, Smart Array P420i controller for SATA/SAS RAID, and 4-port 1Gb Ethernet

  • TypeRack
  • Rack Height2U
  • CPU TypeIntel Xeon E5-2609 2.4GHz 4C/4T
  • CPU Features80W
  • Cache Memory10M
  • MAX Processors2
  • 2U rack form factor fits dense data-centre deployments
  • Dual-socket Intel Xeon E5-2609 2.4 GHz 4C/4T scales to two processors
  • 24 DDR3 RDIMM slots support up to 768 GB memory capacity
  • Four-port 1 Gb Ethernet adapter handles multiple network segments
  • 460 W 94 % efficient hot-plug power supply reduces energy costs

2U Rack Server for Dual Xeon Scaling

The HP ProLiant DL380p Gen8 is a 2U rack server built around a single Intel Xeon E5-2609 processor running at 2.4 GHz with four cores and four threads. It ships with 4 GB of DDR3 RDIMM memory in one of 24 available slots and supports up to 768 GB total capacity. A second processor can be added for heavier workloads. The system includes an HP Smart Array P420i controller for SATA or SAS drives and a quad-port 1 Gb Ethernet adapter, but no hard drives are installed. A 460 W platinum-rated hot-plug power supply is included.

Entry-Level Virtualization and File Serving

This configuration suits small businesses or remote offices that need a reliable 2-socket platform for light virtualization, file sharing or print services. The single quad-core CPU and 4 GB base memory limit performance for database workloads, high-density VMs or compute-intensive applications. Buyers who need more processing threads or larger memory footprints from day one should look at a higher-specification model. The empty drive bays let you choose capacity and RAID level to match the workload.

DDR3 RDIMM Memory Architecture

The server uses DDR3 registered DIMMs operating at PC3-10600 speed across 24 slots, with a maximum supported capacity of 768 GB. This memory generation and form factor determines which upgrade modules are compatible; any other DDR type will not fit or function. Plan memory purchases accordingly to match the installed technology.

Highlights

  • 2U rack form factor fits dense data-centre deployments
  • Dual-socket Intel Xeon E5-2609 2.4 GHz 4C/4T scales to two processors
  • 24 DDR3 RDIMM slots support up to 768 GB memory capacity
  • Four-port 1 Gb Ethernet adapter handles multiple network segments
  • 460 W 94 % efficient hot-plug power supply reduces energy costs

Specifications

BrandHP
SeriesProLiant DL380p Gen8
Model642121-001
TypeRack
Rack Height2U
CPU TypeIntel Xeon E5-2609 2.4GHz 4C/4T
CPU Features80W
Cache Memory10M
MAX Processors2
ChipsetIntel C600 Series Chipset
Installed Memory Size4GB (1 x 4GB)
Memory TypeDDR3
Max Memory Capacity768GB
Memory FeaturesTotal 24 DIMM slots
PC3-10600R (RDIMM)
Hard Drive (Installed)No Hard Drive
Storage ControllerHP Smart Array P420i/ZM
HDD InterfaceSATA/SAS
Raid LevelRAID 0/1/1+0
Media DrivesNone
Ethernet ControllerHP Ethernet 1Gb 4-port 331FLR Adapter
Expansion Slots3 PCIe slots (+3 PCI slots available with upgrade option)
Expansion BaysStandard: 8 SFF SAS/SATA HDD Bays
Power Characteristics(1) HP 460W CS Platinum Plus Hot Plug Power Supply (94% Efficient)
FeaturesFans: (4) (N+1 redundancy standard)
Management: iLO Management Engine Standard
Dimensions3.44" x 17.54" x 27.50"
Package ContentsHP 642121-001 Brand New Chassis - Product Warranty: HP 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response
Shipping weight13.61 kg
Package size762 × 508 × 254 mm

Questions about this item

How can I verify the server is operating correctly after initial setup?

Check the Integrated Lights-Out interface for POST completion, confirm all 24 DIMM slots show the 4GB DDR3 module, and verify the Smart Array P420i detects any installed drives.

What components are included and what must be purchased separately?

The 2U chassis includes one Xeon E5-2609 2.4GHz processor, 4GB DDR3 RDIMM, Smart Array P420i controller, 4-port 331FLR Ethernet adapter, and one 460W 94% efficient power supply; hard drives and additional memory are not included.

Which memory configuration should I choose for this server?

Use PC3-10600R DDR3 RDIMM modules to populate up to 24 slots for a maximum of 768GB; the system ships with one 4GB stick in a single slot.
