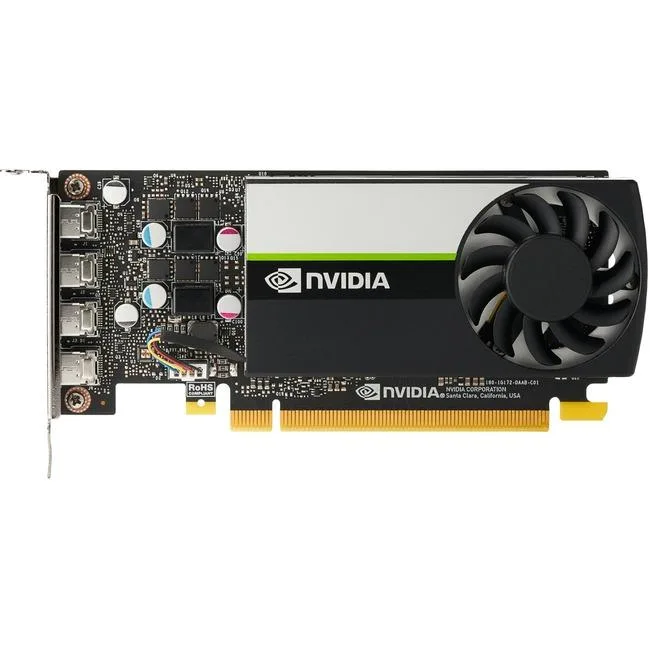

HP Quadro T1000 graphics card, compact plug-in form, matte black finish with four Mini DisplayPort outputs

HP

HP Quadro T1000 4GB GDDR6 graphics card 20X22AT

SKU CH-KK6H-EY83X MPN 20X22AT

Entry-level professional graphics card with 4 GB GDDR6 memory, four Mini DisplayPort outputs and 50 W power draw

  • InterfacePCI Express 3.0 x16
  • Memory TypeGDDR6
  • Thermal Design Power50W
  • Max GPU Length156 mm
  • Drives up to four displays with four Mini DisplayPort outputs
  • Delivers 7680 x 4320 resolution for detailed visual work
  • Fits compact builds at 156 mm card length
  • Runs efficiently on 50 W thermal design power
  • Accelerates professional apps via OpenGL 4.6 and Vulkan 1.2 support

Product Identity

The HP Quadro T1000 4GB GDDR6 graphics card is a professional plug-in card built for PC workstations. It targets users who need certified driver stability for CAD, DCC and multi-display workflows. The PCI Express 3.0 x16 interface and 50 W thermal design power suit compact chassis. Four Mini DisplayPort outputs drive up to four monitors simultaneously.

Upgrade Context

This card replaces older entry-level Quadro or integrated graphics when 4 GB GDDR6 memory and 128-bit bus width become necessary. The jump is worthwhile when projects exceed 2 GB frame buffers or require DirectX 12.1, Vulkan 1.2, OpenGL 4.6 and OpenCL 1.2 support. Maximum digital resolution of 7680 x 4320 enables high-DPI multi-head setups without a second GPU.

Compatibility Checklist

Verify the workstation has a full-height PCIe 3.0 x16 slot and 156 mm maximum GPU length clearance. Confirm the power supply can deliver 50 W for the card without auxiliary connectors. Ensure the operating system supports the listed APIs and that four Mini DisplayPort cables or adapters are available for the desired monitor configuration.

Highlights

  • Drives up to four displays with four Mini DisplayPort outputs
  • Delivers 7680 x 4320 resolution for detailed visual work
  • Fits compact builds at 156 mm card length
  • Runs efficiently on 50 W thermal design power
  • Accelerates professional apps via OpenGL 4.6 and Vulkan 1.2 support

Specifications

BrandHP
InterfacePCI Express 3.0 x16
Memory TypeGDDR6
Thermal Design Power50W
Max GPU Length156 mm
Shipping weight0.91 kg
Package size255 × 211 × 67 mm

Questions about this item

Will the 156 mm length and 2.7" height fit my small-form-factor case?

The card measures 156 mm long and 2.7" tall, so it fits most low-profile chassis that accept a full-height PCIe x16 slot.

Does the PCI Express 3.0 x16 interface need extra power cables?

No, the 50W TDP draws all power from the slot; just seat the card firmly until the retention clip clicks.

How often should I clean the heatsink on this 4 GB GDDR6 model?

Blow dust from the heatsink fins every six to twelve months to keep the 50W thermal design within safe limits.
