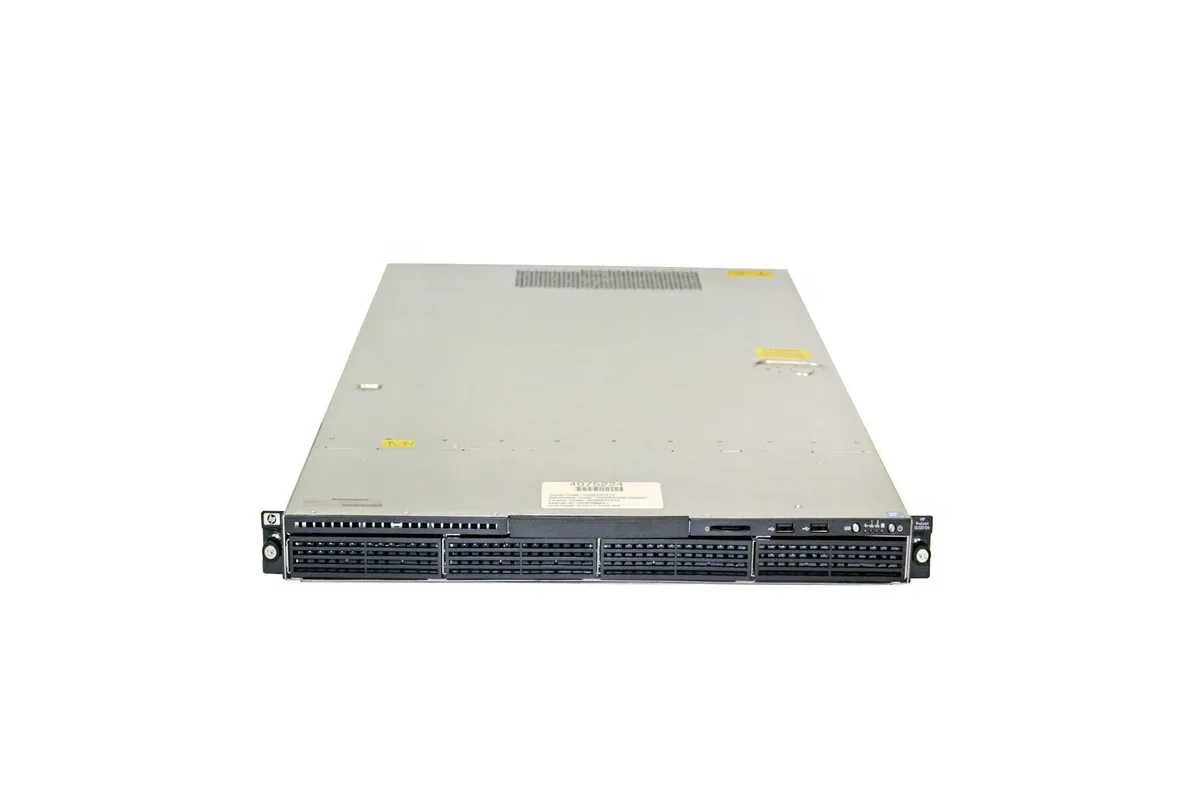

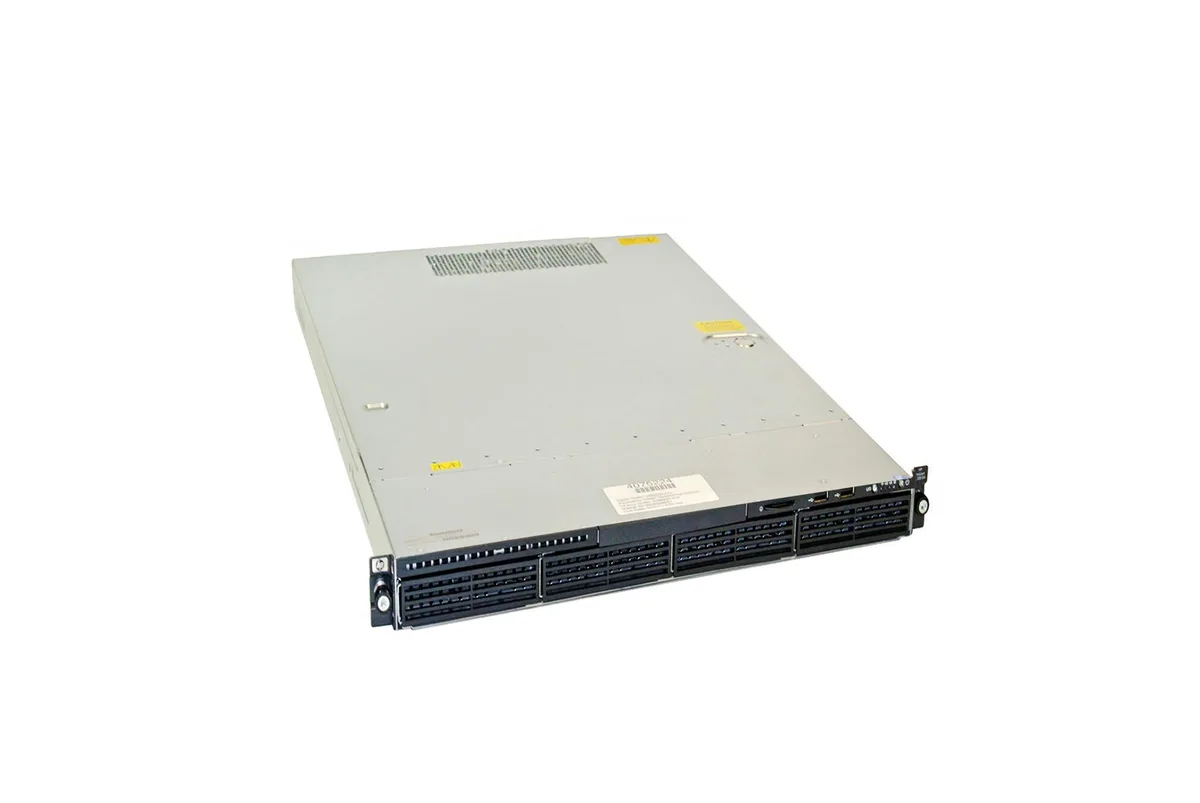

Silver 1U rack server with front drive bays and HP badge

HP

HP X3450Processor DL120 G6 1U rack server

SKU CH-0GJH-1J2BZ MPN X3450Processor

1U rack server with a quad-core 2.66 GHz Xeon X3450, 4 GB DDR3, HP Smart Array P212/256 controller and dual Gigabit Ethernet

  • TypeAll-In-One
  • Rack Height1U
  • CPU Features(1) Intel Xeon X3450 (2.66GHz/4-core/8MB/95W, 1333, HT, Turb
  • Memory Features4GB (2x2GB) PC3-10600R-9 DDR3 RDIMM (NOTE: Total of 6 DIMM s
  • Hard Drive (Installed)None Ships Standard
  • Storage ControllerHP Smart Array P212/256MB Controller
  • Quad-core Xeon X3450 at 2.66 GHz for responsive compute
  • 4 GB DDR3 RDIMM with six slots for future expansion
  • Smart Array P212 with 256 MB cache enables hardware RAID
  • Dual embedded Gigabit Ethernet ports for network redundancy
  • 1U rack form factor fits dense data-centre deployments

Entry-level 1U rack server

The HP ProLiant DL120 G6 is a single-processor 1U rack server built around an Intel Xeon X3450 running at 2.66 GHz with four cores and 8 MB cache. It ships with 4 GB of DDR3 RDIMM memory across two modules and includes an HP Smart Array P212 controller with 256 MB cache. Dual embedded Gigabit Ethernet adapters and four large form factor hot-plug drive bays complete the base configuration.

Suits single-application and edge workloads

This platform fits organisations deploying a dedicated web, file or edge-of-network service where a single quad-core processor and up to 8 GB of DDR3 memory are sufficient. The four hot-plug bays and hardware RAID controller support local redundancy without extra hardware. Buyers who require dual-processor throughput, memory expansion past the 8 GB limit, or more than four drive bays should evaluate alternative platforms.

Quad-core Xeon X3450 at 2.66 GHz

The installed Xeon X3450 delivers four cores at 2.66 GHz with 8 MB cache and a 95 W TDP, defining the compute ceiling for this 1U chassis. Hyper-Threading and Turbo modes are supported on this processor. If the target workload demands higher core counts, faster clock speeds or a larger thermal envelope, a different server will be required.

Highlights

  • Quad-core Xeon X3450 at 2.66 GHz for responsive compute
  • 4 GB DDR3 RDIMM with six slots for future expansion
  • Smart Array P212 with 256 MB cache enables hardware RAID
  • Dual embedded Gigabit Ethernet ports for network redundancy
  • 1U rack form factor fits dense data-centre deployments

Specifications

BrandHP
SeriesDL120 G6
Model490932-001
TypeAll-In-One
Rack Height1U
CPU Features(1) Intel Xeon X3450 (2.66GHz/4-core/8MB/95W, 1333, HT, Turbo 1/1/4/4) Processor
Memory Features4GB (2x2GB) PC3-10600R-9 DDR3 RDIMM (NOTE: Total of 6 DIMM slots)
Hard Drive (Installed)None Ships Standard
Storage ControllerHP Smart Array P212/256MB Controller
Media DrivesNone Ships Standard
Ethernet ControllerEmbedded HP NC107i PCI Express Gigabit Server Adapter (x2)
Expansion BaysUp to 4 large form factor Hot Plug drives
Power CharacteristicsAutosensing 400-Watt PFC Power Supply, CE Mark Compliant
Package ContentsHP 490932-001 Factory Renew - Product Warranty: 1 year Warranty thru Seller

Questions about this item

How can I confirm the DL120 G6 is running correctly after installation?

On first boot the system POST will show the Xeon X3450 at 2.66 GHz with Hyper-Threading active, report 4 GB DDR3 across the two installed RDIMMs, and list the Smart Array P212 controller with 256 MB cache; the dual embedded NC107i Gigabit adapters should each link at 1 Gb/s.

What ships inside the box and what must I add?

The 1U chassis includes one Xeon X3450 processor, 4 GB DDR3 (2×2 GB RDIMM), Smart Array P212/256 MB controller, dual embedded Gigabit NICs, 400 W autosensing power supply and rack rails; no hard drives or optical drive are included, so large form-factor hot-plug SAS drives must be purchased separately.

Which memory configuration should I choose for this DL120 G6?

The server has four DDR3 slots and currently holds 4 GB in two slots; add matching PC3-10600R RDIMMs in the two free slots to reach the 8 GB maximum supported by the Intel 3420 chipset.
