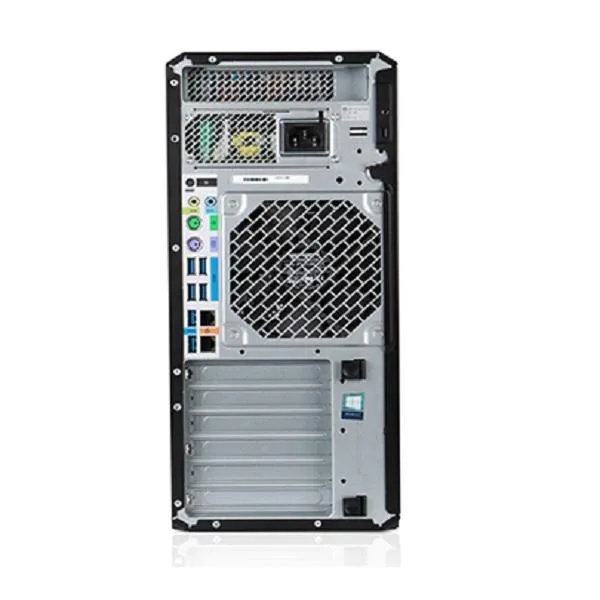

HP Z4 G4 tower workstation in dark grey finish

HP

HP Z4 G4 workstation Xeon W-2135 64GB 250GB NVMe Quadro P1000

SKU CH-HT0Y-XSZ9N

Tower workstation with Xeon W-2135 six-core 3.7GHz CPU, 64GB DDR4 ECC, 250GB NVMe and Quadro P1000 4GB for professional CAD and rendering

  • TypeTower
  • Redundant Hot-swap PowerNo
  • CPU TypeIntel Xeon
  • MAX Processors1
  • Chipset465W
  • Installed Memory Size64GB

Installed Memory Size 64GB

SSD (Installed) 250GB

HDD None

  • Xeon W-2135 six-core 3.7 GHz handles heavy professional workloads
  • 64 GB DDR4 ECC memory enables smooth multitasking on large projects
  • 250 GB NVMe SSD gives fast application and file access
  • Quadro P1000 4 GB GDDR5 drives CAD, rendering and multi-display setups
  • Windows 11 pre-installed for immediate out-of-box productivity

Professional CAD workstation

The HP Z4 G4 tower workstation is built for professional design, content creation, rendering, engineering and data-heavy applications. A single Intel Xeon W-2135 six-core processor running at 3.7GHz with hyper-threading provides 12 virtual cores for demanding workflows. Windows 11 is preinstalled for an out-of-box setup experience.

64GB DDR4 ECC memory and 250GB NVMe storage

Four-channel 2666MHz DDR4 ECC memory fills all 8 DIMM slots at the 64GB installed capacity, supporting smooth multitasking and larger project files. The 250GB NVMe M.2 SSD delivers quick access to applications and project files with capacity for everyday professional work. Onboard SATA controller supports RAID 0, 1, 5 and 10 across six 6.0Gb/s channels.

Quadro P1000 graphics and expansion bays

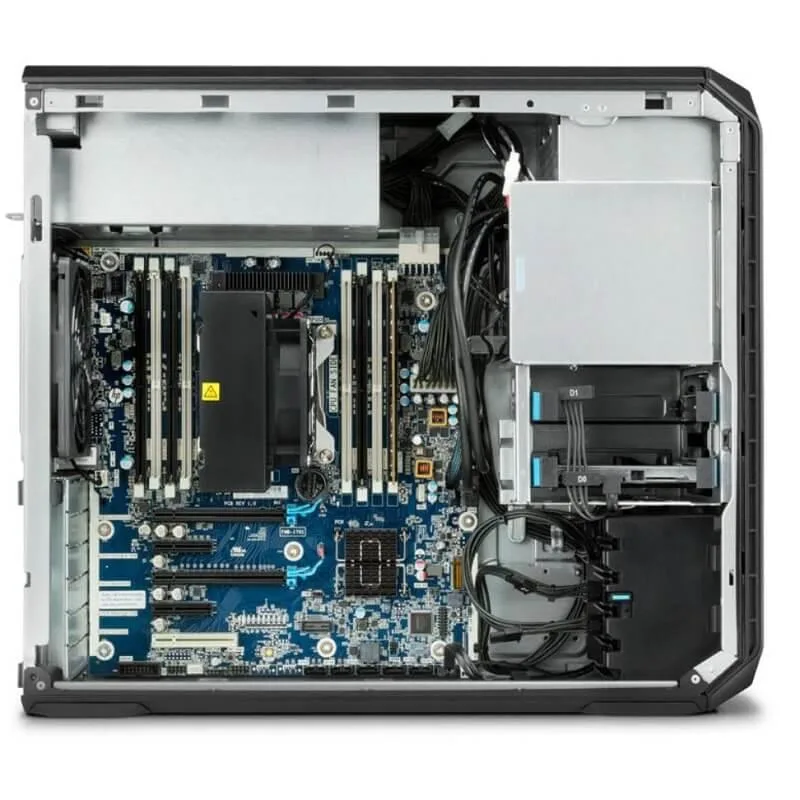

NVIDIA Quadro P1000 with 4GB GDDR5 and four Mini DisplayPort 1.4 outputs drives professional visual work and multi-display setups. Two PCI Express x16 Gen 3 slots accept additional graphics cards depending on power supply choice. The chassis provides two internal 3.5-inch bays with acoustic dampening rails, two external 5.25-inch bays and a dedicated 9.5mm slim optical bay for a DVD±RW drive. USB 2.0, USB 3.1 Gen 1 and optional USB 3.1 Gen 2 or Thunderbolt 3 ports handle peripherals. Dual LAN ports connect to wired networks.

Highlights

  • Xeon W-2135 six-core 3.7 GHz handles heavy professional workloads
  • 64 GB DDR4 ECC memory enables smooth multitasking on large projects
  • 250 GB NVMe SSD gives fast application and file access
  • Quadro P1000 4 GB GDDR5 drives CAD, rendering and multi-display setups
  • Windows 11 pre-installed for immediate out-of-box productivity

Specifications

BrandHP
SeriesZ Series
ModelZ4 G4
TypeTower
Redundant Hot-swap PowerNo
CPU TypeIntel Xeon
MAX Processors1
Chipset465W
Installed Memory Size64GB
Memory TypeDDR4
Max Memory Capacity64GB
Memory FeaturesFour channel memory up to 2666MHz DDR4 ECC memory, 2 DIMMs per Channel, 8 DIMM Slots.
Number of Memory Slots8
SSD (Installed)250GB
Raid LevelRAID 0/1/5/10
Max HDD Capacity1
Media DrivesDVD +/- RW
GPU TypeNVIDIA Quadro P1000
Video Memory4GB
LAN Ports2 x Ports
Expansion SlotsSlot 1: PCI Express Gen3 x16 (from CPU), Slot 2: PCI Express Gen3 x4 (from PCH) with open-ended connector*, Slot 3: PCI Express Gen3 x16 (from CPU), Slot 4: PCI Express Gen3 x4 (from PCH) with open-ended connector*, Slot 5: PCI Express Gen3 x8 (from CPU) with open-ended
connector*, , and M.2 Slot 1: M.2 PCIe Gen 3 x4 (from CPU) up to 80mm storage devices
Operating SystemWindows 11 Pro
Weight45.0000LBS

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2666MHz DDR4 ECC memory work with older DDR4 modules I already own?

The workstation uses four-channel DDR4 ECC memory at 2666MHz across eight DIMM slots; mixing with older DDR4 modules is possible but all memory will run at the speed of the slowest installed module.

How can I confirm the Quadro P1000 is running correctly after setup?

Open Device Manager to verify the NVIDIA Quadro P1000 appears with 4GB GDDR5, then run the NVIDIA Control Panel to confirm driver version and Mini DP 1.4 outputs are detected.

What cables or accessories come in the box versus what must be purchased separately?

The tower includes the Xeon W-2135, 64GB DDR4 ECC, 250GB NVMe SSD, Quadro P1000 with four Mini DP 1.4 ports, DVD+/-RW drive, and Windows 11 preinstalled; display cables, Thunderbolt 3 adapters, and additional storage drives are not included.
