HP Z6 G4 Xeon Bronze 3106 1.7GHz 16GB DDR4 256GB NVMe 1TB HDD Quadro P620 desktop PC

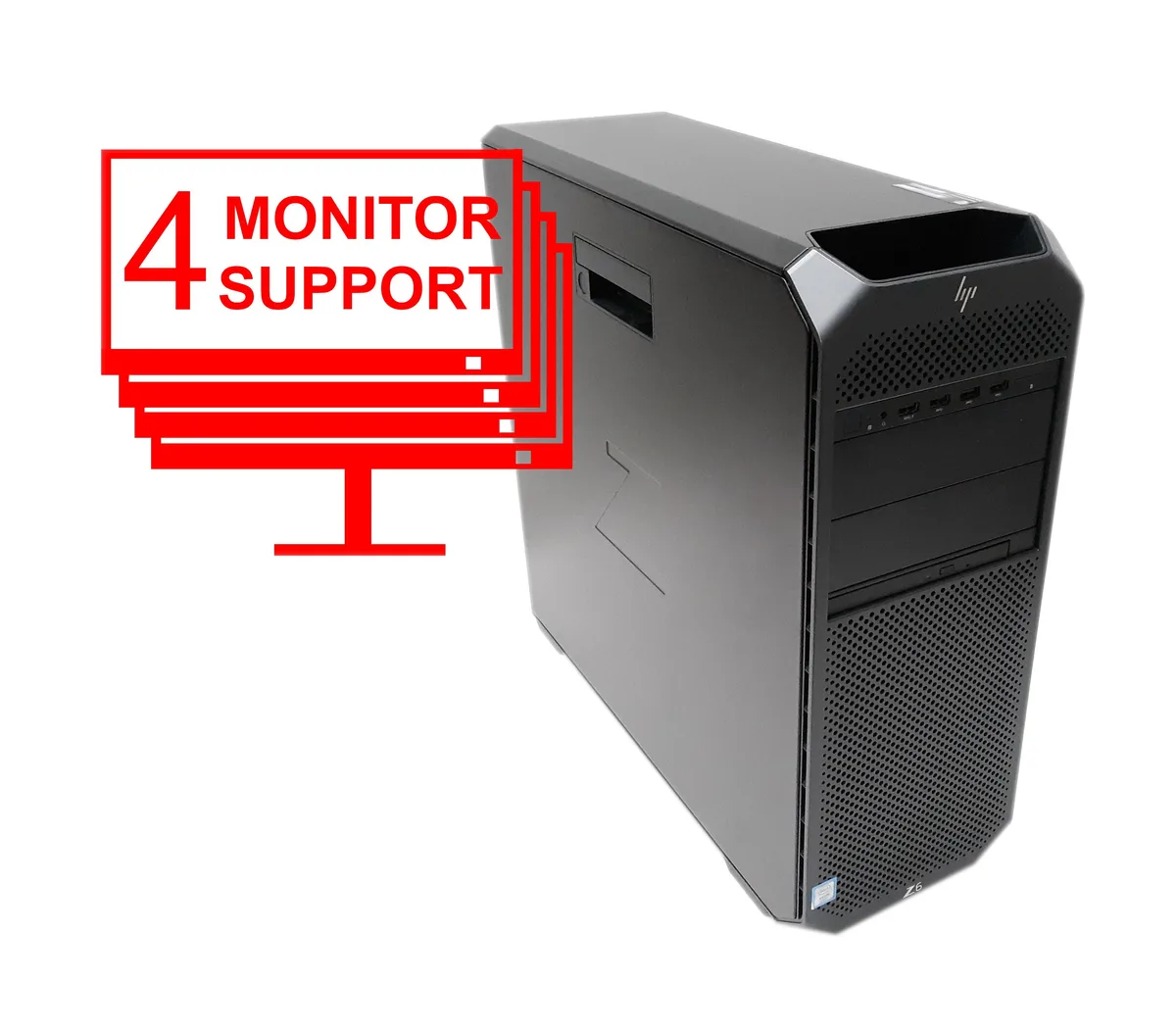

HP Z6 G4 Workstation Overview

The HP Z6 G4 is a business workstation built around an Intel Xeon Bronze 3106 processor with eight cores and eight threads running at 1.7 GHz. It includes 16 GB of DDR4 ECC memory and an Nvidia Quadro P620 graphics card with 2 GB of video memory. This configuration targets professionals who need reliable compute performance for CAD, rendering and multi-tasking workloads.

Build Integration and Expandability

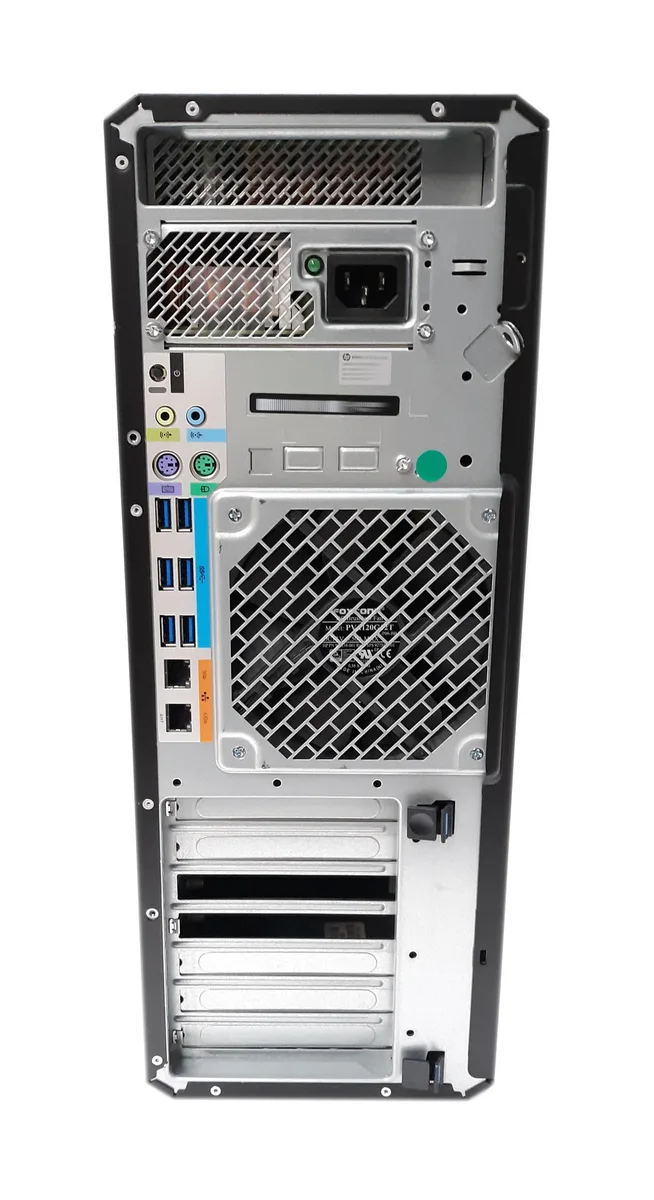

The chassis provides six DDR4 memory slots, two PCIe 3.0 x16 slots, one PCIe 3.0 x8 slot and three PCIe 3.0 x4 slots for additional cards. A 1000 W power supply supports further expansion while front and rear I/O include six USB 3.0 ports, four USB 2.0 ports, dual RJ45 LAN, PS/2 and audio jacks. No monitor is included so a display must be supplied separately.

Storage Capacity and Headroom

Primary storage uses a 256 GB NVMe M.2 SSD complemented by a 1 TB hard drive for larger datasets. The Quadro P620 drives up to four monitors for extended desktop space. Buyers needing more than two internal drives or higher GPU memory for intensive 3D work will find the current configuration limiting.
