HPE

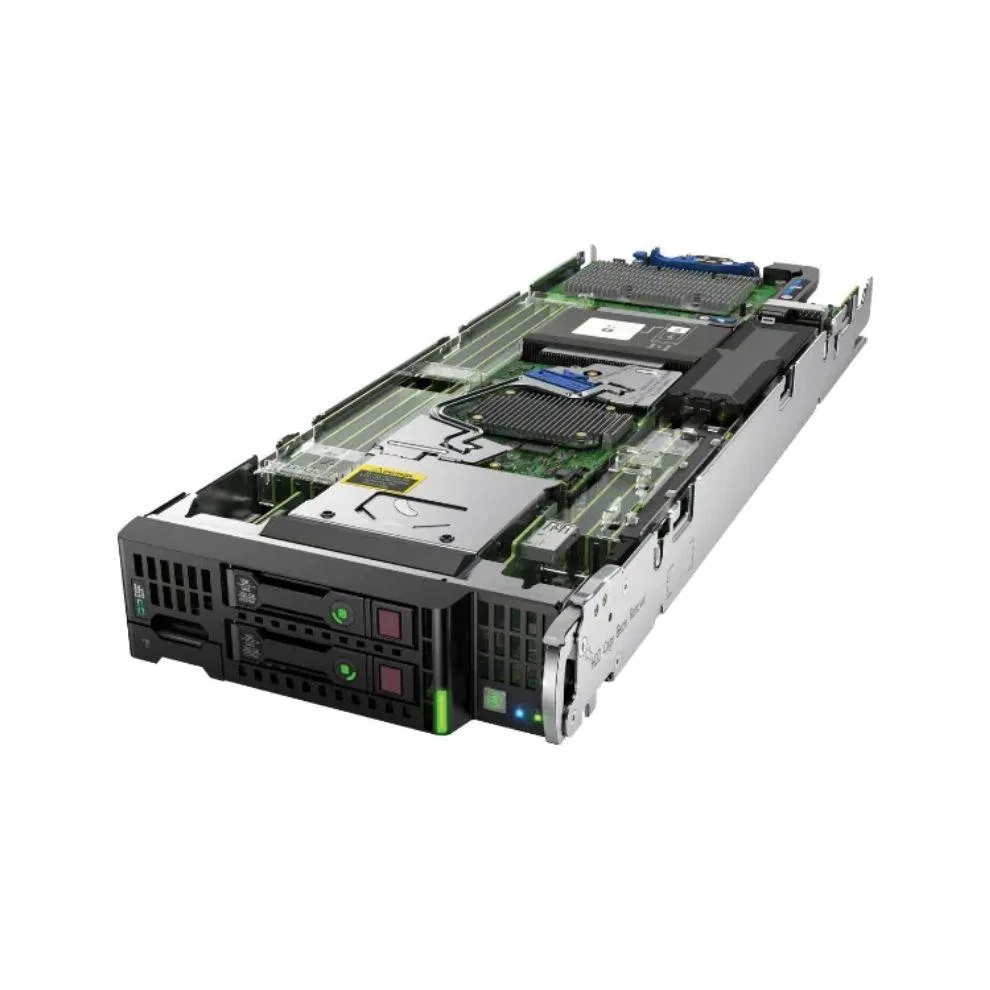

HPE BL460c G9 blade server 2× Xeon E5-2698 v4 256 GB DDR4 2× 300 GB SAS
Dual-processor blade server with 256 GB DDR4 memory and dual 300 GB SAS drives for high-density compute
- TypeBlade
- CPU TypeIntel Xeon
- CPU Speed2.2 GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size256GB
- Dual Xeon E5-2698 v4 CPUs provide 20 cores each for parallel workloads
- 256 GB DDR4 ECC registered memory supports large datasets
- Two 300 GB 10K SAS drives deliver fast storage access
- HP P244br controller with 1 GB FBWC accelerates RAID performance
- Integrated 10 GbE 2-port 562T adapter enables high-speed networking
Server purpose
The HPE BL460c G9 is a dual-socket blade server built for dense virtualization and database workloads. It ships with two Xeon E5-2698 v4 processors at 2.2 GHz and 256 GB of DDR4 memory. The chassis fits a standard blade enclosure and includes integrated 10 Gb Ethernet and iLO Advanced remote management.
Fit and limits
This configuration suits teams that need maximum core count and memory in a single half-height blade. Buyers who require more than two internal 2.5-inch drives or a discrete GPU should evaluate other form factors. The installed storage controller and memory are already at the blade's supported maximums.
Deciding specification
The blade supports only two 2.5-inch SAS drives, giving 600 GB of raw capacity with the installed 300 GB 10K disks. If the application needs more local spindles or a different drive interface, this server will not meet the requirement.
Highlights
- Dual Xeon E5-2698 v4 CPUs provide 20 cores each for parallel workloads
- 256 GB DDR4 ECC registered memory supports large datasets
- Two 300 GB 10K SAS drives deliver fast storage access
- HP P244br controller with 1 GB FBWC accelerates RAID performance
- Integrated 10 GbE 2-port 562T adapter enables high-speed networking
Specifications
| Brand | HP |
|---|---|
| Series | Proliant BL |
| Model | Blade |
| Type | Blade |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2 GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 SDRAM |
| Max Memory Capacity | 256GB |
| Hard Drive (Installed) | 600,00 |
| Storage Controller | HP P244br Storage Controller |
| HDD Interface | SAS |
| GPU Type | Integrated Graphics |
| Remote Management | Integrated Lights-Out (iLO) Advanced |
| Dimensions | 22 x 22x 10 in |
| Weight | 20 |
Questions about this item
What enclosure or chassis is required to run the BL460c G9 blade?
The BL460c G9 must be installed in a supported HPE BladeSystem enclosure that provides power, cooling and interconnect modules.
Will the installed 562T 10 Gb adapter link down to 1 Gb switches I already use?
The 562T 2-port adapter negotiates speed with the connected switch, so it can operate on your existing 1 Gb infrastructure.
How can I confirm the 256 GB DDR4 memory is recognised and healthy after installation?
Check the iLO Advanced interface or the system BIOS during POST; both will report the full 256 GB of DDR4 ECC memory and show no errors.
