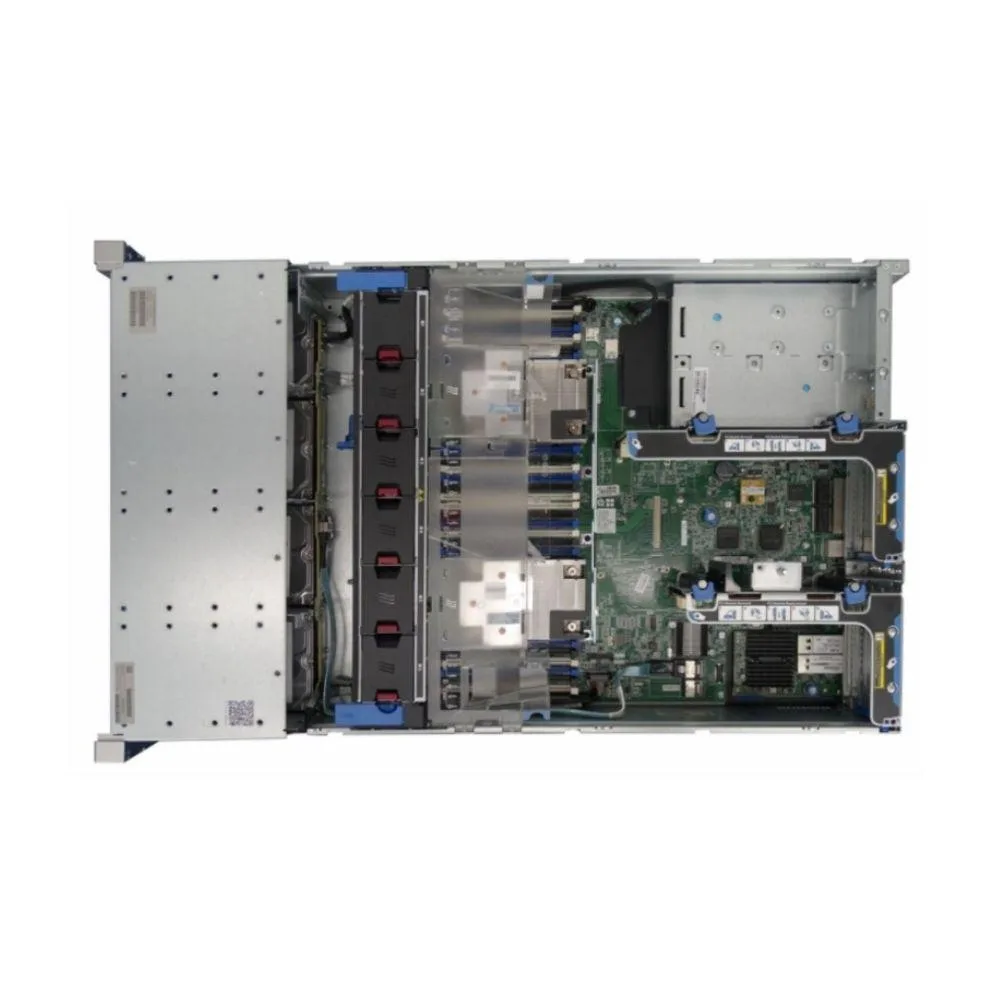

Silver rack server chassis with twelve front drive bays, single processor and memory installed

HPE

HPE DL380 Gen9 12LFF Xeon E5-2680v4 128GB DDR4

SKU CH-1R6Y-HVKDV

12-bay 3.5-inch rack server with one 14-core 2.4 GHz Xeon and 128 GB DDR4 ECC memory, no drives installed

  • TypeRack
  • CPU TypeIntel Xeon
  • CPU Speed2.4GHz
  • # of Processors Installed1
  • MAX Processors2
  • Installed Memory Size128GB
  • 14-core Xeon E5-2680v4 at 2.4GHz for demanding workloads
  • 128GB DDR4 ECC registered memory for large datasets
  • 12 x 3.5-inch LFF drive bays for high-capacity storage
  • P440ar SAS controller with expander for flexible RAID
  • Dual 800W hot-plug power supplies for redundancy

Server chassis and CPU

The HPE DL380 Gen9 12LFF rack server arrives with one Intel Xeon E5-2680v4 processor running at 2.4 GHz and 128 GB of DDR4 ECC registered memory. It targets organisations that need a 2U platform with room for up to twelve 3.5-inch drives and dual-processor capability.

Drive bay count and controller

The chassis provides twelve large-form-factor bays and an HP Smart Array P440ar controller with a SAS expander, so the number of 3.5-inch SATA drives you can install is the single specification that decides fit. No drives are included in this configuration.

Installation notes

The unit ships with two 800 W hot-plug power supplies, an Intel I350/X540 quad-port network card and HPE iLO Advanced remote management, all firmware-updated and burn-in tested. Buyers who want more storage than twelve bays or a second CPU must add those parts separately; the server supports a second Xeon and up to 3 TB of memory.

Highlights

  • 14-core Xeon E5-2680v4 at 2.4GHz for demanding workloads
  • 128GB DDR4 ECC registered memory for large datasets
  • 12 x 3.5-inch LFF drive bays for high-capacity storage
  • P440ar SAS controller with expander for flexible RAID
  • Dual 800W hot-plug power supplies for redundancy

Specifications

BrandHP
SeriesProLiant
ModelRack Mount
TypeRack
CPU TypeIntel Xeon
CPU Speed2.4GHz
# of Processors Installed1
MAX Processors2
Installed Memory Size128GB
Memory TypeDDR4
Max Memory Capacity3TB
Hard Drive (Installed)12,00
Storage ControllerHP Smart Array P440ar And Sas Expander
HDD InterfaceSATA
GPU TypeIntegrated Graphics
Remote ManagementHPE iLO Advanced
Dimensions36 x 24 x 10 in
Weight40

Questions about this item

How does the single 2.4 GHz 14-core Xeon perform in a live workload?

One Xeon E5-2680v4 running at 2.4 GHz with 14 cores and 35 MB cache delivers strong multi-thread throughput for virtualization, database or compute tasks; a second socket can be added later to double core count.

What does the P440ar SAS controller with expander limit in practice?

The Smart Array P440ar plus expander supports up to 12 SATA drives in the 3.5 in bays and caps each drive at SATA 6 Gb/s; RAID levels 0, 1, 5, 6, 10, 50 are available.

What rack depth and mounting hardware does the 36 x 24 x 10 in chassis need?

The 2U chassis is 24 in deep and weighs 40 lb; it fits a standard four-post rack with at least 24 in of usable depth and can be secured with the optional rail kit.
