HPE
HPE ML350 Gen9 8LFF 2x Xeon 2620 v3 2.4GHz 192GB DDR4 No Drive
A tower server holding up to eight 3.5-inch drives with two Xeon 2620 v3 2.4GHz CPUs and 192GB DDR4 ECC memory
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.4GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size192GB
- Dual Xeon E5-2620 v3 processors deliver 2.4GHz performance
- 192GB DDR4 ECC registered memory supports demanding workloads
- P440 SAS controller manages up to 8 SATA drive bays
- Dual 10GbE and 1GbE network ports handle high-throughput traffic
- HPE iLO Advanced enables remote firmware updates and monitoring
Tower server for compute-heavy workloads

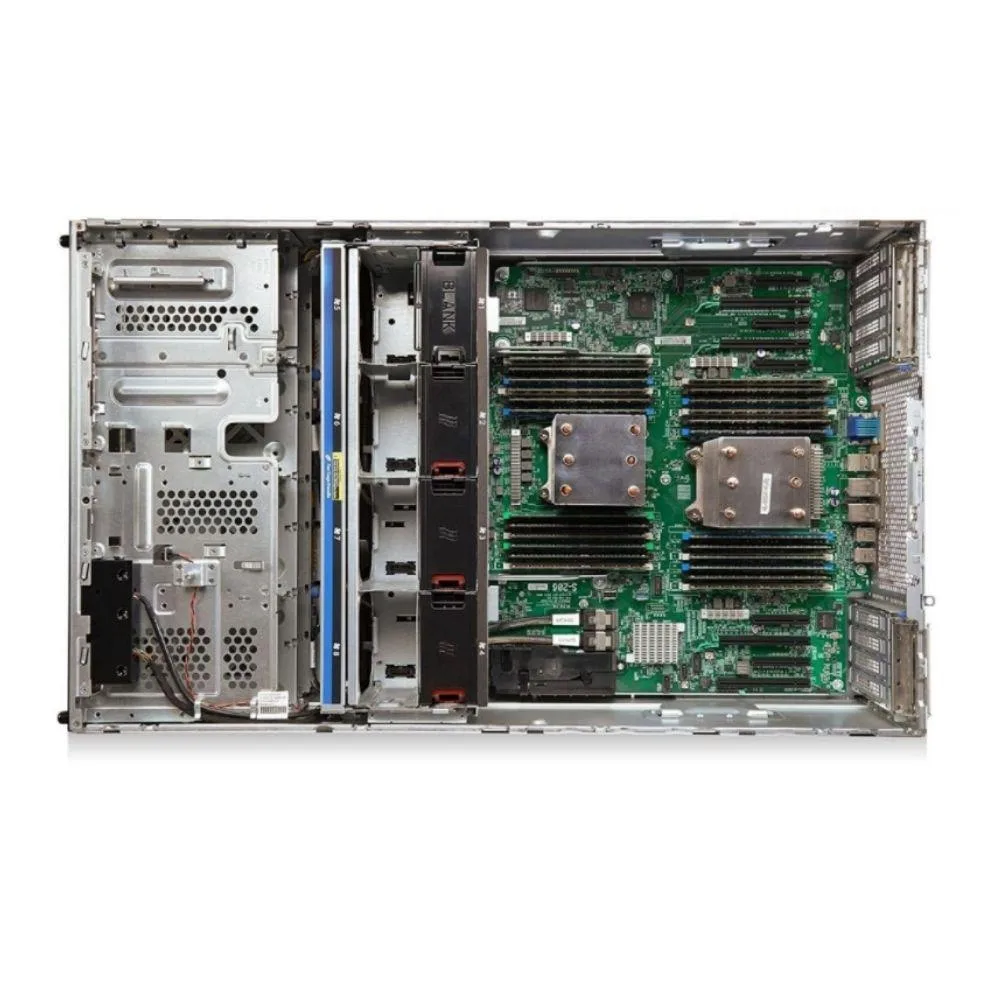

The HPE ProLiant ML350 Gen9 ships with two Xeon E5-2620 v3 processors at 2.4GHz and 192GB of DDR4 ECC registered memory. It targets organisations that need a high core-count platform for virtualisation, database or batch workloads while keeping the chassis in a tower form factor.
Upgrade from single-socket or smaller-memory towers
Moving from a single-processor system or a box with less than 192GB of RAM unlocks the second socket and the full 1536GB ceiling. The jump is worth it when workloads scale beyond one CPU or when memory pressure forces swapping on smaller configurations.
Rack-mount rails optional
The 8LFF chassis accepts up to eight 3.5-inch SATA drives but ships without drives or caddies. Two 500W Flex Slot supplies are installed. Common issues are missing rail kits for rack mounting and forgetting to order the Smart Array P440 cache module for write-back RAID.
Highlights
- Dual Xeon E5-2620 v3 processors deliver 2.4GHz performance
- 192GB DDR4 ECC registered memory supports demanding workloads
- P440 SAS controller manages up to 8 SATA drive bays
- Dual 10GbE and 1GbE network ports handle high-throughput traffic
- HPE iLO Advanced enables remote firmware updates and monitoring
Specifications
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.4GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1536GB |
| Hard Drive (Installed) | 32,00 |
| Storage Controller | HPE Smart Array P440 SAS Controller |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
What are the physical dimensions of the ML350 Gen9 8LFF chassis?
The unit measures 36 inches deep, 24 inches wide and 10 inches high and weighs 40 units.
What is a common installation mistake with the HPE Smart Array P440 controller?
Forgetting to connect the SAS cables from the backplane to the P440 PCIe card so the eight 3.5 inch drive bays remain offline.
Which memory specification must replacement modules match?
Replacement modules must be DDR4 ECC Registered to match the installed 192 GB configuration.
