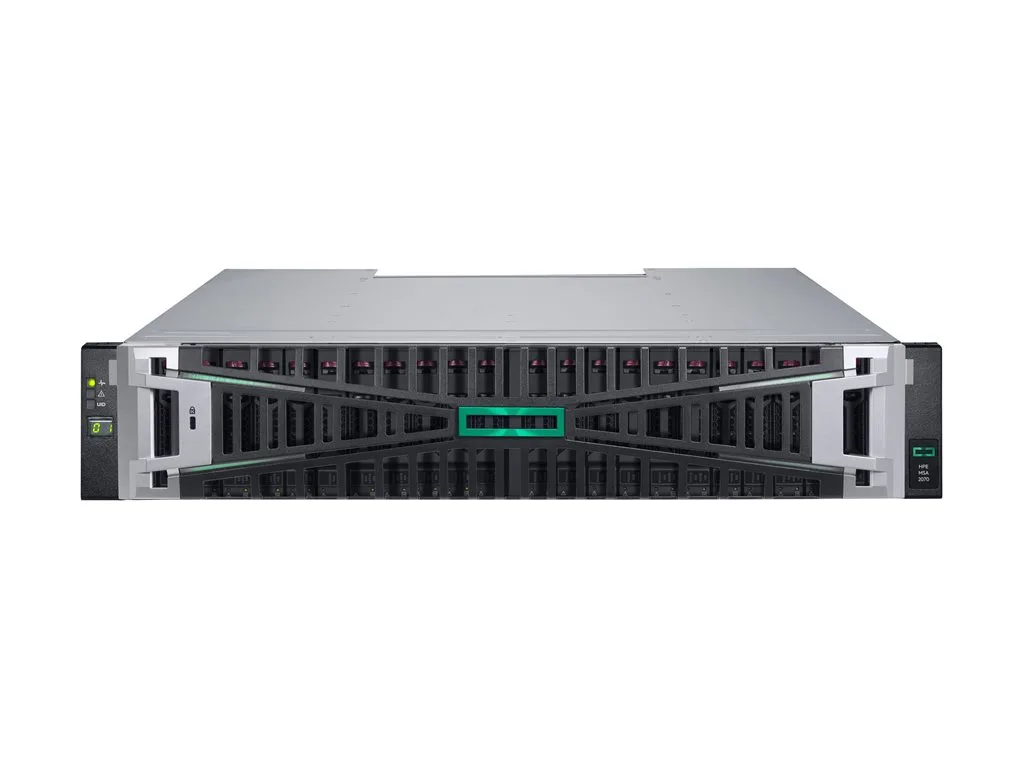

A 2U rack server with twelve drive bays populated, redundant power supplies and front bezel branding

HPE

HPE MSA 2070 SAN Storage System 12 x 1.92 TB SSD 23.04 TB P76571-B25

SKU CH-720Z-1GA4A MPN P76571-B25

A 2U SAN array with 12 SAS SSDs delivering 23.04 TB, dual 10/25 GbE iSCSI controllers and redundant 580 W power supplies

  • WorkloadStorage Server
  • TypeSmall Form Factor
  • Rack Height2U
  • Storage Controller2 x 10/25 GbE iSCSI 4-port Controller
  • SSD (Installed)12 x 1.92TB SAS SSD
  • Max HDD CapacityUp to 2.71 PB with maximum capacity expansion

SSD (Installed) 12 x 1.92TB SAS SSD

Option 4 x 10 Gb iSCSI SFP+ transceivers

  • 04 TB flash capacity with twelve 1.92 TB SSDs installed
  • Dual 10/25 GbE iSCSI controllers for high-speed host connectivity
  • Scales to 2.71 PB using up to nine expansion enclosures
  • Two 580 W redundant power supplies keep the array running
  • Supports Windows Server, VMware vSphere, Red Hat Linux and SUSE SLES

Entry-level SAN array with twelve 1.92 TB SSDs

This HPE MSA 2070 system ships with 23.04 TB of installed SAS SSD capacity in a 2U small form factor chassis. Dual 10/25 GbE iSCSI controllers provide shared block storage for HPE ProLiant servers and certified operating systems. Redundant 580 W power supplies and a 4-pack of 10 Gb iSCSI SFP+ transceivers are included.

Suited to SMBs needing simple.

Organisations that require Fibre Channel host connectivity or more than twelve drives in the base enclosure will need a different platform or expansion shelves. Buyers who want direct-attached storage or file-protocol access should evaluate other solutions.

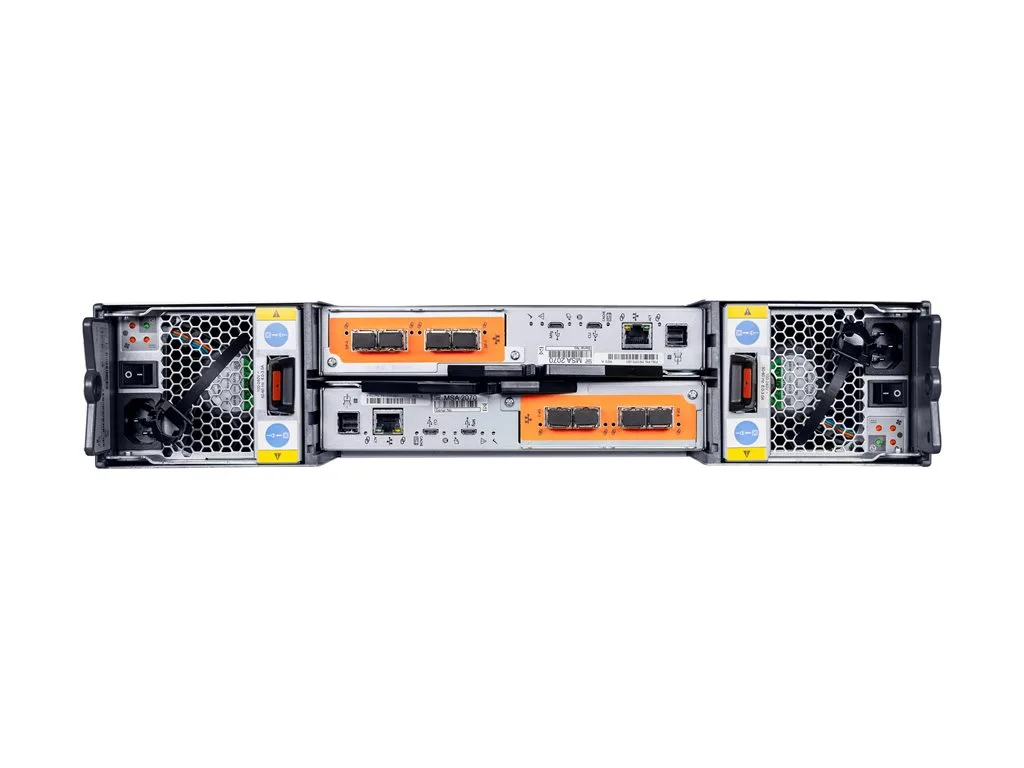

Dual 10/25 GbE iSCSI 4-port controllers

The array uses two controllers, each with four iSCSI ports, to deliver block-level storage over Ethernet. This interface choice determines host compatibility and cabling requirements for the deployment.

Highlights

  • 04 TB flash capacity with twelve 1.92 TB SSDs installed
  • Dual 10/25 GbE iSCSI controllers for high-speed host connectivity
  • Scales to 2.71 PB using up to nine expansion enclosures
  • Two 580 W redundant power supplies keep the array running
  • Supports Windows Server, VMware vSphere, Red Hat Linux and SUSE SLES

Specifications

BrandHPE
SeriesMSA 2070 Gen7
ModelP76571-B25
WorkloadStorage Server
TypeSmall Form Factor
Rack Height2U
Storage Controller2 x 10/25 GbE iSCSI 4-port Controller
SSD (Installed)12 x 1.92TB SAS SSD
Max HDD CapacityUp to 2.71 PB with maximum capacity expansion
Expansion Bays2U 24-drive SFF drive enclosure and/or 2U 12-drive LFF drive enclosure (add up to 9)
Compatible/Certified OSWindows Server
VMware vSphere
Red Hat Linux
SUSE SLES
Power CharacteristicsTwo 580W redundant power supplies
Package ContentsHPE MSA 10Gb Short Range iSCSI SFP+ 4-pack Transceiver
Shipping weight13.61 kg
Package size762 × 635 × 254 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 12 x 1.92 TB SAS SSDs into the 2U chassis and what step is commonly missed?

The SSDs ship pre-installed in the 24-drive SFF enclosure; the step often missed is inserting the four 10 Gb iSCSI SFP+ transceivers into the controller ports before cabling.

What maintenance will the two 580 W redundant power supplies need over time?

Each supply is hot-swappable; replace a failed unit by sliding it out and inserting the new one without powering down the array.

Which limit appears first when the dual 10/25 GbE iSCSI controllers run sustained workloads?

The 10 GbE SFP+ transceivers included in the box cap host throughput at 10 Gb/s per port until 25 GbE optics are sourced.
