HPE

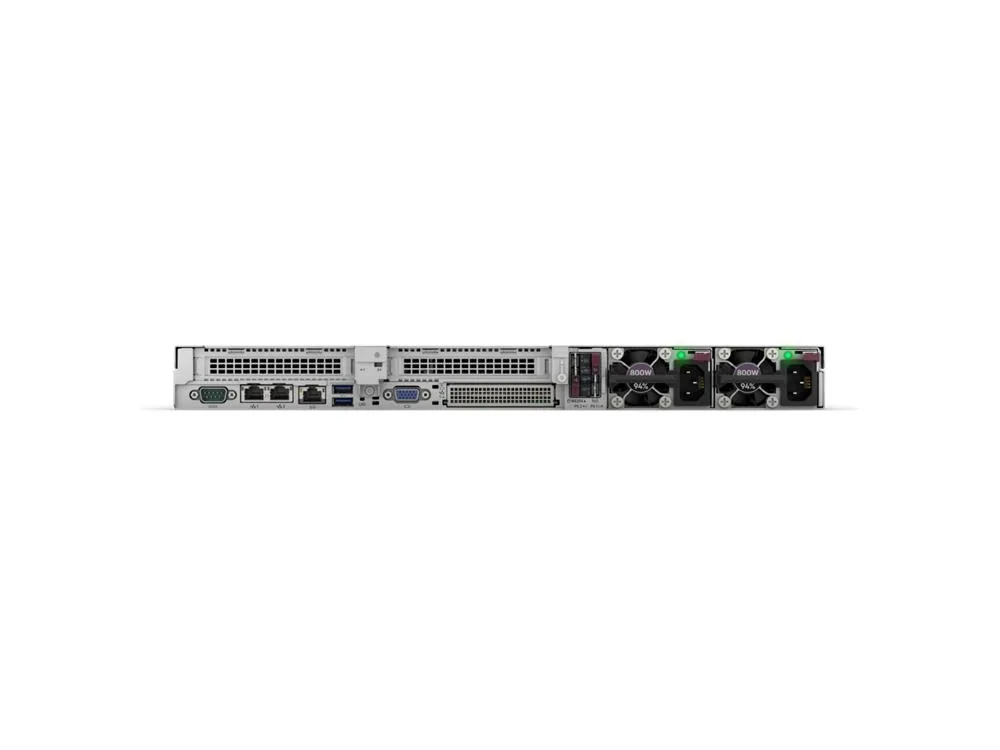

HPE P84107-005 ProLiant DL320 Gen11 Xeon Silver 4514Y 16-Core 64GB DDR5 8SFF rack server
A 1U rack server with a 16-core Xeon Silver 4514Y at 2.0 GHz, 64 GB DDR5 in two 32 GB modules, an NS204i-u NVMe boot controller, eight SFF drive bays and dual 800 W power supplies
- TypeRack
- CPU TypeIntel Xeon Silver
- CPU Speed4514Y (2.00 GHz)
- Number of CPU Cores16-Core Processor
- Cache Memory30MB Cache
- # of Processors Installed1
- 16-core Xeon Silver 4514Y at 2.0 GHz base with 3.4 GHz turbo
- 64 GB DDR5 memory in two 32 GB modules for fast data access
- 8 SFF drive bays with NS204i-u NVMe boot controller
- Dual 800 W power supplies for redundancy
- 1U rack form factor for dense deployment
ProLiant DL320 Gen11 single-socket server
The HPE P84107-005 is a 1U rack server built around one Intel Xeon Silver 4514Y processor with 16 cores at 2.0 GHz and a 3.4 GHz max turbo frequency. It ships with 64 GB of DDR5 memory in two 32 GB modules and uses the HPE NS204i-u Gen11 NVMe boot device. The platform targets workloads that need a single high-core-count CPU in a compact chassis.
Capacity and headroom
Eight SFF drive bays provide internal storage expansion while the single-socket design caps processor scaling at one CPU. The 30 MB cache and 16 cores handle multi-threaded applications and virtualisation hosts comfortably. Memory runs at DDR5 speeds with two slots occupied, leaving headroom for additional modules if the board supports more. Boot storage relies on the integrated NVMe device rather than installed hard drives.
Thermals and power in normal use
Dual 800 W power supplies deliver redundancy for continuous operation in a 1U form factor. The single 16-core processor and DDR5 memory create a predictable thermal load that the chassis fans manage under typical utilisation. Power draw scales with CPU turbo activity and drive population across the eight bays. Redundant supplies maintain uptime if one unit fails.
Highlights
- 16-core Xeon Silver 4514Y at 2.0 GHz base with 3.4 GHz turbo
- 64 GB DDR5 memory in two 32 GB modules for fast data access
- 8 SFF drive bays with NS204i-u NVMe boot controller
- Dual 800 W power supplies for redundancy
- 1U rack form factor for dense deployment
Specifications
| Brand | HPE |
|---|---|
| Series | ProLiant DL320 G11 |
| Model | P84107-005 |
| Type | Rack |
| CPU Type | Intel Xeon Silver |
| CPU Speed | 4514Y (2.00 GHz) |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 30MB Cache |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 64GB |
| Memory Type | DDR5 |
| Memory Features | 2 x 32GB |
| Hard Drive (Installed) | None |
| Storage Controller | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Expansion Bays | 8 SFF |
| Power Characteristics | 2x800W |
| Shipping weight | 15.88 kg |
| Package size | 508 × 508 × 254 mm |
Questions about this item
Will my existing 2.5-inch SFF drives fit the 8 SFF bays on this DL320 Gen11?
The server provides eight small form factor bays that accept 2.5-inch hot-plug drives.
How can I confirm the Xeon Silver 4514Y is running at its 3.4 GHz max turbo after setup?
Check the processor frequency in the iLO interface or BIOS; it will show the current clock speed under load.
Does the box include any drives or must I buy them separately for the NS204i-u controller?
No drives are installed; you must purchase NVMe or other compatible drives separately for the NS204i-u boot device and the 8 SFF bays.
