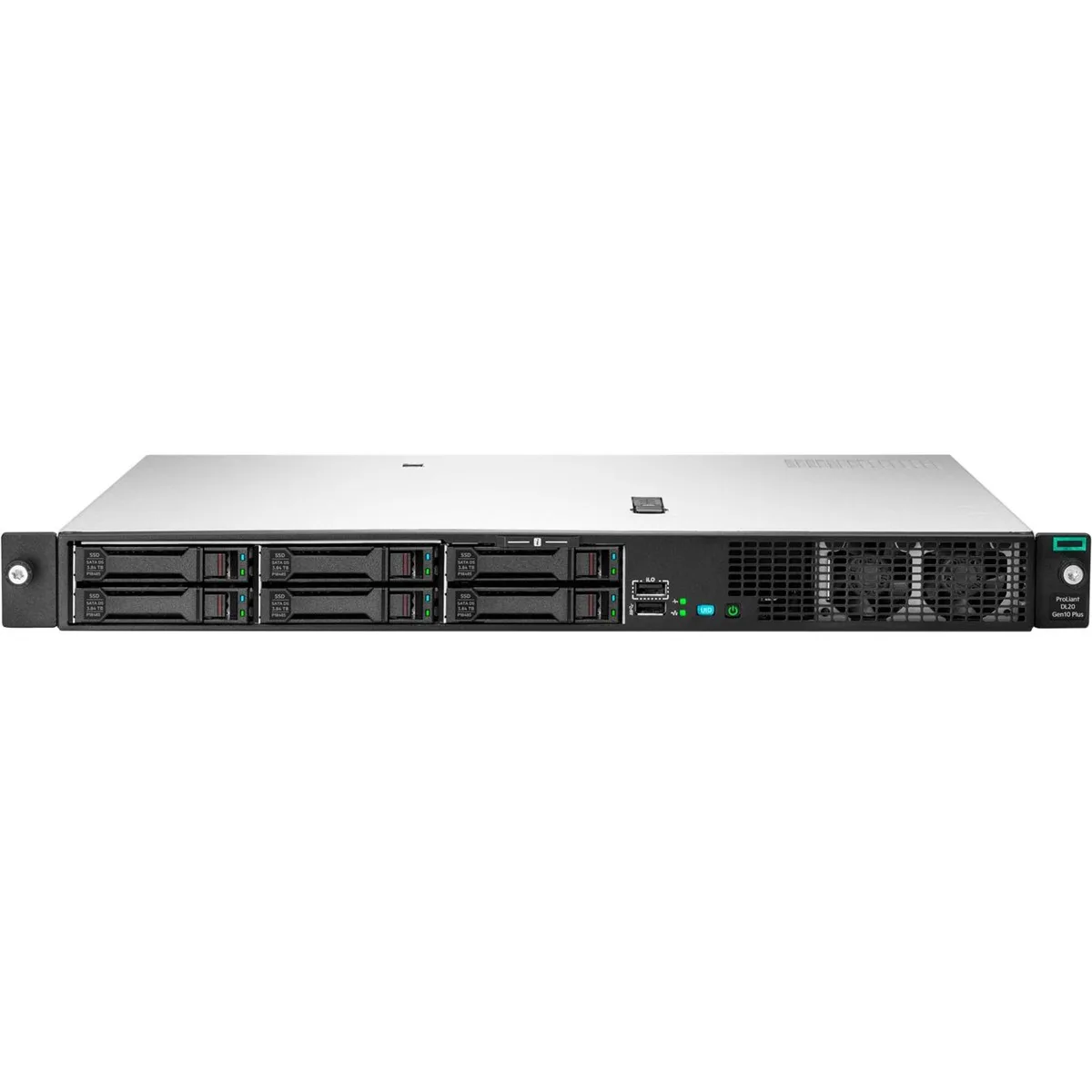

Silver 1U rack server front with drive bays and status LEDs

HPE

HPE ProLiant DL20 Gen10 Plus 1U rack server P63678-B21 Xeon E-2336 2.9GHz 32GB DDR4 2x480GB SATA SSD 500W

SKU CH-8GMA-WWJ9Q MPN P63678-B21

1U rack server with Xeon E 2.9 GHz, 32 GB DDR4, two 480 GB SATA SSDs and 500 W power

  • TypeRack
  • Rack Height1U
  • CPU TypeIntel Xeon E
  • CPU Speed2336 (2.9 GHz)
  • # of Processors Installed1
  • MAX Processors1
  • Intel Xeon E-2336 at 2.9 GHz drives responsive compute performance
  • 32GB DDR4 memory supports smooth multitasking for business workloads
  • Two 480GB SATA SSDs in RAID 0/1/5/10 protect data and speed access
  • 1U rack form factor fits dense deployments in space-constrained environments
  • HPE iLO 5 automates essential server lifecycle management tasks

Compact 1U rack server for space-constrained

The HPE ProLiant DL20 Gen10 Plus fits a single Intel Xeon E 2336 running at 2.9 GHz into a 1U chassis that is 17.1 inches wide and 15 inches deep. It ships with 32GB of DDR4 memory and two 480GB SATA SSDs configured with RAID 0, 1, 5 or 10 support. The 500W power supply is integrated.

DDR4 memory limited to four slots and 128GB maximum

The platform provides four DDR4 slots and a 128GB ceiling, so any expansion beyond the installed 32GB must stay within those boundaries. Only a single processor socket is available, fixing the CPU count at one. Four drive bays restrict internal storage growth to the installed pair plus two additional SATA devices.

Single-socket Xeon E defines the performance ceiling

With a maximum of one processor, the Xeon E 2336 sets the absolute compute limit for this system. Workloads that scale across multiple sockets or require more than 128GB of memory cannot be satisfied by this chassis. Buyers needing higher core counts or multi-socket scaling must look elsewhere.

Highlights

  • Intel Xeon E-2336 at 2.9 GHz drives responsive compute performance
  • 32GB DDR4 memory supports smooth multitasking for business workloads
  • Two 480GB SATA SSDs in RAID 0/1/5/10 protect data and speed access
  • 1U rack form factor fits dense deployments in space-constrained environments
  • HPE iLO 5 automates essential server lifecycle management tasks

Specifications

BrandHPE
SeriesProLiant
ModelProLiant DL20 Gen10 Plus
Part NumberP63678-B21
TypeRack
Rack Height1U
CPU TypeIntel Xeon E
CPU Speed2336 (2.9 GHz)
# of Processors Installed1
MAX Processors1
Installed Memory Size32GB
Memory TypeDDR4
Max Memory Capacity128GB
Number of Memory Slots4
SSD (Installed)2 x 480GB SATA SSD
Raid LevelRAID 0/1/5/10
GPU TypeMatrox G200
Expansion Bays4
DimensionsWidth: 17.1 in
Depth: 15 in
Height: 1.7 in
Weight22.05 lbs
Shipping weight12.22 kg
Package size681 × 572 × 264 mm

Questions about this item

Should I pick the 32 GB DDR4 model or upgrade toward the 128 GB maximum?

The system ships with 32 GB DDR4 across four slots and supports up to 128 GB, so choose 32 GB for light workloads or fill all slots for memory-intensive tasks.

What does the Xeon E 2336 at 2.9 GHz deliver in this 1U chassis?

The single Xeon E 2336 running at 2.9 GHz provides six cores for compute density in a 1U form factor suited to space-constrained racks.

How do the two 480 GB SATA SSDs perform under RAID 0/1/5/10?

The dual 480 GB SATA SSDs connect through the onboard controller, enabling RAID 0 for speed, RAID 1 for redundancy, or RAID 5/10 for a balance of both.
