Silver 1U rack server front panel with eight drive bays and power button

HPE

HPE ProLiant DL320 G12 P87776-005 Xeon 6515P 2.3GHz 16-core 64GB DDR5 480GB NVMe rack server

SKU CH-GVX8-CJ198 MPN P87776-005

A 1U rack server with a 16-core Xeon 6515P at 2.3 GHz, 64 GB DDR5, 480 GB NVMe boot storage, 10 GbE networking and dual 1000 W titanium power supplies

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height1U
  • Hot-swap Fans7 x High Performance Fans
  • SecurityUEFI Secure Boot and Secure Start support Intel Software Gua
  • CPU TypeIntel Xeon
  • 16-core Xeon 6515P at 2.3 GHz handles heavy workloads
  • 64 GB DDR5 at 6400 MT/s feeds data to every core
  • 480 GB NVMe boot device starts the OS in seconds
  • Dual 1000 W titanium power supplies keep the rack running
  • 1U chassis with 7 hot-swap fans cools dense deployments

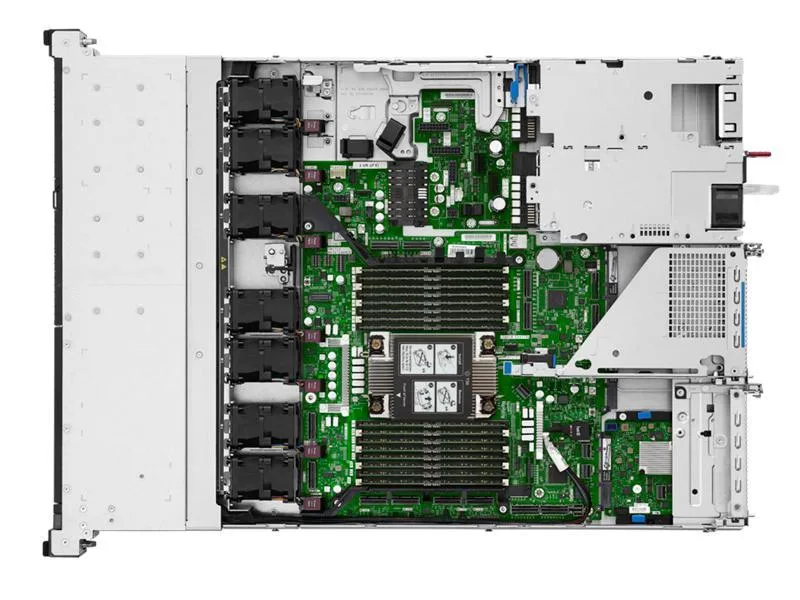

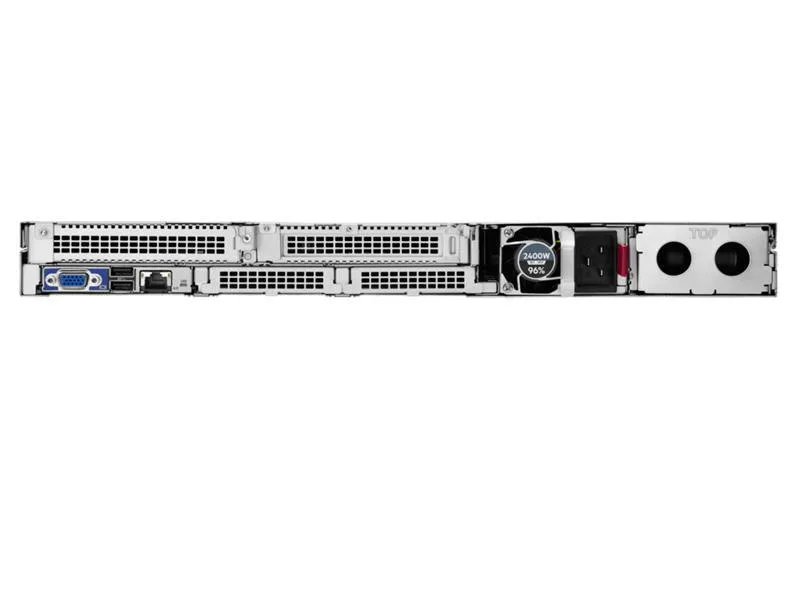

HPE ProLiant DL320 G12 1U Rack Server

This 1U rack server is a general-purpose platform built around a single Intel Xeon 6515P processor with 16 cores running at 2.30 GHz. It ships with 64 GB of HPE DDR5 Smart Memory at 6400 MT/s in a single module and includes an HPE NS204i-u v2 480 GB NVMe boot drive. Dual 1000 W Titanium hot-plug power supplies and seven high-performance hot-swap fans support continuous operation.

Suited for Virtualisation and Cloud Workloads

The 16-core CPU, DDR5 memory bandwidth and 10 GbE dual-port adapter make this system appropriate for virtualisation clusters, container hosts and edge cloud deployments. Buyers who need more than one processor installed, larger memory capacity than 64 GB, or additional storage bays beyond the 8 SFF front slots should evaluate other platforms. The single-socket design also limits maximum core count for heavily threaded applications.

Single Intel Xeon 6515P 16-Core Processor

The server comes with one Xeon 6515P processor delivering 16 cores at 2.30 GHz and a 150 W TDP. No second processor is installed and the board supports only a single socket, so total compute capacity is fixed at these 16 cores. This specification determines whether the system meets the thread-count requirements of the target workload.

Highlights

  • 16-core Xeon 6515P at 2.3 GHz handles heavy workloads
  • 64 GB DDR5 at 6400 MT/s feeds data to every core
  • 480 GB NVMe boot device starts the OS in seconds
  • Dual 1000 W titanium power supplies keep the rack running
  • 1U chassis with 7 hot-swap fans cools dense deployments

Specifications

BrandHPE
SeriesProLiant DL320 G12
ModelP87776-005
WorkloadGeneral Purpose Server
TypeRack
Rack Height1U
Hot-swap Fans7 x High Performance Fans
SecurityUEFI Secure Boot and Secure Start support
Intel Software Guard Extensions (SGX) support
Intel Trust Domain Extensions (Intel TDX)
Immutable Silicon Root of Trust
TPM (Trusted Platform Module) 2.0 support
CPU TypeIntel Xeon
CPU Speed6515P (2.30 GHz)
Number of CPU Cores16-Core Processor
Cache Memory72 MB L3
CPU Features150W TDP
# of Processors Installed1
Installed Memory Size64GB
Memory TypeHPE DDR5 Smart Memory
Memory Features64 GB (1x64 GB, 6400 MT/s)
Storage ControllerHPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
SSD (Installed)HPE NS204i-u v2 480GB NVMe Hot Plug Boot Optimized Storage Device
Ethernet ControllerBroadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Expansion SlotsUp to 6 PCIe Gen5, and 2 OCP 3.0 with Rich IO Processor
Power Characteristics2 x HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit
Shipping weight18.14 kg
Package size762 × 508 × 254 mm

Questions about this item

What rack height does this 1U server require?

This server occupies 1U of rack space in a standard rack cabinet.

How is the HPE MR408i-o Gen11 storage controller installed, and what step is often missed?

The controller mounts in an OCP 3.0 slot; the step often missed is seating the x8 lane connector fully before securing the retention latch.

When will the 480GB NVMe boot device need replacement?

The HPE NS204i-u v2 480GB NVMe drive is rated for boot workloads; replace it when SMART health indicators show wear or after the rated write endurance is reached.
