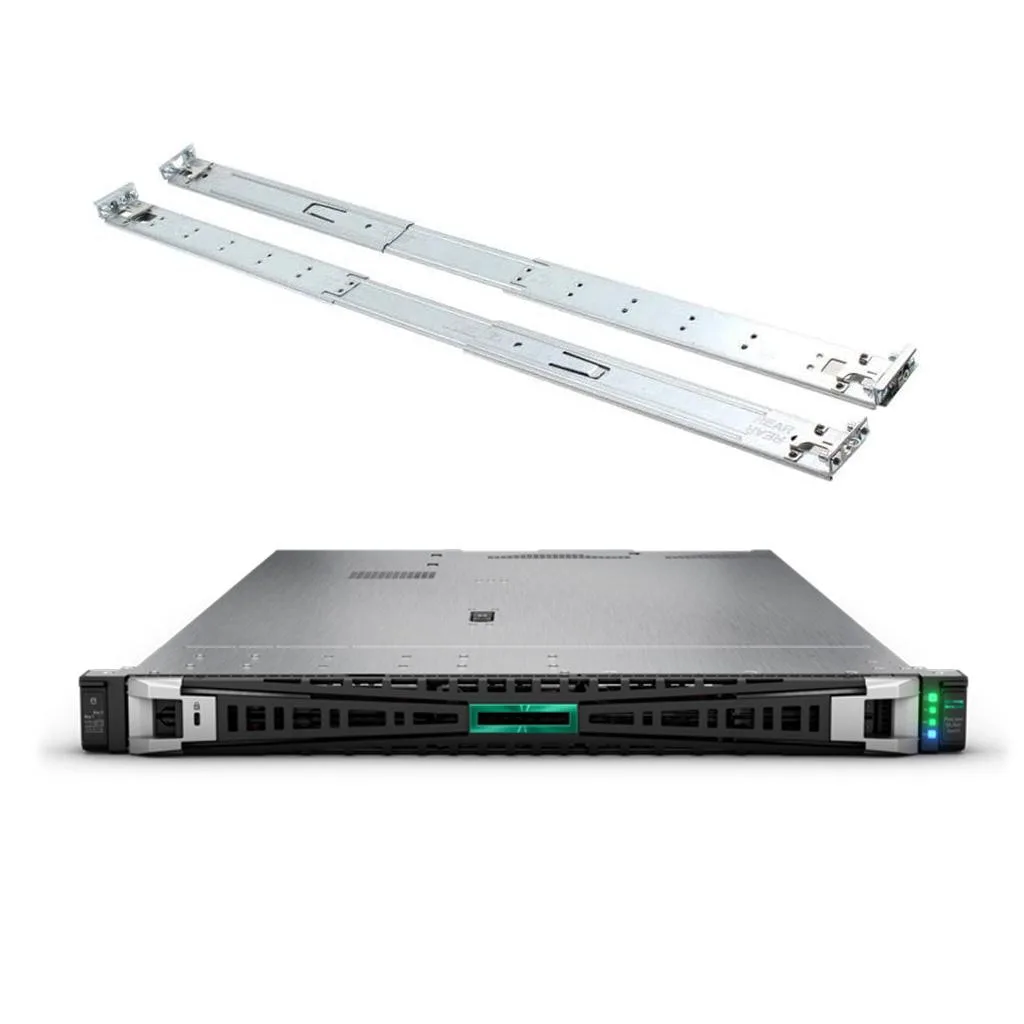

HPE ProLiant DL360 Gen11 1U rack server, silver front panel with drive bays

HPE

HPE ProLiant DL360 Gen11 1U Rack Server Dual Xeon 5416s 512GB DDR5 30.72TB SATA SSD

SKU CH-8V5R-A0PMA

A 1U rack server with dual 16-core Xeon 5416s processors, 512GB DDR5 memory and 30.72TB of enterprise SATA SSD storage for virtualised workloads

  • TypeRack
  • CPU TypeIntel Xeon
  • MAX Processors2
  • Memory TypeDDR5
  • Max Memory Capacity512GB
  • Dual Xeon Gold 5416s with 16 cores each power demanding virtualization workloads
  • 512GB DDR5-4800 ECC memory supports large-scale database and analytics tasks
  • 72TB of enterprise SATA SSD storage provides high-capacity, reliable data access
  • Redundant hot-swap power supplies keep applications running during a module failure
  • iLO 6 remote management enables secure server control from anywhere

Compact 1U server with dual Xeon 5416s and 512GB

This HPE ProLiant DL360 Gen11 is a 1U rack server equipped with two Intel Xeon Gold 5416s processors, each with 16 cores running at 2.00 GHz up to 4.00 GHz turbo. It comes with 512GB of DDR5-4800 ECC buffered memory across eight 64GB modules and 30.72TB of enterprise SATA SSD storage on four 7.68TB drives. The system includes a rail kit for rack installation.

Suited for virtualised workloads

Organisations running virtualised workloads or database applications on a single-socket or dual-socket platform will find the memory capacity and core count aligned to those tasks. The embedded 4-port 1GbE OCP3 adapter and iLO 6 remote management support standard network and lights-out administration. Buyers who need higher network bandwidth, additional PCIe expansion beyond the x8 storage controller, or GPU compute should evaluate alternative configurations.

DDR5-4800 ECC buffered memory defines compatibility

The server uses 512GB of DDR5-4800MHz PC5-38400 ECC buffered memory, which dictates the memory generation and form factor for any future upgrades. Storage is provided by 2.5-inch SATA III 6Gb/s SSDs managed by an MR408i-o Gen11 x8 lane controller with 4GB cache. Both memory modules and drives are supplied separately and require installation before deployment.

Highlights

  • Dual Xeon Gold 5416s with 16 cores each power demanding virtualization workloads
  • 512GB DDR5-4800 ECC memory supports large-scale database and analytics tasks
  • 72TB of enterprise SATA SSD storage provides high-capacity, reliable data access
  • Redundant hot-swap power supplies keep applications running during a module failure
  • iLO 6 remote management enables secure server control from anywhere

Specifications

TypeRack
CPU TypeIntel Xeon
MAX Processors2
Memory TypeDDR5
Max Memory Capacity512GB

Questions about this item

How do I install the 8 x 64GB DDR5-4800 ECC modules and 4 x 7.68TB SATA SSDs that ship loose with the DL360 Gen11?

Power down the server, open the top cover, seat each 64GB module firmly until the ejector clips lock, then slide the four 2.5-inch SSDs into the front drive bays until they click into the backplane.

What maintenance or replacement will the DL360 Gen11 need over its service life?

Replace the hot-swap fans or redundant power supplies if a fault LED lights; the 7.68TB SATA SSDs should be monitored via the MR408i-o controller and swapped when SMART indicates end of life.

Which limit appears first when the dual Xeon 5416s run sustained workloads?

The 1U chassis airflow and dual redundant power supplies set the thermal and power ceiling before the 2.00 GHz base or 4.00 GHz turbo frequencies become constrained.
