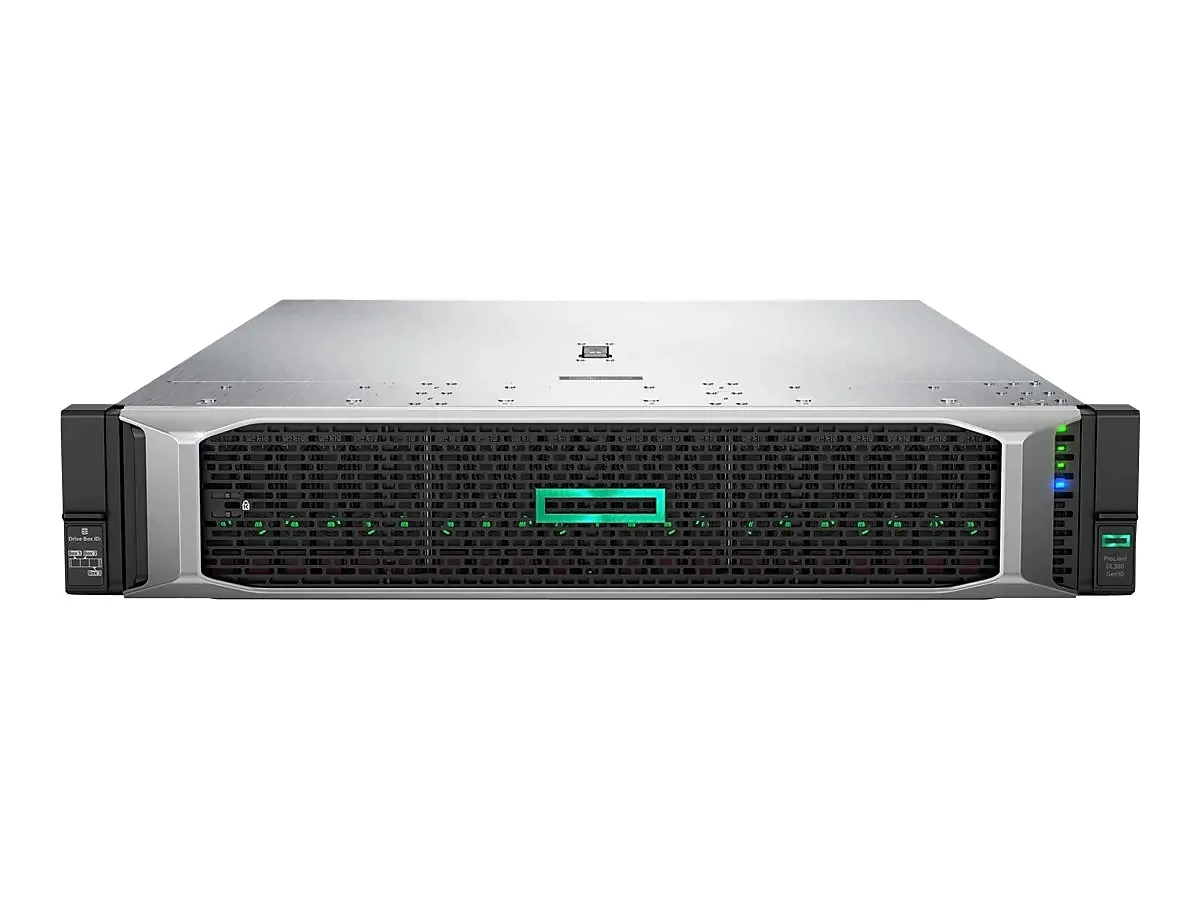

HPE ProLiant DL380 G10 P24846-B21 rack server Xeon 6226R 16C 2.9 GHz 32 GB DDR4 8 SFF 10 Gb SFP+ 800 W
A 2U rack server with a 16-core Xeon at 2.9 GHz, 32 GB DDR4, dual 10 Gb SFP+ ports and eight SFF drive bays
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height2U
- CPU TypeIntel Xeon Gold
- CPU Speed6226R (2.90)
- Number of CPU Cores16-Core Processor
- 16-core Xeon Gold 6226R at 2.9 GHz for multi-threaded performance
- 32 GB DDR4 Smart Memory installed for immediate workload capacity
- Dual-port 10 Gb SFP+ adapter provides high-speed network connectivity
- Eight SFF drive bays enable dense local storage expansion
- 800 W hot-plug power supply supports redundancy and easy maintenance
Single-socket rack server
The HPE ProLiant DL380 G10 P24846-B21 is a 2U rack server built around one Intel Xeon Gold 6226R processor with 16 cores at 2.9 GHz. It ships with 32 GB of HPE DDR4 Smart Memory, eight small form factor drive bays, and a 10 Gb SFP+ two-port adapter.
Suited for general-purpose workloads
This configuration fits environments that need a single processor, moderate memory, and high-speed fibre networking out of the box. It is not for deployments that require a second CPU installed, additional drive bays beyond the eight SFF slots, or built-in copper Ethernet ports.
16-core Xeon Gold 6226R
The installed processor delivers 16 cores at 2.9 GHz with 22 MB L3 cache and a 150 W thermal design. That core count and clock speed are the primary factors when matching the server to compute-intensive or virtualised workloads.
Highlights
- 16-core Xeon Gold 6226R at 2.9 GHz for multi-threaded performance
- 32 GB DDR4 Smart Memory installed for immediate workload capacity
- Dual-port 10 Gb SFP+ adapter provides high-speed network connectivity
- Eight SFF drive bays enable dense local storage expansion
- 800 W hot-plug power supply supports redundancy and easy maintenance
Specifications
| Brand | HPE |
|---|---|
| Series | ProLiant DL380 G10 |
| Model | P24846-B21 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 2U |
| CPU Type | Intel Xeon Gold |
| CPU Speed | 6226R (2.90) |
| Number of CPU Cores | 16-Core Processor |
| Cache Memory | 22 MB L3 |
| # of Processors Installed | 1 |
| Installed Memory Size | 32GB |
| Memory Type | HPE DDR4 Smart Memory |
| Storage Controller | 1 HPE Smart Array S100i |
| Ethernet Controller | HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
| Expansion Bays | 8 small form factor drive bays |
| Power Characteristics | HPE 800W Flex Slot Universal Hot Plug Low Halogen |
| Dimensions | 17.54" x 28.75" x 3.44" |
| Weight | 32.6 lbs. |
| Shipping weight | 8.62 kg |
| Package size | 813 × 533 × 203 mm |
Questions about this item
What drives must I supply to populate the 8 small form factor bays?
The server ships with no drives installed; you add up to eight 2.5-inch SFF drives that the S100i controller can address.
Will my existing 1 Gb SFP copper modules work in the 562FLR-SFP+ adapter?
The 562FLR-SFP+ adapter runs at 10 Gb and accepts SFP+ optics or direct-attach cables; 1 Gb SFP modules are not supported on this port.
How do I confirm the single Xeon Gold 6226R and 32 GB DDR4 are recognised after first boot?
Enter the UEFI System Utilities or iLO interface — both will show one 16-core processor at 2.9 GHz with 22 MB L3 cache and one 32 GB DDR4 Smart Memory module.
