HPE ProLiant DL380 G10 rack server P63680-B21 Xeon Gold 5218 2.3 GHz 192GB 2x480GB SSD
2U rack server with one Xeon Gold 5218 at 2.3 GHz, 192 GB DDR4 and two 480 GB SATA SSDs
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height2U
- Server Scalability2-Way
- CPU TypeXeon Gold 5218 2.3 GHz
- CPU Speed2.30 GHz
- Enterprise compute with Xeon Gold 5218 at 2.3 GHz
- 192GB DDR4 memory for heavy workloads
- Dual 480GB SATA SSD with RAID flexibility
- 2U rack form factor supports 2-way scaling
- Redundant 800W 80 PLUS Platinum power supplies

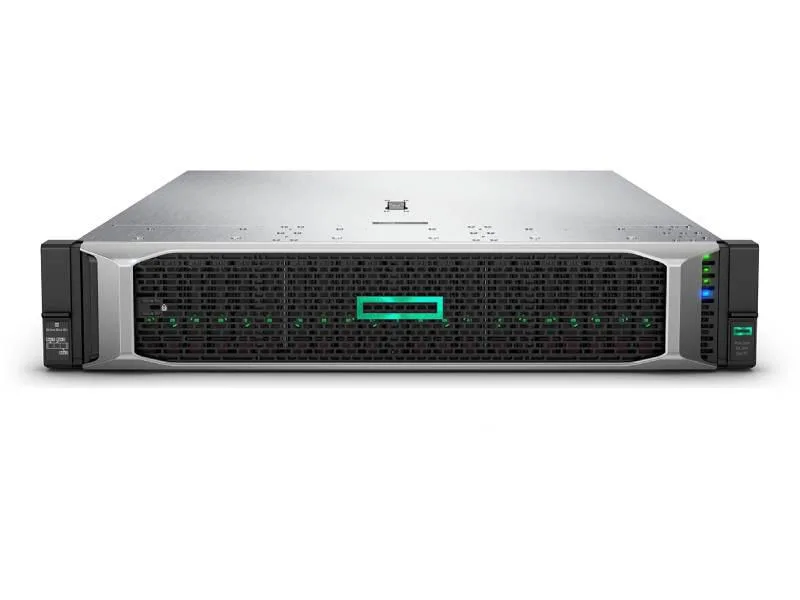

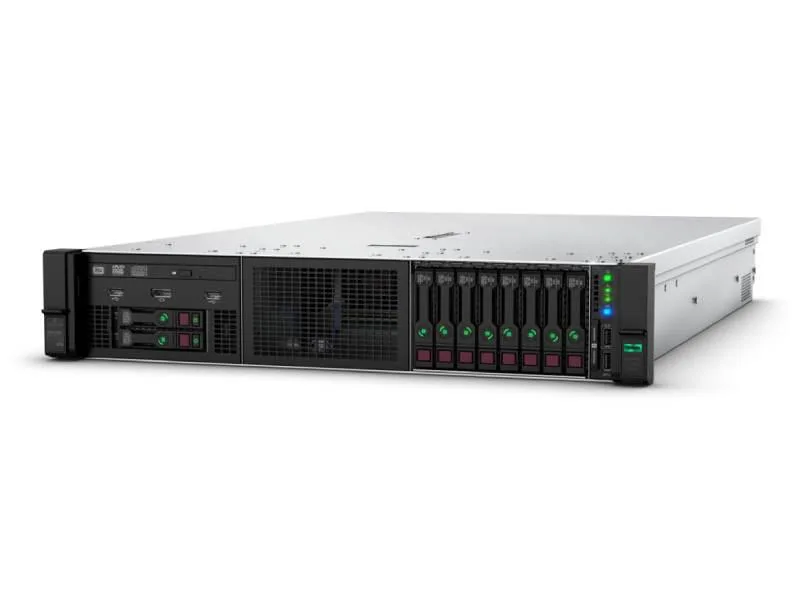

HPE ProLiant DL380 G10 2U rack server
The HPE ProLiant DL380 G10 is a 2U rack server built for general-purpose workloads. It ships with one Xeon Gold 5218 processor running at 2.3 GHz and 192 GB of DDR4 memory. Two 480 GB SATA SSDs are installed, and the chassis supports a second CPU for 2-way scalability.
Installation and common issues
The server fits a standard 19-inch rack and uses hot-plug power supplies for easier maintenance. Redundant 1+1 power requires a second supply to be fully active. Memory upgrades must use DDR4 modules; other generations will not fit. RAID configuration should be set before deploying the operating system.
Deciding specification — maximum memory capacity
The platform supports up to 1.5 TB of DDR4 across 12 slots, so the installed 192 GB leaves significant headroom for growth. Buyers who need more storage than two 480 GB drives provide should plan for additional drive bays or external arrays. Workloads requiring more than two processors are not supported on this chassis.
Highlights
- Enterprise compute with Xeon Gold 5218 at 2.3 GHz
- 192GB DDR4 memory for heavy workloads
- Dual 480GB SATA SSD with RAID flexibility
- 2U rack form factor supports 2-way scaling
- Redundant 800W 80 PLUS Platinum power supplies
Specifications
| Brand | HPE |
|---|---|
| Series | ProLiant DL380 G10 |
| Model | P63680-B21 |
| Part Number | P63680-B21 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 2U |
| Server Scalability | 2-Way |
| CPU Type | Xeon Gold 5218 2.3 GHz |
| CPU Speed | 2.30 GHz |
| CPU Socket | LGA 3647 |
| # of Processors Installed | 1 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 1.5TB |
| Number of Memory Slots | 12 |
| SSD (Installed) | 2 x 480GB SATA SSD |
| Raid Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Compatible/Certified OS | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS |
| Power Characteristics | Device Type: Power supply - hot-plug Power Redundancy: Yes Power Redundancy Scheme: 1+1 (with optional power supply) Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 100-240 V (50/60 Hz) Power Provided: 800 Watt 80 PLUS Certification: 80 PLUS Platinum |
| Temperature | Min Operating Temperature: 50 °F Max Operating Temperature: 95 °F |
| Dimensions | Width: 17.5 in Depth: 26.7 in Height: 3.4 in |
| Weight | 32.85 lbs |
| Shipping weight | 24.49 kg |
| Package size | 762 × 508 × 127 mm |
Questions about this item
How do I confirm the Xeon Gold 5218 is running at 2.3 GHz after installation?
Check the processor speed in the iLO management interface or BIOS; it should report 2.30 GHz for the installed CPU.
What comes in the box and what must I buy separately?
The server ships with one Xeon Gold 5218, 192GB DDR4 across 12 slots, two 480GB SATA SSDs, and two 800W 80 PLUS Platinum hot-plug power supplies; a second processor and extra drives are optional.
Which memory capacity should I choose if I need room to grow?
The system supports up to 1.5TB DDR4; with 192GB already installed in 12 slots, adding a second CPU unlocks the remaining slots for expansion.
