HPE ProLiant DL380 Gen9 12LFF rack server 2x Xeon E5-2699 v4 2.2GHz 192GB DDR4 no drives
A 12-bay 3.5-inch rack server with dual Xeon E5-2699 v4 2.2GHz 22-core CPUs, 192GB DDR4 ECC memory, and a P440ar SAS controller, sold without drives
- TypeRack
- CPU TypeIntel Xeon
- CPU Speed2.2GHz
- # of Processors Installed2
- MAX Processors2
- Installed Memory Size192GB
- Dual 22-core Xeon E5-2699 v4 CPUs deliver 44 threads at 2.2 GHz
- 192 GB DDR4 ECC registered memory supports demanding workloads
- 12 LFF 3.5-inch drive bays with P440ar SAS controller for flexible storage
- Integrated Intel I350/X540 quad-port 10 GbE and 1 GbE networking
- HPE iLO Advanced remote management enables lights-out administration

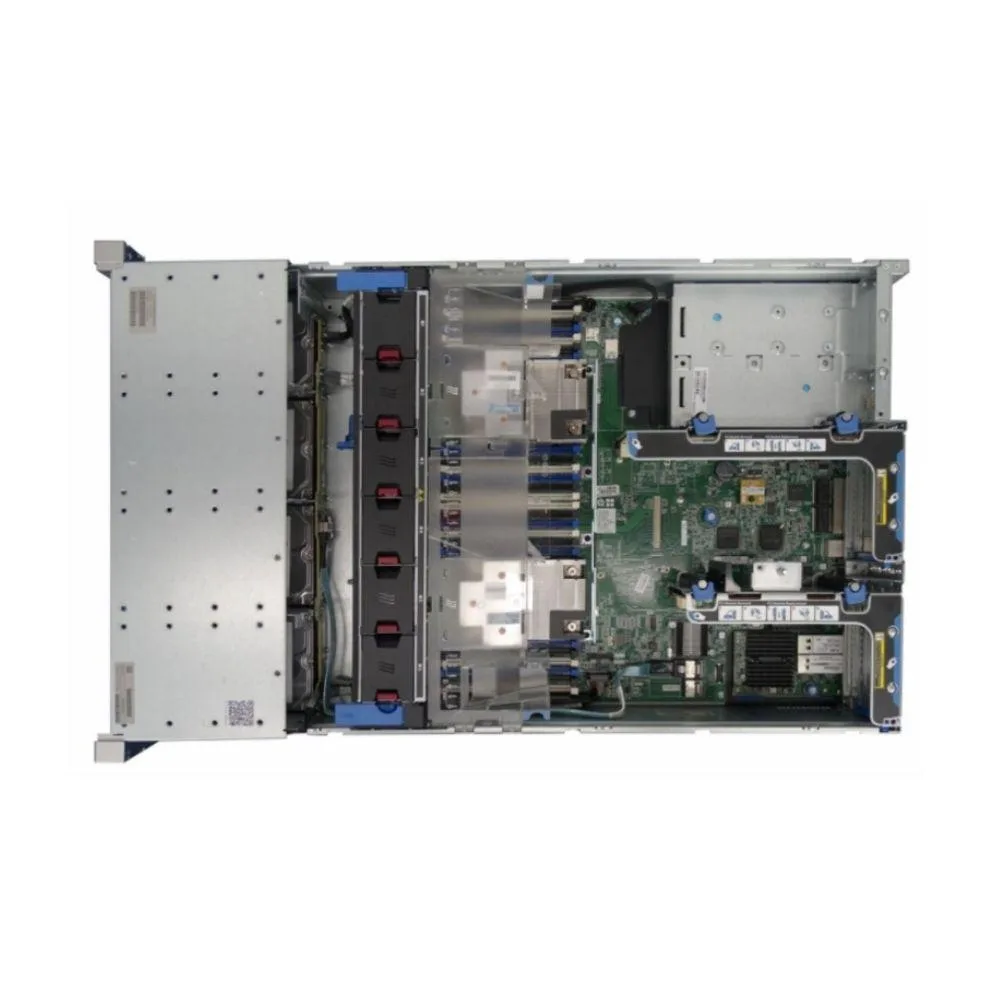

DL380 Gen9 12-bay 3.5-inch rack server
The HPE ProLiant DL380 Gen9 chassis holds up to twelve 3.5-inch drives and ships with two Xeon E5-2699 v4 processors running at 2.2GHz. Each CPU provides 22 cores and 55MB cache, giving 44 cores total. Memory is 192GB DDR4 ECC registered. The P440ar SAS controller with expander manages storage.
Suits workloads needing high core count
This configuration fits virtualisation hosts, database nodes or backup targets that benefit from 44 threads and twelve large drive bays. The dual 800W hot-plug supplies and iLO Advanced remote management support lights-out operation. Buyers who need 2.5-inch bay density, GPU accelerator space or a single-socket design should evaluate other form factors.
12 LFF bays with P440ar SAS controller
The chassis provides twelve 3.5-inch SATA/SAS bays backed by the P440ar controller and a SAS expander, so every bay connects to a single RAID engine. No drives are installed; add the capacity and redundancy level the workload requires.
Highlights
- Dual 22-core Xeon E5-2699 v4 CPUs deliver 44 threads at 2.2 GHz
- 192 GB DDR4 ECC registered memory supports demanding workloads
- 12 LFF 3.5-inch drive bays with P440ar SAS controller for flexible storage
- Integrated Intel I350/X540 quad-port 10 GbE and 1 GbE networking
- HPE iLO Advanced remote management enables lights-out administration
Specifications
| Brand | HP |
|---|---|
| Series | ProLiant |
| Model | Rack Mount |
| Type | Rack |
| CPU Type | Intel Xeon |
| CPU Speed | 2.2GHz |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 192GB |
| Memory Type | DDR4 |
| Max Memory Capacity | 3TB |
| Hard Drive (Installed) | 48,00 |
| Storage Controller | HP Smart Array P440ar And Sas Expander |
| HDD Interface | SATA |
| GPU Type | Integrated Graphics |
| Remote Management | HPE iLO Advanced |
| Dimensions | 36 x 24 x 10 in |
| Weight | 40 |
Questions about this item
How much heat and noise do the two Xeon E5-2699 v4 processors and 192 GB of DDR4 generate under sustained load?
The dual 22-core CPUs at 2.2 GHz and the 192 GB of DDR4 ECC memory produce significant heat; the chassis relies on redundant 800 W Flex Slot power supplies and multiple system fans to keep temperatures in check, so expect noticeable airflow noise in a quiet room.
Which drive trays and cables must I already have to populate the 12 LFF bays?
The 12-bay 3.5-inch chassis uses the included P440ar SAS controller and SAS expander; you need 3.5-inch SAS or SATA drives plus the matching drive carriers and backplane cables that fit the Gen9 12 LFF backplane.
Will my existing SATA SSDs work with the P440ar controller in this Gen9 server?
Yes — the P440ar SAS controller supports SATA SSDs on the 12 LFF backplane, so 3.5-inch SATA drives can be added directly; SAS drives are also supported if you prefer them.
