Green rectangular ATX motherboard with silver CPU socket, four black DDR4 slots, multiple PCIe slots and M.2 connectors

HUANANZHI

HUANANZHI X99-AD4 V2.0 Intel motherboard LGA 2011-3

SKU CH-J1YY-Y1X07

An ATX board for Intel Xeon LGA 2011-3 CPUs with four DDR4 channels, eight SATA 3.0 ports, dual PCIe 3.0 x16 slots plus M.2 NVMe and NGFF

  • CPU Socket TypeLGA 2011
  • Supported CPU Technologies14nm
  • ChipsetX99 AD4
  • Memory StandardSupport Four Channels DDR4 1866/2133/2400 MHz
  • Supports Intel Xeon E5 2011-3 processors for multi-threaded server workloads
  • Four-channel DDR4 memory up to 128 GB at 2400 MHz for high bandwidth
  • Eight SATA 3.0 ports plus M.2 NVMe and NGFF slots for flexible storage
  • Dual PCIe 3.0 x16 plus x4 and x1 slots for GPU or add-in cards
  • ALC662 5.1 audio and RTL8111H Gigabit LAN for media and network connectivity

Intel XEON LGA 2011-3 workstation board

The HUANANZHI X99-AD4 V2.0 is an ATX motherboard built around the Intel X99 chipset for socket LGA 2011-3 processors. It targets builders who need multi-threaded performance for rendering, virtualization or compute workloads on a proven server-class platform.

Four-channel DDR4 up to 128 GB and dual M.2

Four DDR4 slots run at 1866, 2133 or 2400 MHz in quad-channel mode, giving 128 GB maximum capacity for large datasets. Two M.2 slots accept one NVME drive and one NGFF drive, while eight SATA3.0 ports handle bulk storage. The 10-layer PCB with six power phases supports the platform's high current draw.

Non-standard ATX dimensions and legacy I/O

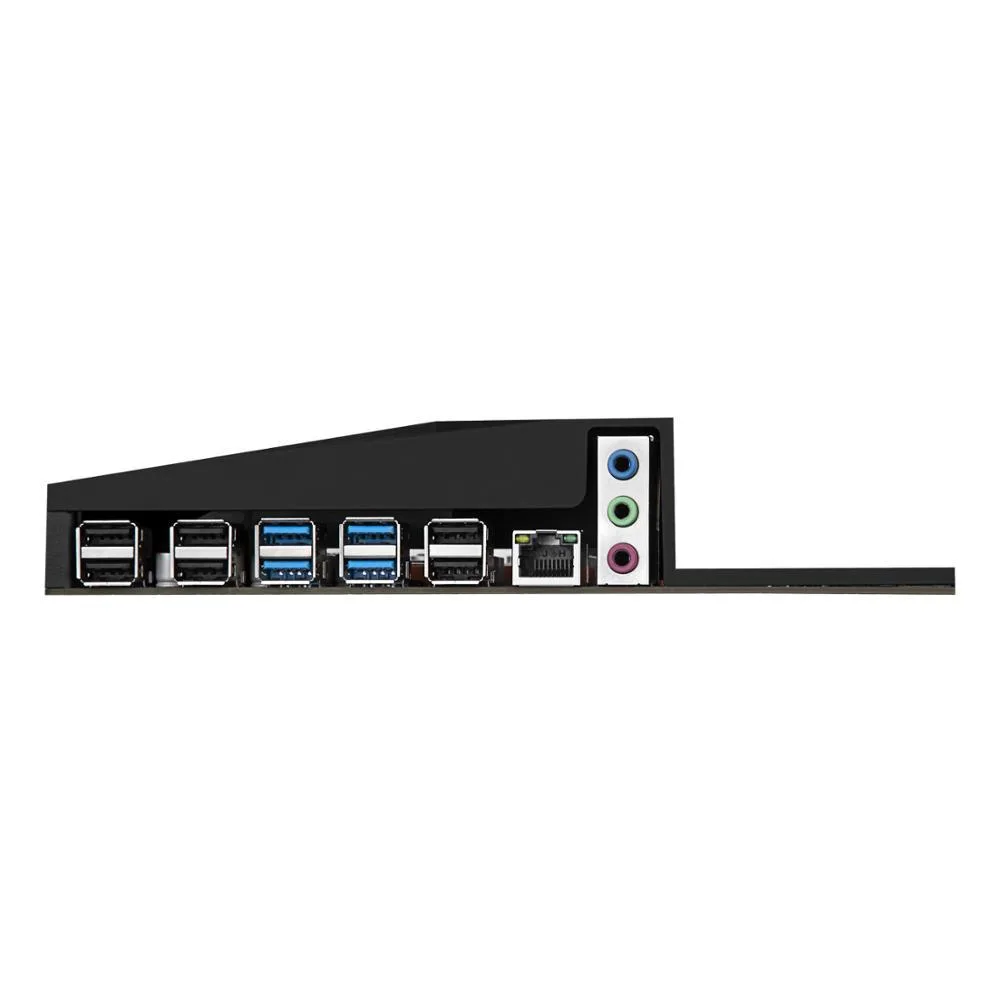

The board measures 283 by 215 mm, which is smaller than standard ATX, so case compatibility must be verified before purchase. Rear I/O includes four USB3.0, six USB2.0, gigabit Ethernet, PS/2 and 5.1 audio via ALC662. Expansion provides two PCI Express 3.0 x16 slots, one x4 and one x1 for add-in cards.

Highlights

  • Supports Intel Xeon E5 2011-3 processors for multi-threaded server workloads
  • Four-channel DDR4 memory up to 128 GB at 2400 MHz for high bandwidth
  • Eight SATA 3.0 ports plus M.2 NVMe and NGFF slots for flexible storage
  • Dual PCIe 3.0 x16 plus x4 and x1 slots for GPU or add-in cards
  • ALC662 5.1 audio and RTL8111H Gigabit LAN for media and network connectivity

Specifications

BrandHUANANZHI
SeriesX99-AD4
ModelX99-AD4
CPU Socket TypeLGA 2011
Supported CPU Technologies14nm
ChipsetX99 AD4
Memory StandardSupport Four Channels DDR4 1866/2133/2400 MHz

Questions about this item

Will my existing DDR4-2400 modules run at full speed in the four-channel slots?

Yes, the board supports four-channel DDR4 at 1866, 2133 and 2400 MHz so your modules will operate at their rated frequency.

How can I verify the board is using all four memory channels after assembly?

Enter the BIOS and confirm that total installed memory equals the sum of all four modules and that the memory frequency reads 1866, 2133 or 2400 MHz.

Does the box include the 24-pin and 8-pin power cables or must I supply them?

The motherboard provides the 24-pin and 8-pin sockets; the cables come with your power supply, not with the board.
