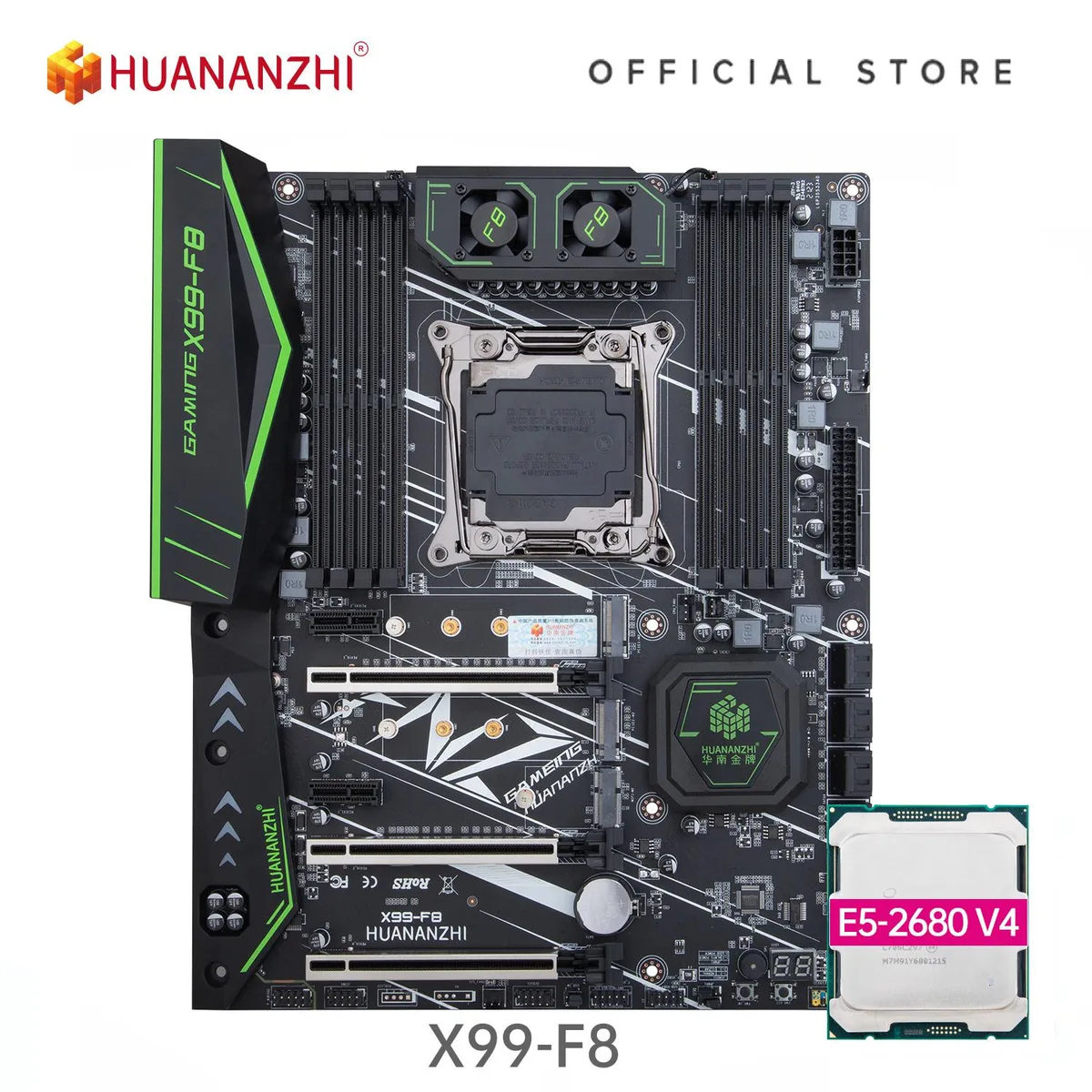

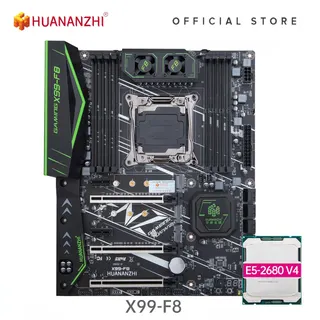

ATX motherboard with LGA 2011 socket and Xeon E5 2680 V4 processor installed

HUANANZHI

HUANANZHI X99 F8 Intel motherboard with Xeon E5 2680 V4

SKU CH-JQ7X-6JK65

ATX X99 board with 14-core Xeon E5-2680 V4, eight DDR4 slots up to 2400 MT/s, dual NVME M.2, eight SATA3 ports, six USB3.0 ports and Gigabit Ethernet

  • CPU Socket TypeLGA 2011
  • 14 cores and 28 threads handle heavy multitasking
  • 8 DDR4 slots support up to 32 GB memory
  • 2 M.2 NVME slots for fast storage
  • 10 layer PCB with 6 phase power delivery
  • Gigabit Ethernet and 6 USB 3.0 ports

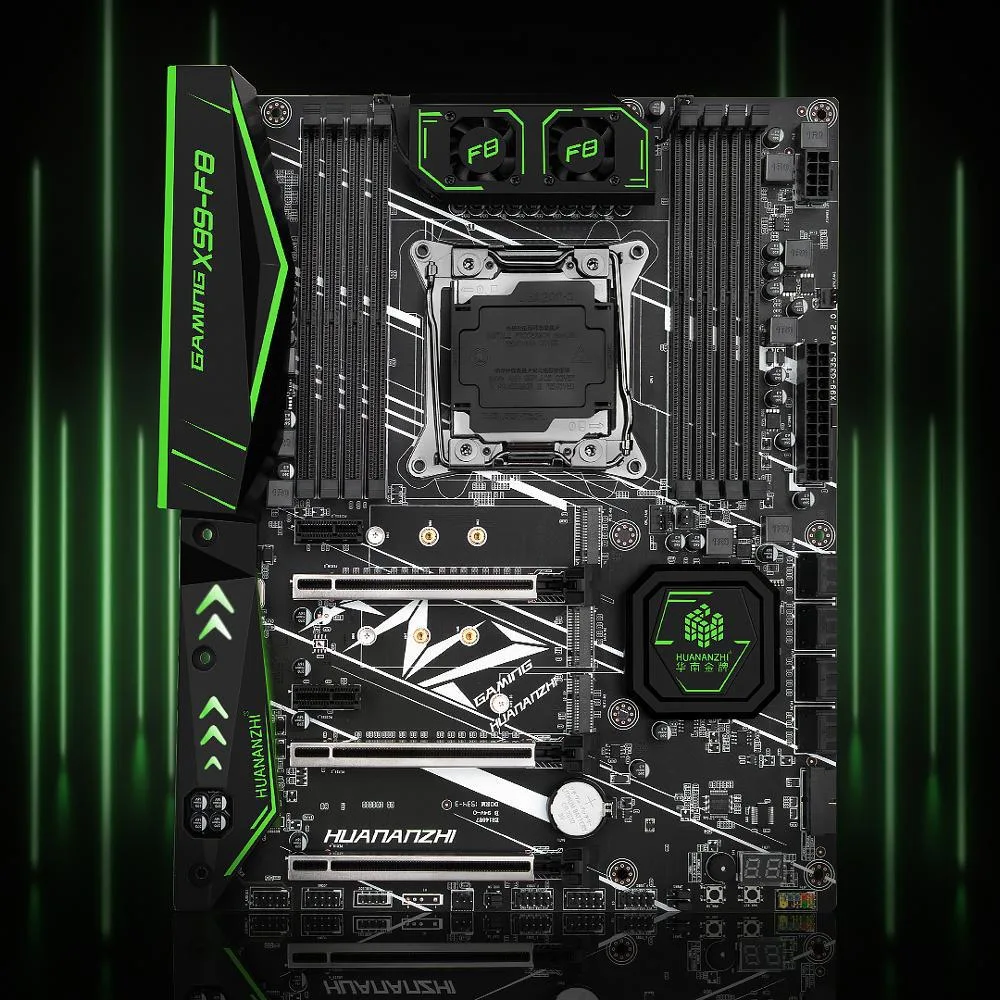

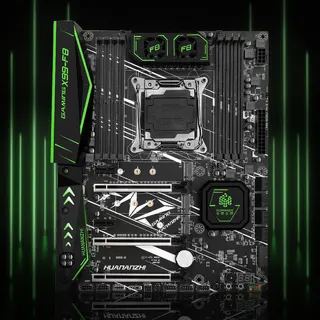

X99 F8 workstation board with Xeon E5 2680 V4

This ATX motherboard pairs the Intel X99 chipset with a 14-core Xeon E5 2680 V4 running at 2.4 GHz and 35 MB L3 cache. The LGA 2011-3 platform targets multi-threaded workloads such as rendering, virtualization and compute-heavy servers. Eight DDR4 slots in quad-channel layout accept up to 32 GB per module at 1866, 2133 or 2400 MT/s, supporting both non-ECC and registered ECC memory.

Check power and cooler clearance before ordering

The CPU draws 120 W and the supplier notes a minimum 500 W power supply for the platform. Verify that your PSU delivers enough 12 V current and that the case can accommodate an ATX board measuring 300 by 244 mm. A discrete graphics card is required because the board has no integrated video output. Ensure your cooler mounts on LGA 2011-3 and clears the 10-layer PCB and six-phase VRM heatsinks.

Dual x16 slots plus dual M.2 NVME for fast storage

Expansion includes two PCI-E 3.0 x16 slots, two x1 slots and one x4 slot for GPUs, capture cards or additional I/O. Storage connectivity provides eight SATA 3.0 ports and two M.2 NVME sockets alongside an M.2 WIFI key. Rear I/O supplies six USB 3.0 ports with eight USB 2.0 headers for front-panel expansion. Gigabit Ethernet handles wired networking.

Highlights

  • 14 cores and 28 threads handle heavy multitasking
  • 8 DDR4 slots support up to 32 GB memory
  • 2 M.2 NVME slots for fast storage
  • 10 layer PCB with 6 phase power delivery
  • Gigabit Ethernet and 6 USB 3.0 ports

Specifications

BrandHUANANZHI
ModelX99 F8
CPU Socket TypeLGA 2011

Questions about this item

Does the HUANANZHI X99 F8 combo include the Xeon E5 2680 V4 processor, or must I buy it separately?

The combo kit includes the Xeon E5 2680 V4 processor with 14 cores and 28 threads installed on the motherboard, so no separate CPU purchase is required.

Which memory speed should I choose for the X99 F8 board — 1866, 2133 or 2400 MHz?

The board supports DDR4 at 1866, 2133 and 2400 MHz; 2400 MHz modules will run at the highest supported frequency for maximum bandwidth.

What does the 120 W power rating of the Xeon E5 2680 V4 mean for my power supply choice?

The CPU draws up to 120 W, and the manufacturer advises a power supply of at least 500 W to handle the whole platform reliably.
