Green rectangular E-ATX motherboard with dual LGA 2011 sockets, eight DDR4 slots, silver heatsinks and black PCB

HUANANZHI

HUANANZHI X99 F8D Intel motherboard

SKU CH-XBYH-WFTB2

Dual-CPU LGA 2011-3 board with C612 chipset, eight DDR4 slots up to 256 GB, six SATA 3.0 plus four SSATA 3.0 ports, and M.2 NVMe support

  • CPU Socket TypeLGA 2011
  • Supports Intel Xeon processors on LGA 2011-3 socket
  • Dual CPU configuration for multi-threaded workloads
  • Eight DDR4 slots up to 256 GB memory capacity
  • Six SATA 3.0 ports for storage expansion
  • Four-channel DDR4 at 1866, 2133, 2400 MHz

Dual-processor X99 workstation board

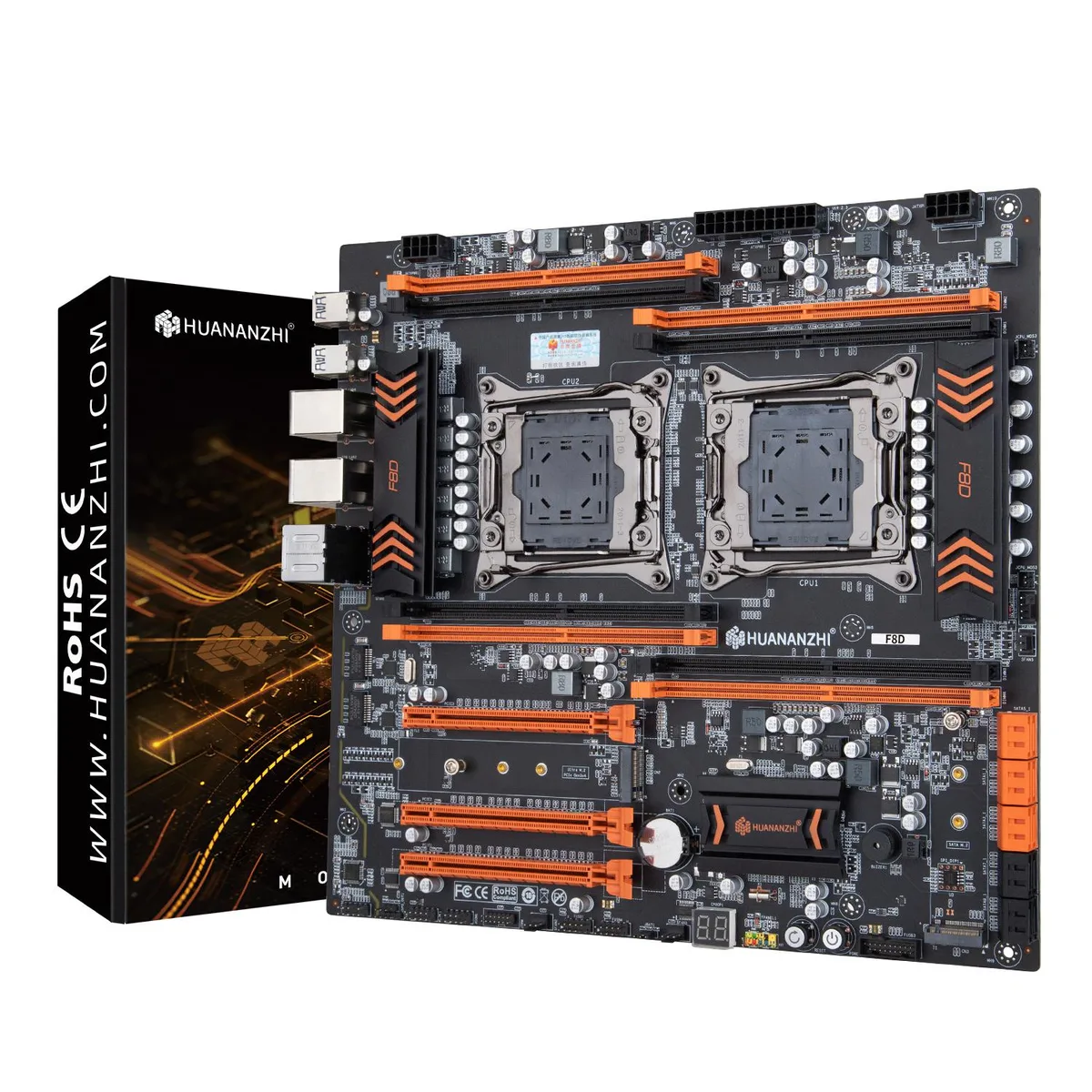

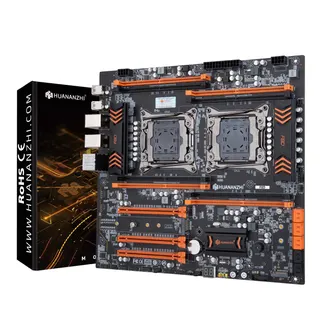

The HUANANZHI X99 F8D is an E-ATX motherboard built around the Intel C612 chipset with two LGA 2011-3 sockets. It accepts Xeon E5 V3 and V4 processors and provides eight DDR4 slots for up to 256 GB of registered ECC memory. Six SATA 3.0 and four SSATA 3.0 ports handle mass storage, while an M.2 slot supports NVMe drives.

Suited for multi-threaded servers and render nodes

This board targets builders assembling dual-CPU workstations for virtualization, batch rendering or scientific compute where registered ECC memory and high core counts matter. Single-socket users, gamers or anyone without an E-ATX case and a power supply that delivers two 8-pin CPU connectors should choose a different platform.

Eight-channel DDR4 2400 MHz ceiling

The memory controller runs four-channel DDR4 at 1866, 2133 or 2400 MHz across all eight slots, capping total capacity at 256 GB with 32 GB modules. Populate every slot with matched registered ECC sticks to reach the rated bandwidth and capacity.

Highlights

  • Supports Intel Xeon processors on LGA 2011-3 socket
  • Dual CPU configuration for multi-threaded workloads
  • Eight DDR4 slots up to 256 GB memory capacity
  • Six SATA 3.0 ports for storage expansion
  • Four-channel DDR4 at 1866, 2133, 2400 MHz

Specifications

BrandHUANANZHI
ModelX99 F8D
CPU Socket TypeLGA 2011

Questions about this item

Will the HUANANZHI X99 F8D fit in my existing E-ATX case and work with a power supply that has two 8-pin CPU connectors?

The board requires an E-ATX chassis and a supply of at least 500 W that provides two 8-pin CPU power plugs, so check your case clearance and PSU cables before installing.

How can I verify the dual-CPU X99 F8D is running correctly after assembly?

With two supported LGA 2011-3 processors seated, the system should POST, show all 8 DDR4 slots active in BIOS at 1866, 2133 or 2400 MHz, and expose the 6 SATA 3.0 plus 4 SSATA 3.0 ports for drives.

What ships with the HUANANZHI X99 F8D and what must I source separately?

The motherboard arrives without the CMOS battery; you must supply two LGA 2011-3 Xeon CPUs, up to 256 GB of DDR4 RECC memory, M.2 NVMe or SATA drives, an E-ATX case and a 500 W PSU with dual 8-pin CPU power.
