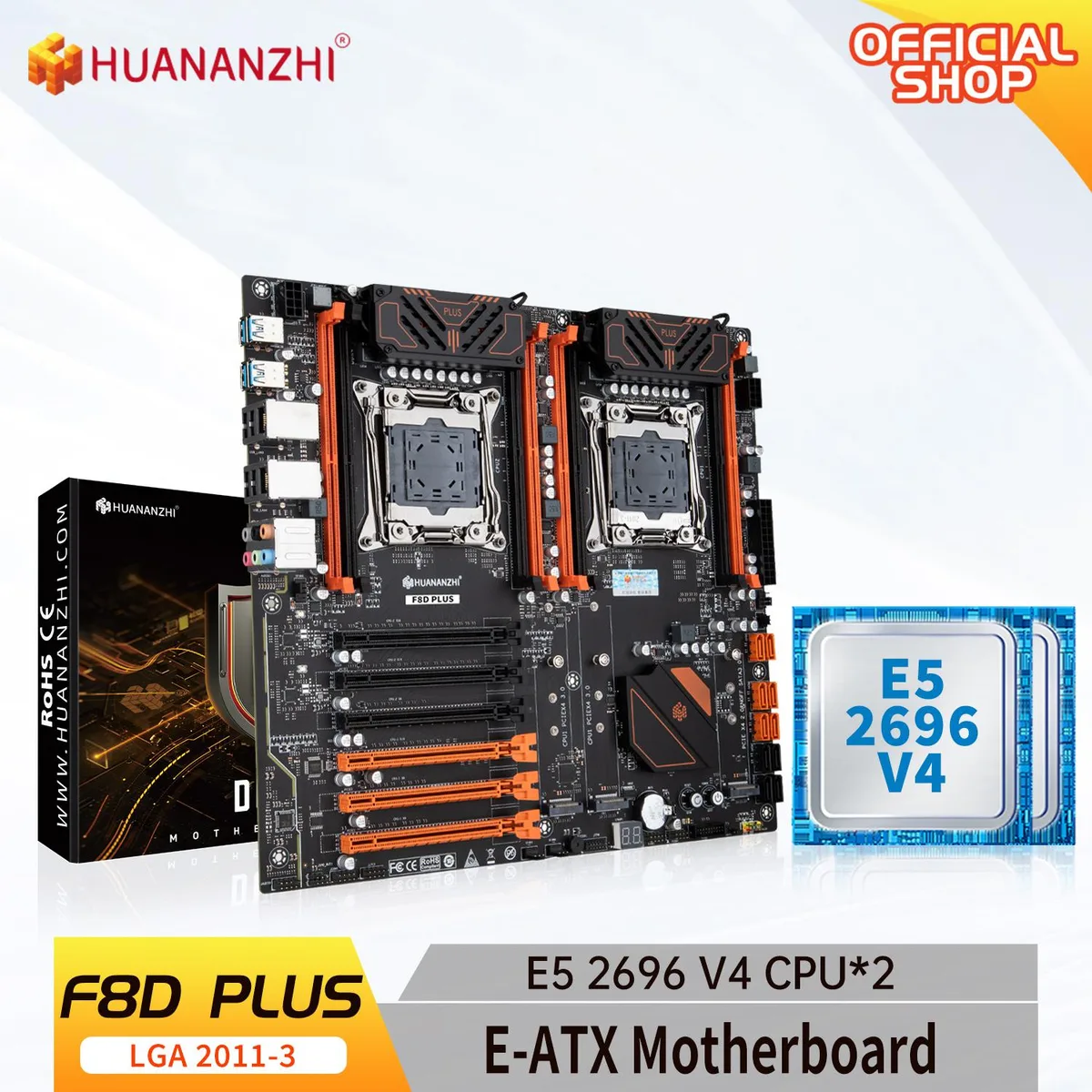

HUANANZHI X99 F8D PLUS E-ATX motherboard with dual Xeon E5 2696 V4 processors installed

HUANANZHI

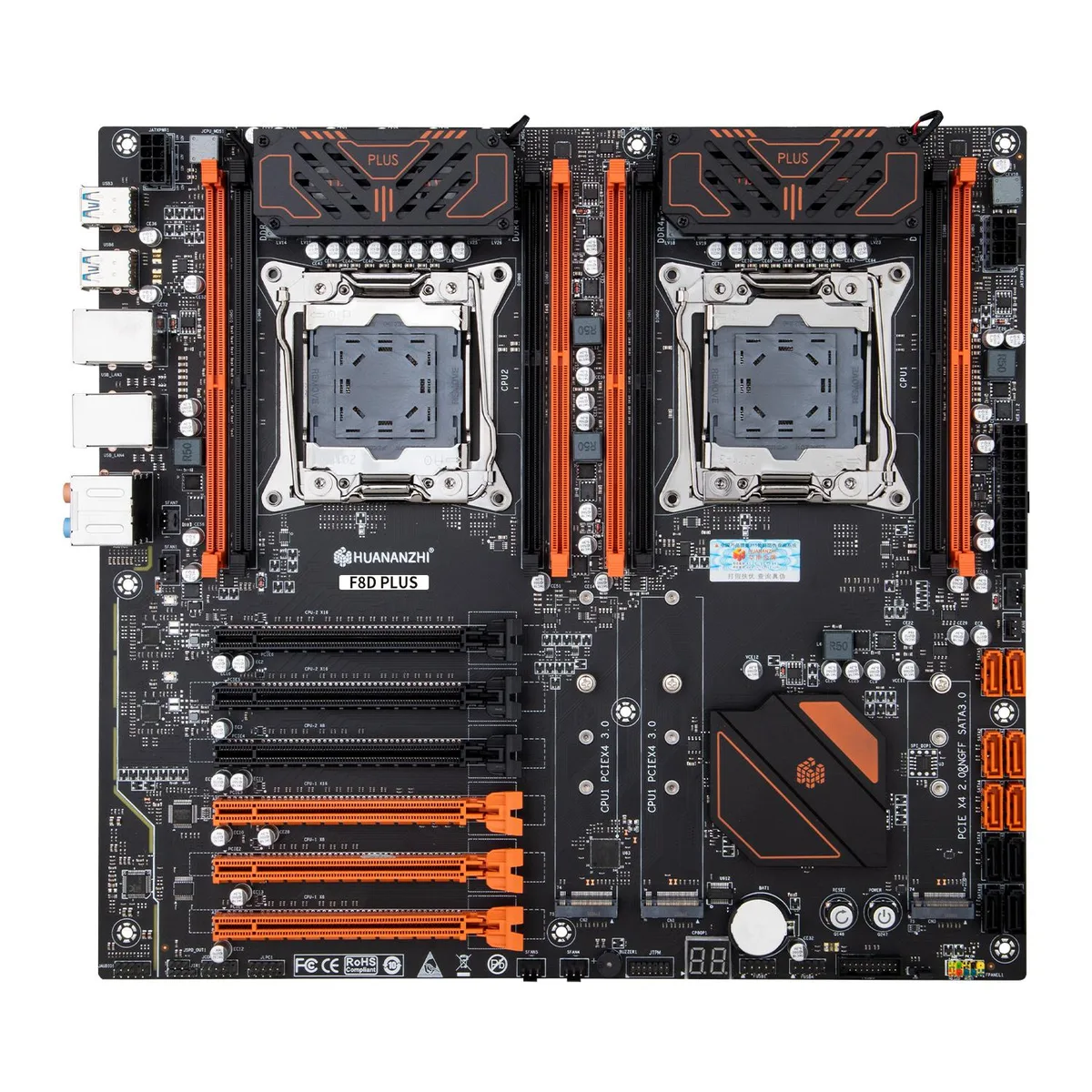

HUANANZHI X99 F8D PLUS LGA 2011-3 Intel motherboard with dual Xeon E5 2696 V4

SKU CH-4T6S-94NP6

Dual Xeon E5 2696 V4 processors deliver 44 cores and 44 threads on an E-ATX X99 board with eight DDR4 slots, ten SATA3 ports, dual M.2, three PCIe 3.0 x16 slots and dual gigabit LAN

  • CPU Socket TypeLGA 2011
  • Dual 22-core Xeon E5 2696 V4 deliver 44 threads for heavy multi-threaded workloads
  • Eight DDR4 slots support up to 64 GB per module in quad-channel mode
  • Six SATA 3.0 plus four SSATA 3.0 ports give ten 6 Gb/s drive connections
  • Two M.2 slots include one PCIe 3.0 x4 NVME and one shared SSATA interface
  • 12-layer PCB with 12-phase power feeds dual 8-pin and 24-pin connectors

Dual Xeon E5 2696 V4 platform

This HUANANZHI X99 F8D PLUS motherboard arrives paired with two Xeon E5 2696 V4 processors. Each CPU delivers 22 cores and 44 threads at a 2.2 GHz base frequency with 55 MB of L3 cache. The LGA 2011-3 socket and C612-class chipset target workstations and servers that need high thread counts for rendering, virtualization or compute clusters.

Thermals noise and power draw

The two CPUs carry a combined 145 W TDP per processor, so a robust cooling solution is essential. The board uses a 12-phase power design on a 12-layer PCB to deliver stable current. Six fan headers allow flexible airflow management for the CPU sockets, VRM area and chassis. Dual eight-pin plus 24-pin power connectors distribute load across the EPS rails.

Bundled accessories and software

The kit includes the motherboard and two tested used CPUs with a one-year seller warranty. Onboard I/O provides four USB 2.0, four USB 3.0, dual Gigabit Ethernet ports and 7.1-channel audio. Expansion covers three PCIe 3.0 x16 slots, one M.2 22110 NVME x4 slot and one M.2 2280 slot that shares an SSATA signal. Eight DDR4 slots support four-channel 1866/2133/2400 MHz memory up to 64 GB per DIMM.

Highlights

  • Dual 22-core Xeon E5 2696 V4 deliver 44 threads for heavy multi-threaded workloads
  • Eight DDR4 slots support up to 64 GB per module in quad-channel mode
  • Six SATA 3.0 plus four SSATA 3.0 ports give ten 6 Gb/s drive connections
  • Two M.2 slots include one PCIe 3.0 x4 NVME and one shared SSATA interface
  • 12-layer PCB with 12-phase power feeds dual 8-pin and 24-pin connectors

Specifications

BrandHUANANZHI
CPU Socket TypeLGA 2011

Questions about this item

How do I install the two Xeon E5 2696 V4 CPUs on the LGA 2011-3 sockets, and what step is often missed?

Seat each processor in its socket, align the notches, close the retention lever, then apply thermal paste and mount both heatsinks; the step often missed is connecting both 8-pin EPS power cables to the 24-pin+8-pin+8-pin power interface.

What maintenance or replacement will the dual Xeon E5 2696 V4 system need later?

The used CPUs carry a 1-year warranty; plan to replace thermal paste every 12-18 months and verify the 6 fan headers keep VRM temperatures stable under the 145 W per CPU load.

What limit appears first under sustained load with the 22-core 2.2 GHz Xeons?

The 145 W TDP per CPU pushes the 12-phase VRM and dual 8-pin EPS connectors first, so VRM thermal throttling becomes the limiting factor before memory or storage bandwidth.
