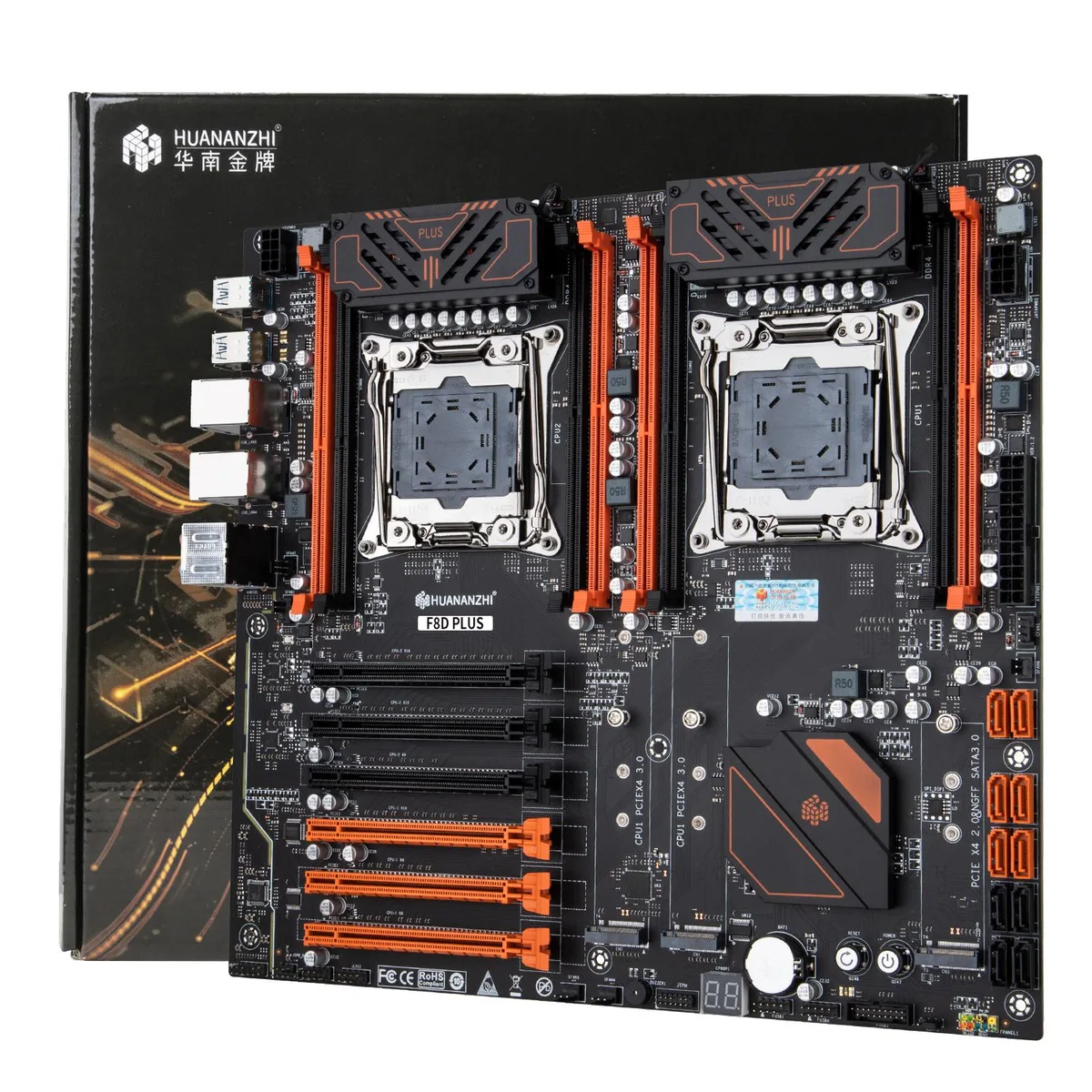

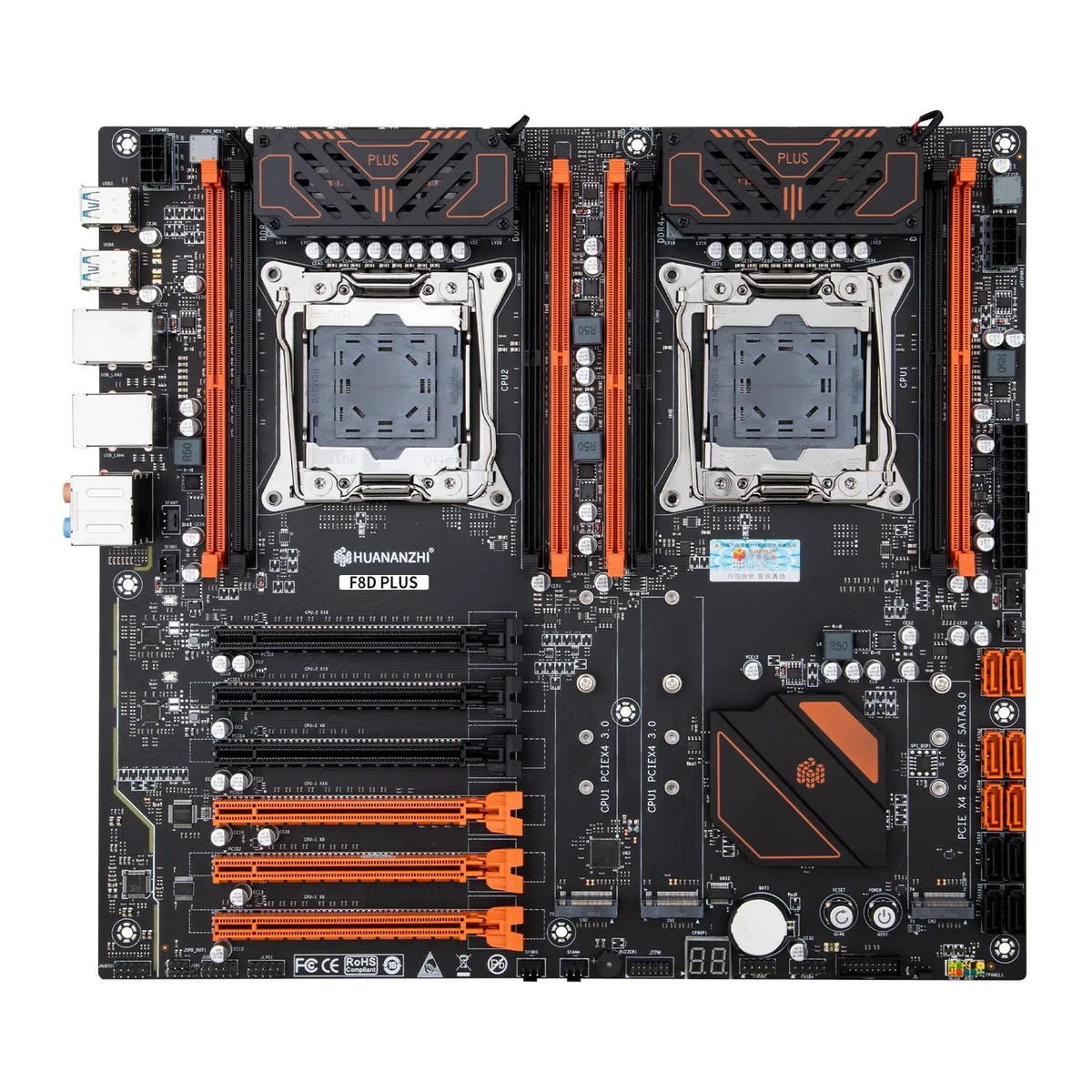

Rectangular E-ATX board, dual CPU sockets, eight DDR4 slots, silver heatsinks, black PCB

HUANANZHI

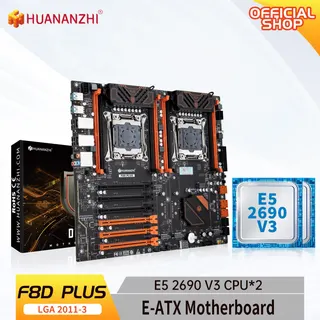

HUANANZHI X99 F8D PLUS LGA 2011-3 Intel motherboard with dual Xeon E5-2690 V3

SKU CH-KWF0-P67AC

Dual-socket LGA 2011-3 board with two Xeon E5-2690 V3 CPUs, 8 DDR4 slots, 10 SATA ports, dual M.2 and dual gigabit Ethernet

  • CPU Socket TypeLGA 2011
  • Dual Xeon E5-2690 V3 processors deliver 24 cores and 24 threads for parallel work
  • Eight DDR4 slots support up to 64 GB per module in quad-channel mode
  • Two M.2 slots provide NVMe x4 and SATA x4 storage options
  • Ten SATA 6 Gb/s ports allow large drive arrays
  • 12-layer PCB with 12-phase power feeds dual 135 W CPUs

HUANANZHI X99 F8D PLUS Dual Xeon E5-2690 V3

This kit pairs an E-ATX X99 motherboard with two Xeon E5-2690 V3 processors. Each CPU delivers 12 cores and 24 threads at 2.6 GHz with a 135 W TDP. The board uses the C612 chipset and a 12-phase power design on a 12-layer PCB. It targets workstations and render nodes that need high thread counts on a mature platform.

Suitability and alternatives

The dual-socket layout suits multi-threaded workloads such as offline rendering, virtualization hosts and scientific compute. Four-channel DDR4 at 1866/2133/2400 MHz feeds 8 DIMM slots for up to 64 GB per module. Builders who need modern instruction sets, PCIe 4.0 or single-thread speed should consider current platforms instead.

Deciding specification: 8 DDR4 slots

Memory capacity and bandwidth scale with all eight slots populated. The board accepts both ECC and non-ECC DDR4, so registered ECC modules can be used for error correction or standard UDIMMs for lower cost. Populating fewer than eight slots reduces channel count and total bandwidth proportionally.

Highlights

  • Dual Xeon E5-2690 V3 processors deliver 24 cores and 24 threads for parallel work
  • Eight DDR4 slots support up to 64 GB per module in quad-channel mode
  • Two M.2 slots provide NVMe x4 and SATA x4 storage options
  • Ten SATA 6 Gb/s ports allow large drive arrays
  • 12-layer PCB with 12-phase power feeds dual 135 W CPUs

Specifications

BrandHUANANZHI
ModelX99 F8D PLUS
CPU Socket TypeLGA 2011

Questions about this item

Does this board fit a standard E-ATX case and what clearance should I check?

The PCB measures 300 by 320 millimetres E-ATX. Verify your case supports that width and that the 24-pin plus two 8-pin power connectors clear surrounding components.

What memory kits work with the quad-channel controller?

Eight DDR4 slots accept up to 64 gigabytes each at 1866, 2133 or 2400 megahertz. Populate all eight slots in matched sets for full four-channel bandwidth.

Which drives can I attach to the M.2 and SATA ports?

One M.2 22110 slot runs PCIe 3.0 x4 for NVME drives. A second M.2 2280 slot shares an SSATA lane. Six SATA3 and four SSATA3 ports provide ten total 6 gigabit per second connections.
