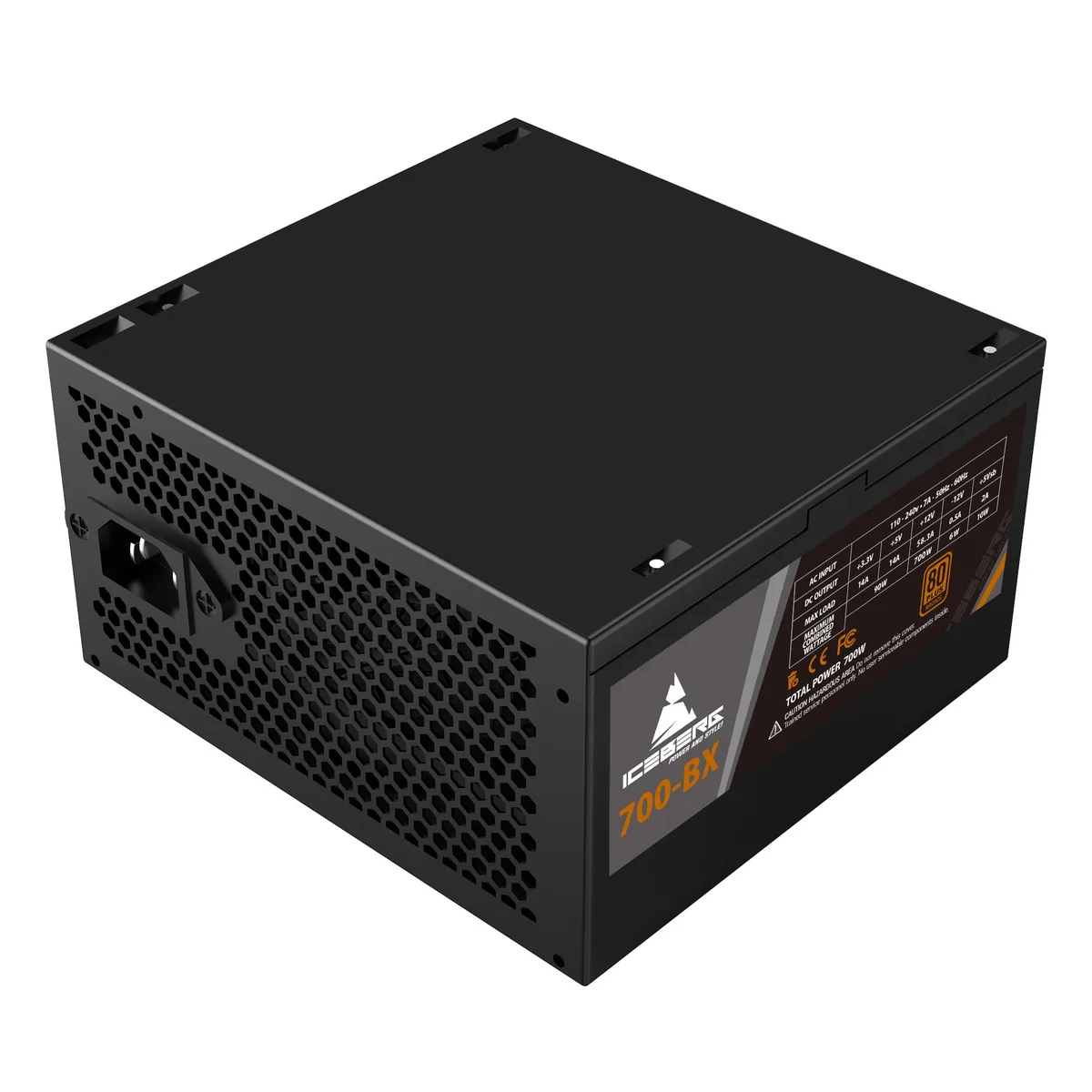

Iceberg 700-BX 700W 80 Plus Bronze power supply
700 W ATX unit with 80 Plus Bronze efficiency, active PFC, two PCIe 6+2 connectors, six SATA and three Molex outputs, plus a 120 mm fan
- ColorBlack
- TypeATX
- Maximum Power700 W
- Fans1 x 120 mm
- PFCActive
- Main Connector20+4Pin
- 80 Plus Bronze certification delivers up to 80% efficiency at typical loads
- Single +12 V rail provides stable power for demanding components
- Active PFC with >0.9 power factor corrects input current for cleaner draw
- Two PCIe 6+2 connectors support modern graphics cards
- Six SATA connectors power multiple storage drives
Power delivery for mid-level builds
The Iceberg 700-BX is a 700 W ATX power supply built for mid-level gaming PCs. Its single +12 V rail and active PFC with a power factor above .9 provide stable output across the full 100-240 V input range. The unit carries 80 Plus Bronze certification for reduced waste heat and lower running costs.
Suitability and limits
This PSU fits systems that need two PCIe 6+2 connectors for a mainstream graphics card and up to six SATA drives. Builds requiring modular cabling, higher wattage or more than two GPU power plugs should consider a different model. The fixed cable set adds bulk in smaller cases.
Connector layout decides fit
The bundle includes a 20+4 pin motherboard cable, one 4+4 pin CPU cable, two PCIe 6+2 cables, six SATA connectors and three Molex plugs. Verify that your motherboard and graphics card match this exact count before ordering.
Highlights
- 80 Plus Bronze certification delivers up to 80% efficiency at typical loads
- Single +12 V rail provides stable power for demanding components
- Active PFC with >0.9 power factor corrects input current for cleaner draw
- Two PCIe 6+2 connectors support modern graphics cards
- Six SATA connectors power multiple storage drives
Specifications
| Brand | Iceberg |
|---|---|
| Series | BX |
| Model | 700-BX |
| Part Number | 700-BX BLK |
| Color | Black |
| Type | ATX |
| Maximum Power | 700 W |
| Fans | 1 x 120 mm |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 8-Pin |
| SATA Power Connector | 6 |
| Modular | No |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
Questions about this item
Will the 700W output and two PCIe 6+2 connectors run a mid-range graphics card?
The unit delivers 700 W on a single +12 V rail and includes two PCIe 6+2 connectors, covering the power needs of most mid-range GPUs.
Does this PSU fit a standard ATX case and motherboard?
It follows the ATX form factor with a 20+4 pin main connector and a 4+4 pin CPU connector, matching standard motherboards and cases.
What storage drives can I power with the included cables?
Six SATA connectors and three Molex connectors are provided, supporting multiple SSDs, HDDs and legacy peripherals.
