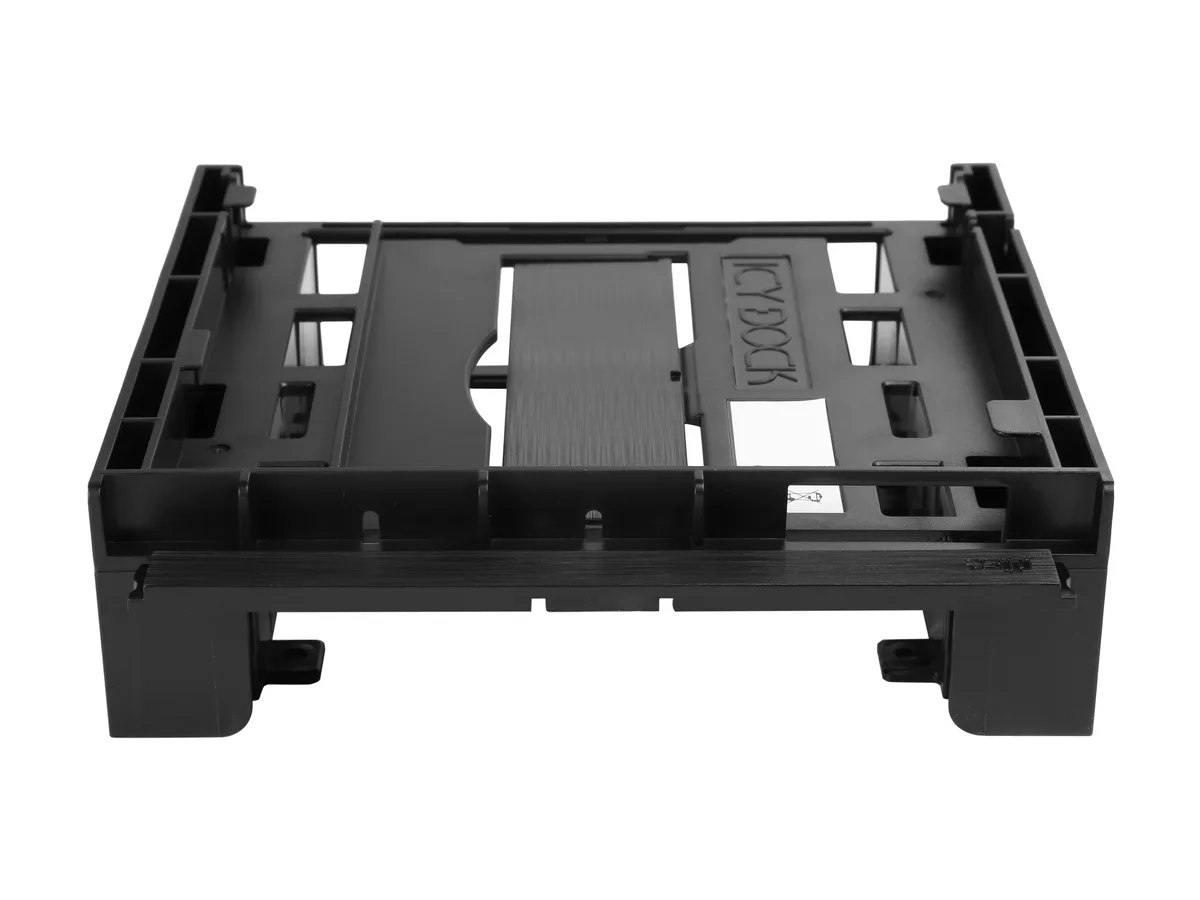

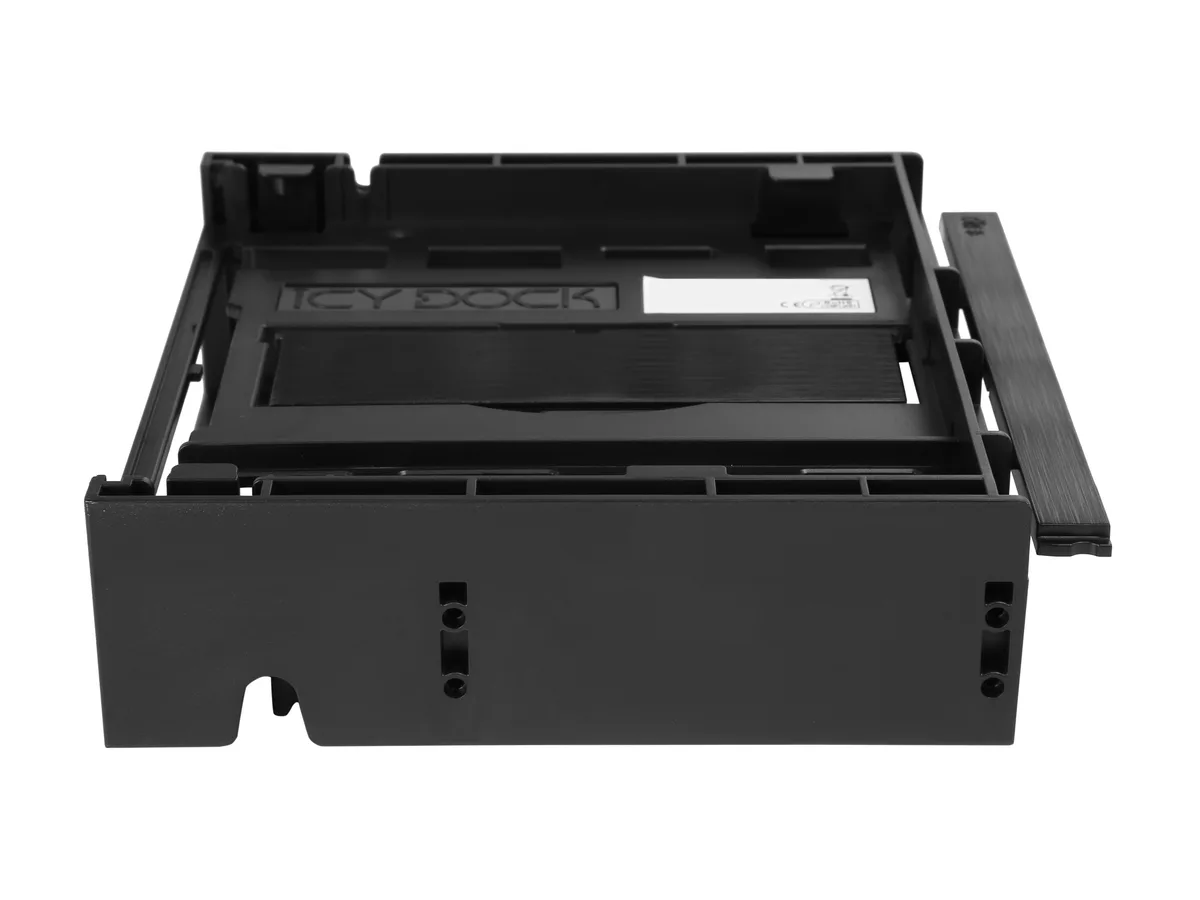

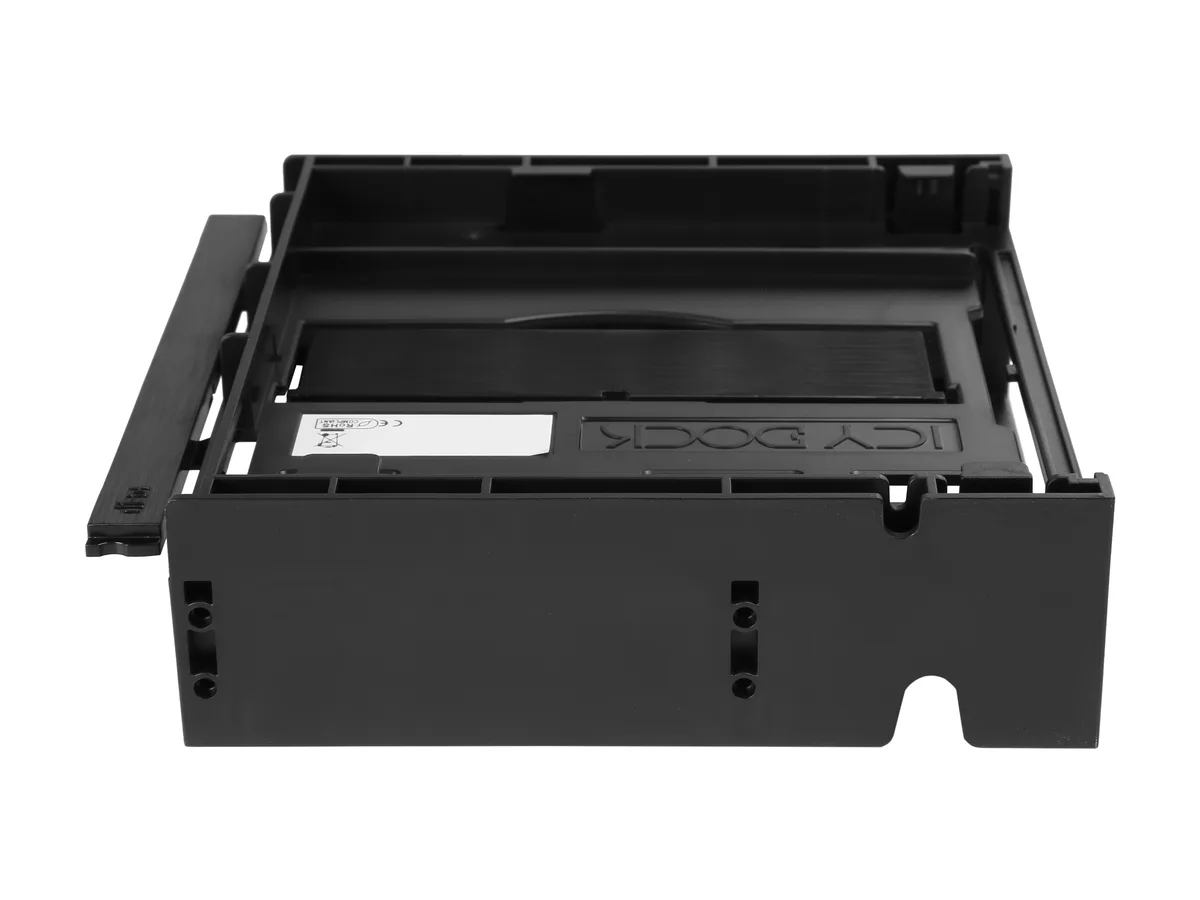

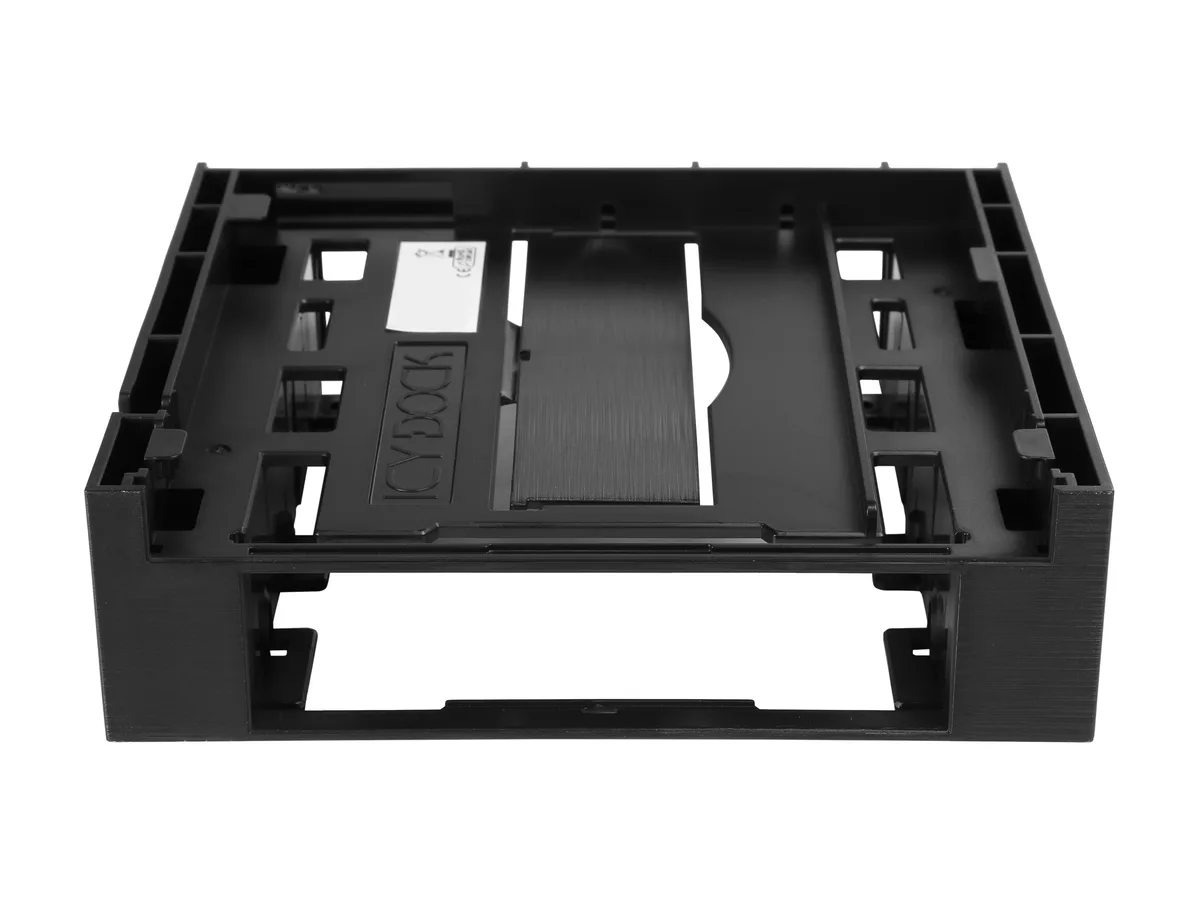

Black plastic mounting bracket fits a 5.25 inch bay with a 3.5 inch drive slot and 9.5mm optical drive bay

ICY DOCK

ICY DOCK MB343SPO 5.25" to 3.5" HDD & 9.5mm ODD bay hdd accessory

SKU CH-AHBP-YGMAS MPN MB343SPO

Converts a 5.25" bay to hold one 3.5" drive and one 9.5mm ODD with screw-less mounting

  • ColorBlack
  • Conversion Tray1 x 5.25" Drive to 3.5" Bay
  • Mobile Rack Drives Support1 x 3.5" Drives to 5.25" Bay
  • Mobile Rack InterfaceSATA I/II/III
  • Protection CaseMultiple Drives
  • Compatible Products3.5"

Model Bracket ODD

Struck-through versions exist but are not stocked here.

  • Fits one 3.5" drive and one 9.5mm optical drive in a single 5.25" bay
  • Screw-less 3.5" device installation using the Smart-Tip locking mechanism
  • Snap-off front panel dust covers protect both the 3.5" and optical bays
  • Advanced guiding system ensures smooth drive insertion and removal
  • Durable one-piece plastic construction weighs only 97.6g

5.25" to 3.5" bay adapter

The ICY DOCK MB343SPO converts a single 5.25 inch external bay into space for one 3.5 inch SATA drive and one 9.5 mm ultra-slim optical drive. A screw-less Smart-Tip locking mechanism secures the 3.5 inch device while a guiding system eases insertion. Snap-off dust covers keep both openings clean when not in use. A 6-pin Slimline to 15-pin SATA power cable is included.

For builders adding legacy storage

This bracket suits system integrators or enthusiasts who still use 3.5 inch hard drives or slim optical drives in modern chassis with a free 5.25 inch bay. It is not for builders who only have 3.5 inch internal bays available or who need to install 2.5 inch drives without a separate adapter. It also cannot serve cases that lack a 5.25 inch half-height opening.

Single 5.25" bay conversion

The decisive specification is the one-to-two device fit: exactly one 3.5 inch SATA drive and one 9.5 mm ultra-slim ODD share a single 5.25 inch half-height bay. If the build requires two 3.5 inch drives or a full-height optical drive, this bracket will not accommodate them.

Highlights

  • Fits one 3.5" drive and one 9.5mm optical drive in a single 5.25" bay
  • Screw-less 3.5" device installation using the Smart-Tip locking mechanism
  • Snap-off front panel dust covers protect both the 3.5" and optical bays
  • Advanced guiding system ensures smooth drive insertion and removal
  • Durable one-piece plastic construction weighs only 97.6g

Specifications

BrandICY DOCK
ModelMB343SPO
ColorBlack
Conversion Tray1 x 5.25" Drive to 3.5" Bay
Mobile Rack Drives Support1 x 3.5" Drives to 5.25" Bay
Mobile Rack InterfaceSATA I/II/III
Protection CaseMultiple Drives
Compatible Products3.5"
SpecificationsDrive Fit:
1 x 3.5" device or hard drive
1 x Ultra-Slim ODD(9.5mm)
Device Fit:
1 x External 5.25" half height device bay
Material: Plastic
Dimension (L x W x H): 148.80 x 145.80 x 41.30 mm
Weight: 97.6g
FeaturesDurable one piece, lightweight construction
Compatible with any standard 5.25" external drive bay
Fits 1 x 3.5" device / hard drive and 1 x Ultra-Slim ODD
Snap-off front panel dust covers for 3.5" bay and Ultra-Slim ODD bay
Advanced device guiding system for smooth device / drive installation
Smart-Tip locking mechanism for screw-less 3.5" device installation
Mounting screw holes for 3.5" HDD and Ultra-Slim ODD installation
6 pin Slimline to 15 pin SATA power cable included
Compatible with any standard 3.5" HDD, 3.5" device, and Ultra-Slim ODD

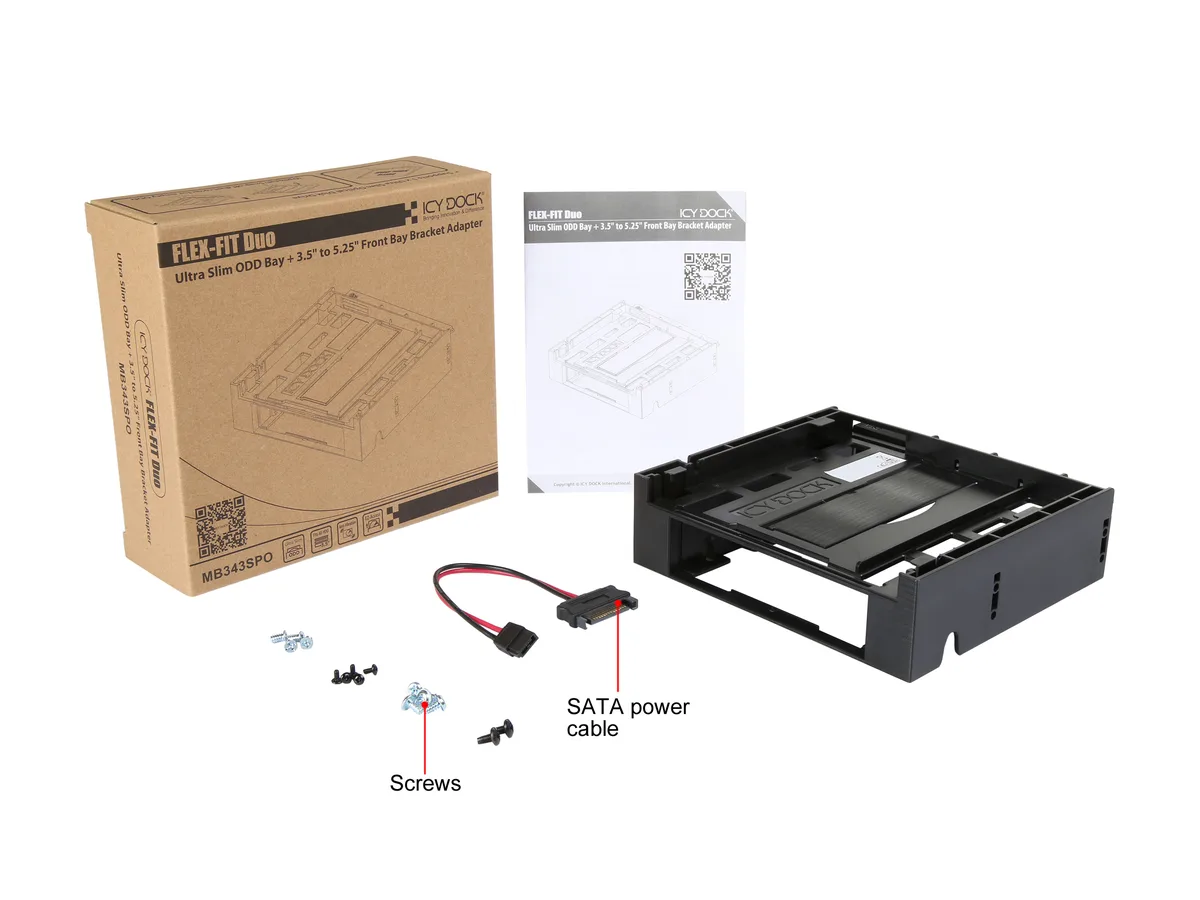

Package ContentsDevice, User Manual, Screws
Shipping weight0.18 kg
Package size165 × 152 × 58 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this bracket fit into a standard 5.25" external drive bay in my case?

Yes, the MB343SPO is designed for any standard 5.25" half-height external bay measuring 148.80 x 145.80 x 41.30 mm.

How does the Smart-Tip locking mechanism work for screw-less 3.5" drive installation?

Slide the 3.5" drive into the tray until the Smart-Tip tabs click into the drive's side mounting holes, securing it without screws.

Do the snap-off front panel dust covers need periodic cleaning or replacement?

The dust covers are fixed plastic parts; simply wipe them with a dry cloth if dust accumulates — no replacement is required.
