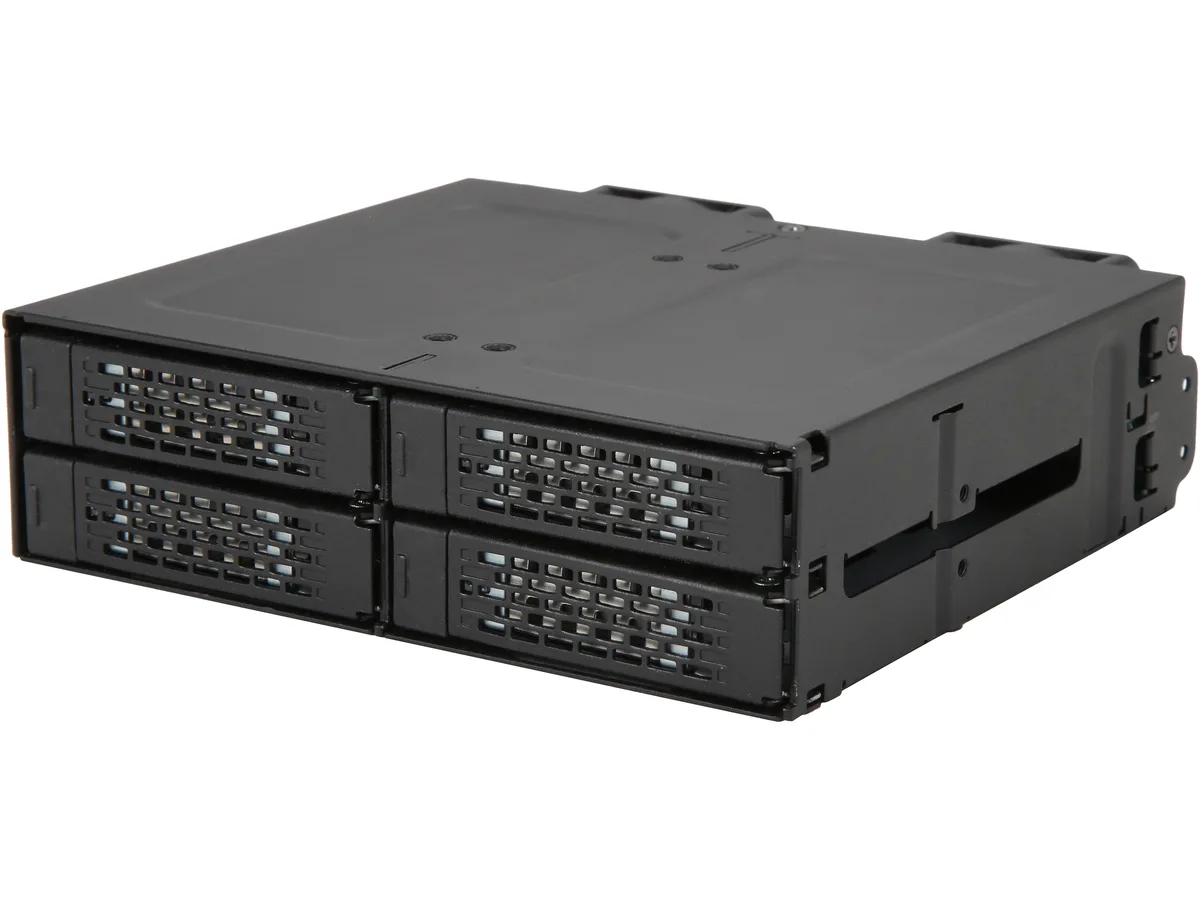

Black metal four-bay caddy for 2.5 inch U.2 SSDs with miniSAS HD connectors

ICY DOCK

ICY DOCK MB699VP-B 4-bay 2.5" NVMe U.2 SSD accessory

SKU CH-MMGX-8CEW1 MPN MB699VP-B

Fits four 2.5″ NVMe U.2 drives into one 5.25″ bay with individual miniSAS HD links

  • ColorBlack
  • Conversion Tray4 x 2.5" Drive to 5.25" Bay
  • Mobile Rack Drives Support4 x NVMe U.2 SSD in a Single 5.25" Device Bay
  • Mobile Rack Interface4 x miniSAS HD (SFF-8643)
  • Protection CaseMultiple Drives
  • Compatible Products2.5"

Model ToughArmors NVMe 4BAY

  • ToughArmors NVMe 4BAY
  • ToughArmors 1BAY-SAS
  • ToughArmors 1BAY
  • ToughArmors 2BAY
  • ToughArmors 4BAY-SAS
  • ToughArmors 2BAY-RAID
  • ToughArmors 3BAY
  • ToughArmors 1BAY+LOCK
  • ToughArmors 2BAY+LOCK
  • ToughArmors Slim ODD
  • ToughArmors 4BAY - Lite
  • ToughArmors Slim ODD+LOCK
Show 4 more configurations
  • ToughArmors Slim ODD MinSATA
  • ToughArmors Ultra Slim ODD
  • ToughArmors NVMe 1BAY
  • ToughArmors 16BAY

Struck-through versions exist but are not stocked here.

Option ToughArmor NVMe 4 Bay

  • 1-Bay (2.5in SATA/SAS)
  • 4-Bay (2.5in SATA/SAS)
  • 2-Bay (2.5in SATA)
  • 1 x 3.5in
  • 1 x 5.25in
  • 2-Bay 3.5"
  • 1-Bay
  • ToughArmor Slim ODD MinSATA
  • ToughArmor Ultra Slim ODD
  • ToughArmor NVMe 4 Bay
  • ToughArmor 16 Bay

Struck-through versions exist but are not stocked here.

  • Hot-swap four U.2 NVMe drives in one 5.25" bay
  • Each drive gets a dedicated miniSAS HD link for 32Gb/s bandwidth
  • Rugged all-metal trays protect SSDs in demanding environments
  • Fits four 15mm 2.5" drives into a single external bay
  • Includes 28 screws and an ID plug for quick installation

Four U.2 NVMe bays in one 5.25 slot

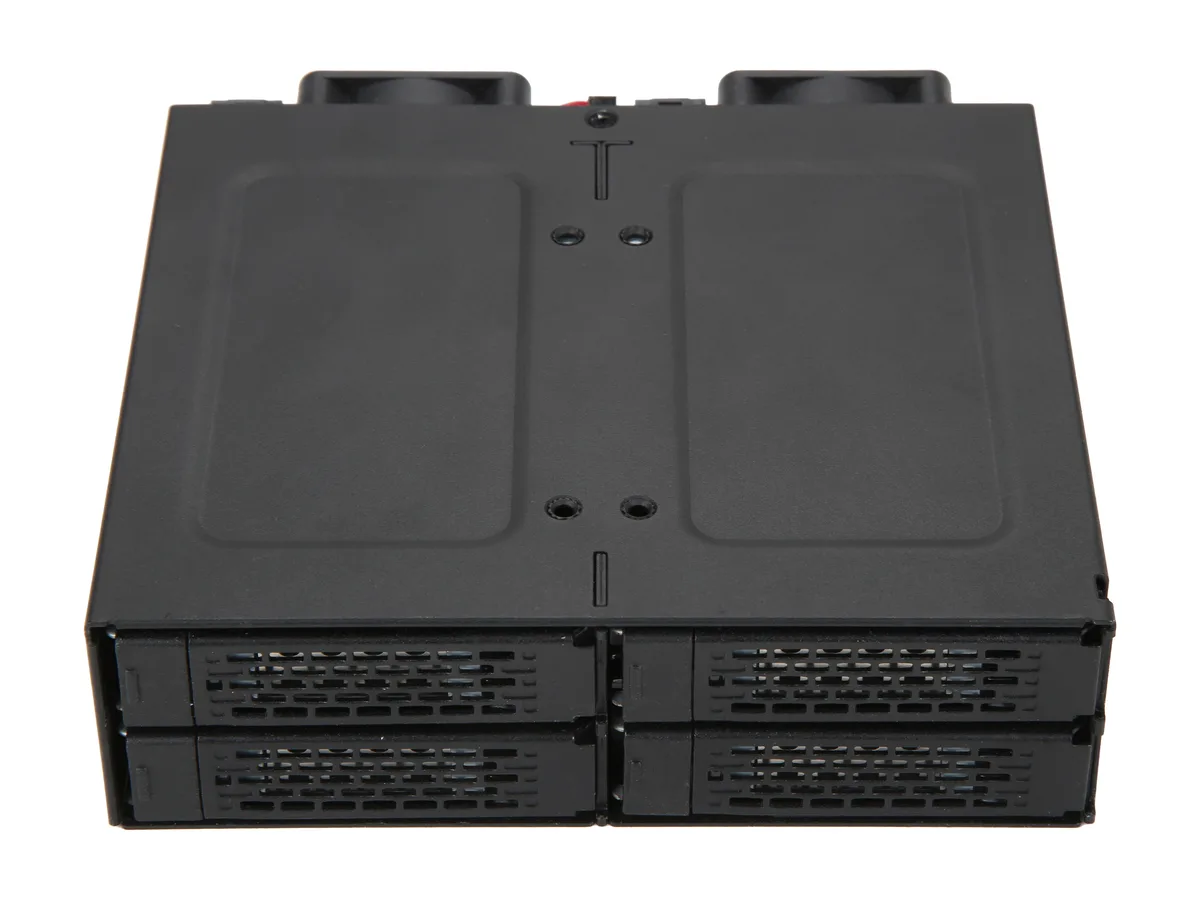

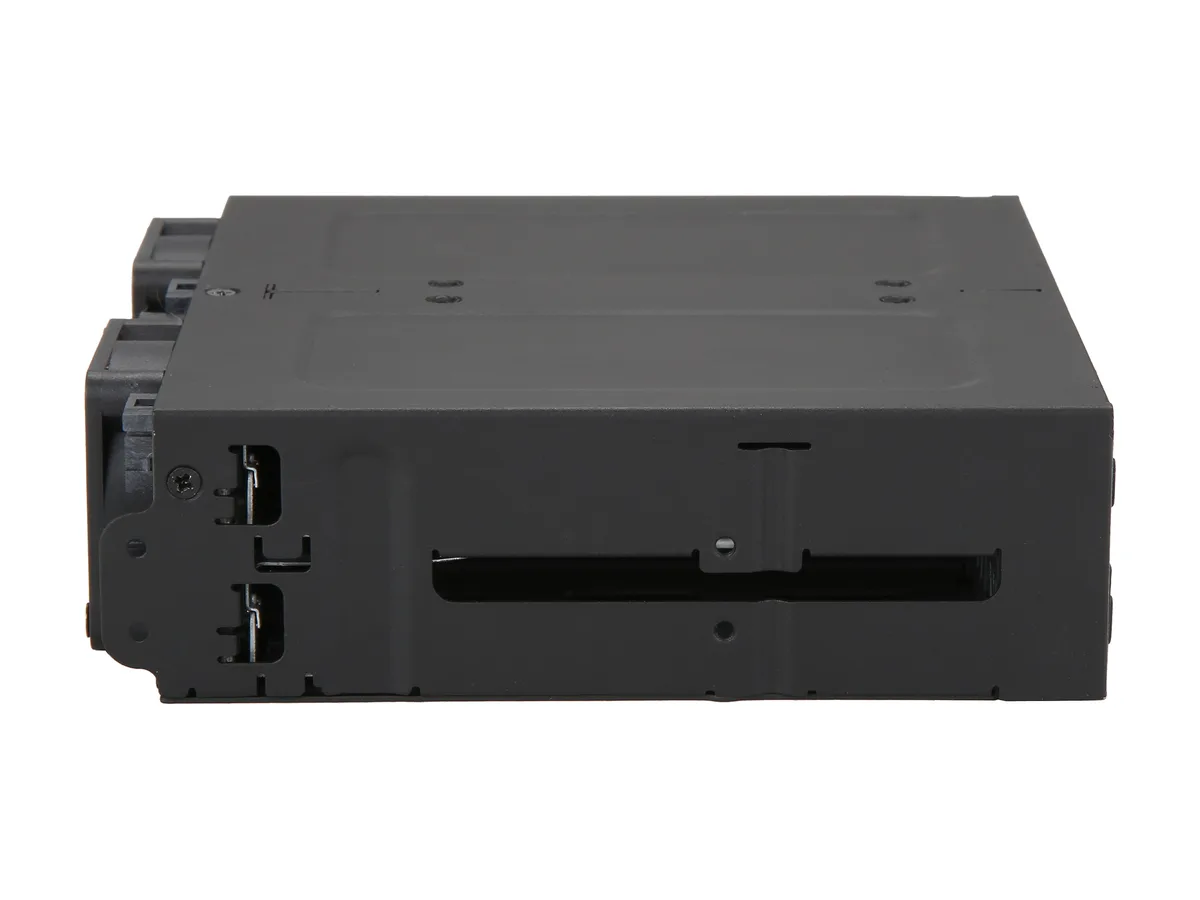

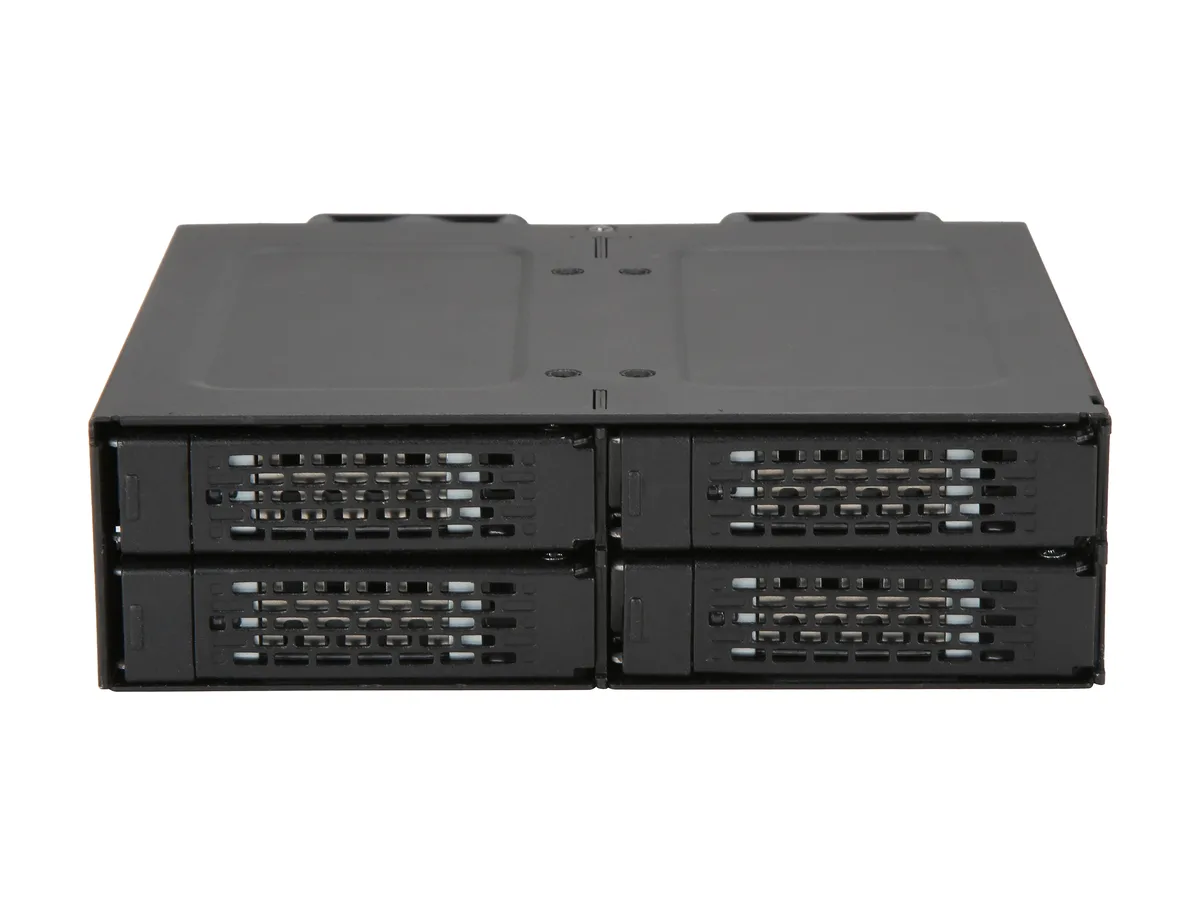

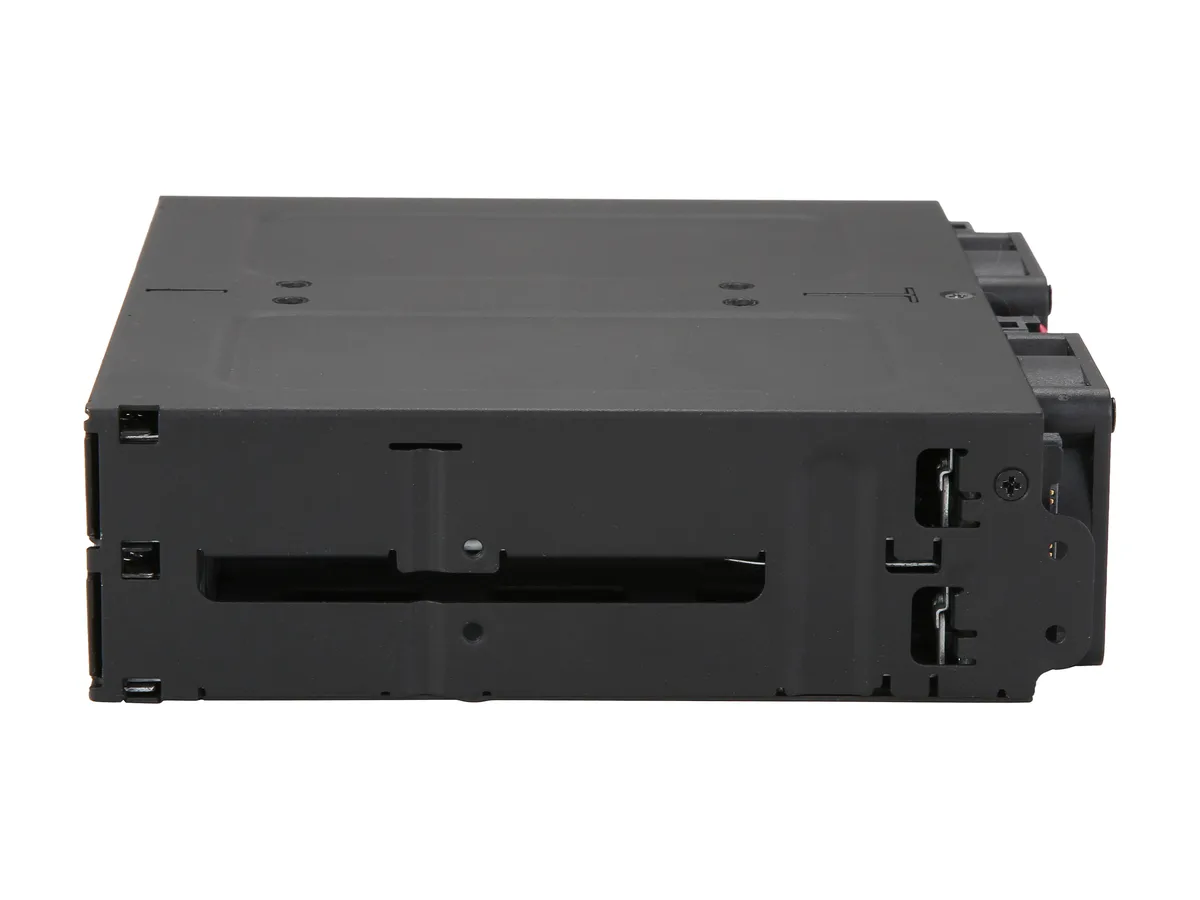

The ICY DOCK MB699VP-B fits four 2.5 inch U.2 NVMe drives into a single external 5.25 inch bay. Each drive connects through its own miniSAS HD SFF-8643 link for full NVMe bandwidth. The all-metal cage and trays are built for rugged medical, military and industrial use. Hot-swap trays let you change drives without powering down.

For dense NVMe storage in a 5.25 bay

Suits builders who need four U.2 NVMe drives in one front-access slot with independent miniSAS HD links. Not for systems that lack four SFF-8643 host ports or that only offer SFF-8639 backplane connections. Not for 3.5 inch drives or drives thicker than 15mm. Not for installations without a 5.25 inch bay.

Four miniSAS HD SFF-8643 host connectors

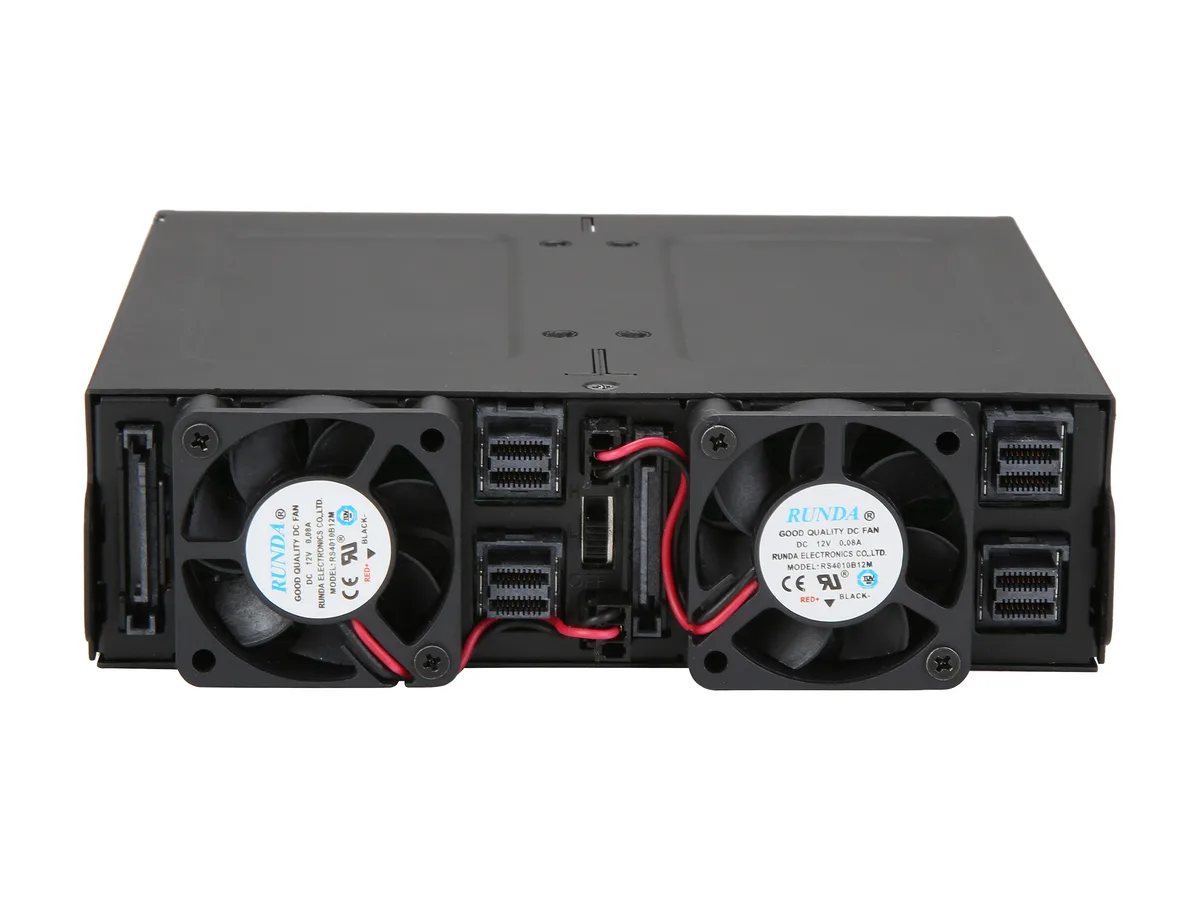

Each of the four bays routes to a dedicated miniSAS HD SFF-8643 port on the back, delivering up to 32Gb/s per drive. The cage accepts U.2 NVMe SSDs up to 15mm high. Package includes the device, manual, ID plug and 28 screws.

Highlights

  • Hot-swap four U.2 NVMe drives in one 5.25" bay
  • Each drive gets a dedicated miniSAS HD link for 32Gb/s bandwidth
  • Rugged all-metal trays protect SSDs in demanding environments
  • Fits four 15mm 2.5" drives into a single external bay
  • Includes 28 screws and an ID plug for quick installation

Specifications

BrandICY DOCK
ModelMB699VP-B
ColorBlack
Conversion Tray4 x 2.5" Drive to 5.25" Bay
Mobile Rack Drives Support4 x NVMe U.2 SSD in a Single 5.25" Device Bay
Mobile Rack Interface4 x miniSAS HD (SFF-8643)
Protection CaseMultiple Drives
Compatible Products2.5"
SpecificationsSupport Drive Size: 4 x 2.5" U.2 SSD / HDD
Compatible Drive Type: U.2 NVMe
Number of Drives: 4
Max Drive Height: 15mm
Drive Bay: 1 x external 5.25" drive bay
Host Interface: 4 x miniSAS HD (SFF-8643)
Power Input: 2 x 15 pin SATA power connector
Transfer Rate: Up to 32 Gbps
Support HDD Capacity: No Limitation
Drive Cooling: 2 x 40mm fan
Structure / Material: Full Metal
Support Hot-Swap: Yes
FeaturesRugged Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
Perfect for rugged applications and complies to flammability requirements
Fits 4 x 2.5" U.2 NVMe SSD
(NVMe U.2 host is required to accept NVMe SSD)
Supports NVMe 32Gb/s transfer rate
Fits any external 5.25" drive bay
Dual 40mm fans keep your drives from overheating
Requires only 2 x 15pin power connectors to power all 4 bays
Drive label plugs to keep track of your RAID drives
Anti-Vibration Technology (AVT) - creates a safe
Package Contents1 x Device, 1 x user manual, 1 x ID Plug, 28 x screw
Shipping weight0.94 kg
Package size170 × 163 × 56 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many NVMe U.2 SSDs can fit in the single 5.25-inch bay?

The MB699VP-B holds four 2.5-inch U.2 NVMe SSDs, each up to 15 mm thick, inside one external 5.25-inch drive bay.

What does the 32 Gb/s figure mean for each drive once installed?

Each drive bay has its own miniSAS HD (SFF-8643) link, giving every U.2 NVMe SSD a dedicated 32 Gb/s bandwidth path.

What host interface does the cage use and what does it cap per drive?

Four miniSAS HD (SFF-8643) connectors connect to the host; each connector caps the corresponding U.2 NVMe SSD at 32 Gb/s.
