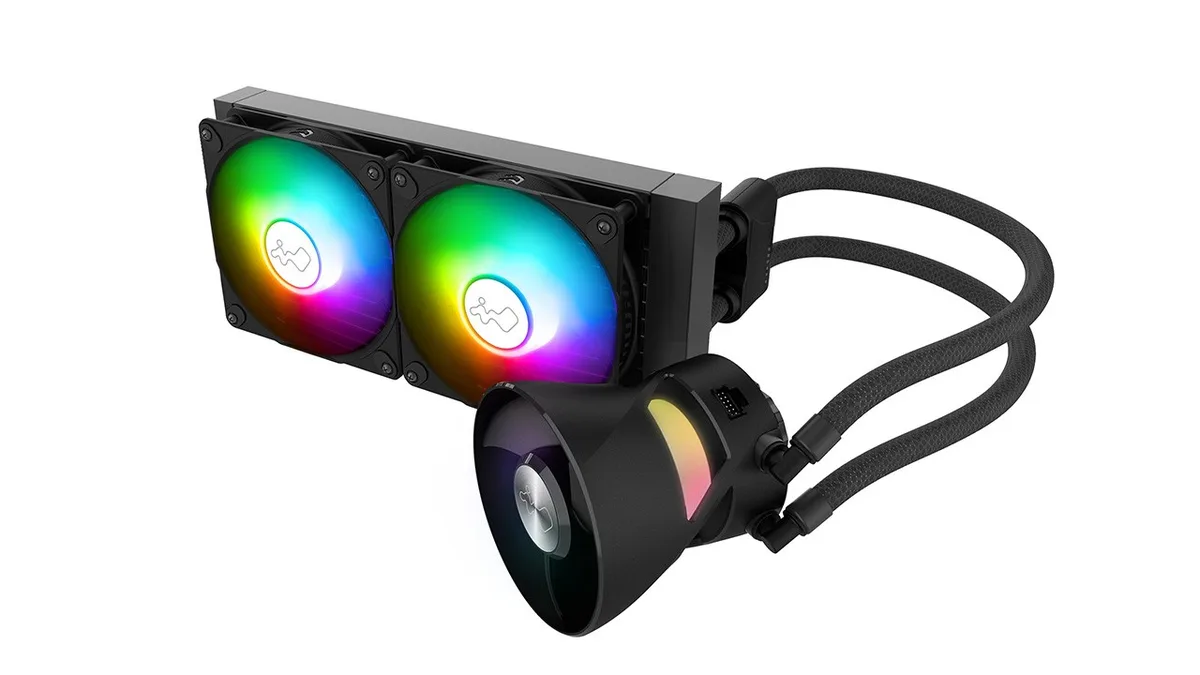

Black 240 mm radiator with two 120 mm ARGB fans and braided tubes

In Win

In Win BR24 240mm liquid cooler with UMA Cooling Design

SKU CH-V7A7-G8R2K

A 240 mm liquid cooler with copper block, aluminium radiator and two 120 mm PWM fans reaching 1800 RPM and 82.96 CFM at 35.5 dBA, plus ARGB lighting and broad Intel and AMD socket support

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 1700/ 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/
  • Block Dim.100 x 75 x 100 mm / 3.9" x 2.9" x 3.9"
  • Block MaterialCopper, Plastic
  • Pump Dim.65 x 50 x 31 mm / 2.6" x 2.0" x 1.2"
  • Radiator Size240 mm
  • Broad socket support covers Intel LGA 1700 and AMD AM5 platforms
  • 240 mm aluminium radiator provides ample surface area for heat dissipation
  • PWM fans spin 400 to 1800 RPM delivering up to 82.96 CFM airflow
  • Maximum fan noise limited to 35.5 dBA for quiet operation
  • Nylon braided sleeves on 400 mm rubber tubes add durability and a clean look

240 mm AIO with UMA Cooling Design

The In Win BR24 is a 240 mm all-in-one liquid cooler built around the UMA Cooling Design. It targets builders who want a compact closed-loop solution for mainstream desktop processors. The unit ships with two 120 mm addressable RGB fans and a pre-filled loop.

Broad socket support frees case space

The copper cold plate mounts to Intel sockets from LGA 1150 through LGA 1700 and to AMD sockets from AM2 through AM5 plus TR4. The 240 mm aluminium radiator occupies two 120 mm fan slots, leaving remaining bays open for storage or additional airflow. A 400 mm rubber tube with nylon braided sleeve connects the block to the radiator.

Upgrade from stock air coolers

Builders replacing stock air coolers gain a larger heat-dissipation surface and PWM fans that spin between 400 and 1800 RPM with a maximum airflow of 82.96 CFM. Noise tops out at 35.5 dBA. The jump is worth it when thermal headroom or lower acoustic levels matter more than the simplest installation.

Highlights

  • Broad socket support covers Intel LGA 1700 and AMD AM5 platforms
  • 240 mm aluminium radiator provides ample surface area for heat dissipation
  • PWM fans spin 400 to 1800 RPM delivering up to 82.96 CFM airflow
  • Maximum fan noise limited to 35.5 dBA for quiet operation
  • Nylon braided sleeves on 400 mm rubber tubes add durability and a clean look

Specifications

BrandIn Win
ModelBR24
Part NumberIW-LC-BR24
TypeLiquid Cooling System
Block CompatibilityIntel LGA 1700/ 1200/ 2066/ 2011-V3/ 2011/ 1366/ 1156/ 1155/ 1151/ 1150
AMD AM5/ AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1/ TR4
Block Dim.100 x 75 x 100 mm / 3.9" x 2.9" x 3.9"
Block MaterialCopper, Plastic
Pump Dim.65 x 50 x 31 mm / 2.6" x 2.0" x 1.2"
Radiator Size240 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Bearing TypeLong Lifespan Sleeve Bearing
Fan RPMPWM 400 - 1800 +/- 10% RPM
Fan Air Flow82.96 CFM (Max)
Fan Noise35.5 dBA (Max.)
Fan Connector4-Pin (12V, PWM), 3-Pin (5V, ARGB)
ColorBlack
LED ColorARGB
Tube Dim.400 mm
Tube MaterialRubber with Nylon Braided Sleeve
Package Contents1 x InWin BR series 240mm CPU Liquid Cooler
2 x InWin AL120 Addressable Fan
ARGB One-Click Controller
Fan and Radiator Mounting Screws Pack
Mounting Kit for CPU Sockets
Cable Pack

Questions about this item

Will the 240 mm radiator and 1800 RPM fans hit a thermal ceiling before my CPU does?

The 240 mm aluminium radiator paired with two 120 mm fans at 1800 RPM delivers up to 82.96 CFM, so the loop itself rarely becomes the bottleneck; most modern CPUs reach their own thermal limits first.

How loud does the BR24 get when the fans run at full speed all day?

Maximum fan noise is rated at 35.5 dBA at 1800 RPM; the long-lifespan sleeve bearings keep the sound steady without rattling during continuous operation.

Which mounting hardware do I already need in the box to install this on an AM5 or LGA 1700 board?

The package includes a universal mounting kit covering AMD AM5, AM4, TR4 and Intel LGA 1700, 1200, 2066, 2011-V3, 2011 and older sockets, plus all required screws and backplates.
