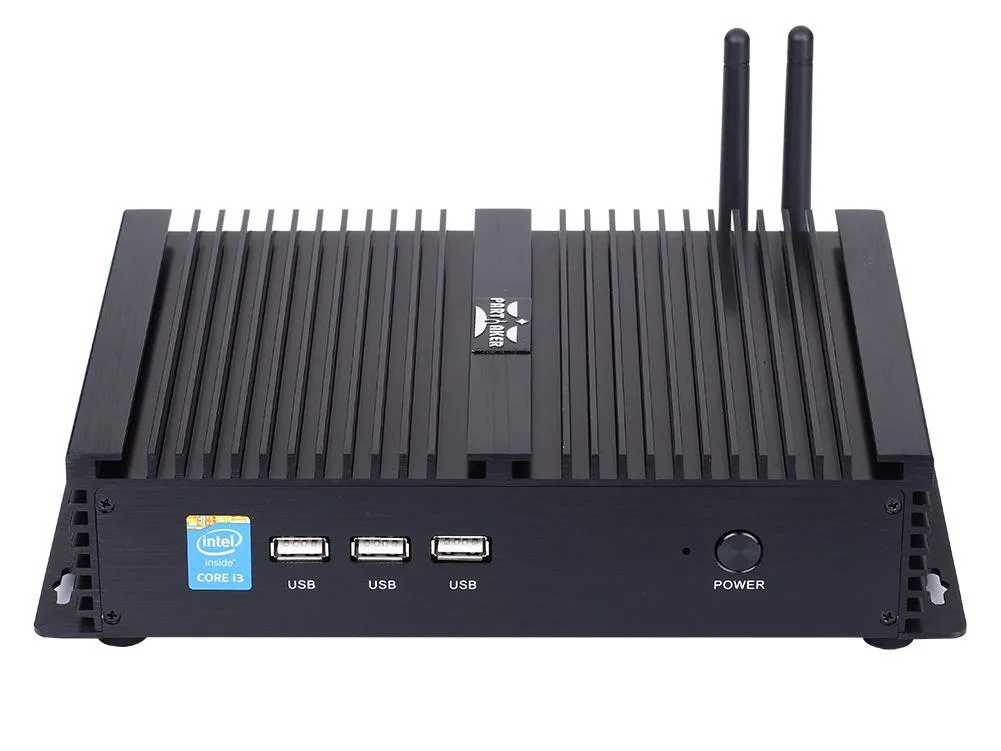

Black fanless mini PC with mounting ears, aluminium case

Inctel

Inctel I3-i7 8550U-32G512G 32GB DDR4 512GB SSD desktop PC

SKU CH-H0ZM-R7DAW

Fanless mini PC with Intel Core i7-8550U, 32 GB DDR4 and 512 GB SSD running Windows 10 Pro

  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8550U

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8550U

Memory Capacity 32GB DDR4

SSD 512GB

  • 240GB
  • 512GB

HDD None

  • 1TB
  • None

Struck-through versions exist but are not stocked here.

  • Fanless aluminium chassis runs silently in dusty environments
  • Intel Core i7-8550U delivers responsive multi-task performance
  • 32 GB DDR4 memory handles heavy workloads smoothly
  • 512 GB SSD provides fast boot and data access
  • Dual RS-232 ports connect legacy industrial equipment

Industrial mini PC for embedded tasks

The Inctel I3-i7 8550U-32G512G is a fanless desktop computer built around an Intel Core i7-8550U processor with Intel UHD Graphics 620. It ships with 32GB DDR4 memory and a 512GB SSD, running Windows 10 Pro out of the box. The aluminium chassis uses passive cooling for silent operation in dust-sensitive or noise-free environments.

Mounting and connectivity requirements

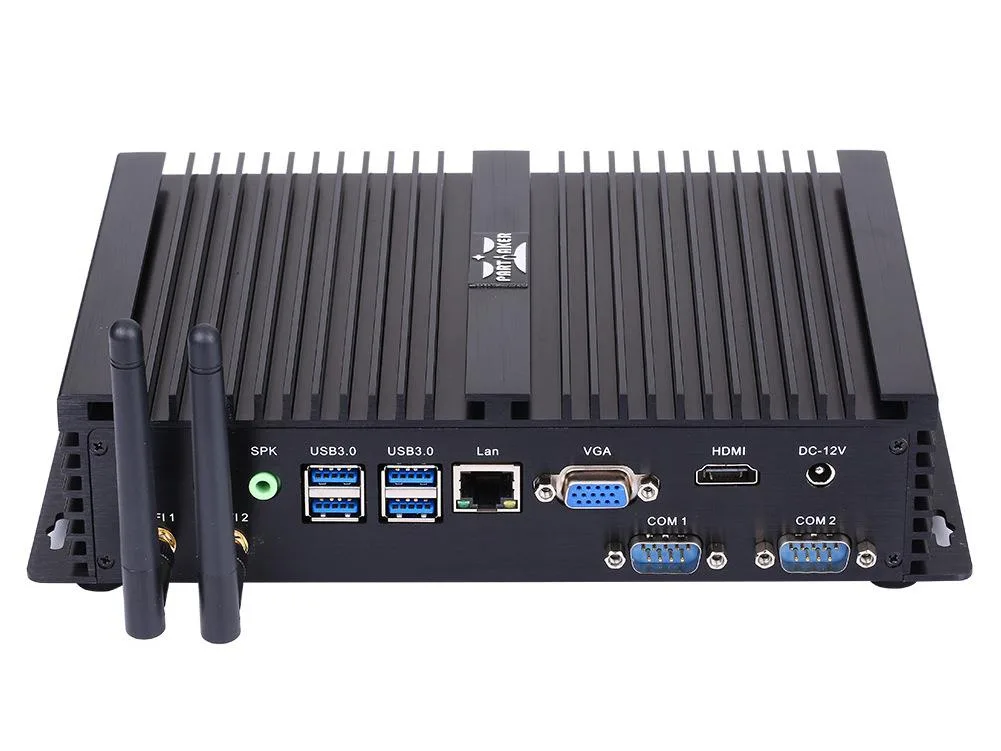

The unit measures 234 by 150 by 43 millimetres and includes mounting ears for fixed installation. It needs a 12V 5A DC supply from the included 100-240V AC adapter and a separate display via HD-MI or VGA. Four USB 3.0 ports, three USB 2.0 ports, dual COM RS232 ports and Gigabit LAN provide industrial I/O without extra expansion cards.

Upgrade path from older fanless systems

This model replaces earlier Partaker I3 units that used DDR3L memory and dual-core processors up to the i5-7200U. The jump to a quad-core i7-8550U with DDR4-2133/2400 support and 32GB capacity is worthwhile when workloads need more threads and memory bandwidth. It is not suited for buyers who require discrete graphics, additional PCIe slots or user-serviceable storage bays beyond the internal M.2 and mSATA slots.

Highlights

  • Fanless aluminium chassis runs silently in dusty environments
  • Intel Core i7-8550U delivers responsive multi-task performance
  • 32 GB DDR4 memory handles heavy workloads smoothly
  • 512 GB SSD provides fast boot and data access
  • Dual RS-232 ports connect legacy industrial equipment

Specifications

ModelI3-i7 8550U-32G512G
Part NumberI3-i7 8550U-32G512G
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 10 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8550U
GPU/VGA TypeIntel UHD Graphics 620
Graphics InterfaceIntegrated video
Memory Capacity32GB DDR4
SSD512GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the fanless aluminium chassis throttle the Core i7-8550U during continuous 100 % CPU load?

The fanless design relies on the aluminium case to spread heat; sustained full load will hit thermal limits faster than an actively cooled system, so expect reduced clocks during long renders or compiles.

How much power does the 12 V 5 A supply draw at the wall when the mini PC runs 24/7?

The external brick is rated 12 V 5 A (60 W max); typical idle draw is well below that, while prolonged heavy workloads will approach the brick’s limit but not exceed it.

Which display cables do I need to connect both HDMI and VGA monitors at the same time?

The unit provides one HDMI port and one VGA port; you simply need a standard HDMI cable for the first screen and a VGA cable for the second — both are common off-the-shelf items.
