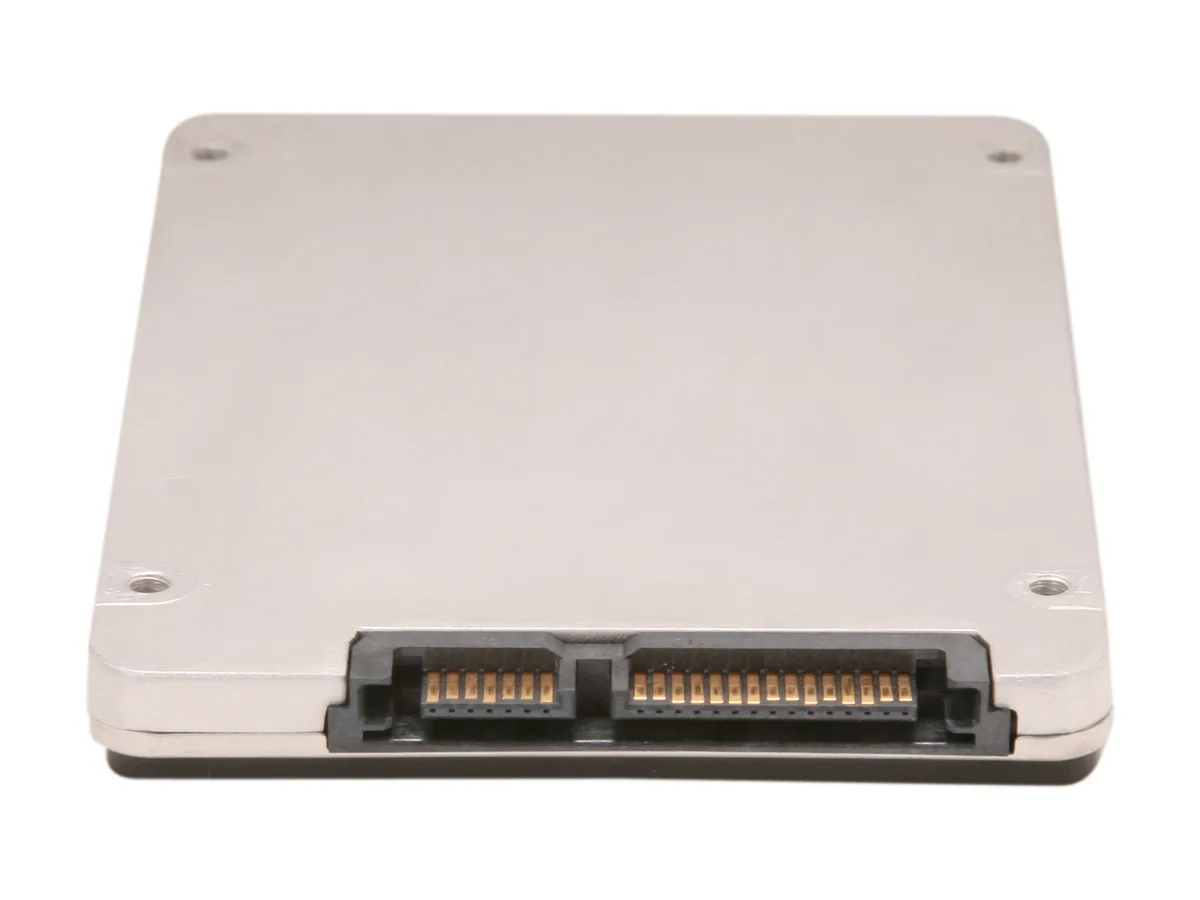

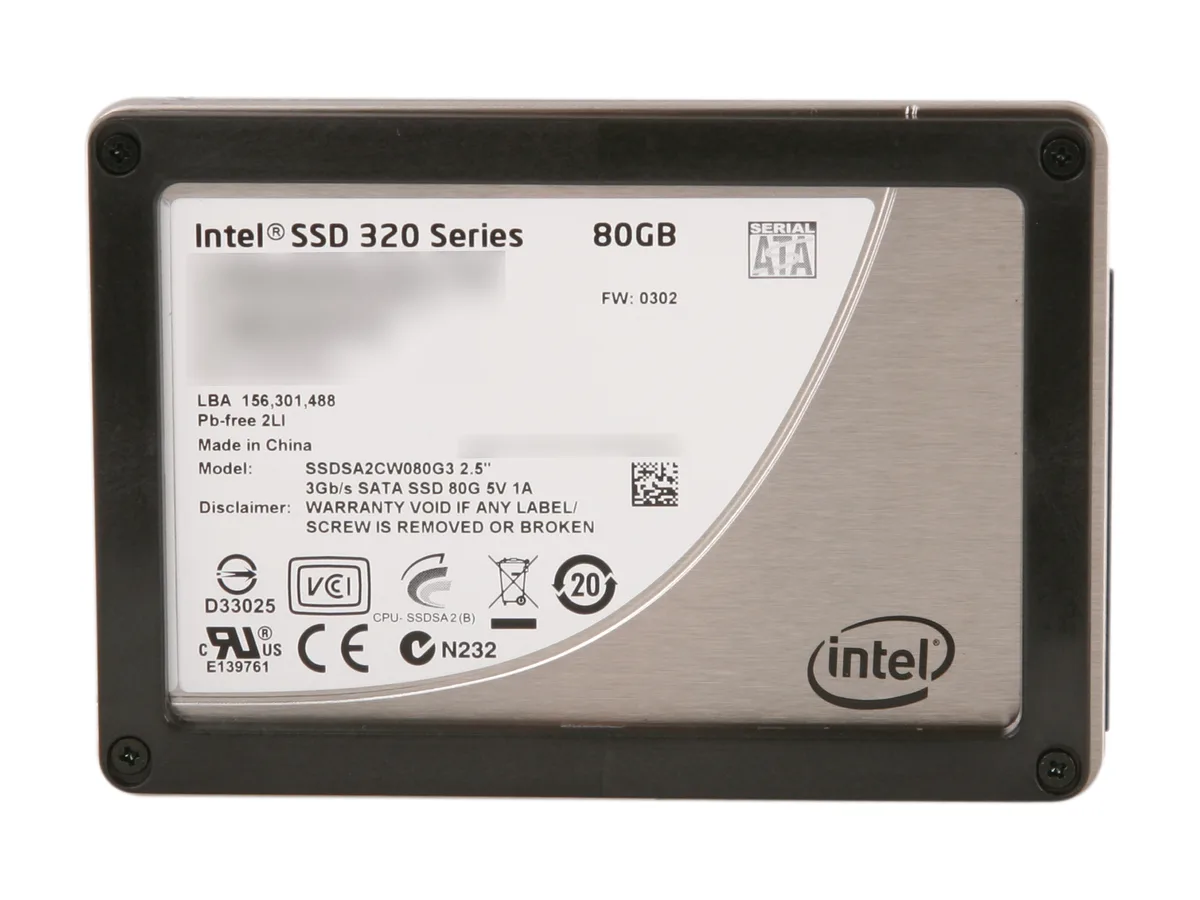

Silver 2.5 inch SATA SSD with black label, 9.5mm thick

Intel

Intel 320 Series SSDSA2CW080G310 80GB 2.5" SATA internal SSD

SKU CH-1YT1-NW5R9 MPN SSDSA2CW080G310

An 80GB 2.5-inch internal SSD with SATA interface, 270MBps read and 90MBps write speeds, MLC memory and 1,200,000-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity80GB
  • Memory ComponentsMLC
  • InterfaceSATA II
  • Fast boot and app loads with up to 270MBps sequential read
  • Responsive multitasking backed by up to 90MBps sequential write
  • Low power draw extends laptop battery life at 150mW active typical
  • Compact 2.5 inch 9.5mm height fits standard drive bays
  • High endurance design rated for 1200000 hours MTBF

Intel 320 Series 80GB SATA II SSD

The Intel 320 Series SSDSA2CW080G310 is an 80GB 2.5-inch internal solid state drive built for consumer desktops and notebooks. It uses a SATA II interface and Intel 25nm MLC NAND flash memory. The drive serves as a direct replacement for mechanical hard drives in systems with standard SATA connectors.

Thermals noise and power draw

Typical idle power consumption is 100 mW and active power consumption is 150 mW. With no moving parts the drive produces no acoustic noise during operation. Solid-state construction also provides shock resistance up to 1500G and an MTBF of 1,200,000 hours for reliable long-term use.

Build fit and system impact

The 9.5mm height and 2.5-inch form factor match standard drive bays in laptops and desktops. Weighing 0.19 lbs it adds minimal mass to portable systems. Low power draw reduces demand on the system power supply and helps extend battery life in mobile devices.

Highlights

  • Fast boot and app loads with up to 270MBps sequential read
  • Responsive multitasking backed by up to 90MBps sequential write
  • Low power draw extends laptop battery life at 150mW active typical
  • Compact 2.5 inch 9.5mm height fits standard drive bays
  • High endurance design rated for 1200000 hours MTBF

Specifications

BrandIntel
Series320 Series
ModelSSDSA2CW080G310
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity80GB
Memory ComponentsMLC
InterfaceSATA II
ControllerIntel
Sustained Sequential ReadUp to 270MBps
Sustained Sequential WriteUp to 90MBps
MTBF1,200,000 hours
FeaturesIndustry Leading Technology
- Intel 25nm compute NAND
- Lowest $/GB for an Intel SSD
- Standard Form Factor for Desktops and Notebooks
- Standard SATA interface for Desktops and Notebooks
Advanced Features
- Enhanced Data Reliability and Data Safety: Redundant NAND Storage, File Write Protection during Power Loss.
- Full Disk Encryption via AES 128 bit Encryption Technology
- Enhanced power loss management
Superior Product Specifications
- Blazing Fast for all File Transfers: Up to 38,000 IOPS random 4 KB reads; up to 10,000 IOPS random 4 KB writes
Power Consumption (Idle)100 mW Typical
Power Consumption (Active)150 mW Typical
Max Shock Resistance1500G
Height9.5mm
Weight0.19 lbs.
Shipping weight0.08 kg
Package size102 × 71 × 9 mm

Questions about this item

How do I install this 2.5 inch SATA drive, and which step do people often miss?

Mount the drive in a 2.5 inch bay or use a bracket for a 3.5 inch bay, connect the SATA data cable to a SATA 300 port and the SATA power cable, then enable AHCI in the BIOS before installing the operating system.

What maintenance or replacement will this MLC SSD need over time?

The MLC NAND has a finite write endurance; monitor the SMART wear-level indicator and plan replacement when it approaches the rated limit, as the drive has no user-serviceable parts.

What limit appears first during sustained heavy writes on this 80 GB model?

Sustained sequential write speed caps at 90 MBps, so long large-file transfers will hit that throughput ceiling before the 270 MBps read limit or the 150 mW active power envelope become factors.
