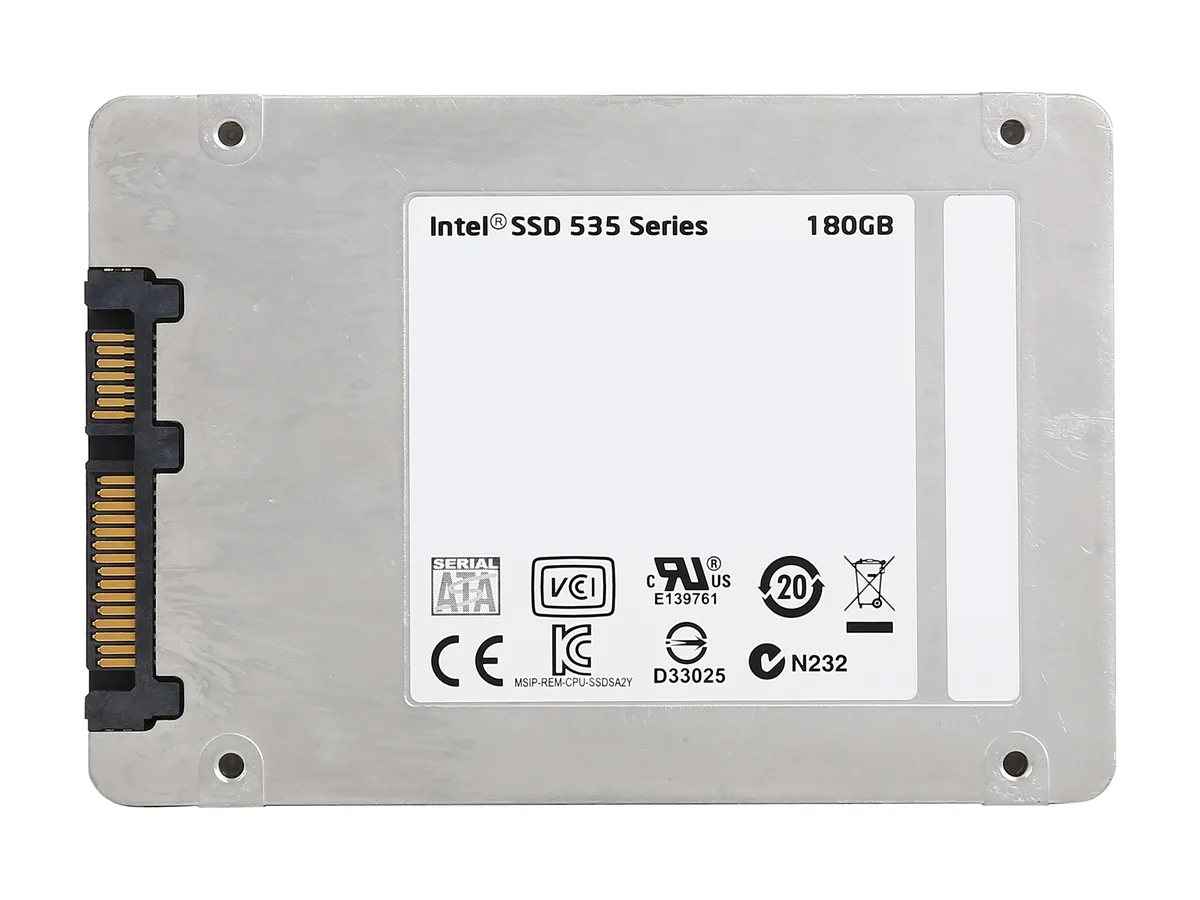

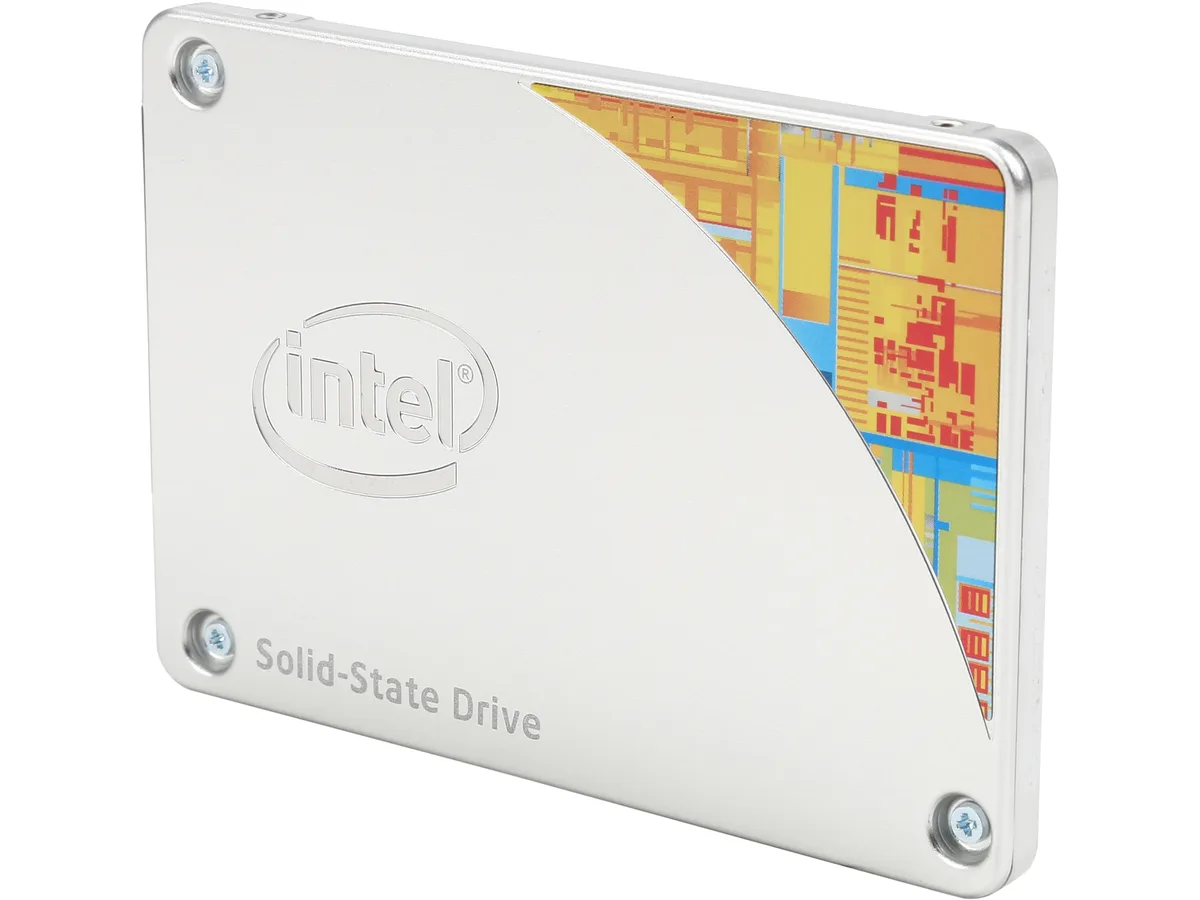

Rectangular 2.5 inch silver metal internal SSD with label

Intel

Intel 535 Series 2.5" 180GB SATA internal SSD SSDSC2BW180H601

SKU CH-PZDT-DFD3G MPN SSDSC2BW180H601

A 2.5 inch SATA internal SSD with 180GB of MLC storage, delivering up to 540 MBps sequential read and 490 MBps sequential write speeds for faster boot and application loading

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity180GB
  • Memory ComponentsMLC
  • InterfaceSATA III

Options 180GB

  • Fast boot and app launches with up to 540 MB/s sequential read
  • Smooth multitasking backed by up to 80,000 IOPS random write
  • Long battery life from just 165 mW active power draw
  • Data survives bumps and drops thanks to no moving parts
  • Proven reliability with 1.2 million hours MTBF rating

Intel 535 Series 180GB SATA SSD

The Intel 535 Series is a 2.5-inch internal solid-state drive with 180GB of MLC flash memory. It connects over a SATA III interface and is built for consumer desktops and laptops. The drive has no moving parts, so it resists shocks that would damage a mechanical hard disk.

Sustained write behaviour

Sequential write speed reaches up to 490 MBps while sequential read reaches up to 540 MBps. Random 4KB write performance is rated at up to 80,000 IOPS and random read at up to 41,000 IOPS. Write latency is 85 µs and read latency is 80 µs, giving consistent response during long workloads.

SATA III interface limits

The SATA III link tops out at 600 MBps, so the drive cannot exceed that ceiling even if the controller is faster. Power draw stays low at 55 mW idle and 165 mW active, which helps battery life in portable systems. Operating temperature range is 0°C to 70°C and MTBF is 1,200,000 hours.

Highlights

  • Fast boot and app launches with up to 540 MB/s sequential read
  • Smooth multitasking backed by up to 80,000 IOPS random write
  • Long battery life from just 165 mW active power draw
  • Data survives bumps and drops thanks to no moving parts
  • Proven reliability with 1.2 million hours MTBF rating

Specifications

BrandIntel
Series535 Series
ModelSSDSC2BW180H601
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity180GB
Memory ComponentsMLC
InterfaceSATA III
Max Sequential ReadUp to 540 MBps
Max Sequential WriteUp to 490 MBps
4KB Random ReadUp to 41,000 IOPS
4KB Random WriteUp to 80,000 IOPS
Read Latency80 µs
Write Latency85 µs
MTBF1,200,000 hours
FeaturesStorage Capacity: 180 GBDrive Interface: SATADrive Interface Standard: SATA/600Drive Type: InternalDrive Width: 2.5"
Power Consumption (Idle)55mW
Power Consumption (Active)165mW
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +95°C
Max Shock Resistance1500G/0.5ms
Max Vibration ResistanceOperating: 2.17 GRMS (5-700Hz)
Non-Operating: 3.13 GRMS (5-800Hz)
Height7.00mm
Weight78.00g
Shipping weight0.10 kg
Package size151 × 110 × 22 mm

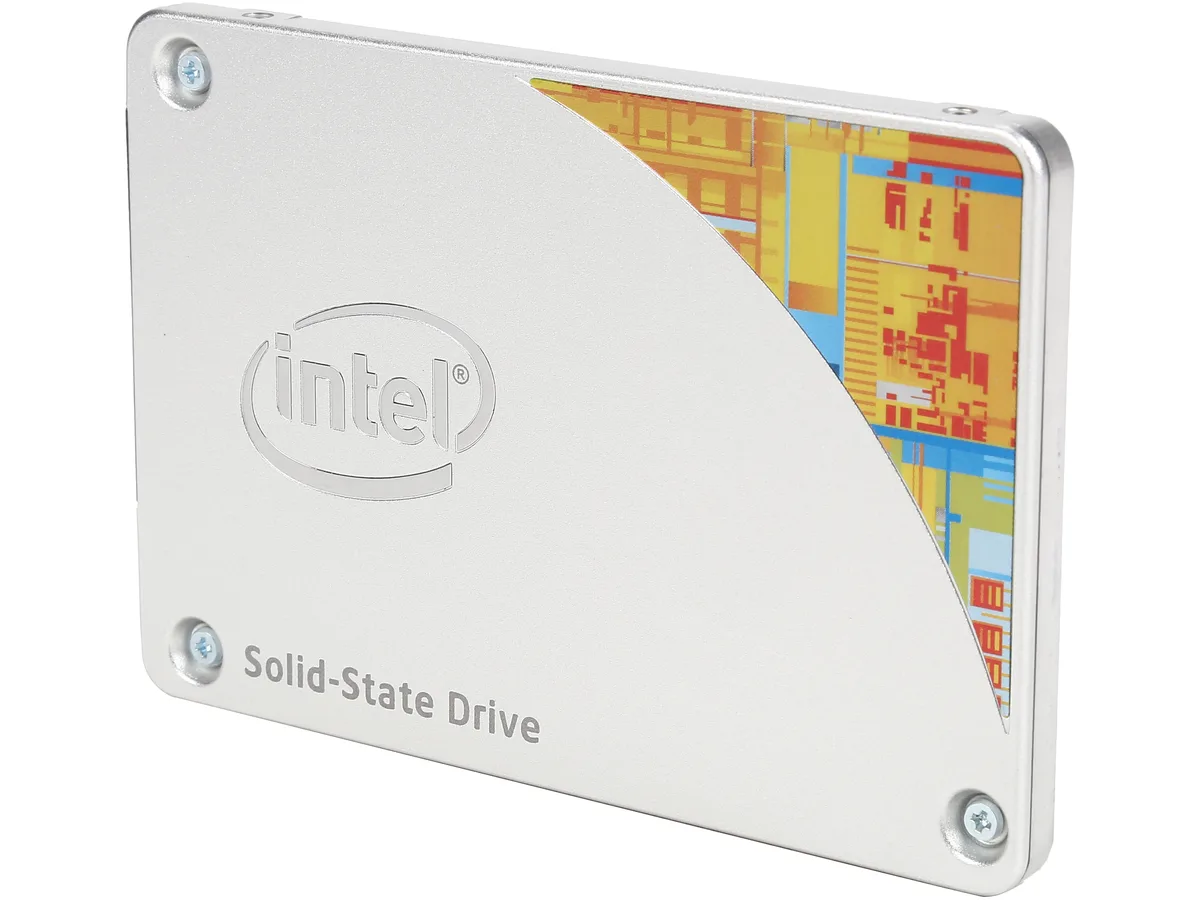

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the 535 Series 180GB SSD draw when the system is idle all day?

Idle power draw is 55mW, rising to 165mW during active workloads, so heat output stays very low even with continuous use.

Does the 2.5-inch SATA III drive need any special bracket or cable that I might not already have?

It fits any standard 2.5-inch drive bay and connects with a regular SATA data cable plus a SATA power connector from the PSU.

Will the 535 Series 180GB drive work reliably alongside my older mechanical hard drive on the same SATA controller?

Yes, it operates on the same SATA 6Gb/s interface, shares the 0°C to 70°C temperature range, and has a 1,200,000-hour MTBF for long-term mixed-drive setups.
