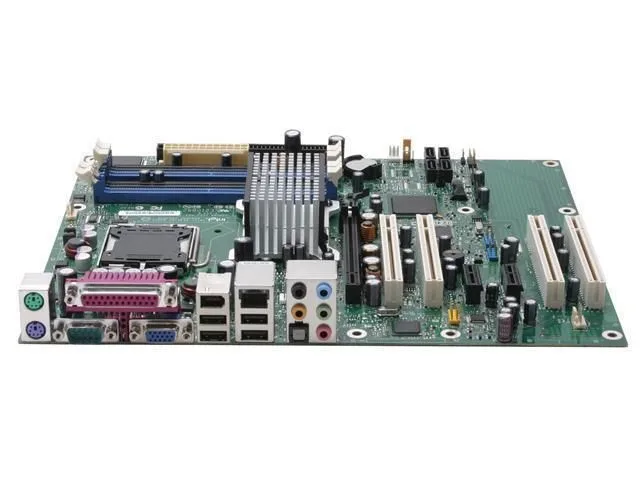

Green ATX motherboard with LGA-775 socket, four DDR2 slots and onboard video

Intel

Intel 945G D945GNTLR LGA-775 DDR2 ATX motherboard

SKU CH-F816-XHV1T MPN 945G

ATX board with Intel 945G chipset, LGA-775 socket, four DDR2 slots up to 4 GB, integrated GMA 950 graphics and 7.1-channel audio

  • Supports Pentium 4, Pentium D and Celeron D processors via LGA-775 socket
  • Four DDR2 slots accept up to 4 GB at 400, 533 or 667 MHz
  • Integrated Intel GMA 950 graphics controller handles onboard video
  • SigmaTel 9223 audio codec provides 7.1-channel sound output
  • Front-side bus options of 533, 800 and 1066 MHz match processor choice

Socket T LGA-775 Platform

This Intel 945G motherboard fits the Socket T LGA-775 interface and accepts a single Pentium 4, Pentium D or Celeron D processor. It targets builders maintaining or repairing legacy desktop systems that require this specific socket and chipset combination. The ATX form factor suits standard chassis layouts for that era.

DDR2-667 Memory Ceiling

Four DDR2 slots support modules rated at 400, 533 and 667 MHz, but the board caps total memory at 4 GB. Front-side bus options of 533, 800 and 1066 MHz set the practical bandwidth limit for the processor and integrated graphics subsystem. No faster DDR2 standard or larger capacity can be used.

Integrated GMA 950 Graphics

The onboard Intel GMA 950 controller handles video output without a discrete card, while the SigmaTel 9223 codec provides 7.1-channel audio. Buyers who need a dedicated graphics slot or newer display interfaces will not find them on this board.

Highlights

  • Supports Pentium 4, Pentium D and Celeron D processors via LGA-775 socket
  • Four DDR2 slots accept up to 4 GB at 400, 533 or 667 MHz
  • Integrated Intel GMA 950 graphics controller handles onboard video
  • SigmaTel 9223 audio codec provides 7.1-channel sound output
  • Front-side bus options of 533, 800 and 1066 MHz match processor choice

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick DDR2-400, DDR2-533 or DDR2-667 modules for this board?

The board supports all three DDR2 standards up to 667 MHz. Install DDR2-667 for the highest bandwidth, or use slower modules if that is what you have available.

What does the 4 GB maximum memory figure mean when I populate the four slots?

You can install up to 4 GB total across the four DDR2 slots. Typical configurations are four 1 GB sticks or two 2 GB sticks, with the board running at the speed of the slowest module fitted.

What does the LGA-775 socket and 1066 MHz front-side bus cap in practice?

The LGA-775 socket accepts Pentium 4, Pentium D and Celeron D processors. The front-side bus tops out at 1066 MHz, so the CPU and memory subsystem cannot exceed that transfer rate.
