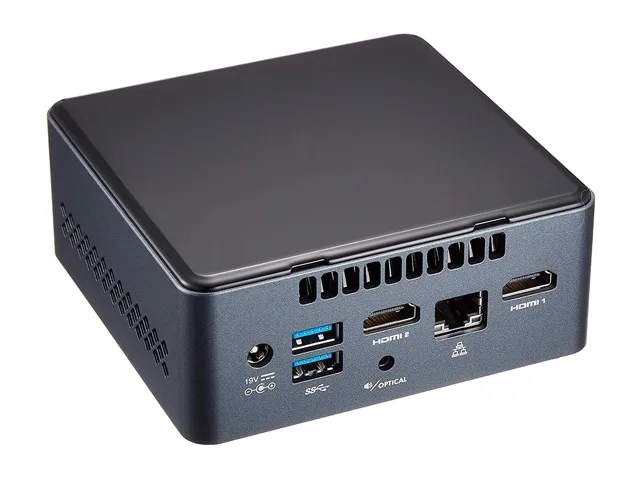

Small square black mini PC barebone with front ports and SD card slot

Intel

Intel BOXNUC7PJYHN2 Pentium Silver J5005 barebone mini PC

SKU CH-AJZX-KA1PA MPN BOXNUC7PJYHN2

Barebone mini PC with a Pentium Silver J5005 processor, two DDR4 SO-DIMM slots, dual HDMI outputs and a 2.5-inch drive bay

  • Form FactorUCFF (4" x 4")
  • CPU TypeIntel Pentium Silver J5005 Processor (4M Cache, up to 2.80 G
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 2400
  • Max Memory Supported8GB
  • Quad-core Pentium Silver J5005 up to 2.80 GHz for responsive everyday computing
  • Dual SO-DIMM slots accept DDR4 2400 up to 8 GB total system memory
  • Intel UHD Graphics 605 drives dual HDMI outputs for multi-display setups
  • Intel Wireless-AC 9462 plus Bluetooth 5.0 and Realtek Gigabit LAN for flexible connectivity
  • Compact 4" x 4" UCFF chassis includes 2.5" SATA bay and front USB 3.0 ports

Intel NUC barebone for compact builds

This Intel NUC barebone kit uses the Pentium Silver J5005 processor with a 4M cache and speeds up to 2.80 GHz. It targets buyers who want a small UCFF system for basic computing or media playback. The board includes Intel UHD Graphics 605 and 7.1 channel audio for home-theatre use.

Straightforward memory and storage installation

Two 260-pin SO-DIMM slots accept DDR4 2400 modules up to a total of 8GB. A single 2.5-inch SATA bay takes one 6.0Gb/s drive. No memory or storage is included, so you must supply both. The SDXC slot with UHS-I support adds removable-media flexibility.

Check power and peripheral needs first

The unit requires a 12-19 VDC external supply, which is not included. Verify that your display connects via HDMI, as there are two ports and no other video outputs. Wireless uses Intel Wireless-AC 9462 with Bluetooth 5.0, and wired LAN relies on a Realtek 8111H-CG controller.

Highlights

  • Quad-core Pentium Silver J5005 up to 2.80 GHz for responsive everyday computing
  • Dual SO-DIMM slots accept DDR4 2400 up to 8 GB total system memory
  • Intel UHD Graphics 605 drives dual HDMI outputs for multi-display setups
  • Intel Wireless-AC 9462 plus Bluetooth 5.0 and Realtek Gigabit LAN for flexible connectivity
  • Compact 4" x 4" UCFF chassis includes 2.5" SATA bay and front USB 3.0 ports

Specifications

BrandIntel
SeriesNUC (Next Unit of Computing)
ModelBOXNUC7PJYHN2
Form FactorUCFF (4" x 4")
CPU TypeIntel Pentium Silver J5005 Processor (4M Cache, up to 2.80 GHz)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 2400
Max Memory Supported8GB
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
Integrated GraphicsIntel UHD Graphics 605
Channel7.1 Channel
LANRealtek 8111H-CG
Wireless LANIntel Wireless-AC 9462
BluetoothBluetooth 5.0
2.5" Internal Bays1
Front USB2 x USB 3.0
Card ReaderSDXC with UHS-I support
HDMI2
Rear USB2 x USB 3.0
Input12-19 VDC
FeaturesBoxed Intel NUC Kit, NUC7PJYHN, w/ no codec, EU cord, single pack

Questions about this item

How do I confirm the Pentium Silver J5005 is running up to 2.80 GHz after setup?

Enter the UEFI or use a hardware monitor in the OS to verify the processor reaches 2.80 GHz under load.

Which components are missing from the barebone kit and must be purchased separately?

The kit includes the board, chassis, EU power cord and SDXC UHS-I reader; you must add two 260-pin DDR4 2400 SO-DIMMs up to 8 GB total and a 2.5" SATA 6.0 Gb/s drive.

Should I choose the single 8 GB DDR4 2400 module or two 4 GB modules for the two SO-DIMM slots?

Two 4 GB modules enable dual-channel bandwidth for the Intel UHD Graphics 605, while a single 8 GB module leaves the second slot empty for later expansion.
