Intel
Intel Core i5-14500 14-Core desktop processor BX8071514500
A 14-core desktop CPU with six performance and eight efficient cores reaching 5.0 GHz turbo, 24 MB L3 cache, integrated UHD Graphics 770, DDR4-3200 and DDR5-4800 support up to 192 GB.
- Processors TypeDesktop
- NameCore i5-14500
- CPU Socket TypeLGA 1700
- Core NameRaptor Lake
- # of Cores14-Core (6P+8E)
- # of Threads20-Threads
- 14 cores (6 performance + 8 efficient) handle multi-threaded workloads
- 20 threads with Hyper-Threading boost parallel processing throughput
- Up to 5.0 GHz P-core turbo accelerates single-thread tasks
- 24 MB L3 plus 11.5 MB L2 cache reduce memory latency
- 65 W base power with Intel 7 process balances performance and efficiency

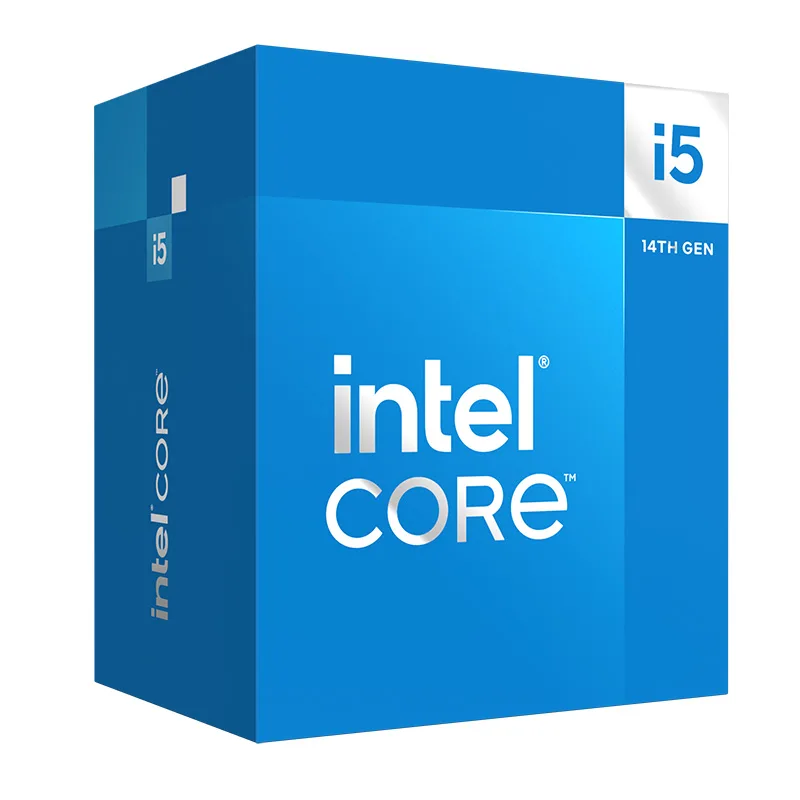

Refurbished 14-core desktop processor
The Intel Core i5-14500 is a refurbished desktop CPU with 14 cores split into six performance and eight efficient cores. It runs on the LGA 1700 socket using the Intel 7 process and includes Intel UHD Graphics 770. The boxed unit ships with the Intel Laminar RM1 cooler.
Suits multitasking builds.
This chip suits builders who want strong multi-thread throughput at a 65 W base power without overclocking. The 20 threads handle heavy workloads and background tasks well. Buyers who need an unlocked multiplier for manual frequency tuning should look at a K-series part instead.
154 W maximum turbo power defines cooling needs
The processor can draw up to 154 W when boosting, so the cooling solution and motherboard power delivery must handle that peak. The included Laminar RM1 cooler is rated for the base 65 W; sustained all-core loads may require a larger air tower or liquid cooler.
Highlights
- 14 cores (6 performance + 8 efficient) handle multi-threaded workloads
- 20 threads with Hyper-Threading boost parallel processing throughput
- Up to 5.0 GHz P-core turbo accelerates single-thread tasks
- 24 MB L3 plus 11.5 MB L2 cache reduce memory latency
- 65 W base power with Intel 7 process balances performance and efficiency
Specifications
| Brand | Intel |
|---|---|
| Processors Type | Desktop |
| Series | Core i5 14th Gen |
| Name | Core i5-14500 |
| Model | BX8071514500 |
| CPU Socket Type | LGA 1700 |
| Core Name | Raptor Lake |
| # of Cores | 14-Core (6P+8E) |
| # of Threads | 20-Threads |
| Operating Frequency | Performance-core Base Frequency: 2.6 GHz Efficient-core Base Frequency: 1.9 GHz |
| Max Turbo Frequency | P-core Max Turbo Frequency: Up to 5.0 GHz E-core Max Turbo Frequency: Up to 3.7 GHz |
| L2 Cache | 11.5MB |
| L3 Cache | 24MB |
| Manufacturing Tech | Intel 7 |
| Instruction Set | 64-Bit |
| Hyper-Threading Support | Yes |
| Memory Types | DDR4 3200 / DDR5 4800 |
| Memory Channel | 2 |
| Max Memory Size | 192 GB |
| ECC Memory | Supported |
| Virtualization Technology Support | Yes |
| Integrated Graphics | Intel UHD Graphics 770 |
| Graphics Max Dynamic Frequency | 1.55 GHz |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 / 4.0 |
| PCI Express Configurations | Up to 1x16+4, 2x8+4 |
| Max Number of PCI Express Lanes | 20 |
| Thermal Design Power | 65W |
| Max Turbo Power | 154W |
| Cooling Device | Intel Laminar RM1 included |
| Compatible Desktop Chipsets | Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790 * BIOS update may be required when used with some old chipset motherboard |
| Operating System Supported | Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2) |
| Shipping weight | 0.45 kg |
| Package size | 127 × 114 × 76 mm |
Questions about this item
How loud and hot does the 65W Core i5-14500 get under sustained load with the bundled Intel Laminar RM1 cooler?
The processor has a 65W base power and can reach 154W max turbo power, so the included Laminar RM1 cooler handles typical workloads quietly, though sustained all-core boosts will raise temperatures and fan speed.
Which memory kit and motherboard chipset must I already own to install this LGA 1700 CPU?
You need a DDR4-3200 or DDR5-4800 kit running in dual-channel and a motherboard with an Intel H610, B660, H670, Q670, W680 or Z690 chipset.
Will my existing PCIe 4.0 graphics card and storage run at full speed on the Core i5-14500 platform?
Yes, the CPU provides 20 PCIe lanes split as PCIe 5.0 and 4.0, so a PCIe 4.0 graphics card in the x16 slot and a PCIe 4.0 drive in the x4 slot both operate at their rated speeds.
