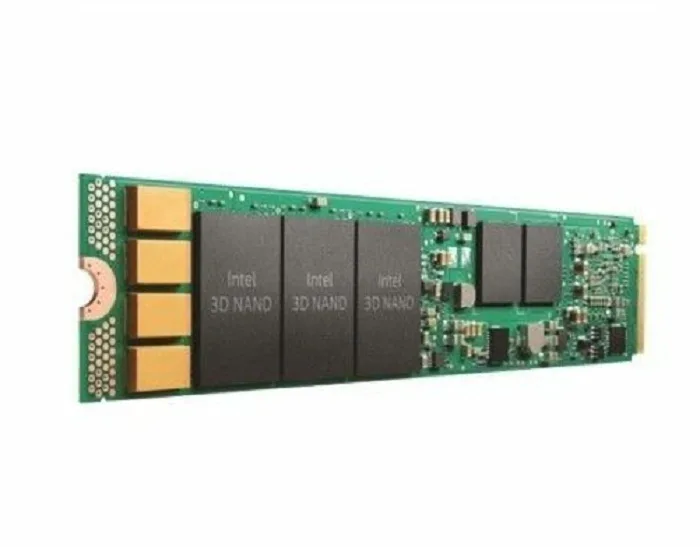

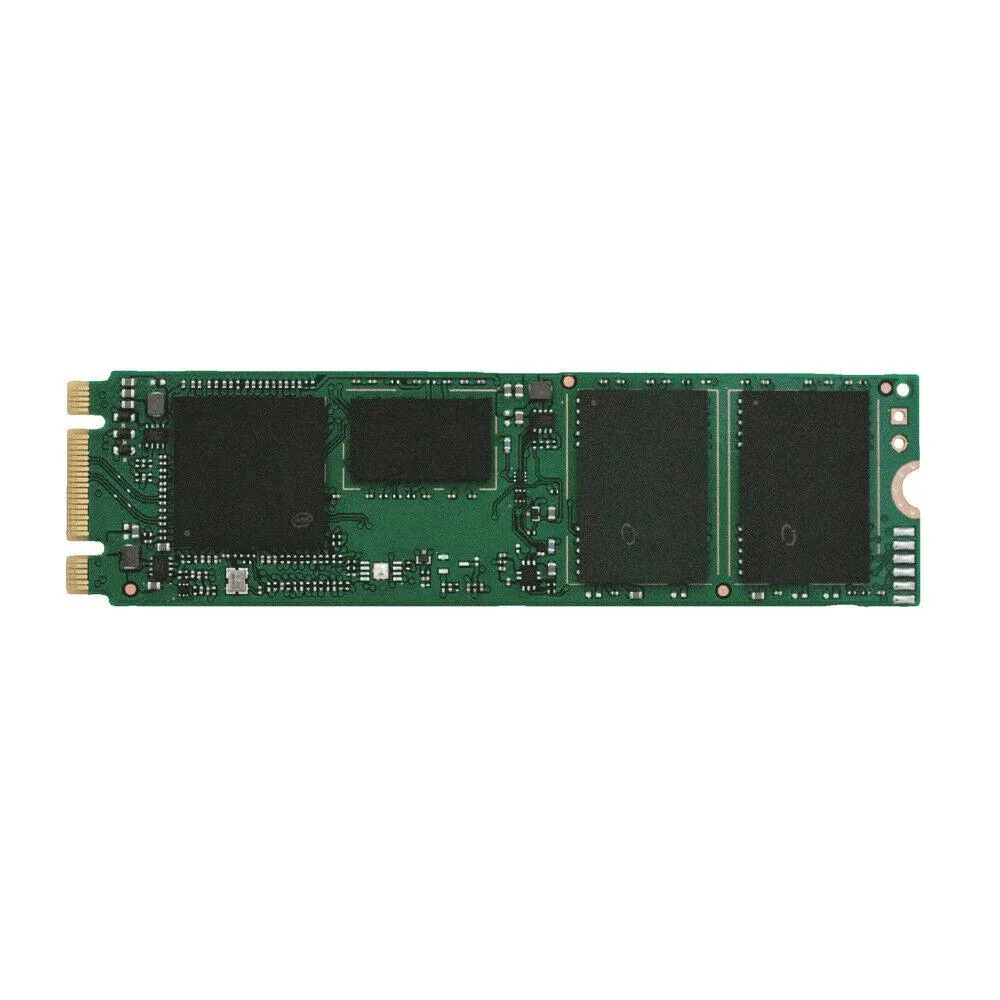

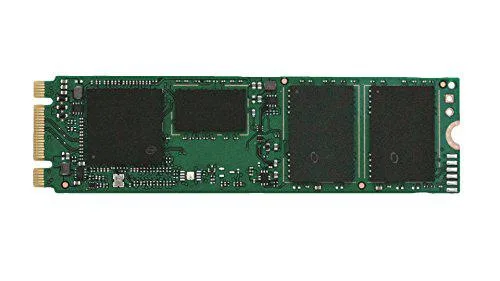

Green M.2 2280 circuit board with gold edge connector and black controller chip

Intel

Intel D3-S4510 240GB M.2 2280 SATA Internal SSD SSDSCKKB240G801

SKU CH-KTKP-CTQ00 MPN SSDSCKKB240G801

Entry-level SATA M.2 2280 internal SSD with 240 GB capacity, sequential speeds of 555 MB/s read and 275 MB/s write, and random performance of 87000 IOPS read and 16000 IOPS write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForEnterprise
  • Form FactorM.2 2280
  • Capacity240GB
  • Memory ComponentsTLC
  • InterfaceSATA III

Options 240GB

  • Enterprise-grade reliability from Intel engineering
  • 240 GB capacity for OS and critical data
  • SATA III interface delivers up to 555 MB/s sequential reads
  • M.2 2280 form factor fits dense server chassis
  • 87 000 random 4 KB read IOPS for responsive workloads

Intel D3-S4510 240GB M.2 SATA SSD

This internal solid state drive uses the M.2 2280 form factor with a SATA III interface. It is built with TLC memory components and designed for enterprise workloads. The drive delivers sequential reads up to 555 MBps and writes up to 275 MBps. Random 4KB performance reaches 87000 IOPS read and 16000 IOPS write.

Enterprise boot drive or read-heavy cache

Suited for servers and workstations that need a reliable SATA boot device or read-intensive caching tier in the compact M.2 2280 size. The SATA 600 interface limits peak throughput compared to PCIe alternatives, so write-heavy databases or high-bandwidth content creation should consider faster interfaces. Operating temperature spans 0°C to 70°C for standard data centre environments.

SATA III 600 interface

The single specification that decides fit is the SATA III 600 interface; the system M.2 slot must support SATA signalling, not PCIe only. Confirm the motherboard or backplane routes the M.2 connector to the SATA controller before purchase.

Highlights

  • Enterprise-grade reliability from Intel engineering
  • 240 GB capacity for OS and critical data
  • SATA III interface delivers up to 555 MB/s sequential reads
  • M.2 2280 form factor fits dense server chassis
  • 87 000 random 4 KB read IOPS for responsive workloads

Specifications

BrandIntel
Part NumberSSDSCKKB240G801
Device TypeInternal Solid State Drive (SSD)
Used ForEnterprise
Form FactorM.2 2280
Capacity240GB
Memory ComponentsTLC
InterfaceSATA III
Max Sequential ReadUp to 555 MBps
Max Sequential WriteUp to 275 MBps
Operating Temperature0°C ~ +70°C
Weight1
Shipping weight0.45 kg
Package size140 × 114 × 6 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 240GB drive fit in a laptop slot?

The M.2 2280 form factor measures 22mm by 80mm and suits standard M.2 slots in laptops and desktops.

What speeds can I expect for everyday file work?

Sequential read reaches 555 MB/s and write reaches 275 MB/s, with random 4KB read at 87000 IOPS and write at 16000 IOPS.

Is any special cable or bracket needed for installation?

No extra cable is required; the drive plugs directly into a SATA-wired M.2 slot and weighs 1 gram.
