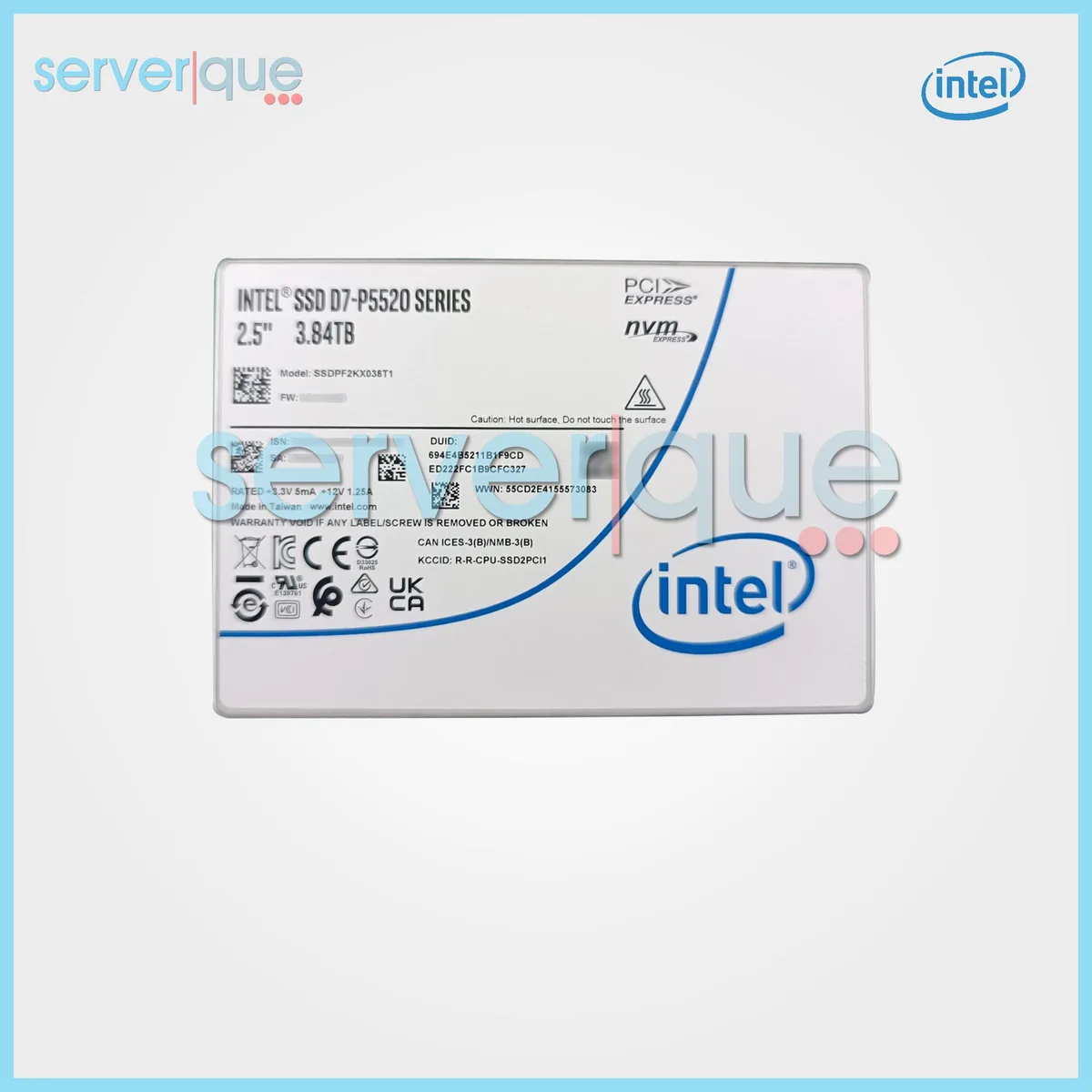

Silver rectangular 2.5 inch U.2 SSD with gold edge connector and black label

Intel

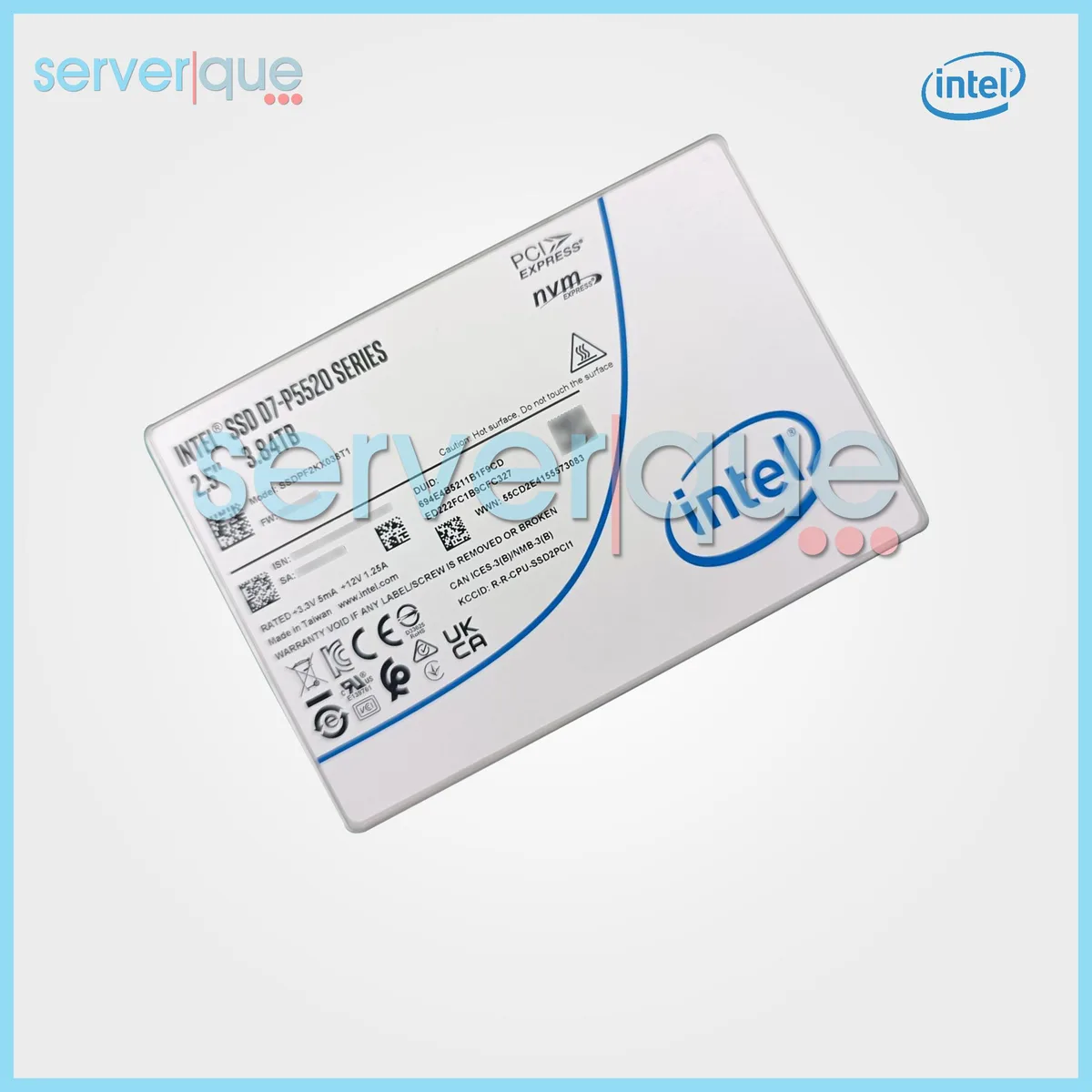

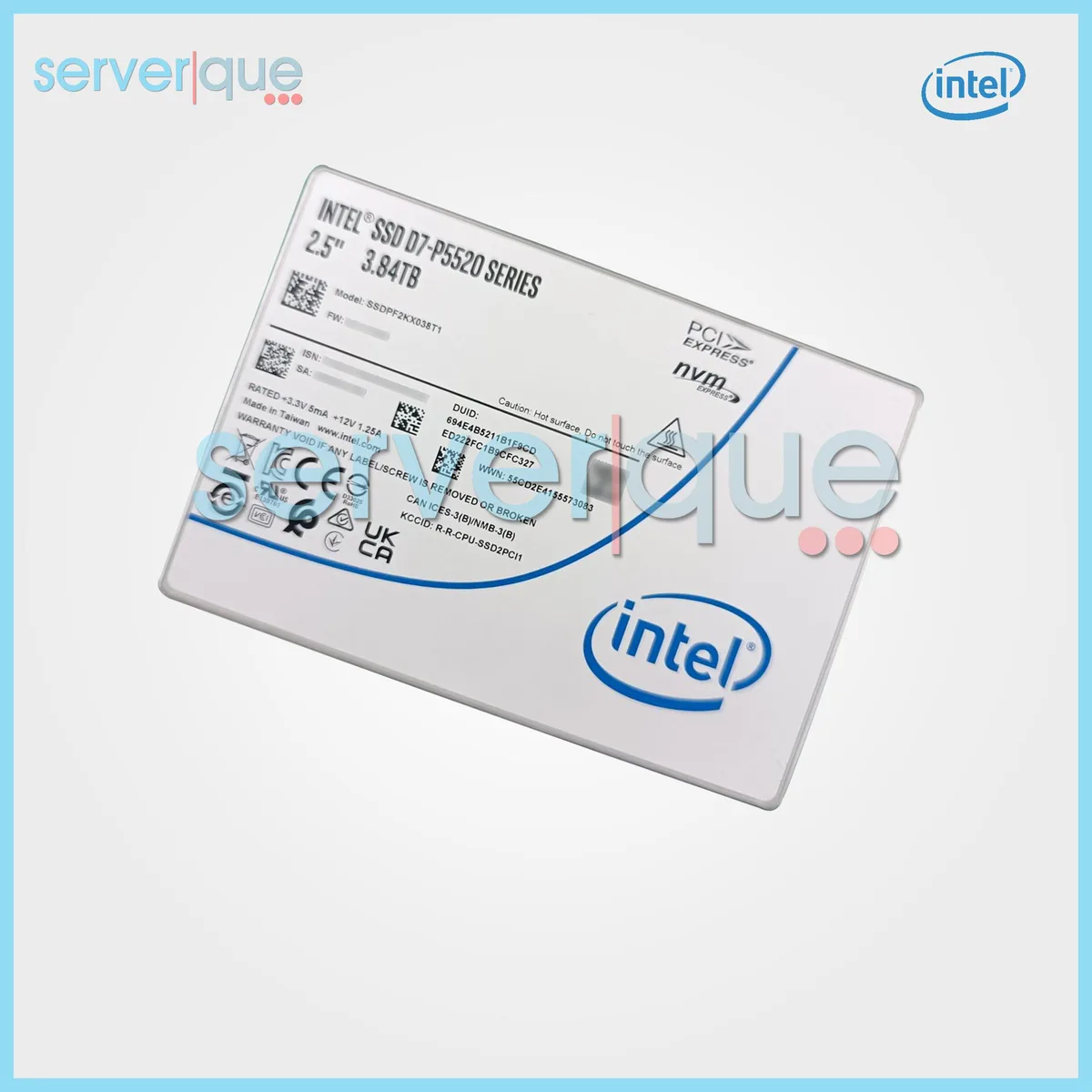

Intel D7-P5520 3.84TB 2.5" U.2 NVMe internal SSD

SKU CH-3GYJ-N689N

A 3.84 TB U.2 NVMe drive delivers 6700 MB/s reads and 3600 MB/s writes for data-centre workloads

  • Device TypeInternal Solid State Drive (SSD)
  • Form Factor2.5" U.2
  • Capacity3.84TB
  • Memory ComponentsTLC
  • InterfacePCI-Express 3.0 x4
  • Max Sequential ReadUp to 6700 MBps
  • 84 TB capacity stores large datasets
  • 6700 MB/s sequential read accelerates data access
  • 3600 MB/s sequential write speeds up transfers
  • 100000 IOPS random read handles heavy workloads
  • 2000000 hours MTBF ensures long-term reliability

3.84TB U.2 NVMe SSD

This Intel D7-P5520 drive delivers 3.84TB of capacity in a 2.5" U.2 form factor. It uses triple-level cell memory and a PCI-Express 3.0 x4 interface with NVMe protocol. Designed for internal server and storage arrays.

Suited for read-intensive enterprise workloads

The drive targets email, business processing, transaction processing and decision-support applications. It also fits SAN and NAS deployments as well as internet and e-commerce platforms. Write-heavy or mixed-use scenarios may require a different endurance class.

PCI-Express 3.0 x4 interface

The SSD connects through a U.2 backplane using a PCI-Express 3.0 x4 link. Sequential reads reach up to 6700 MBps and sequential writes up to 3600 MBps. Random 4KB reads hit 100000 IOPS while writes reach 20000 IOPS.

Highlights

  • 84 TB capacity stores large datasets
  • 6700 MB/s sequential read accelerates data access
  • 3600 MB/s sequential write speeds up transfers
  • 100000 IOPS random read handles heavy workloads
  • 2000000 hours MTBF ensures long-term reliability

Specifications

BrandIntel
Part NumberSSDPF2KX038T1
Device TypeInternal Solid State Drive (SSD)
Form Factor2.5" U.2
Capacity3.84TB
Memory ComponentsTLC
InterfacePCI-Express 3.0 x4
Max Sequential ReadUp to 6700 MBps
Max Sequential WriteUp to 3600 MBps
4KB Random ReadUp to 100,000 IOPS
4KB Random WriteUp to 20,000 IOPS
MTBF2,000,000 hours

Questions about this item

How is the 2.5" U.2 drive installed in a server and what step is often missed?

Insert the drive into a U.2 backplane or hot-swap bay until the connector seats, then secure it with the retention latch; the step often missed is fully engaging the latch so the PCIe 3.0 x4 link trains at full speed.

What maintenance or replacement will the 3.84TB TLC SSD need over its service life?

No scheduled maintenance is required; the drive is rated for 2,000,000 hours MTBF, so replacement is only needed if SMART media or critical warning thresholds are reached.

What limit appears first on the PCIe 3.0 x4 NVMe SSD during sustained heavy writes?

The sequential write ceiling of 3,600 MBps is reached before the 20,000 random write IOPS limit under continuous high-queue-depth workloads.
