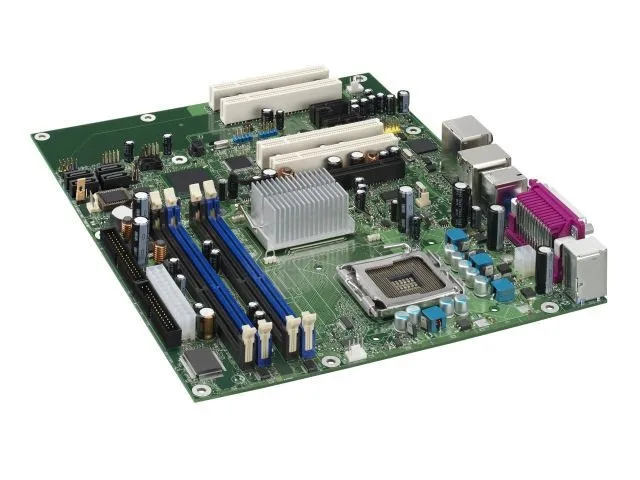

Green ATX motherboard with LGA775 socket and four DDR2 slots

Intel

Intel D945GNTLKR LGA775 DDR2 ATX motherboard

SKU CH-Q38X-JH9Y9

LGA 775 ATX board with Intel 945G chipset, four DDR2 667 slots, PCI Express x16, four PCI slots, SATA RAID 0/1/5/10, GMA 950 graphics and 10/100/1000 LAN

  • LGA 775 socket accepts Pentium D, Pentium 4 HT and Celeron D CPUs
  • Dual-channel DDR2 667 memory supports up to 4 GB across four slots
  • Intel GMA 950 graphics built into the 945G chipset for video output
  • 6-channel SigmaTel STAC9220 audio with three rear ports
  • Gigabit LAN plus SATA RAID 0, 1, 5 and 10 via ICH7R

Socket LGA775 ATX board for legacy Pentium D builds

This Intel D945GNTLKR motherboard uses the 945G chipset and an LGA775 socket to support Pentium D, Pentium 4 HT and Celeron D processors. It provides four 240-pin DDR2 slots running at up to 667 MHz with a 4 GB maximum in dual-channel mode. Integrated Intel GMA 950 graphics and SigmaTel STAC9220 6-channel audio are included on the ATX form factor.

Suits repairs or vintage upgrades.

The board fits existing LGA775 systems that need a direct replacement or a period-correct rebuild with DDR2 memory. It will not serve builders who want more storage bandwidth than the available SATA RAID 0, 1, 5 and 10 modes provide, nor those who require more than a single PCI Express x16 slot for graphics expansion.

Single PCI Express x16 slot decides graphics

Only one full-size PCI Express x16 connector is present, so the choice of a discrete graphics card is limited to a single card configuration. Two additional PCI Express x1 slots and four standard PCI slots handle other add-in cards, but a second high-speed graphics card cannot be installed.

Highlights

  • LGA 775 socket accepts Pentium D, Pentium 4 HT and Celeron D CPUs
  • Dual-channel DDR2 667 memory supports up to 4 GB across four slots
  • Intel GMA 950 graphics built into the 945G chipset for video output
  • 6-channel SigmaTel STAC9220 audio with three rear ports
  • Gigabit LAN plus SATA RAID 0, 1, 5 and 10 via ICH7R

Specifications

No published specifications for this item yet.

Questions about this item

How much heat and noise should I expect from the Intel 945G and ICH7R chipsets running continuously?

The Intel 945G and ICH7R chipsets are passively cooled, so they add no fan noise and minimal heat during all-day operation.

Which DDR2 memory and LGA 775 processor must I already have to use this board?

You need DDR2 667 modules up to 4 GB total across four 240-pin slots and a Pentium D, Pentium 4 HT or Celeron D CPU with 800 or 1066 MHz FSB.

Will my existing PCI cards and Parallel ATA drives work with the four PCI slots and ICH7R southbridge?

Four PCI slots accept legacy expansion cards while the ICH7R provides Parallel ATA and SATA RAID 0/1/5/10 for older storage devices.
