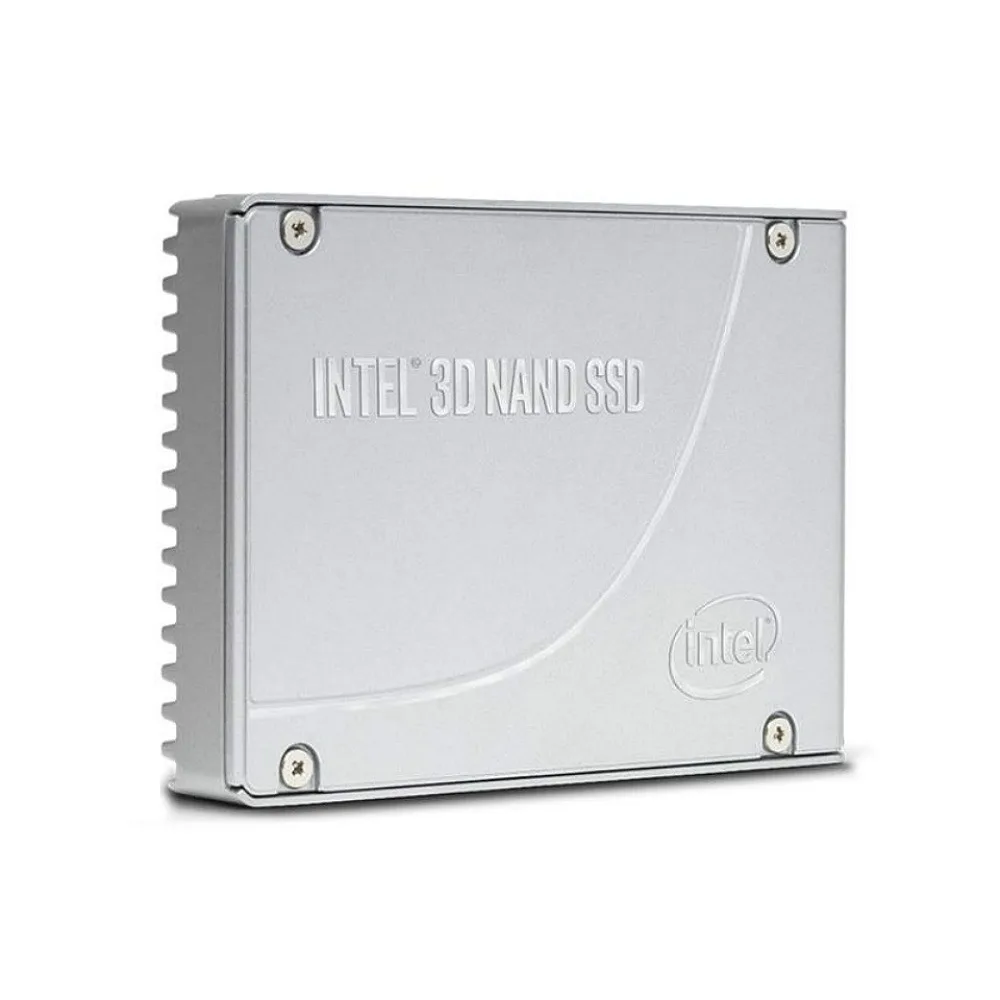

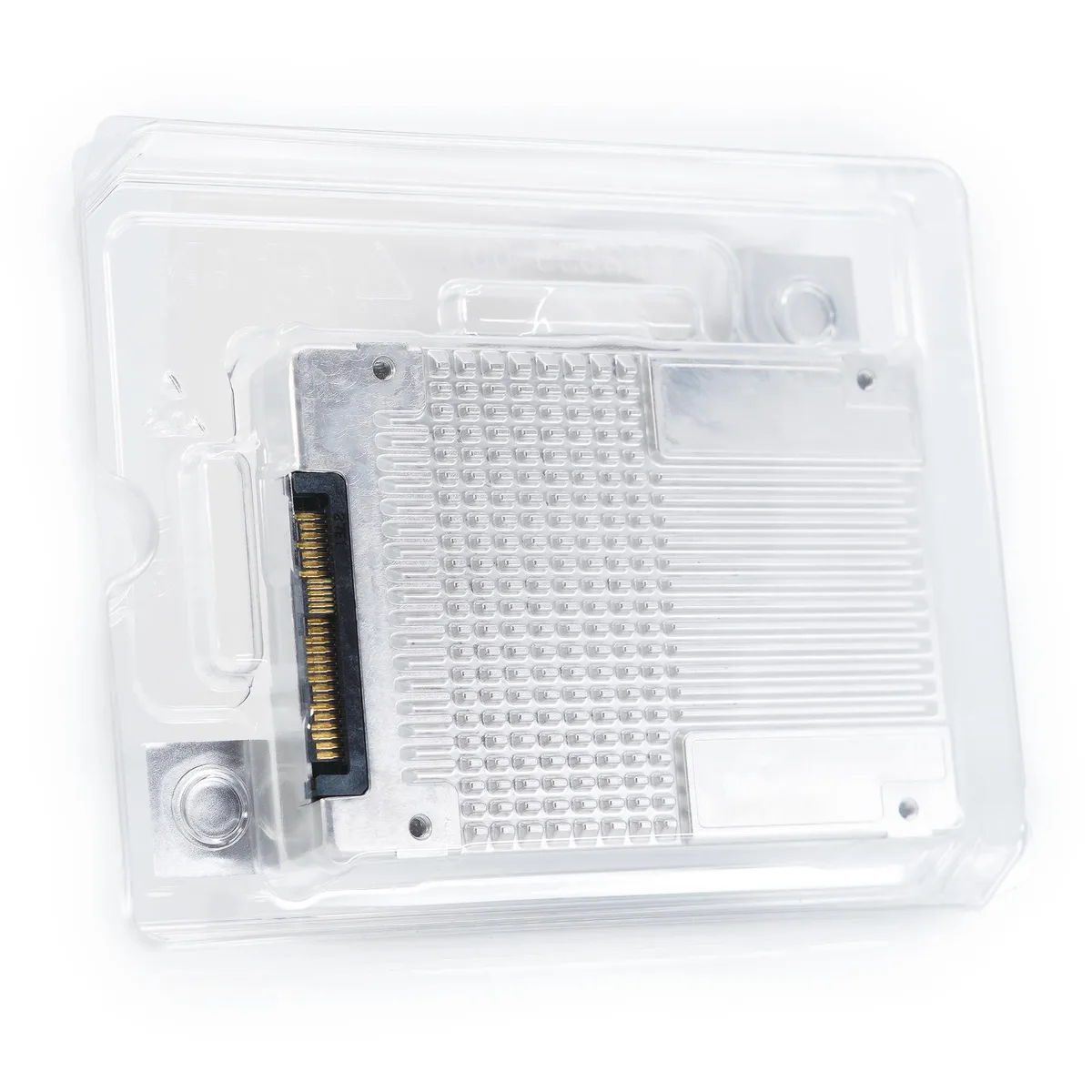

A silver 2.5 inch U.2 enterprise SSD with a green circuit board visible on the underside

Intel

Intel DC P4510 2 TB enterprise SSD SSDPE2KX020T801

SKU CH-HJTY-CHC99 MPN SSDPE2KX020T801

2.5" U.2 enterprise SSD with 2.0TB capacity, PCIe 3.1 x4 interface, 3200 MB/s read and 2000 MB/s write speeds

  • Form Factor2.5" U.2
  • Capacity2TB
  • Memory ComponentsTLC
  • InterfacePCI-Express 3.0 x4
  • Endurance0.7 DWPD
  • Height0.750

Options 2TB

  • 2TB
  • 1TB

Struck-through versions exist but are not stocked here.

  • 2 TB capacity for large enterprise datasets
  • PCI Express 3.1 x4 interface delivers up to 3200 MB/s sequential read
  • Random 4 KB read reaches 637000 IOPS for transaction-heavy workloads
  • 7 DWPD endurance rating supports sustained write operations
  • 5" U.2 form factor fits standard server bays

Cloud-ready enterprise SSD

The Intel DC P4510 2 TB solid-state drive uses a 2.5" U.2 form factor and a PCI Express 3.1 x4 interface. It is built with 3D NAND TLC memory for cloud infrastructures, media streaming, online transaction processing, block and object stores, and business intelligence workloads.

Thermal and power profile

The drive delivers sequential reads up to 3200 MB/s and writes up to 2000 MB/s. Random 4 KB performance reaches 637000 IOPS read and 81500 IOPS write. Endurance is rated at 0.7 drive writes per day, reflecting steady power draw under sustained enterprise loads.

Build and connectivity

The 2.5" U.2 housing measures 4.750 inches wide and 0.750 inches high, weighing 0.38 pounds. A single PCIe 3.1 x4 connector handles both data and power, so the drive mounts directly into compatible backplanes without extra cabling.

Highlights

  • 2 TB capacity for large enterprise datasets
  • PCI Express 3.1 x4 interface delivers up to 3200 MB/s sequential read
  • Random 4 KB read reaches 637000 IOPS for transaction-heavy workloads
  • 7 DWPD endurance rating supports sustained write operations
  • 5" U.2 form factor fits standard server bays

Specifications

BrandIntel
ModelSSDPE2KX020T801
Part NumberSSDPE2KX020T801
Form Factor2.5" U.2
Capacity2TB
Memory ComponentsTLC
InterfacePCI-Express 3.0 x4
Endurance0.7 DWPD
Height0.750
Width4.750
Weight0.38
Shipping weight0.45 kg
Package size483 × 254 × 178 mm

Questions about this item

How do I install this 2.5" U.2 PCIe 3.0 x4 drive in my server?

Mount the 2.5 inch U.2 drive into a compatible hot-swap bay or caddy, connect the PCIe 3.0 x4 interface, and secure the retention mechanism fully; the step often missed is not locking the drive latch completely, which can cause connection errors.

What maintenance or replacement will this SSD need over its lifespan?

With 0.7 DWPD endurance on 2 TB of TLC memory, the drive is rated for sustained writes; monitor SMART health attributes and plan replacement when the media wear indicator approaches the threshold.

What performance limit appears first during sustained heavy writes?

The maximum write transfer rate of 2000 MB/s is the bottleneck; once the SLC cache fills, sustained sequential writes will throttle to the native TLC speed.
