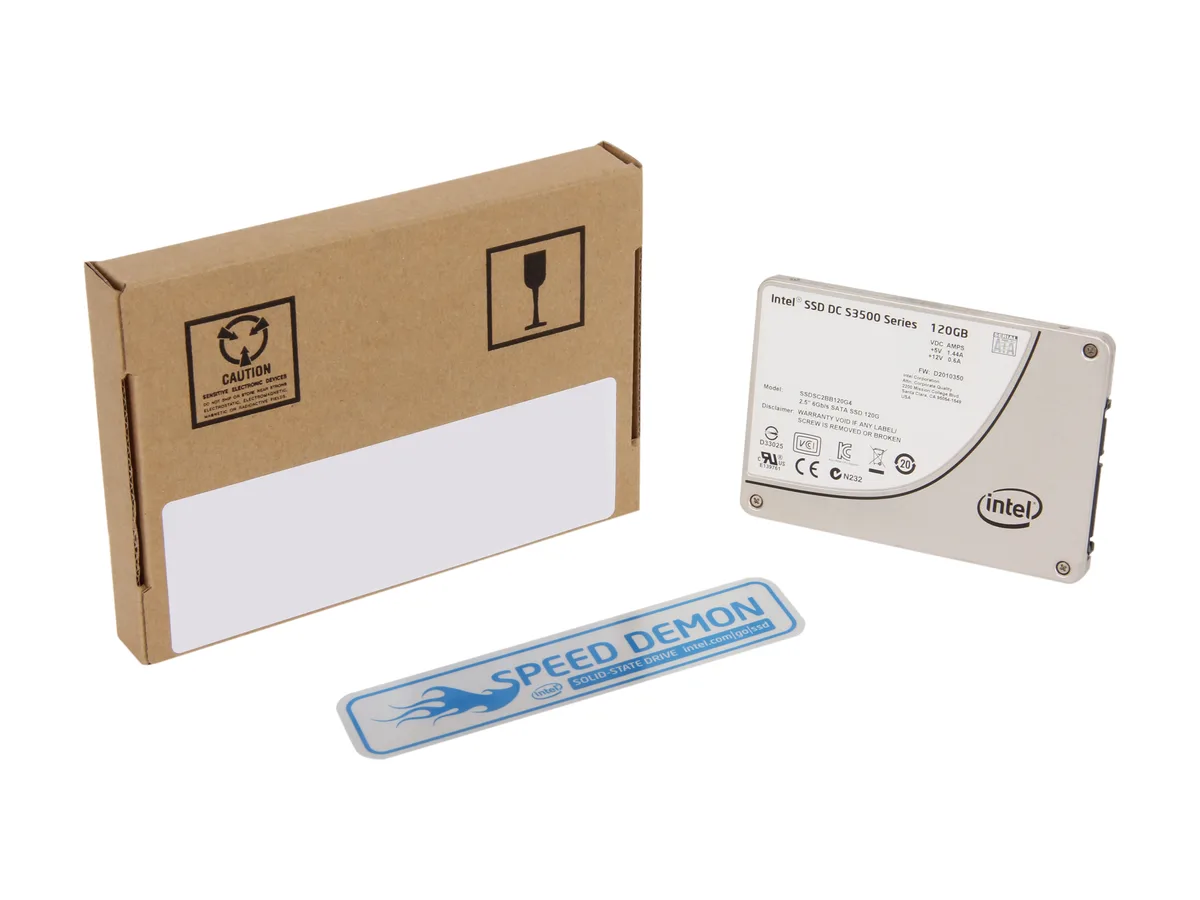

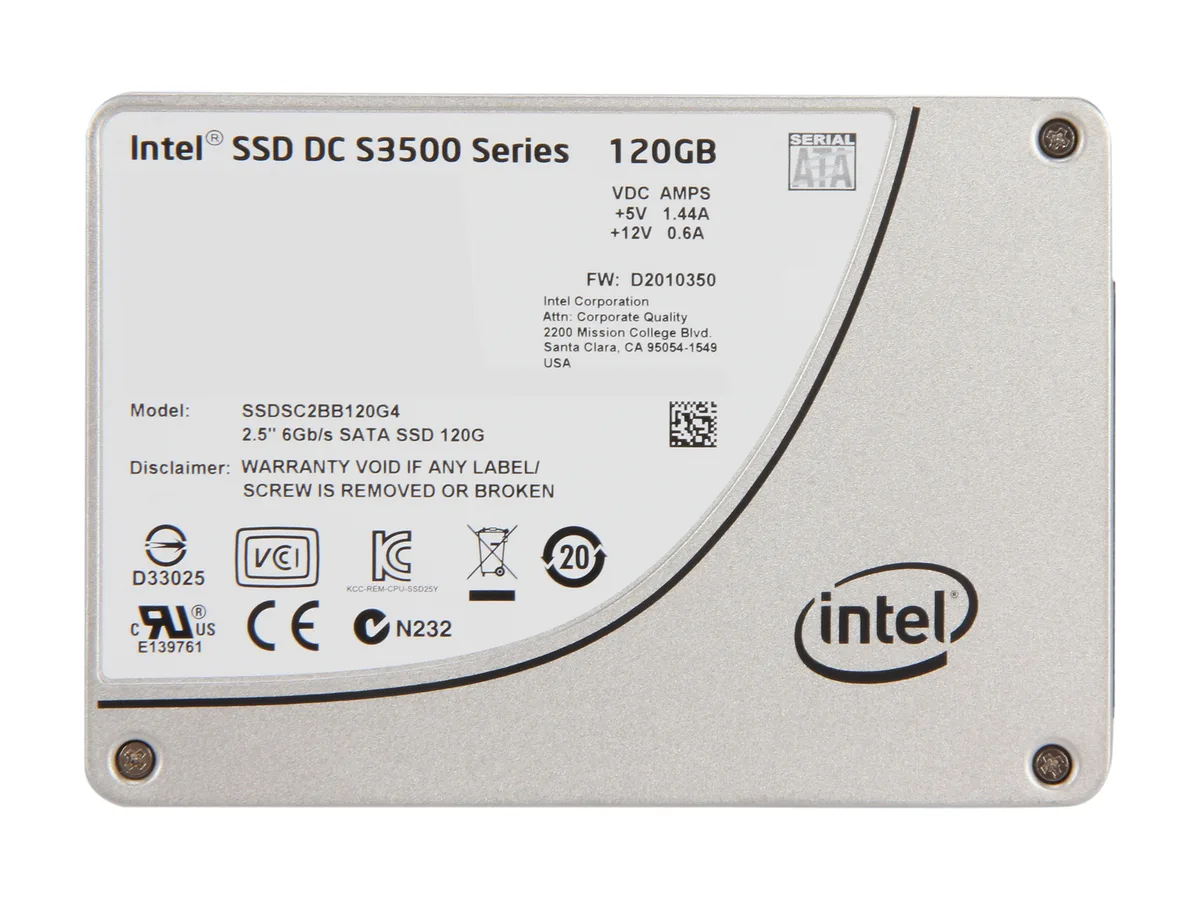

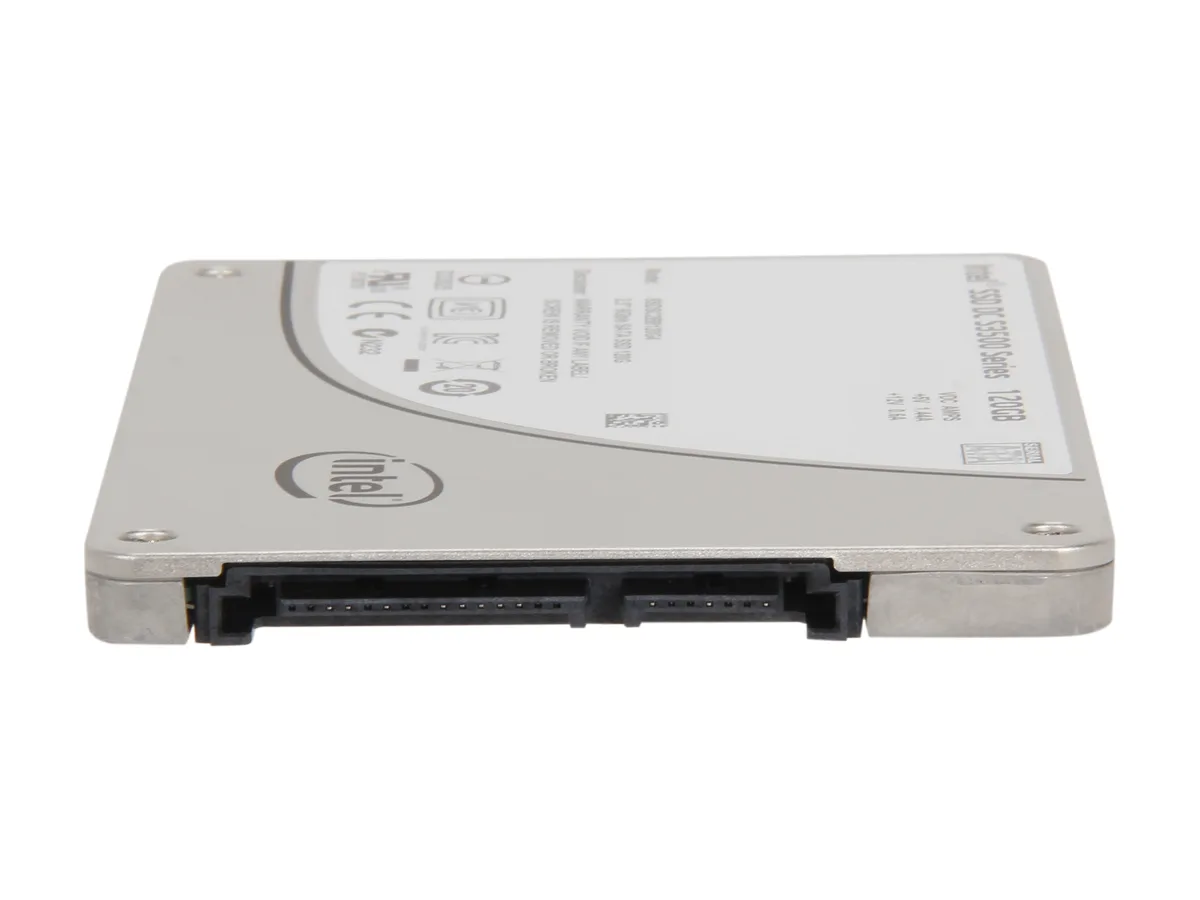

Rectangular silver 2.5 inch SATA SSD with label showing Intel DC S3500 120GB

Intel

Intel DC S3500 SSDSC2BB120G401 2.5" 120GB SATA enterprise SSD

SKU CH-GFYZ-2KQE2 MPN SSDSC2BB120G401

2.5-inch 120GB SATA enterprise SSD with MLC NAND, up to 445MB/s read, 135MB/s write, 75,000 read IOPS, 4,600 write IOPS, and 2M-hour MTBF

  • Form Factor2.5"
  • Capacity120GB
  • Memory ComponentsMLC
  • InterfaceSATA 3.0 6Gb/S
  • Max Sequential ReadUp to 445 MBps
  • Max Sequential WriteUp to 135 MBps

Options 120GB

  • Enterprise reliability with 2 million hour MTBF rating
  • Fast sequential reads up to 445 MBps for quick data access
  • Low power consumption at 0.8W idle and 2.3W active
  • Consistent random read performance up to 75,000 IOPS
  • MLC NAND flash memory for balanced endurance and performance

Enterprise SATA SSD

The Intel DC S3500 SSDSC2BB120G401 is a 2.5-inch enterprise solid-state drive built for servers and storage arrays that require consistent SATA 3.0 performance. Its MLC flash and 2,000,000-hour MTBF suit read-heavy workloads such as web serving, caching or boot volumes where reliability matters more than peak throughput.

MLC endurance and power profile

MLC memory provides higher write endurance than consumer-grade TLC, extending service life under sustained mixed workloads. Active power draw of 2.3W and idle draw of 0.8W keep thermal load low in dense drive bays, while 1,000 G shock resistance protects data during rack maintenance.

120GB capacity ceiling

At 120GB the drive comfortably holds an OS, hypervisor or small database index with headroom for wear levelling. Sequential writes top out at 135 MBps and random writes at 4,600 IOPS, so heavy logging or large ingest jobs will saturate the controller quickly. Buyers needing larger volumes or higher sustained write bandwidth should look beyond this capacity point.

Highlights

  • Enterprise reliability with 2 million hour MTBF rating
  • Fast sequential reads up to 445 MBps for quick data access
  • Low power consumption at 0.8W idle and 2.3W active
  • Consistent random read performance up to 75,000 IOPS
  • MLC NAND flash memory for balanced endurance and performance

Specifications

BrandIntel
SeriesDC S3500
ModelSSDSC2BB120G401
Form Factor2.5"
Capacity120GB
Memory ComponentsMLC
InterfaceSATA 3.0 6Gb/S
Max Sequential ReadUp to 445 MBps
Max Sequential WriteUp to 135 MBps
4KB Random ReadUp to 75,000 IOPS
4KB Random WriteUp to 4,600 IOPS
Read Latency50 us
Write Latency65 us
MTBF2,000,000 hours
Power Consumption (Idle)0.8W
Power Consumption (Active)2.3W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000 G at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz) Max
Height7.00mm
Weight70g +/- 2
Shipping weight0.02 kg
Package size154 × 109 × 22 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long is the drive rated to run before it needs replacement?

The drive carries a 2,000,000 hour MTBF rating, indicating the expected operational lifespan before failure risk rises.

What limits sustained write performance on this drive?

Sequential write tops out at 135 MBps and 4 KB random write at 4,600 IOPS, so the controller and MLC flash set the ceiling.

How much power does it draw and how hot does it get when running all day?

Active power is 2.3 W, idle is 0.8 W, and the operating temperature range is 0 °C to 70 °C.
