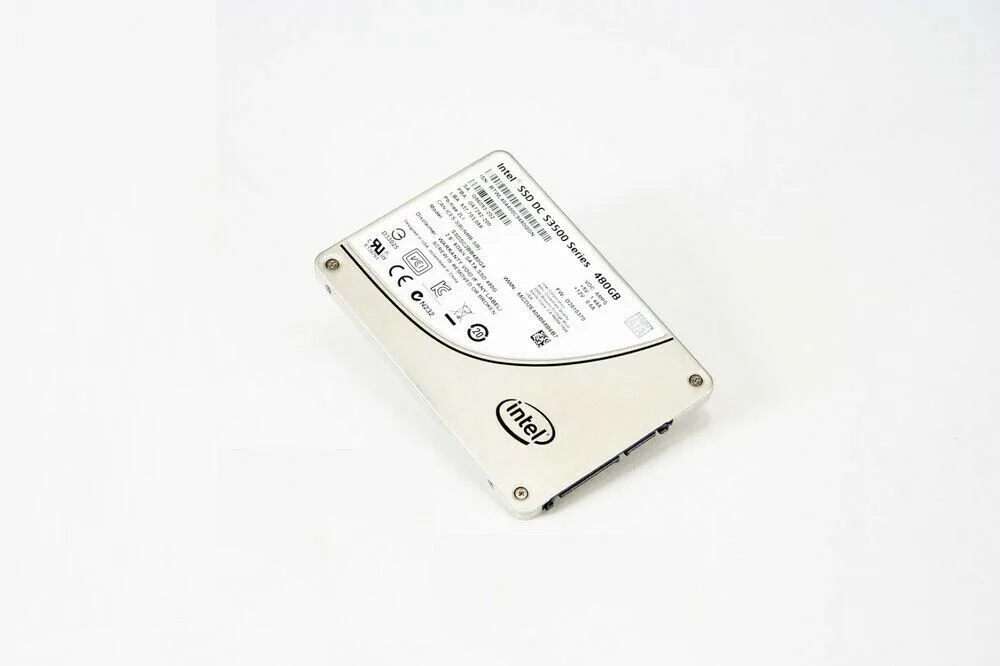

Silver rectangular 2.5 inch SATA SSD with label showing Intel DC S3500 480GB

Intel

Intel DC S3500 SSDSC2BB480G4 480GB SATA enterprise SSD

SKU CH-1VK6-ZP9SX

A 2.5 inch SATA enterprise SSD with 480GB MLC storage, 500 MBps read, 410 MBps write, 75,000 read IOPS and 11,000 write IOPS

  • Form Factor2.5"
  • Capacity480GB
  • Memory ComponentsMLC
  • InterfaceSATA 3.0 6Gb/S
  • Max Sequential ReadUp to 500 MBps
  • Max Sequential WriteUp to 410 MBps
  • 480 GB capacity stores more server data
  • SATA 6 Gb/s interface delivers 500 MBps sequential reads
  • MLC NAND provides 75,000 IOPS random reads
  • 5 million hour MTBF ensures long-term reliability
  • 9 W idle power reduces operating costs

480GB SATA Enterprise SSD

The Intel DC S3500 SSDSC2BB480G4 is a 2.5-inch internal solid-state drive with a 480GB capacity. It connects through a SATA 6Gb/s interface and uses MLC NAND flash memory. The drive is built for server and storage workloads that demand consistent endurance.

Suits read-heavy server workloads.

Sequential reads reach up to 500 MBps and sequential writes up to 410 MBps. Random 4KB reads hit 75,000 IOPS while writes reach 11,000 IOPS. Read latency is 50 µs and write latency is 65 µs. Buyers who need higher sustained write throughput or larger capacities should look at other enterprise drives.

2,000,000-hour MTBF defines reliability target

The mean time between failures is rated at 2,000,000 hours. Active power draw is 4.3W and idle power is 0.9W. Operating temperature spans 0°C to 70°C. Shock resistance is rated at 1,000G at 0.5 msec and vibration resistance at 2.17 GRMS operating and 3.13 GRMS non-operating.

Highlights

  • 480 GB capacity stores more server data
  • SATA 6 Gb/s interface delivers 500 MBps sequential reads
  • MLC NAND provides 75,000 IOPS random reads
  • 5 million hour MTBF ensures long-term reliability
  • 9 W idle power reduces operating costs

Specifications

BrandIntel
SeriesDC S3500
ModelSSDSC2BB480G4
Form Factor2.5"
Capacity480GB
Memory ComponentsMLC
InterfaceSATA 3.0 6Gb/S
Max Sequential ReadUp to 500 MBps
Max Sequential WriteUp to 410 MBps
4KB Random ReadUp to 75,000 IOPS
4KB Random WriteUp to 11,000 IOPS
Read Latency50 µs
Write Latency65 µs
MTBF2,000,000 hours
Power Consumption (Idle)0.9W
Power Consumption (Active)4.3W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000G at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz
Non-Operating: 3.13 GRMS (5-800 Hz)
Height7.00mm
Weight72g +/- 2g

Questions about this item

How much power does the DC S3500 480GB draw when active all day?

Active power is 4.3W and idle power is 0.9W, so continuous operation stays in that range.

What host interface and physical bay does this 2.5" SATA SSD require?

It needs a SATA 3.0 6Gb/s port and a 2.5-inch drive bay with 7.0mm height clearance.

Will the SATA 6Gb/s interface limit this drive when paired with an older 3Gb/s controller?

The drive runs at SATA 3.0 speeds but is backward compatible; on a 3Gb/s link sequential throughput will be capped by the controller.
