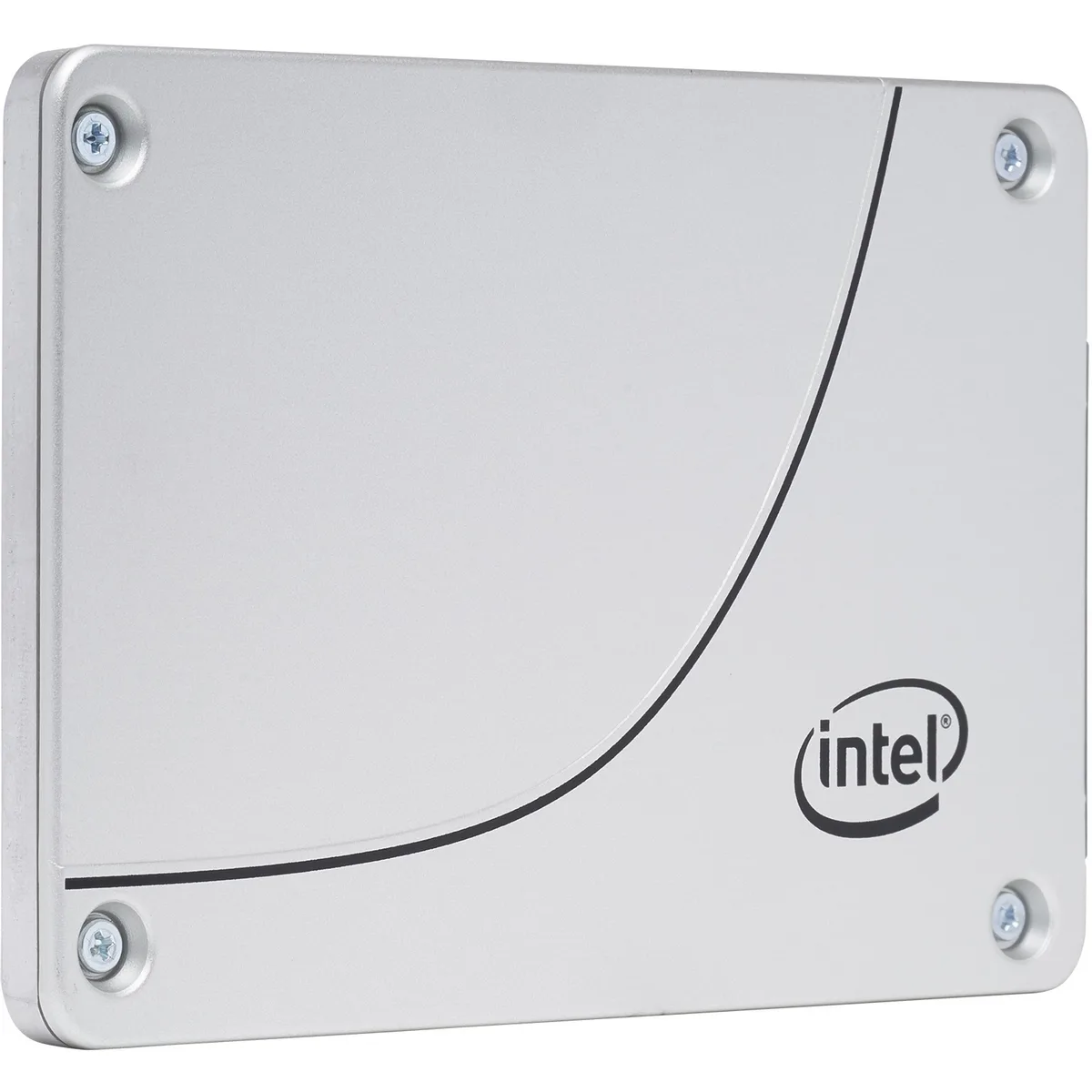

Silver rectangular 2.5 inch SATA SSD with label showing Intel DC S3520 480GB

Intel

Intel DC S3520 SSDSC2BB480G701 2.5" 480GB SATA enterprise SSD

SKU CH-Y2R5-VFEGS MPN SSDSC2BB480G701

A 2.5" SATA enterprise SSD with 480GB MLC storage delivering up to 450 MBps read and 380 MBps write for read-intensive server workloads

  • Form Factor2.5"
  • Capacity480GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 450 MBps
  • Max Sequential WriteUp to 380 MBps
  • Read-intensive workloads sustained by 65,500 IOPS random read
  • Consistent low latency with 42 µs read and 40 µs write
  • Enterprise reliability backed by 2,000,000 hours MTBF
  • Efficient power use at 0.5W idle and 3.2W active
  • 480GB MLC capacity in a 2.5" 7.00mm SATA form factor

Intel DC S3520 480 GB SATA Enterprise SSD

The Intel DC S3520 SSDSC2BB480G701 is a 2.5 inch enterprise solid state drive with 480 GB capacity. It uses MLC memory and a SATA III interface to deliver consistent performance for read intensive workloads. Sequential reads reach 450 MBps while sequential writes reach 380 MBps.

Suited for read heavy server tasks.

This drive suits servers handling boot, web serving, low rate operational databases and analytics where read performance and data integrity matter. Random read IOPS reach 65,500 while random write IOPS reach 16,000. Builders needing higher write endurance or larger capacities should consider other models.

2.5 inch SATA III interface decides compatibility

The drive connects through a standard SATA III interface in a 2.5 inch form factor with 7.00 mm height. It requires a compatible drive bay and SATA data and power connections. Active power consumption is 3.2W and idle power is 0.5W. Operating temperature ranges from 0°C to 70°C.

Highlights

  • Read-intensive workloads sustained by 65,500 IOPS random read
  • Consistent low latency with 42 µs read and 40 µs write
  • Enterprise reliability backed by 2,000,000 hours MTBF
  • Efficient power use at 0.5W idle and 3.2W active
  • 480GB MLC capacity in a 2.5" 7.00mm SATA form factor

Specifications

BrandIntel
SeriesDC S3520
ModelSSDSC2BB480G701
Form Factor2.5"
Capacity480GB
Memory ComponentsMLC
InterfaceSATA III
Max Sequential ReadUp to 450 MBps
Max Sequential WriteUp to 380 MBps
4KB Random ReadUp to 65,500 IOPS
4KB Random WriteUp to 16,000 IOPS
Read Latency42 µs
Write Latency40 µs
MTBF2,000,000 hours
Power Consumption (Idle)0.5W
Power Consumption (Active)3.2W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G/0.5ms
Max Vibration ResistanceOperating: 2.17 GRMS (5-700Hz)
Non-Operating: 3.13 GRMS (5-800Hz)
Height7.00mm
Width69.85mm
Depth100.00mm
Weight62.00g
Shipping weight0.09 kg
Package size152 × 107 × 3 mm
