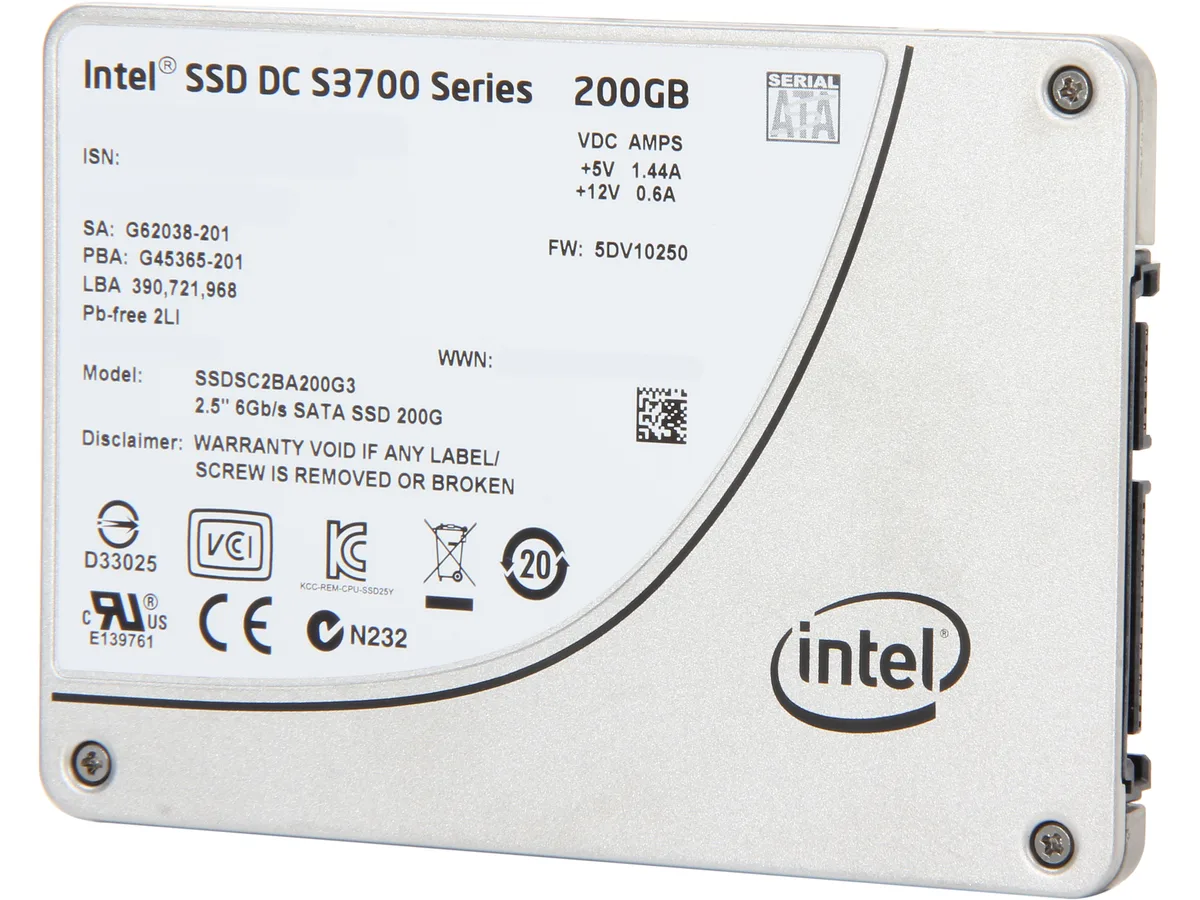

Silver 2.5 inch SATA SSD with Intel DC S3700 label

Intel

Intel DC S3700 2.5" 200GB SATA internal SSD SSDSC2BA200G301

SKU CH-MFYY-AWNSV MPN SSDSC2BA200G301

2.5 inch SATA internal SSD with 200GB MLC capacity, 500MB/s read, 365MB/s write, 75,000 random read IOPS, 32,000 random write IOPS, full data path protection, power loss protection.

  • Device TypeInternal Solid State Drive (SSD)
  • Form Factor2.5"
  • Capacity200GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • ControllerIntel

Options 200GB

  • High endurance for write-heavy workloads with 10 drive writes per day
  • Consistent low latency from up to 75,000 random read IOPS
  • Strong data protection via full path protection and power loss safeguards
  • Hardware-based 256 bit AES encryption secures data at rest
  • Efficient power use with 650 mW idle and 4.4 W active

Capacity and Interface

This Intel DC S3700 Series drive is a 2.5 inch internal solid state drive with 200GB capacity and a SATA III interface. It uses MLC NAND with High Endurance Technology and an Intel controller. The drive targets data centre workloads that demand consistent low latency and extended endurance.

Upgrade Path and Value

The drive replaces mechanical hard drives or earlier SATA SSDs that cannot sustain 10 drive writes per day. Its 2,000,000 hour MTBF and power loss data protection make the jump worthwhile for write intensive applications needing full data path protection and 256 bit AES encryption.

Compatibility Checklist

Verify your system has a free 2.5 inch drive bay and a SATA III port for full 500MB/s read and 365MB/s write performance. Confirm the operating environment stays within 32 to 158 degree F and 5 to 95 percent humidity. Ensure the power supply can deliver 4.4W active and 650mW idle for this drive.

Highlights

  • High endurance for write-heavy workloads with 10 drive writes per day
  • Consistent low latency from up to 75,000 random read IOPS
  • Strong data protection via full path protection and power loss safeguards
  • Hardware-based 256 bit AES encryption secures data at rest
  • Efficient power use with 650 mW idle and 4.4 W active

Specifications

BrandIntel
SeriesDC S3700 Series
ModelSSDSC2BA200G301
Device TypeInternal Solid State Drive (SSD)
Form Factor2.5"
Capacity200GB
Memory ComponentsMLC
InterfaceSATA III
ControllerIntel
Max Sequential ReadUp to 500MB/s
Max Sequential WriteUp to 365MB/s
4KB Random ReadUp to 75,000 IOPS
4KB Random WriteUp to 32,000 IOPS
MTBF2,000,000 hours
Features25nm HET MLC NAND
Full data path protection
Power loss data protection
256 bit AES encryption
Intel validation, system compatibility, and support
Multi-Level Cell with High Endurance Technology
10 drive writes/day Endurance
Native Command Queuing (NCQ), Power Loss support, High Endurance Technology (HET), Temperature Monitoring and Logging
Power Consumption (Idle)650 mW
Power Consumption (Active)4.4 W
Operating Temperature32 degree F - 158 degree F
Operating Humidity5% to 95% RH
Max Shock Resistance1000G
Max Vibration Resistance2.17 g @ 5-700 Hz (operating) / 3.13 g @ 5-800 Hz (non-operating)
Height7.00mm
Width69.85mm
Depth100.45mm
Weight73.6g
Shipping weight0.10 kg
Package size152 × 109 × 23 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 2.5 inch drive fit my server bay?

The drive uses the standard 2.5 inch form factor and connects through a SATA interface, matching most enterprise hot-swap bays and laptop caddies that accept 2.5 inch SATA drives.

How much data can I write each day without wearing it out?

The drive is rated for ten full drive writes per day, so you can write up to 2 terabytes daily across its 200 gigabyte capacity within the endurance specification.

Does it protect data if power fails suddenly?

Yes, the drive includes full data path protection and power loss data protection to preserve in-flight writes during unexpected outages.
