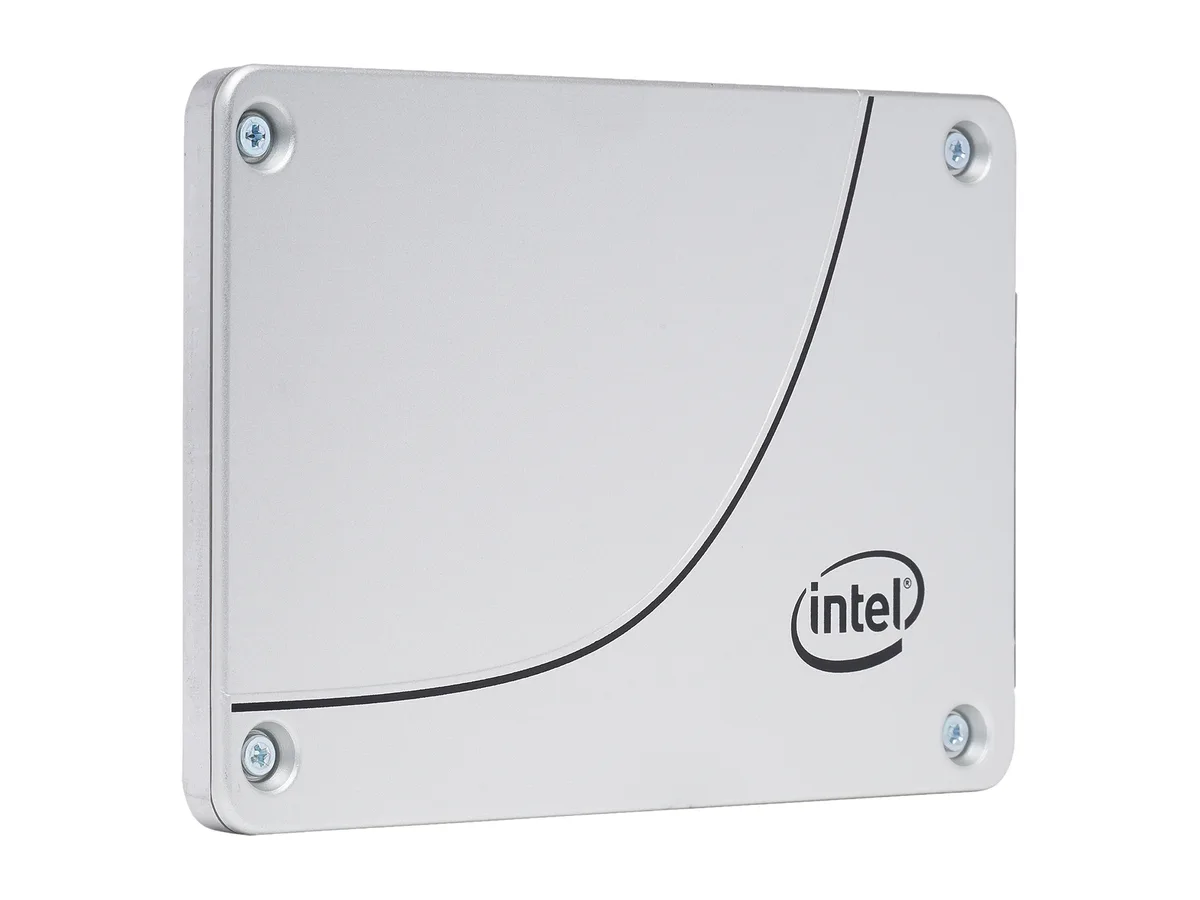

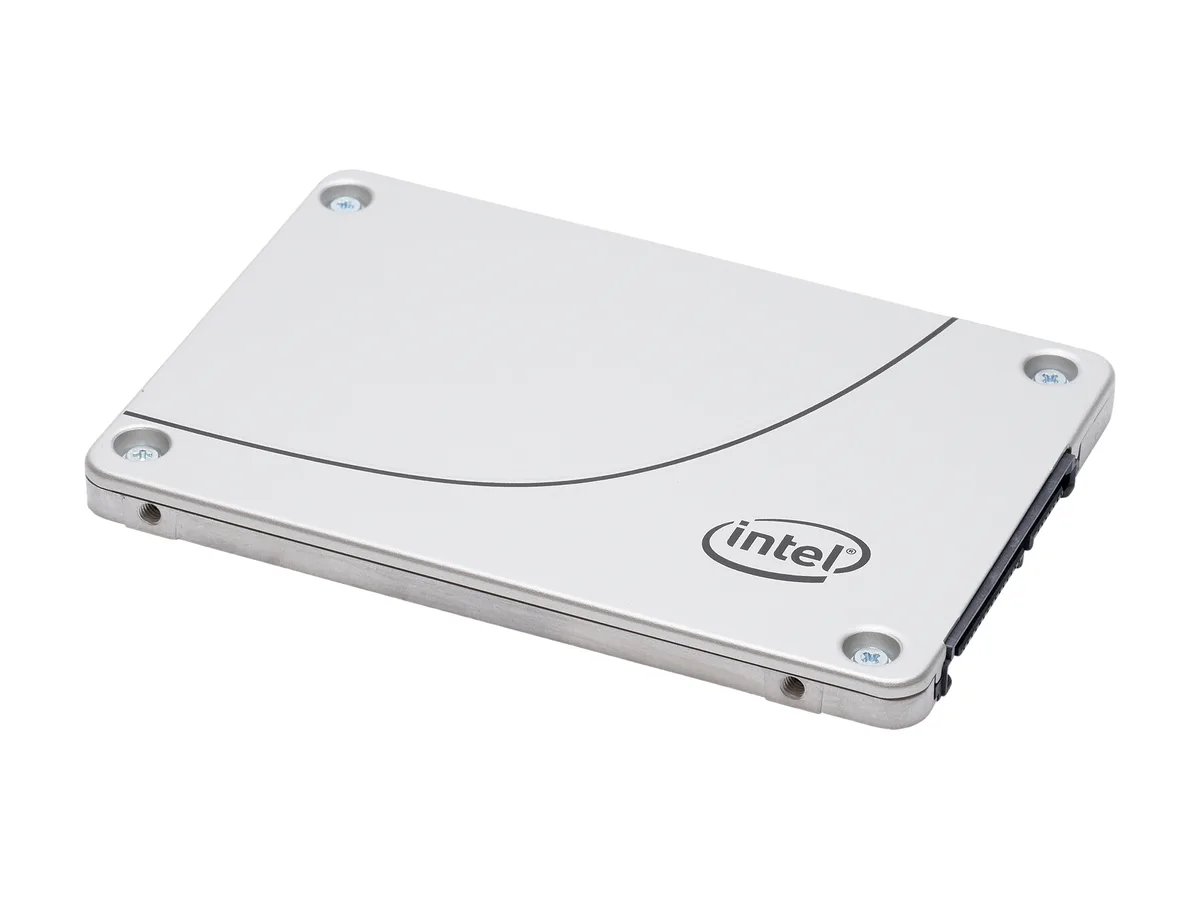

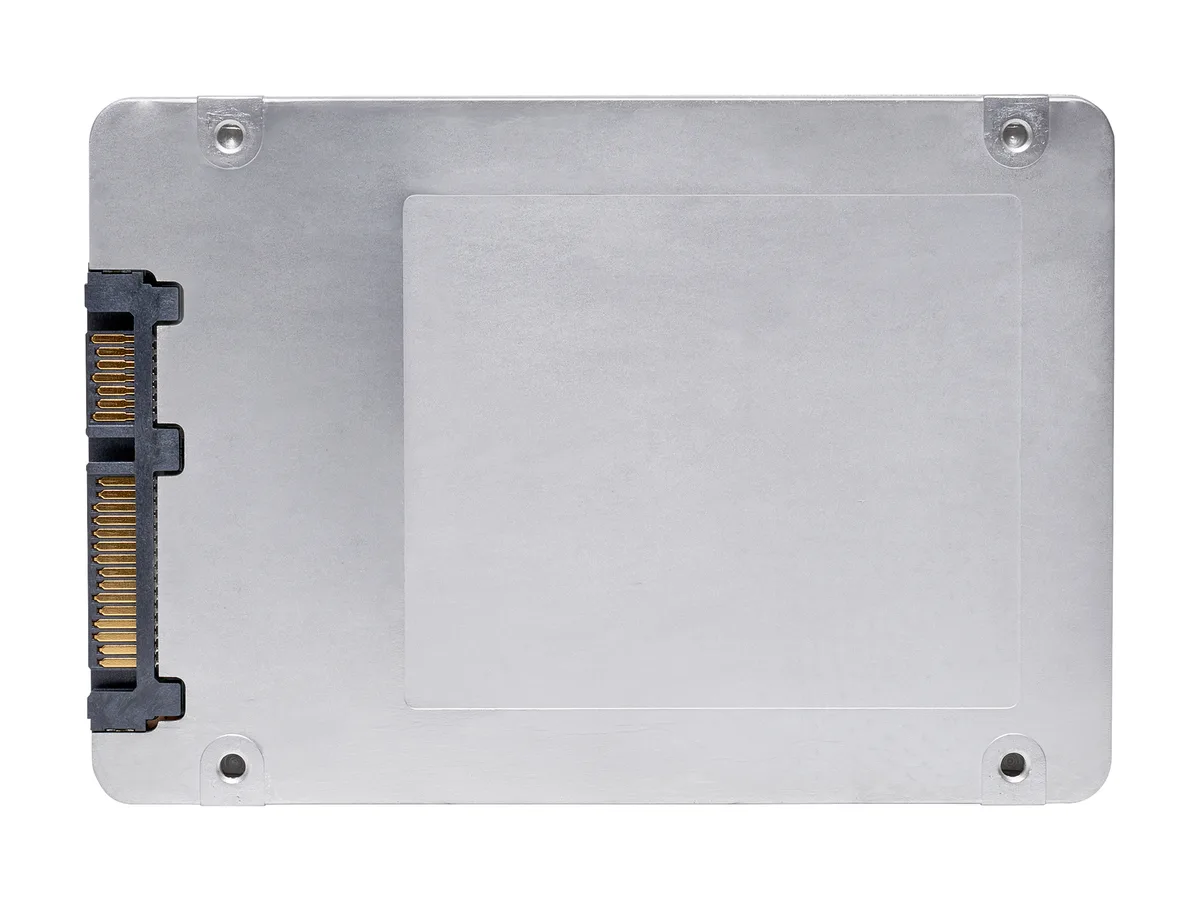

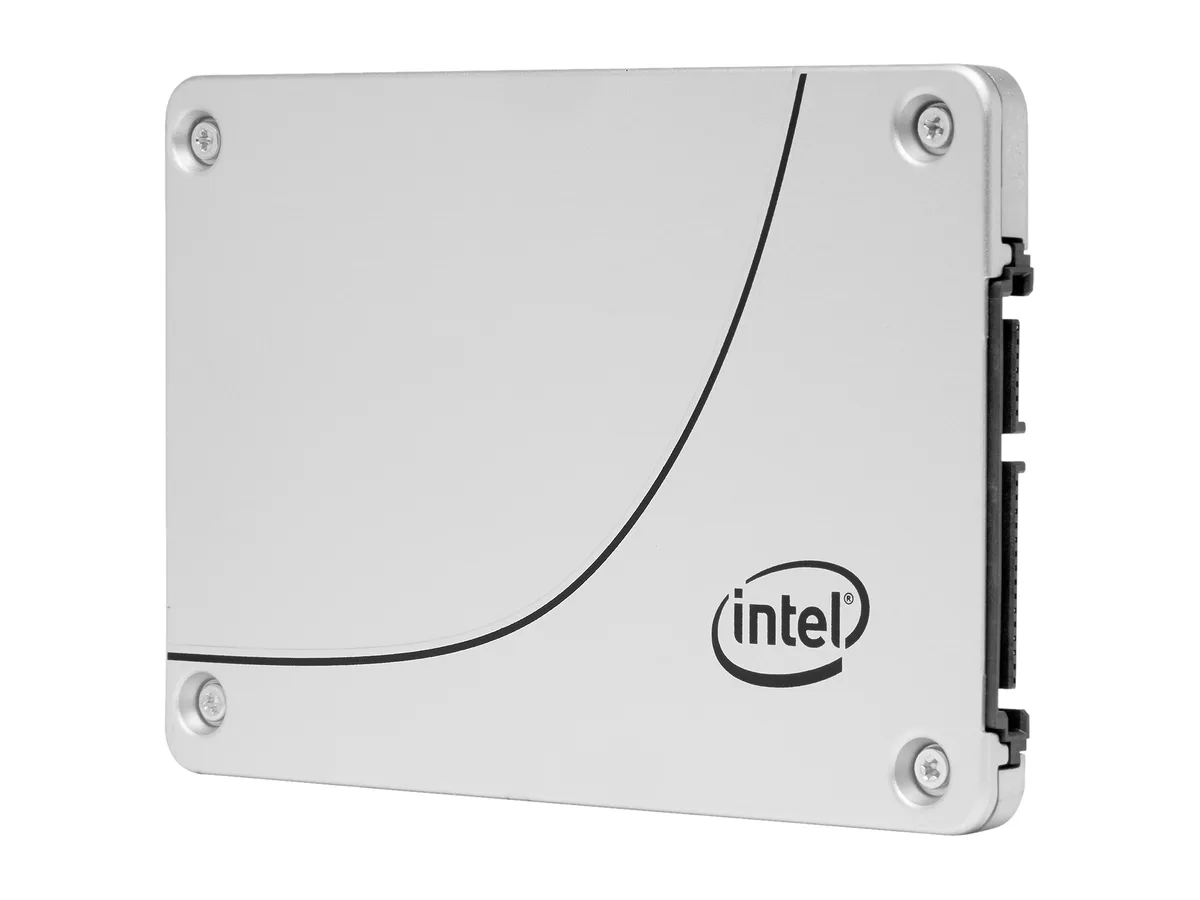

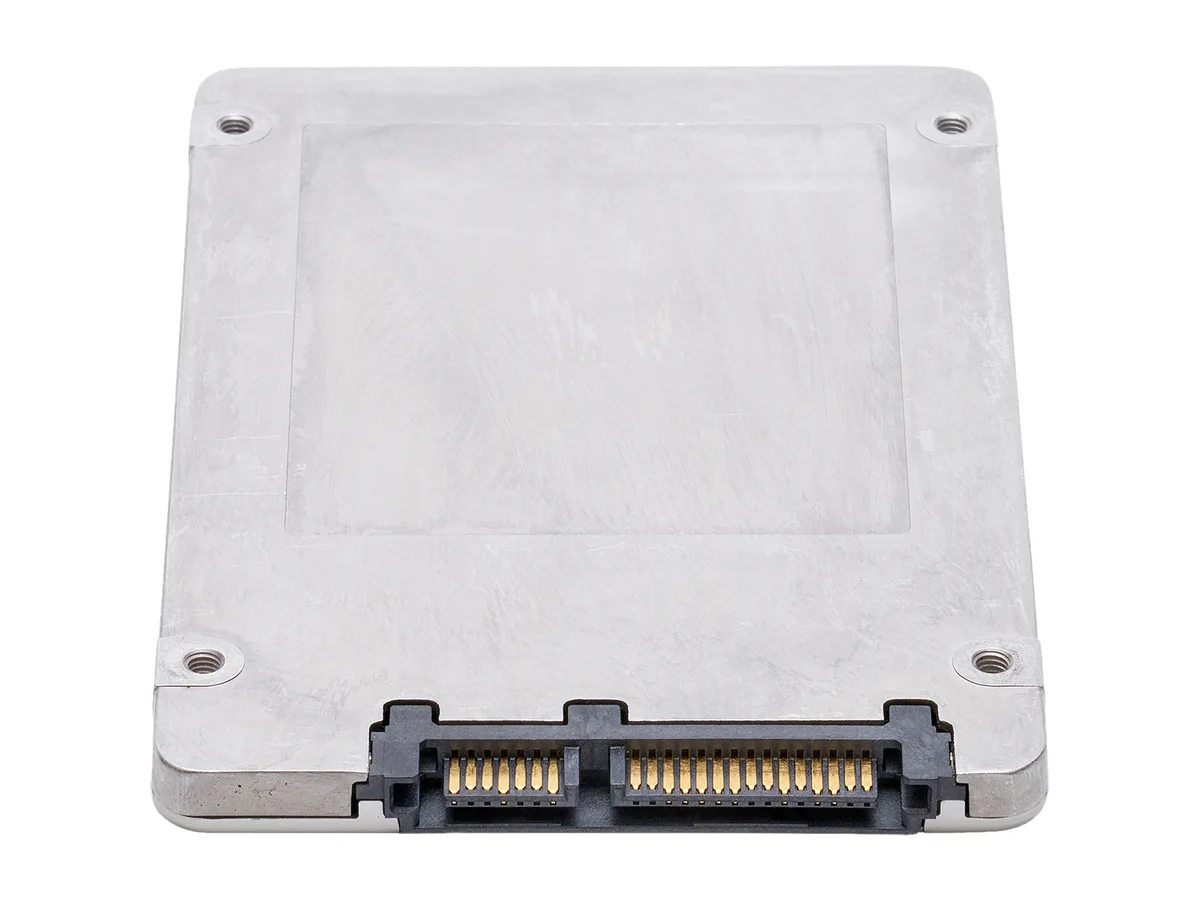

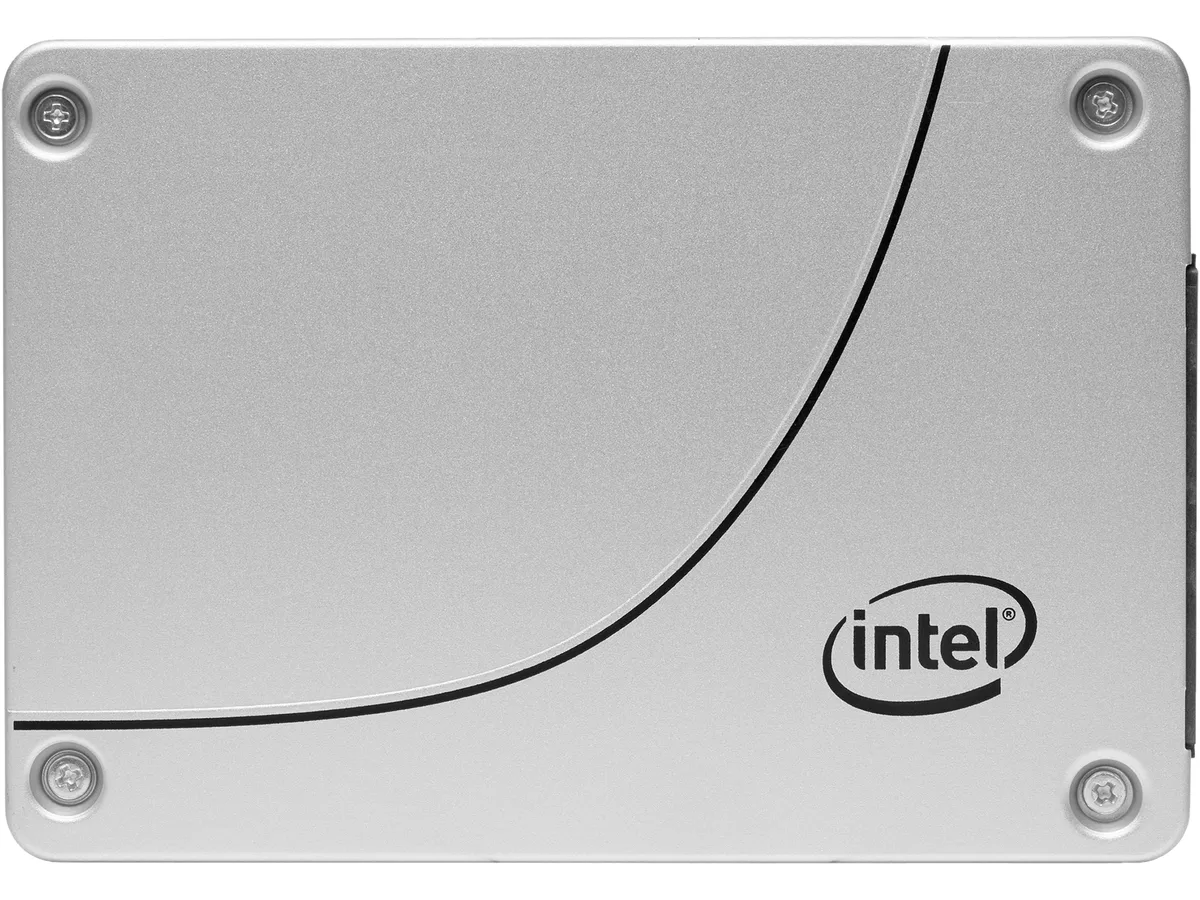

Silver rectangular 2.5 inch SATA SSD with label showing Intel DC S4600 240GB

Intel

Intel DC S4600 SSDSC2KG240G701 240GB 2.5" SATA internal SSD

SKU CH-8910-J5SGR MPN SSDSC2KG240G701

A 2.5" SATA internal SSD with 240GB of 3D NAND TLC storage delivering up to 500 MBps read and 260 MBps write speeds for data-center upgrades

  • Device TypeInternal Solid State Drive (SSD)
  • Form Factor2.5"
  • Capacity240GB
  • Memory Components3D NAND TLC
  • InterfaceSATA III
  • ControllerIntel
  • 240GB capacity fits 2.5" bays for simple upgrades
  • Up to 500 MBps sequential read speeds data access
  • 72,000 IOPS random read handles mixed workloads
  • 2x lower AFR than HDDs improves reliability
  • 9W idle power reduces server energy use

Intel DC S4600 240GB SATA SSD

This Intel DC S4600 Series drive delivers 240GB of storage in a 2.5-inch SATA III form factor. It uses Intel 3D NAND TLC memory and a proprietary controller to replace mechanical hard drives in existing server infrastructure. Sequential reads reach 500 MBps while writes hit 260 MBps. Random 4KB performance provides 72,000 read IOPS and 38,000 write IOPS.

Data-center upgrade focus

The SSD targets IT teams modernising legacy platforms without changing drive bays or cabling. Its 2,000,000-hour MTBF and 3.2x lower annualised failure rate versus HDDs reduce replacement cycles. Active power draw is 3.1W and idle power is 0.9W, operating from 0°C to 70°C. Workloads needing higher throughput or different physical interfaces should evaluate alternative drives.

SATA III interface constraint

The single specification that decides fit is the SATA III interface, which limits maximum throughput to the figures above. Verify that the host system provides a 6Gb/s SATA port and a 2.5-inch bay before purchase.

Highlights

  • 240GB capacity fits 2.5" bays for simple upgrades
  • Up to 500 MBps sequential read speeds data access
  • 72,000 IOPS random read handles mixed workloads
  • 2x lower AFR than HDDs improves reliability
  • 9W idle power reduces server energy use

Specifications

BrandIntel
SeriesDC S4600
ModelSSDSC2KG240G701
Device TypeInternal Solid State Drive (SSD)
Form Factor2.5"
Capacity240GB
Memory Components3D NAND TLC
InterfaceSATA III
ControllerIntel
Max Sequential ReadUp to 500 MBps
Max Sequential WriteUp to 260 MBps
4KB Random ReadUp to 72,000 IOPS
4KB Random WriteUp to 38,000 IOPS
Read Latency36 µs
Write Latency36 µs
MTBF2,000,000 hours
FeaturesInfrastructure Compatibility
Built for compatibility in legacy infrastructures, this SATA SSD enables easy storage upgrades that minimize the costs associated with modernizing your data center.
Do More Per Server
Based on TLC Intel 3D NAND Technology, these larger capacity SSDs enable data centers to increase data stored per rack unit. Realize the performance benefits SSDs provide over HDDs, without expanding the server footprint.
Improved Reliability
With 3.2x lower Annualized Failure Rate (AFR) compared to HDDs, IT departments will spend less time and expense replacing or upgrading
Power Consumption (Idle)0.9W
Power Consumption (Active)3.1W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G / 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS
Non-Operating: 3.13 GRMS
Height7.00mm
Shipping weight0.09 kg
Package size140 × 114 × 10 mm

Questions about this item

Will this 2.5" drive fit a standard 2.5" SATA bay?

Yes, the 2.5" form factor matches standard SATA drive bays and uses the SATA III interface for direct connection.

What is the correct way to install the drive so firmware updates apply without a server reset?

Connect the SATA data and power cables, secure the drive in the bay, then power on the system; the controller firmware updates automatically in the background without requiring a reboot.

How long is the drive rated to run before a replacement is typically needed?

The MTBF is 2,000,000 hours and the Annualized Failure Rate is 3.2x lower than HDDs, so replacement intervals are significantly extended.
