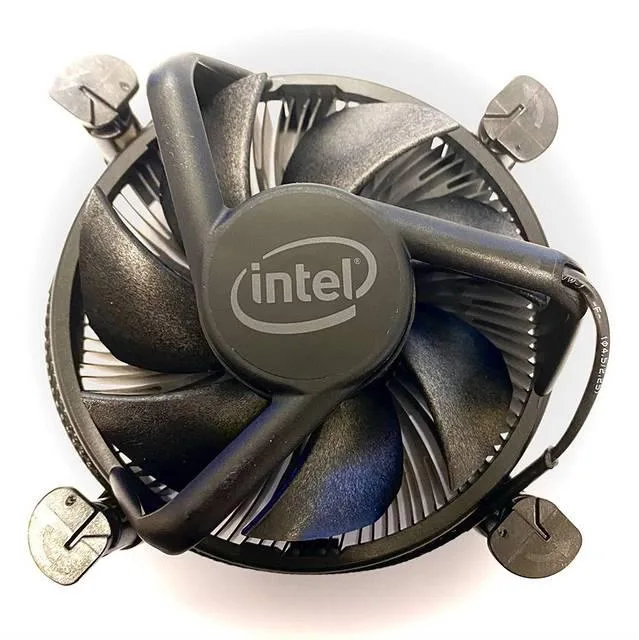

All-black Intel CPU cooler with 92mm PWM fan and aluminium heatsink with copper core

Intel

Intel K69237-001 CPU cooler 92mm PWM LGA 1200/115X black

SKU CH-71HW-F3SEW MPN K69237-001

A 92 mm PWM fan on an aluminium-and-copper heatsink cools LGA 1200 and 115X sockets up to 65 W with 32 CFM airflow at 25 dBA

  • ColorBlack
  • TypeCPU Fan with Heatsink
  • Fan Size92mm
  • CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA
  • Bearing TypeFluid Bearing
  • RPM1400~2400rpm
  • Quiet operation at 25 dBA with fluid-bearing fan
  • 65 W cooling capacity backed by copper-core aluminium heatsink
  • PWM speed control from 1400 to 2400 rpm for automatic thermal response
  • Fits LGA 1200 and 115X sockets with 45 mm height clearance
  • All-black 92 mm design weighs 215 g for compact builds

Socket compatibility

This Intel K69237-001 air cooler fits LGA 1200 and LGA 115X sockets including 1150, 1151, 1155 and 1156. It is aimed at builders replacing the original silver and blue stock cooler on 65 W class processors. The all-black aluminium and copper heatsink matches modern chassis aesthetics. It will not work with X299 platform sockets or AMD platforms.

Thermals and acoustics

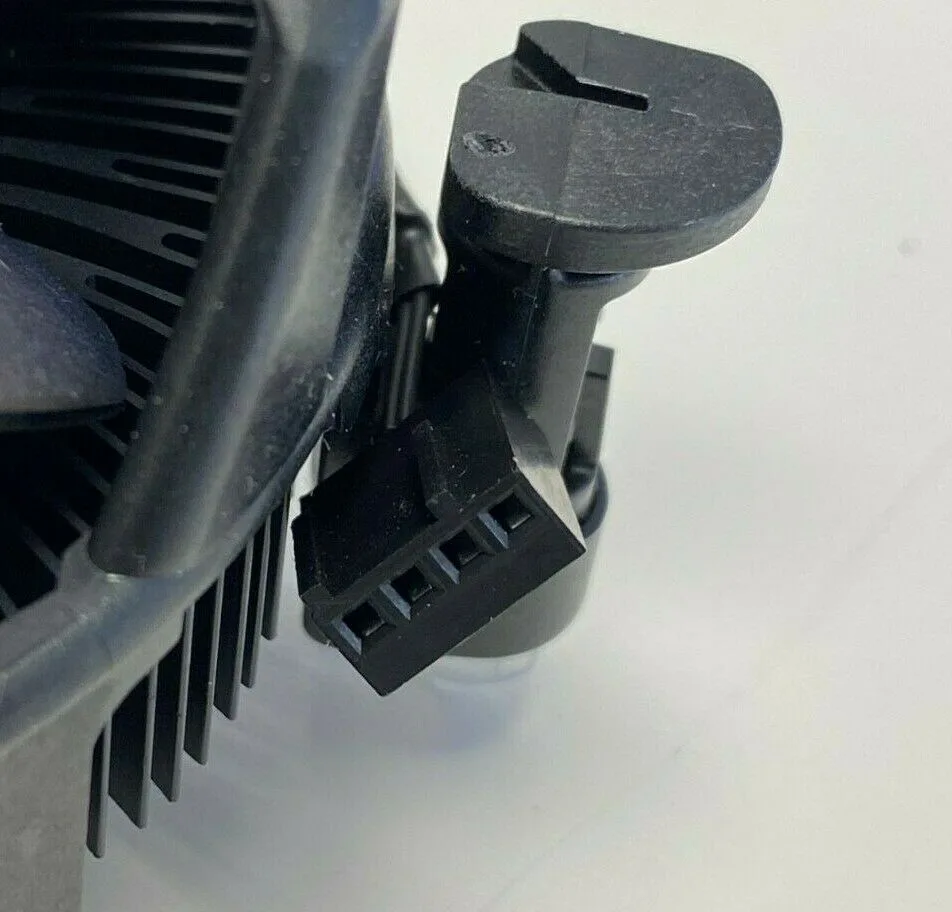

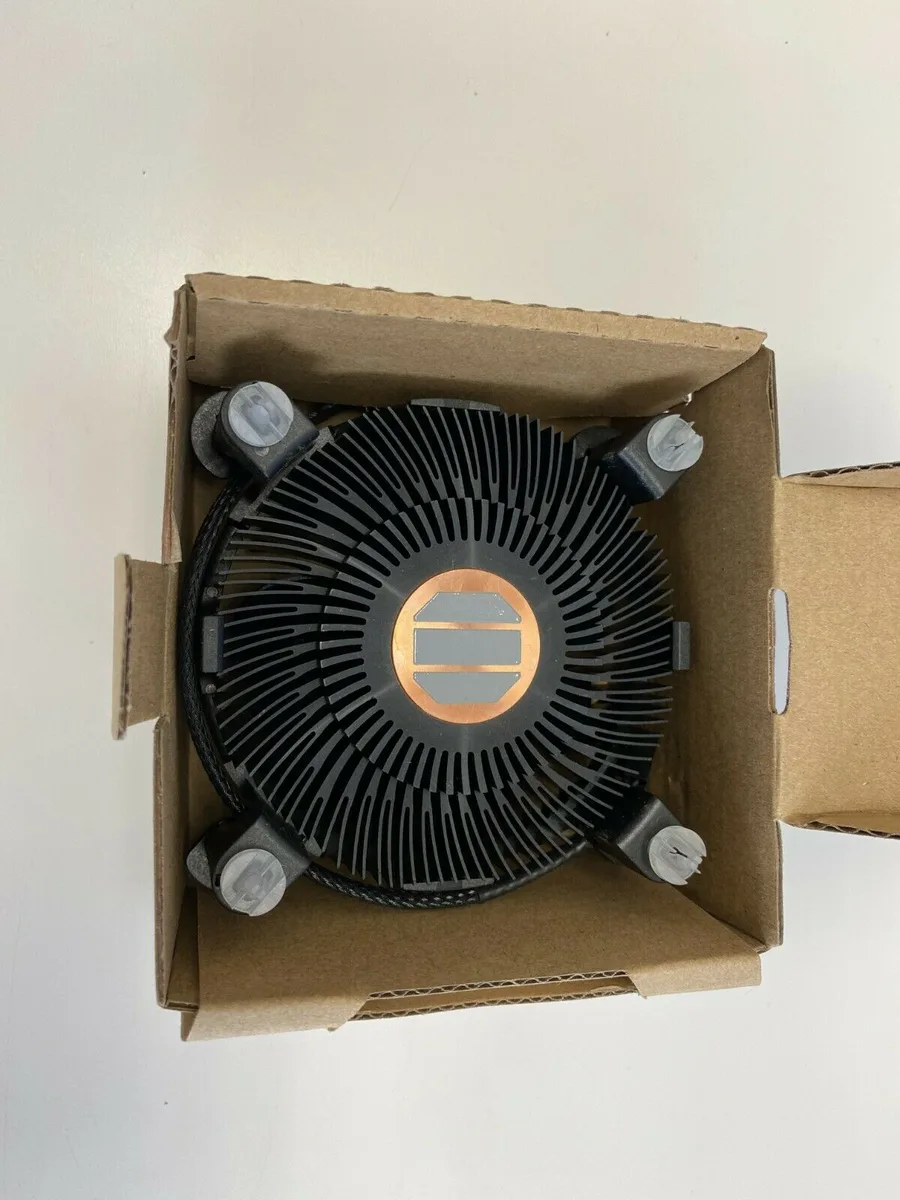

A 92 mm fluid-bearing fan spins between 1400 and 2400 rpm, pushing 32 CFM of airflow while producing 25 dBA of noise. The four-pin PWM connector allows the motherboard to regulate speed automatically based on CPU temperature. Copper core construction improves heat transfer compared with the older aluminium-only design. Rated cooling capacity is 65 W plus, varying with case airflow and ambient temperature.

Sustained load behaviour

Under continuous load the fan will ramp toward its upper speed range to maintain the 65 W plus dissipation target. The low-profile 45 mm height keeps clearance tight in compact builds but limits thermal mass for extended heavy workloads. Acoustic output rises with fan speed while the fluid bearing maintains consistent rotation. Performance remains dependent on chassis ventilation and room temperature.

Highlights

  • Quiet operation at 25 dBA with fluid-bearing fan
  • 65 W cooling capacity backed by copper-core aluminium heatsink
  • PWM speed control from 1400 to 2400 rpm for automatic thermal response
  • Fits LGA 1200 and 115X sockets with 45 mm height clearance
  • All-black 92 mm design weighs 215 g for compact builds

Specifications

BrandIntel
SeriesLGA115X Bracket
ModelK69237-001
ColorBlack
TypeCPU Fan with Heatsink
Fan Size92mm
CPU Socket CompatibilityIntel LGA 1150 / Intel LGA 1151 / Intel LGA 1155 / Intel LGA 1156 / Intel LGA 1200
Bearing TypeFluid Bearing
RPM1400~2400rpm
Air Flow32CFM
Noise Level25dBA
Power Connector4 Pin
LEDNo
Heatsink MaterialAluminum & Copper
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height45 mm
Weight215g
Shipping weight0.20 kg
Package size114 × 104 × 76 mm

Questions about this item

How do I mount the K69237-001 on an LGA 1200 board and which step is often missed?

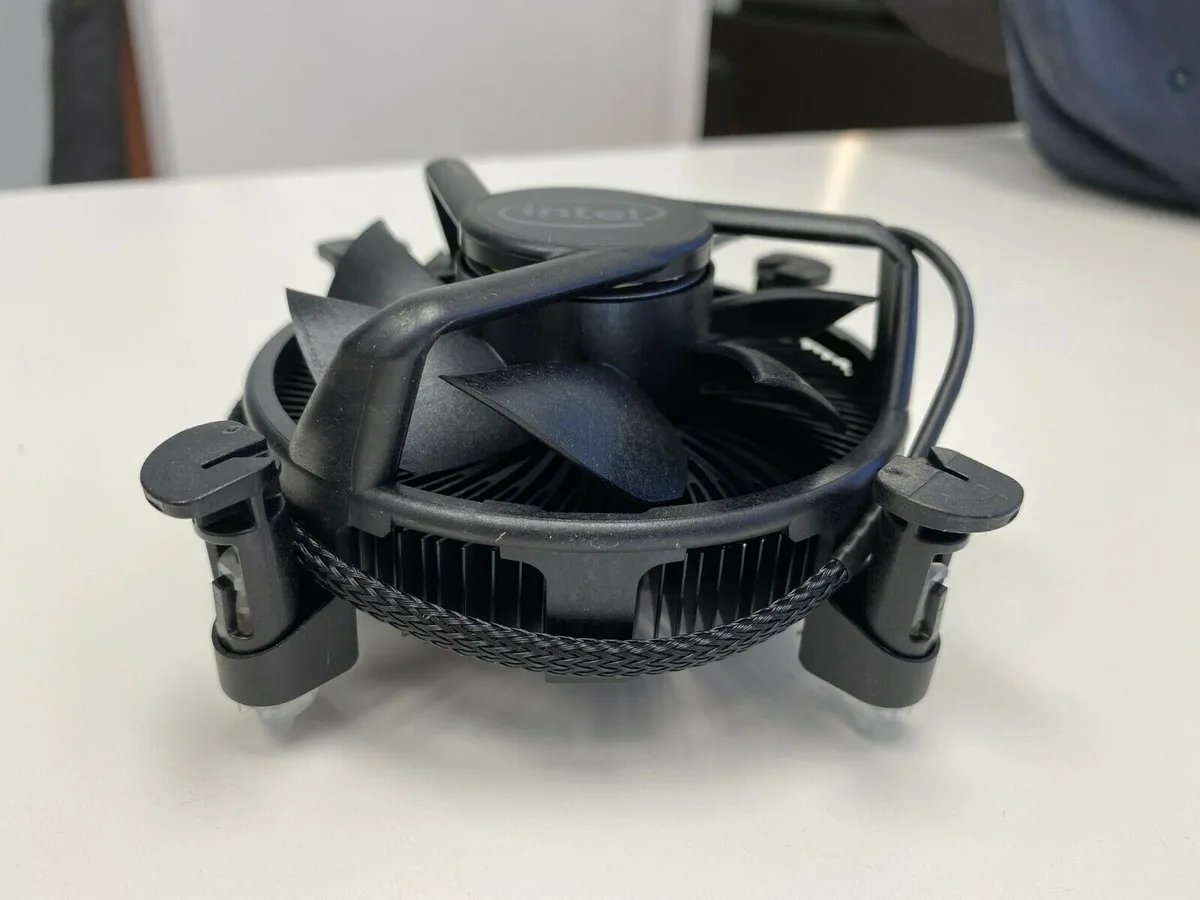

Align the four push-pins with the motherboard holes, press each until it clicks, then connect the 4-pin PWM header; the step most people miss is verifying all four pins are fully locked before powering on.

What part of this cooler will need replacement first and when?

The 92 mm fluid-bearing fan is the only moving component; expect to swap it after several years if noise rises above the rated 25 dBA or airflow drops below 32 CFM.

At what sustained load does the cooler hit its thermal limit?

The design targets 65 W of cooling capacity; under continuous loads above that level the aluminum-and-copper heatsink will saturate first, causing CPU temperatures to climb.
