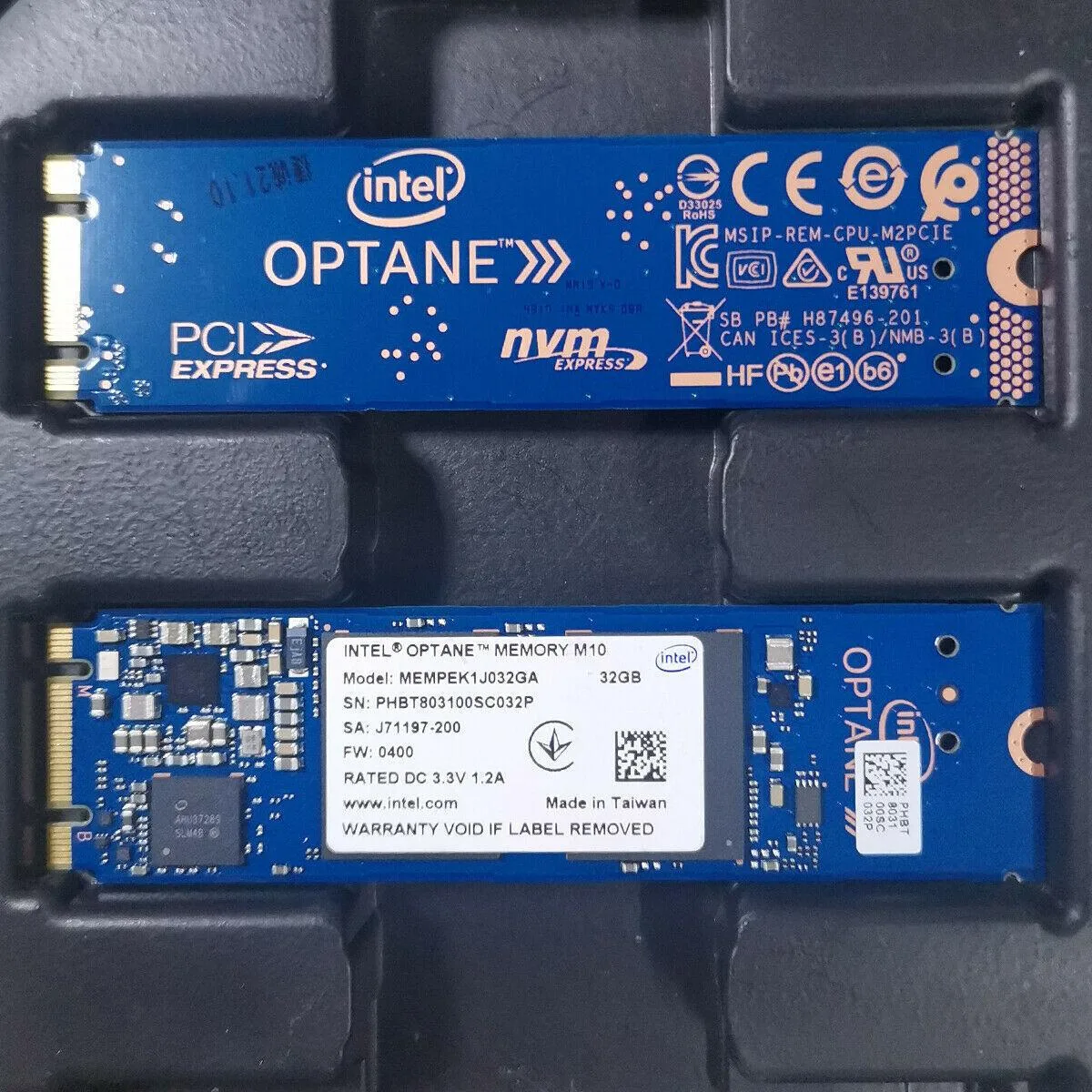

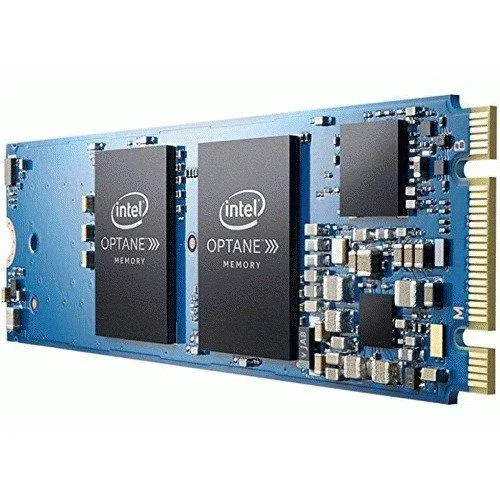

Small green M.2 2280 circuit board with black chips and gold edge connector

Intel

Intel MEMPEK1J032GA01 Optane Memory M10 32GB internal SSD

SKU CH-GWEK-ZEXFR MPN MEMPEK1J032GA01

A 32GB M.2 2280 system accelerator using 3D XPoint technology with a PCIe 3.0 x2 interface, sequential reads up to 1200 MB/s and writes up to 290 MB/s.

  • Device TypeMemory Module/System Accelerator
  • Form FactorM.2 2280
  • Capacity32GB
  • Memory Components3D XPoint
  • InterfacePCIe NVMe 3.0 x2
  • Max Sequential ReadUp to 1200 MBps
  • Accelerates system responsiveness with 3D XPoint memory technology
  • Delivers up to 1200 MBps sequential read performance via PCIe 3.0 x2
  • Handles up to 240000 random read IOPS for fast data access
  • Low 7 µs read latency reduces wait times for frequent tasks
  • Endures 365 TB written with 1600000-hour MTBF reliability

System Accelerator for Responsive Computing

The Intel Optane Memory M10 32GB module works as a smart system accelerator. It stores frequently used documents, pictures, videos and applications to deliver a faster and smoother computing experience. It is designed for compatible Intel platforms running Windows 10.

PCIe 3.0 x2 Interface Limits

The drive connects through a PCIe 3.0 x2 interface using NVMe protocol. Sequential reads reach up to 1200 MBps while sequential writes reach up to 290 MBps. Random 4KB performance reaches up to 240,000 IOPS for reads and up to 65,000 IOPS for writes. Read latency is 7 µs and write latency is 18 µs.

M.2 2280 Build and Daily Use

The M.2 2280 form factor measures .9 by 3.1 inches and fits standard motherboard slots. 3D XPoint memory provides an endurance rating of 365 TBW and an MTBF of 1,600,000 hours. Active power draw is 2.5W with an idle L1.2 state of 8 mW. The operating range spans 0°C to 85°C.

Highlights

  • Accelerates system responsiveness with 3D XPoint memory technology
  • Delivers up to 1200 MBps sequential read performance via PCIe 3.0 x2
  • Handles up to 240000 random read IOPS for fast data access
  • Low 7 µs read latency reduces wait times for frequent tasks
  • Endures 365 TB written with 1600000-hour MTBF reliability

Specifications

BrandIntel
SeriesOptane Memory M10 Series
ModelMEMPEK1J032GA01
Part NumberMEMPEK1J032GA01
Device TypeMemory Module/System Accelerator
Form FactorM.2 2280
Capacity32GB
Memory Components3D XPoint
InterfacePCIe NVMe 3.0 x2
Max Sequential ReadUp to 1200 MBps
Max Sequential WriteUp to 290 MBps
4KB Random ReadUp to 240,000 IOPS
4KB Random WriteUp to 65,000 IOPS
Read Latency7 µs
Write Latency18 µs
MTBF1,600,000 hours
FeaturesIntel Optane M10 Memory is a smart memory technology that accelerates a computer's responsiveness. Optane M10 Memory accesses your computer's frequently used documents, pictures, videos and applications quickly and remembers them after you power off, enabling you to create, game, and produce with less waiting. Intel Optane M10 Memory is based on M.2 NVMe SSDs, 3D XPoint Memory, and the Intel Rapid Storage Technology (Intel RST) driver. Optane M10 Modules feature improved power management support, allowing both desktop and mobile designs to use this technology.
Power Consumption (Idle)L1.2: 8 mW
Power Consumption (Active)2.5W
Operating Temperature0°C ~ +85°C
Max Shock Resistance1000G / 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Width22.00mm
Depth80.00mm
Weight< 10.00g
Shipping weight0.27 kg
Package size152 × 102 × 25 mm

Questions about this item

Will this module fit in my laptop's M.2 slot?

The drive uses the M.2 2280 form factor, which measures 22 mm wide by 80 mm long. Verify that your laptop has an M.2 slot keyed for this length before purchasing.

Does it work as a standalone boot drive for Windows?

This module is designed as a system accelerator that pairs with a larger storage drive to cache frequently used data. It is not intended to serve as the primary boot volume on its own.

What CPU and operating system are required to use the acceleration feature?

The accelerator supports 7th- and 8th-generation Intel Core processors and requires Windows 10 to enable the caching functionality.
