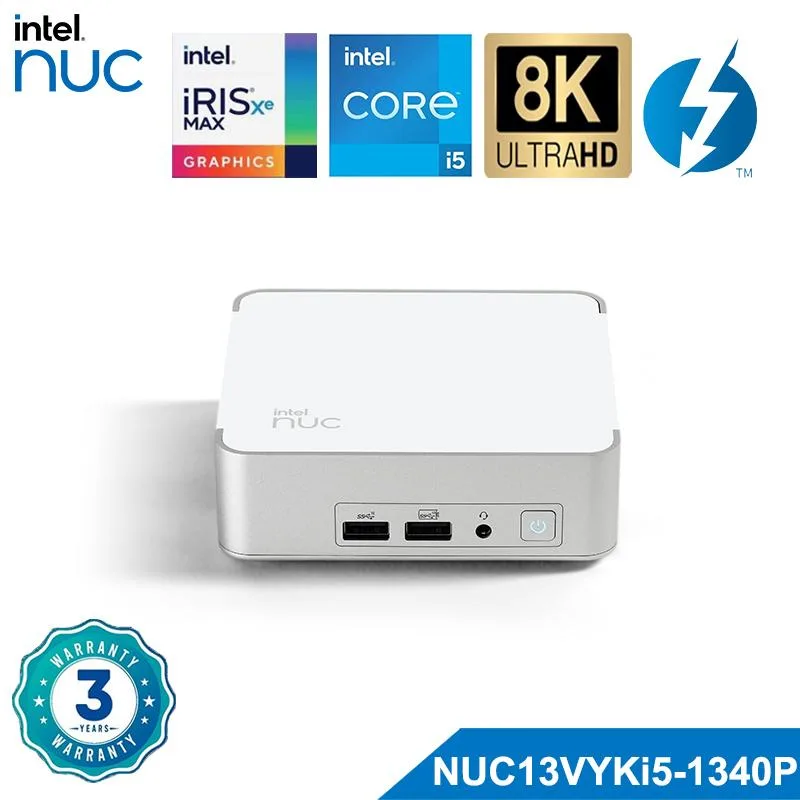

Compact square mini PC in matte white finish

Intel

Intel NUC13VYKi5 Core i5-1340P barebone mini PC System

SKU CH-STKY-25A2W MPN NUC13VYKi5

Barebone mini PC with a 13th-gen Core i5-1340P, Iris Xe graphics, dual-channel DDR4-3200 support up to 64 GB, dual M.2 slots, 2.5 Gb Ethernet, Wi-Fi 6E, Bluetooth 5.

  • CPU TypeIntel Core i5 13th Gen
  • Memory installedNo Memory
  • Memory slot2 x 288Pin DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • Dual Channel Memory SupportedYes
  • 12-core 13th Gen Core i5 up to 4.5 GHz for responsive multitasking
  • Intel Iris Xe 80 EU graphics drives dual 4K HDMI displays
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB RAM
  • Two M.2 slots plus USB 3.2 Gen 2 and SATA expand storage flexibly
  • Dual Thunderbolt 4 plus 2.5 GbE and Wi-Fi 6E for fast connectivity

Barebone mini PC for self-assembly

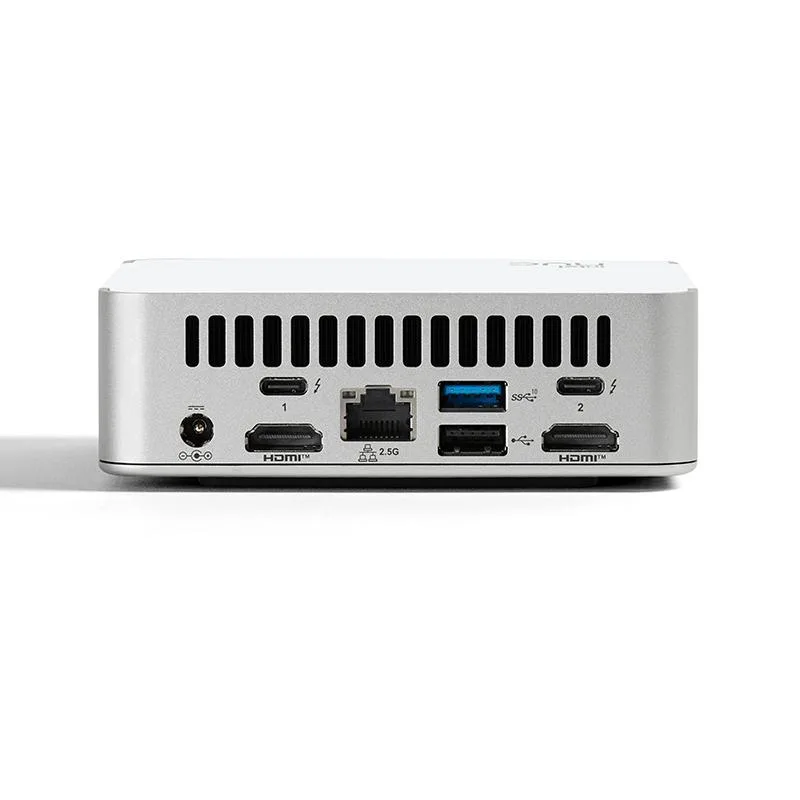

This Intel NUC13VYKi5 barebone system arrives with a soldered 13th Generation Core i5-1340P processor and integrated Iris Xe graphics. You supply the DDR4 memory and M.2 storage to complete the build. The chassis includes dual Thunderbolt 4 ports, two HDMI 2.1 outputs and a 2.5 GbE LAN port for immediate connectivity.

Suits builders adding their own RAM and SSDs

The board accepts two DDR4-3200 SODIMMs up to 64 GB total and provides one M.2 2280 PCIe x4 Gen 4 slot plus one M.2 2242 PCIe x1 Gen 3 slot. Buyers who want a complete system with memory and storage pre-installed should look elsewhere, as this unit ships with neither.

13th Gen Core i5-1340P with 12 cores and 35 W TDP

The processor delivers 4 performance cores and 8 efficient cores with 16 threads and a maximum turbo frequency of 4.5 GHz. Iris Xe graphics with 80 execution units handles 4K 60 Hz output over HDMI or DisplayPort alt mode. This fixed CPU choice determines the thermal envelope and compute ceiling for the finished mini PC.

Highlights

  • 12-core 13th Gen Core i5 up to 4.5 GHz for responsive multitasking
  • Intel Iris Xe 80 EU graphics drives dual 4K HDMI displays
  • Dual-channel DDR4-3200 SODIMM slots support up to 64 GB RAM
  • Two M.2 slots plus USB 3.2 Gen 2 and SATA expand storage flexibly
  • Dual Thunderbolt 4 plus 2.5 GbE and Wi-Fi 6E for fast connectivity

Specifications

BrandIntel
SeriesVivid Canyon
ModelNUC13VYKi5
CPU TypeIntel Core i5 13th Gen
Memory installedNo Memory
Memory slot2 x 288Pin DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot2 x M.2
Discrete Graphic CardIntel Iris Xe Graphics 80EU
Onboard AudioIntegrated
Channel7.1 Channel
LANIntel® Ethernet Controller i226-V
Max LAN Speed2.5Gbps
Wireless LANIntel® Wi-Fi 6E AX211 (Gig+)
Bluetooth5.3
Front USB2x USB 3.2
Front Audio Ports3.5mm headphone/mic jack
Thunderbolt 32x Thunderbolt™ 4
Rear USB2x USB 4 (type C)
RJ451
Input20V
Power Supply120W
Dimensions117 x 111 x 37 [mm] (LxWxH)
Weight1.5kg
PackagingOriginal packaging

Questions about this item

What DDR4 memory speed and maximum capacity do I need to add for the i5-1340P to run?

Install two DDR4-3200 SODIMMs up to 64 GB total; the board has two 288-pin slots and supports dual-channel operation at 1.2 V.

Will my existing SATA SSD work with the M.2 22x42 key B slot on this NUC?

The 22x42 key B slot accepts PCIe x1 Gen 3 devices; a SATA M.2 SSD will not fit electrically, so use the 22x80 key M slot for NVMe or connect a SATA drive via USB 3.2 Gen 2.

How can I verify both Thunderbolt 4 ports deliver 4K at 60 Hz after assembly?

Connect a display to each HDMI 2.1 port; if both show 4K 60 Hz with CEC active, the Thunderbolt 4 alternate-mode paths and the Iris Xe 80 EU graphics are functioning correctly.
